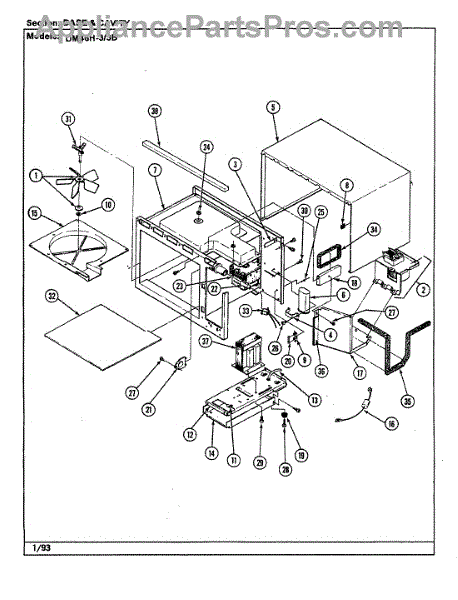

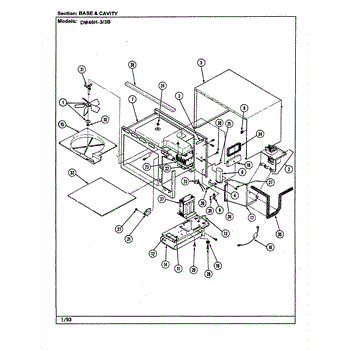

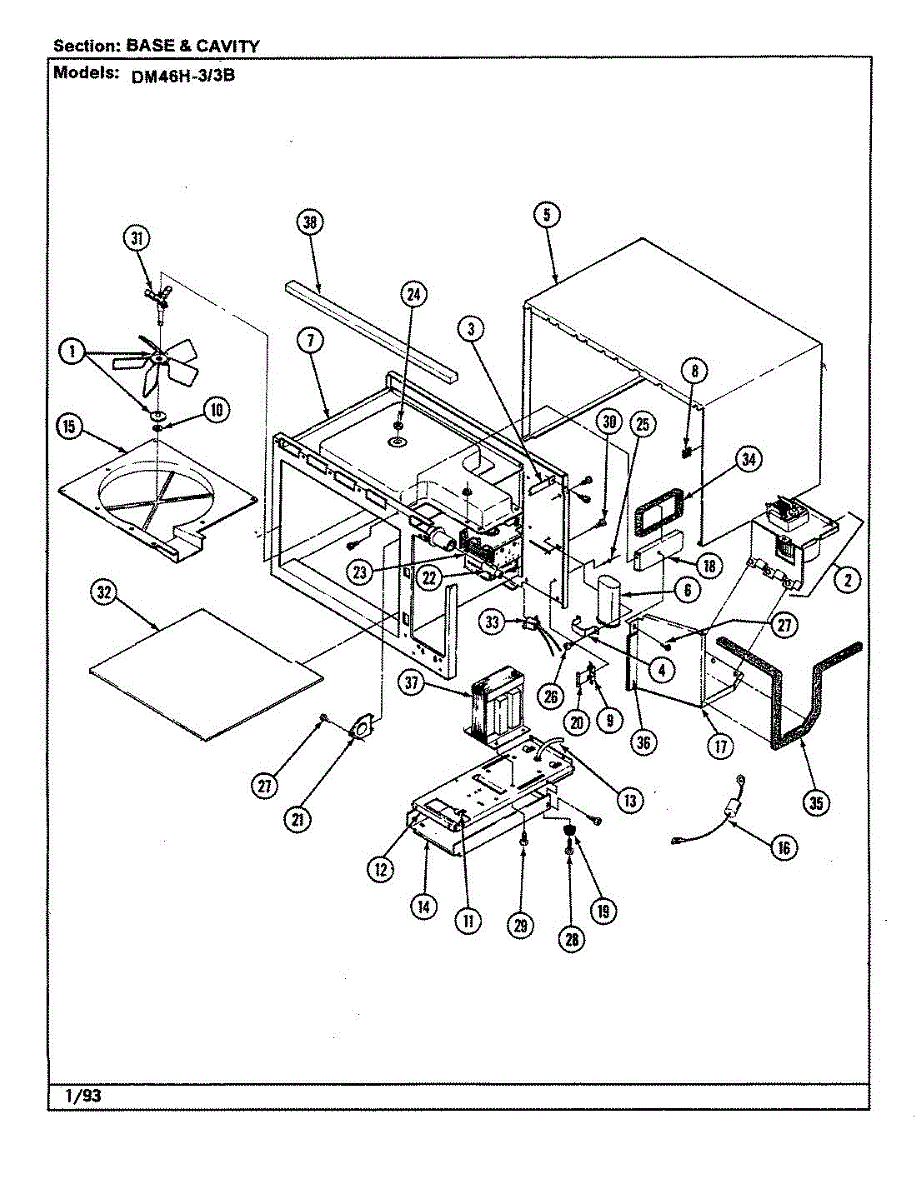

Parts for Maytag DM46H-3B: Base & Cavity Parts

Start New Search

Rv Microwave

Location on Diagram Part Description Price & Availability
1

Blade, Bushing Assembly

by Maytag
Part Number AP184715

  • Not available
2

Motor, Blower

by Maytag
Part Number AP180082

  • Not available
2

Blower Assembly

by Maytag
Part Number AP184716

  • Not available
2

Bracket, Blower Suppo

by Whirlpool
Part Number AP4278724

  • Not available
2

Wheel, Blower

by Whirlpool
Part Number AP4280185

  • Not available
2

Housing-B

by Whirlpool
Part Number AP4280592

  • Not available
3

Brace, Upper Right Support

by Maytag
Part Number AP181278

  • Not available
3

Brace

by Maytag
Part Number AP184663

  • Not available
4

Bracket, Capacitor

by Maytag
Part Number AP181365

  • Not available
5

Cabinet (blk)

by Maytag
Part Number AP181933

  • Not available
6

Resistor, Bleeder

by Maytag
Part Number AP179870

  • Not available
6
Capacitor-.69

Capacitor-.69

by Whirlpool
Part Number AP4064601

Our Price
$57.66
Add to Cart
7

Cavity

by Maytag
Part Number AP184793

  • Not available
8

Clip, Cabinet (lt)

by Maytag
Part Number AP183759

  • Not available
9
Fuse Block

Fuse Block

by Whirlpool
Part Number AP4357456

Our Price
$21.17
Add to Cart
10

Clip, Stirrer

by Maytag
Part Number AP183774

  • Not available
11

Clip, Wire Harness

by Maytag
Part Number AP183744

  • Not available
12

Plate, Comp Mounting

by Maytag
Part Number AP181396

  • Not available
13

Cord, Power (blk)

by Maytag
Part Number AP179966

  • Not available
14

Cover, Comp Mntg

by Maytag
Part Number AP182329

  • Not available
15

Cover-Sti

by Whirlpool
Part Number AP4278889

  • Not available
15

Use Wpl Y03110021

by Whirlpool
Part Number AP4280784

  • Not available
16

Diode Assembly

by Maytag
Part Number AP179892

  • Not available
17

Duct Assembly, Magnet

by Whirlpool
Part Number AP4282973

  • Not available
18

Support, Mag Duct

by Whirlpool
Part Number AP4278878

  • Not available
19

Foot-Base

by Whirlpool
Part Number AP4280599

  • Not available
20
Fuse 15A 250V

Fuse 15A 250V

by Whirlpool
Part Number AP4280181

Our Price
$4.30
Add to Cart
21

Lens-Bulb

by Whirlpool
Part Number AP4280882

  • Not available
22
Bulb

Bulb

by Whirlpool
Part Number AP4117919

 (1)
Our Price
$16.18
Add to Cart
23

MAGNETRON/900 Watts

by Whirlpool
Part Number AP4091945

  • Not available
24

Nut

by Maytag
Part Number AP260777

  • Not available
25

Pop-Rivet

by Whirlpool
Part Number AP4424360

  • Not available
26

Screw

by Whirlpool
Part Number AP4279470

  • Not available
27

Screw

by Maytag
Part Number AP183322

  • Not available
28

Screw

by Maytag
Part Number AP3986460

  • Not available
29

Screw

by Maytag
Part Number AP183321

  • Not available
30

Screw

by Maytag
Part Number AP3981282

  • Not available
31

Stirrer Shaft

by Whirlpool
Part Number AP4540444

  • Not available
32

Plate, Popcorn

by Maytag
Part Number AP181404

  • Not available
32

Shelf, Bottom (plasti

by Whirlpool
Part Number AP4278887

  • Not available
33

Socket, Lamp

by Maytag
Part Number AP180059

  • Not available
33

Switch, Temp Limit

by Maytag
Part Number AP180239

  • Not available
34
Tape, Foam 106"

Tape, Foam 106"

by Whirlpool
Part Number AP4092285

  • Not available
35

Tape, Foam No Longer Available.

by Maytag
Part Number AP182420

  • Not available
36

Tape, Foam

by Maytag
Part Number AP182421

  • Not available
37

Transformer H.v

by Maytag
Part Number AP180151

  • Not available
38

Trim, Exhaust Intake (blk)

by Maytag
Part Number AP181761

  • Not available
39

Bracket, Mounting

by Maytag
Part Number AP181330

  • Not available
39

Trim, Shelf White

by Maytag
Part Number AP181766

  • Not available
39

Trim

by Maytag
Part Number AP181877

  • Not available
39

Screw

by Maytag
Part Number AP183408

  • Not available
39

High Voltage Lead Wire

by Maytag
Part Number AP184890

  • Not available
39

Wire Harness

by Maytag
Part Number AP3445124

  • Not available
39

Wire-H.v.

by Whirlpool
Part Number AP4054563

  • Not available
39
Nut K

Nut K

by Whirlpool
Part Number AP4242962

Our Price
$3.66
Add to Cart
39

Hv Lead Wire (8 ")

by Whirlpool
Part Number AP4283608

  • Not available
39

Screw

by Whirlpool
Part Number AP4292439

  • Not available
39

Clip

by Whirlpool
Part Number AP4422205

  • Not available
