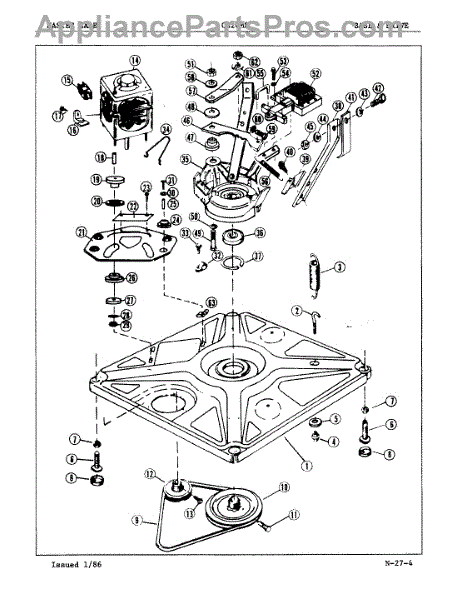

01-Base & Drive Parts for Crosley CW20M8

Start New Search

Washer-Top Loading

Location on Diagram Part Description Price & Availability
1

Base Assembly

by Maytag
Part Number AP288287

  • Not available
2
Eye Bolt

Eye Bolt

by Whirlpool
Part Number AP4033490

Our Price
$3.55
Add to Cart
3

Spring, Suspensn

by Whirlpool
Part Number AP4042238

  • Not available
4

Nut

by Maytag
Part Number AP261000

  • Not available
5

Not Required Part or See Note Stator Assembly

by Maytag
Part Number AP4960360

  • Not available
6

Leveling L

by Whirlpool
Part Number AP4045398

  • Not available
7

Hex Nut

by Maytag
Part Number AP261264

  • Not available
8
Foot & Pad Assembly

Foot & Pad Assembly

by Whirlpool
Part Number AP4034169

Our Price
$7.03
Add to Cart
9
Drive Belt

Drive Belt

by Whirlpool
Part Number AP4045296

  • Not available
10

Drive Pulley

by Maytag
Part Number AP284220

  • Not available
11

Set Screw

by Maytag
Part Number AP260999

  • Not available
12
Motor Pull

Motor Pull

by Whirlpool
Part Number AP4042996

  • Not available
13

Set Screw

by Whirlpool
Part Number AP4034110

  • Not available
14

Motor-Drve

by Whirlpool
Part Number AP4242394

  • Not available
15
Switch, Motor

Switch, Motor

by Whirlpool
Part Number AP4042243

  • Not available
15

Motor Switch

by Whirlpool
Part Number AP4242471

  • Not available
16

Slide, Foot

by Whirlpool
Part Number AP4042246

Our Price
$3.65
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
17
Screw

Screw

by Whirlpool
Part Number AP3081947

Our Price
$4.29
Add to Cart
18
Spacer

Spacer

by Whirlpool
Part Number AP4034130

Our Price
$3.55
Add to Cart
19
Isolator

Isolator

by Whirlpool
Part Number AP4042221

Our Price
$21.33
Add to Cart
20
Washer

Washer

by Whirlpool
Part Number AP4045773

Our Price
$18.86
Add to Cart
21

Motor Plate

by Maytag
Part Number AP284433

  • Not available
22

Slide

by Maytag
Part Number AP284438

  • Not available
23
Screw, #6-32 X 1/4 Inch

Screw, #6-32 X 1/4 Inch

by Whirlpool
Part Number AP4025323

  • Not available
24
Isolator

Isolator

by Whirlpool
Part Number AP4045243

Our Price
$3.65
Add to Cart
25
Spacer

Spacer

by Whirlpool
Part Number AP4035285

Our Price
$1.93
Add to Cart
26
Slide, Motor Pivot

Slide, Motor Pivot

by Whirlpool
Part Number AP4045237

Our Price
$14.82
Add to Cart
27
Washer

Washer

by Whirlpool
Part Number AP4042247

Our Price
$3.55
Add to Cart
28
Flat Washer

Flat Washer

by Whirlpool
Part Number AP4033482

Our Price
$12.61
Add to Cart
29
Use Wpl 3400029

Use Wpl 3400029

by Whirlpool
Part Number AP4294261

  • Not available
30
Washer

Washer

by Whirlpool
Part Number AP4033920

  • Not available
31
Screw

Screw

by Whirlpool
Part Number AP4025100

  • Not available
32

Wiring Clamp

by Maytag
Part Number AP260951

  • Not available
33

Screw

by Maytag
Part Number AP260927

  • Not available
33

Wire Harness Clip

by Whirlpool
Part Number AP2914056

Our Price
$3.25
Add to Cart
34

Spring

by Whirlpool
Part Number AP4045021

Our Price
$18.22
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
35

Susp Housing

by Maytag
Part Number AP284294

  • Not available
36

Bearing

by Whirlpool
Part Number AP4025037

  • Not available
37

Retaining Ring

by Maytag
Part Number AP261234

  • Not available
38

Tub Brace

by Whirlpool
Part Number AP4042698

  • Not available
39

Bracket

by Maytag
Part Number AP284225

  • Not available
40

Screw

by Maytag
Part Number AP260997

  • Not available
40

Not Required Part or See Note Stator Assembly

by Maytag
Part Number AP4960360

  • Not available
41

Bracket

by Whirlpool
Part Number AP4043695

  • Not available
42

Screw

by Maytag
Part Number AP260958

  • Not available
43

Flat Washer

by Maytag
Part Number AP261014

  • Not available
44

Lockwasher

by Maytag
Part Number AP260839

  • Not available
45

Brake Latch Assembly

by Maytag
Part Number AP281902

  • Not available
45

Not Required Part or See Note Stator Assembly

by Maytag
Part Number AP4960360

  • Not available
46

Brake Latch Assembly

by Maytag
Part Number AP281902

  • Not available
47

Brk Ltch Bearng

by Maytag
Part Number AP284452

  • Not available
48

Washer

by Maytag
Part Number AP280992

  • Not available
49

Bolt

by Maytag
Part Number AP261228

  • Not available
50

Not Required Part or See Note Stator Assembly

by Maytag
Part Number AP4960360

  • Not available
51

Nut

by Maytag
Part Number AP260967

  • Not available
52

Brake Sole

by Whirlpool
Part Number AP4044957

  • Not available
53

Screw

by Maytag
Part Number AP261021

  • Not available
54

Not Required Part or See Note Stator Assembly

by Maytag
Part Number AP4960360

  • Not available
55

Brake Latch Assembly

by Maytag
Part Number AP281902

  • Not available
56

Spring

by Maytag
Part Number AP288565

  • Not available
57

Support Brace

by Maytag
Part Number AP284282

  • Not available
58

Flat Washer

by Maytag
Part Number AP261081

  • Not available
59

Screw

by Maytag
Part Number AP260958

  • Not available
60

Flat Washer

by Maytag
Part Number AP261014

  • Not available
61

Lockwasher

by Maytag
Part Number AP260839

  • Not available
62

Hex Nut

by Maytag
Part Number AP261202

  • Not available
63
Speednut

Speednut

by Whirlpool
Part Number AP4034131

  • Not available
