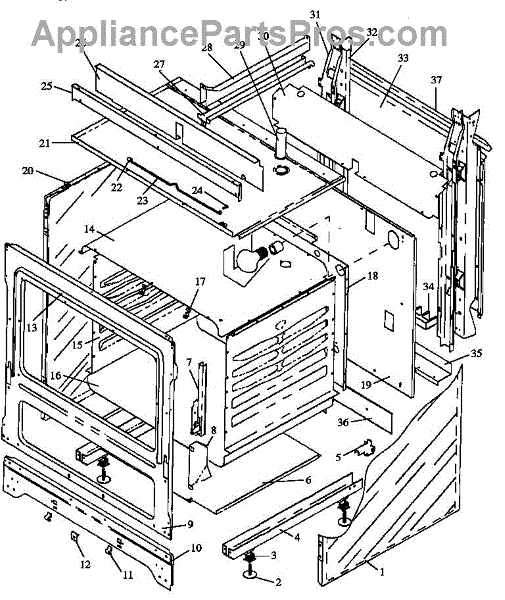

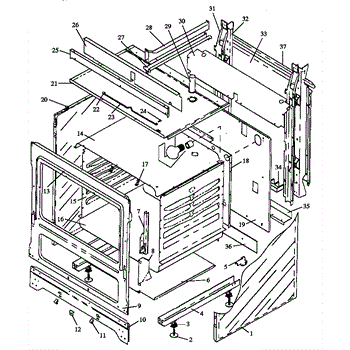

Parts for Amana SNE26AA / P1142424N: Cabinet Section Parts

Start New Search

Range-Electric Std Delaware

Location on Diagram Part Description Price & Availability
1

Panel Side/almnd

by Maytag
Part Number AP76567

  • Not available
1

Panel-R/s-White

by Maytag
Part Number AP76568

  • Not available
2

Leg-Level

by Whirlpool
Part Number AP4272773

  • Not available
3

Snap-in Tee Nut

by Whirlpool
Part Number AP4278638

  • Not available
4

Rail Base

by Maytag
Part Number AP47642

  • Not available
5

Kit, Anti-Tip

by Maytag
Part Number AP47133

  • Not available
6

Support-O

by Whirlpool
Part Number AP4277750

  • Not available
7
Hinge-Ove

Hinge-Ove

by Whirlpool
Part Number AP4288315

  • Not available
8

Shield, Insulation {j}

by Maytag
Part Number AP76582

  • Not available
9

Frame, Front (enamel)

by Maytag
Part Number AP90478

  • Not available
10

Toe Panel (j)

by Maytag
Part Number AP47273

  • Not available
11
Spring Clip

Spring Clip

by Whirlpool
Part Number AP4275197

  • Not available
12

Clip, Bracket

by Whirlpool
Part Number AP4288209

  • Not available
13

Oven Door Seal

by Whirlpool
Part Number AP4041787

  • Not available
14

Top-Oven

by Whirlpool
Part Number AP4288169

  • Not available
15

Liner, Oven Side

by Maytag
Part Number AP144786

  • Not available
16

Liner, Oven Bottom

by Maytag
Part Number AP47271

  • Not available
17
Clip, Capillary

Clip, Capillary

by Maytag
Part Number AP88517

  • Not available
18

Liner, Oven Back

by Whirlpool
Part Number AP4109924

  • Not available
19

Back-Main

by Whirlpool
Part Number AP4285131

  • Not available
20

Bumper-Ov

by Whirlpool
Part Number AP4273396

  • Not available
21

Box, Burner Elec

by Maytag
Part Number AP76570

  • Not available
25

Extension-

by Whirlpool
Part Number AP4286773

  • Not available
26

Cover-Swi

by Whirlpool
Part Number AP4285361

  • Not available
27

Support Wi

by Whirlpool
Part Number AP4285379

  • Not available
28

Channel Wi

by Whirlpool
Part Number AP4286784

  • Not available
29

Tube-Oven

by Whirlpool
Part Number AP4271441

  • Not available
30

Cover-Rea

by Whirlpool
Part Number AP4286774

  • Not available
31

Supt. Main

by Whirlpool
Part Number AP4288233

  • Not available
32

Support, Rear, Vertical {j}

by Maytag
Part Number AP47139

  • Not available
33

Cover-Wir

by Whirlpool
Part Number AP4288148

  • Not available
34
Terminal Block

Terminal Block

by Whirlpool
Part Number AP3841238

Our Price
$9.78
Add to Cart
35

Support, Bottom Wire

by Maytag
Part Number AP47280

  • Not available
36

Support Gl

by Whirlpool
Part Number AP4280498

  • Not available
37

Extension, Rear Cover

by Maytag
Part Number AP76581

  • Not available
NI

Screw (j)

by Maytag
Part Number AP47658

  • Not available
NI
Screw

Screw

by Whirlpool
Part Number AP2930223

Our Price
$1.97
Add to Cart
NI
Screw-Sm

Screw-Sm

by Whirlpool
Part Number AP4081408

Our Price
$1.97
Add to Cart
NI
Screw

Screw

by Whirlpool
Part Number AP4089497

Our Price
$1.93
Add to Cart
NI

Counterwei

by Whirlpool
Part Number AP4285244

  • Not available
