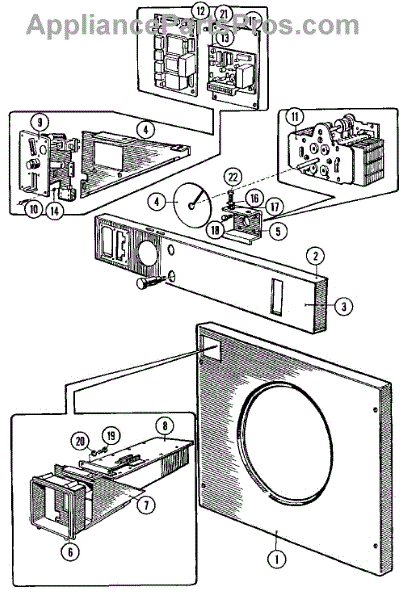

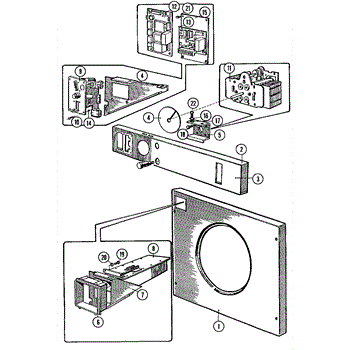

Parts for Maytag MFR25PCAVS: Timer & Coin Assembly (series 10) Parts

Start New Search

Manual, Parts (washer)

Location on Diagram Part Description Price & Availability
001

Front Panel, Vault Box

by Whirlpool
Part Number AP4031351

  • Not available
004

Indicator Disc, Timer

by Whirlpool
Part Number AP4029568

  • Not available
005

Timer, Support

by Whirlpool
Part Number AP4029569

  • Not available
006

Vault, Ornamental

by Whirlpool
Part Number AP4031667

Our Price
$28.09
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
008

Vault, Coin

by Whirlpool
Part Number AP4029649

Our Price
$184.70
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
009

Coin Meter (25 Cents-240V)

by Whirlpool
Part Number AP4028627

  • Not available
009

Coin Meter (25 Cents-115V)

by Whirlpool
Part Number AP4028835

  • Not available
010

Ornamental Screw (M3 X 10)

by Whirlpool
Part Number AP4031285

  • Not available
011
Timer (pr 6023 230V)

Timer (pr 6023 230V)

by Whirlpool
Part Number AP4028628

Our Price
$210.68
Add to Cart
011

Timer (pr 6023-115V)

by Whirlpool
Part Number AP4028836

  • Not available
011

Motor, Timer (230V-Small)

by Whirlpool
Part Number AP4029422

  • Not available
011

Motor, Timer (230V-Large)

by Whirlpool
Part Number AP4029423

  • Not available
012

Coin Counter (w/led Display)

by Whirlpool
Part Number AP4028580

  • Not available
013

Start Relay

by Whirlpool
Part Number AP4028582

  • Not available
013

Not Required Part or See Note Stator Assembly

by Maytag
Part Number AP4960360

  • Not available
014

Nut (M3)

by Whirlpool
Part Number AP4028625

  • Not available
015

No Longer Available

by LG
Part Number AP4447384

  • Not available
016

Washer

by Whirlpool
Part Number AP4031647

  • Not available
017

Washer (dia. 12 X 6.5 X 1.6)

by Whirlpool
Part Number AP4028618

  • Not available
018

Bolt (M4X4)

by Whirlpool
Part Number AP4028583

  • Not available
019

Screw (M4X10)

by Whirlpool
Part Number AP4029570

Our Price
$3.65
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
020

Lock Washer External Teeth M4

by Whirlpool
Part Number AP4029559

  • Not available
021

Screw (M3X6)

by Whirlpool
Part Number AP4031664

Our Price
$15.07
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
022

Bolt (M6 X 16)

by Whirlpool
Part Number AP4031276

  • Not available
023

Pc-Panel Conversion Kit

by Whirlpool
Part Number AP4029859

  • Not available
023

Pc to Panel Conversion (csa)

by Whirlpool
Part Number AP4029882

  • Not available
023

Conversion Kit (mc to Mn)

by Whirlpool
Part Number AP4031279

  • Not available
023

Mc to Mn Convers.(csa)

by Whirlpool
Part Number AP4031584

  • Not available
