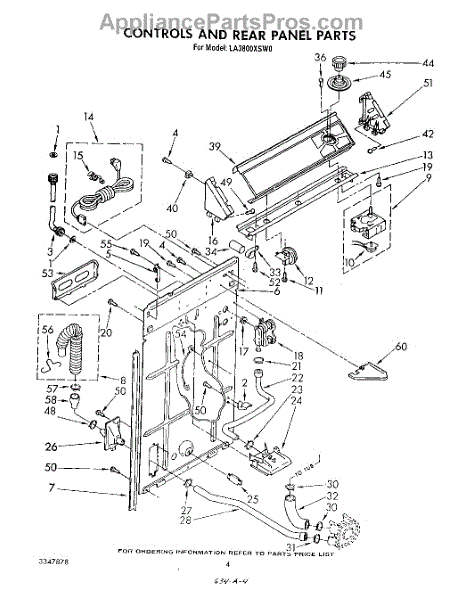

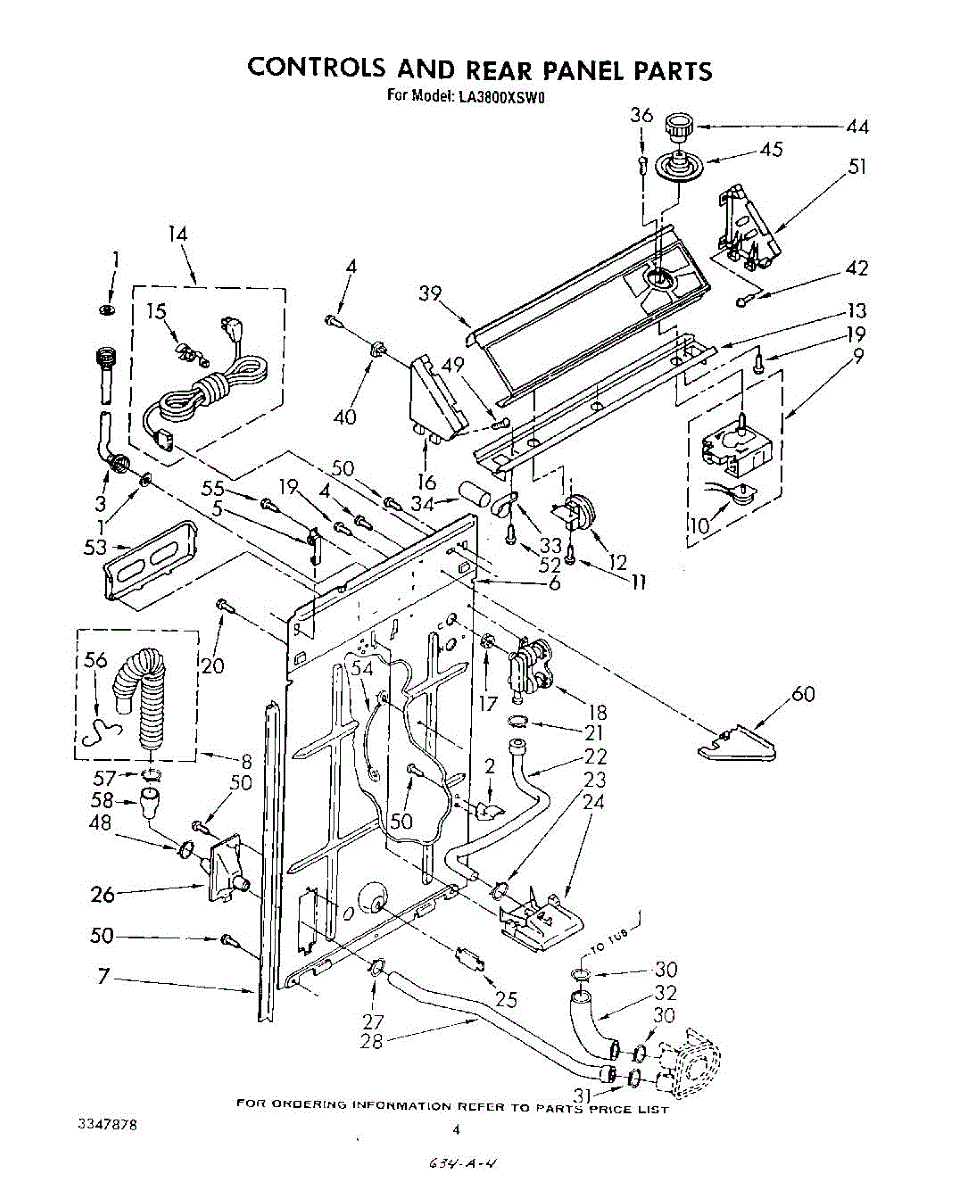

Parts for Whirlpool LA3800XSW0: Controls and Rear Panel Parts

Start New Search



Location on Diagram Part Description Price & Availability
1
Rubber Washer

Rubber Washer

by Whirlpool
Part Number AP3039494

Our Price
$2.80
Add to Cart
2

Pin, Cabinet Guide

by Whirlpool
Part Number AP2905210

  • Not available
3
Fill Hose

Fill Hose

by Whirlpool
Part Number AP3123043

Our Price
$8.99
Add to Cart
4

Screw, Lever to Timer

by Whirlpool
Part Number AP2996969

  • Not available
5
Hinge

Hinge

by Whirlpool
Part Number AP2975929

Our Price
$3.67
Add to Cart
6

Panel-Rear

by Whirlpool
Part Number AP3182799

Our Price
$106.19
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
7
Rear Panel Pad

Rear Panel Pad

by Whirlpool
Part Number AP3020650

Our Price
$22.25
Add to Cart
8
External Drain Hose

External Drain Hose

by Whirlpool
Part Number AP3094496

 (2)
Our Price
$21.11
Add to Cart
8
External Drain Hose

External Drain Hose

by Whirlpool
Part Number AP3094497

Our Price
$39.71
Add to Cart
9
Timer

Timer

by Whirlpool
Part Number AP2906335

  • Not available
10
Motor-Tmr

Motor-Tmr

by Whirlpool
Part Number AP3134952

  • Not available
11
Screw

Screw

by Whirlpool
Part Number AP3127552

 (1)
Our Price
$2.80
Add to Cart
12

Switch, Watr Levl

by Whirlpool
Part Number AP2906336

  • Not available
13

Bracket

by Whirlpool
Part Number AP2906705

  • Not available
14
Power Cord

Power Cord

by Whirlpool
Part Number AP3138837

 (1)
Our Price
$28.25
Add to Cart
15
Strain Reliever

Strain Reliever

by Whirlpool
Part Number AP3094534

Our Price
$2.16
Add to Cart
16

Cap, End (l.h.) (white)

by Whirlpool
Part Number AP2911089

  • Not available
17
Inlet Valve Screen

Inlet Valve Screen

by Whirlpool
Part Number AP2914098

 (2)
Our Price
$3.85
Add to Cart
18
Water Inlet Valve

Water Inlet Valve

by Whirlpool
Part Number AP3094541

 (76)
Our Price
$15.75
Add to Cart
19
Ground Screw

Ground Screw

by Whirlpool
Part Number AP3020444

 (1)
Our Price
$1.97
Add to Cart
20
Screw

Screw

by Whirlpool
Part Number AP3011603

Our Price
$2.46
Add to Cart
21
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP2920314

 (2)
Our Price
$1.97
Add to Cart
22
Vacuum Break Inlet Hose

Vacuum Break Inlet Hose

by Whirlpool
Part Number AP2907478

 (3)
Our Price
$7.86
Add to Cart
23
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP2920314

 (2)
Our Price
$1.97
Add to Cart
24
Vacuum Break

Vacuum Break

by Whirlpool
Part Number AP3096264

 (3)
Our Price
$17.49
Add to Cart
25
Rear Panel Support

Rear Panel Support

by Whirlpool
Part Number AP3080905

Our Price
$21.74
Add to Cart
26
Drain Hose Connector

Drain Hose Connector

by Whirlpool
Part Number AP3128495

Our Price
$22.21
Add to Cart
27
Spring Tension Hose Clamp

Spring Tension Hose Clamp

by Whirlpool
Part Number AP3039180

Our Price
$1.98
Add to Cart
28
Hose, Pump to Drain

Hose, Pump to Drain

by Whirlpool
Part Number AP2906149

 (1)
Our Price
$20.71
Add to Cart
30
Clamp, Hose

Clamp, Hose

by Whirlpool
Part Number AP3043107

Our Price
$3.67
Add to Cart
31
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP2920316

Our Price
$1.97
Add to Cart
32
Tub to Pump Hose

Tub to Pump Hose

by Whirlpool
Part Number AP3094571

 (6)
Our Price
$10.39
Add to Cart
33
Tube Clamp

Tube Clamp

by Whirlpool
Part Number AP2915358

Our Price
$1.97
Add to Cart
34
Capacitor

Capacitor

by Whirlpool
Part Number AP3866194

 (1)
Our Price
$31.30
Add to Cart
36
Screw

Screw

by Whirlpool
Part Number AP2910167

Our Price
$2.45
Add to Cart
39

Panel, Console

by Whirlpool
Part Number AP2906337

  • Not available
40
Nut

Nut

by Whirlpool
Part Number AP2974295

Our Price
$1.98
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
42

Screw

by Whirlpool
Part Number AP3095211

  • Not available
44
Knob, Timer (for White Model)

Knob, Timer (for White Model)

by Whirlpool
Part Number AP2915888

 (4)
Our Price
$16.62
Add to Cart
45
Dial, Timer Washer

Dial, Timer Washer

by Whirlpool
Part Number AP2905249

Our Price
$23.88
Add to Cart
48
Spring Tension Hose Clamp

Spring Tension Hose Clamp

by Whirlpool
Part Number AP3039180

Our Price
$1.98
Add to Cart
49
Console Screw

Console Screw

by Whirlpool
Part Number AP3037951

Our Price
$1.97
Add to Cart
50
Screw

Screw

by Whirlpool
Part Number AP3085356

Our Price
$2.45
Add to Cart
51

Cap, End (r.h.) (white)

by Whirlpool
Part Number AP2911090

  • Not available
52
Screw

Screw

by Whirlpool
Part Number AP3011603

Our Price
$2.46
Add to Cart
53

Rack

by Whirlpool
Part Number AP3082211

  • Not available
54

Wire, Ground

by Whirlpool
Part Number AP2908999

  • Not available
55
Cover Screw

Cover Screw

by Whirlpool
Part Number AP3070701

Our Price
$1.97
Add to Cart
56

Retainer, (drain Hose)

by Whirlpool
Part Number AP2907185

Our Price
$12.85
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
57
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP2920290

Our Price
$2.41
Add to Cart
58
Drain Hose Coupling

Drain Hose Coupling

by Whirlpool
Part Number AP2905482

Our Price
$19.80
Add to Cart
60
Suds Shield

Suds Shield

by Whirlpool
Part Number AP3182389

Our Price
$25.13
Add to Cart
