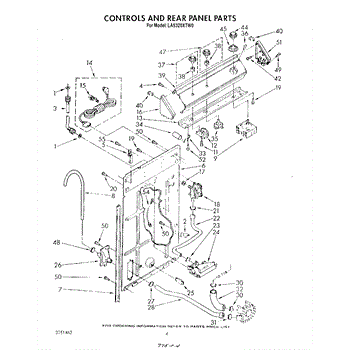

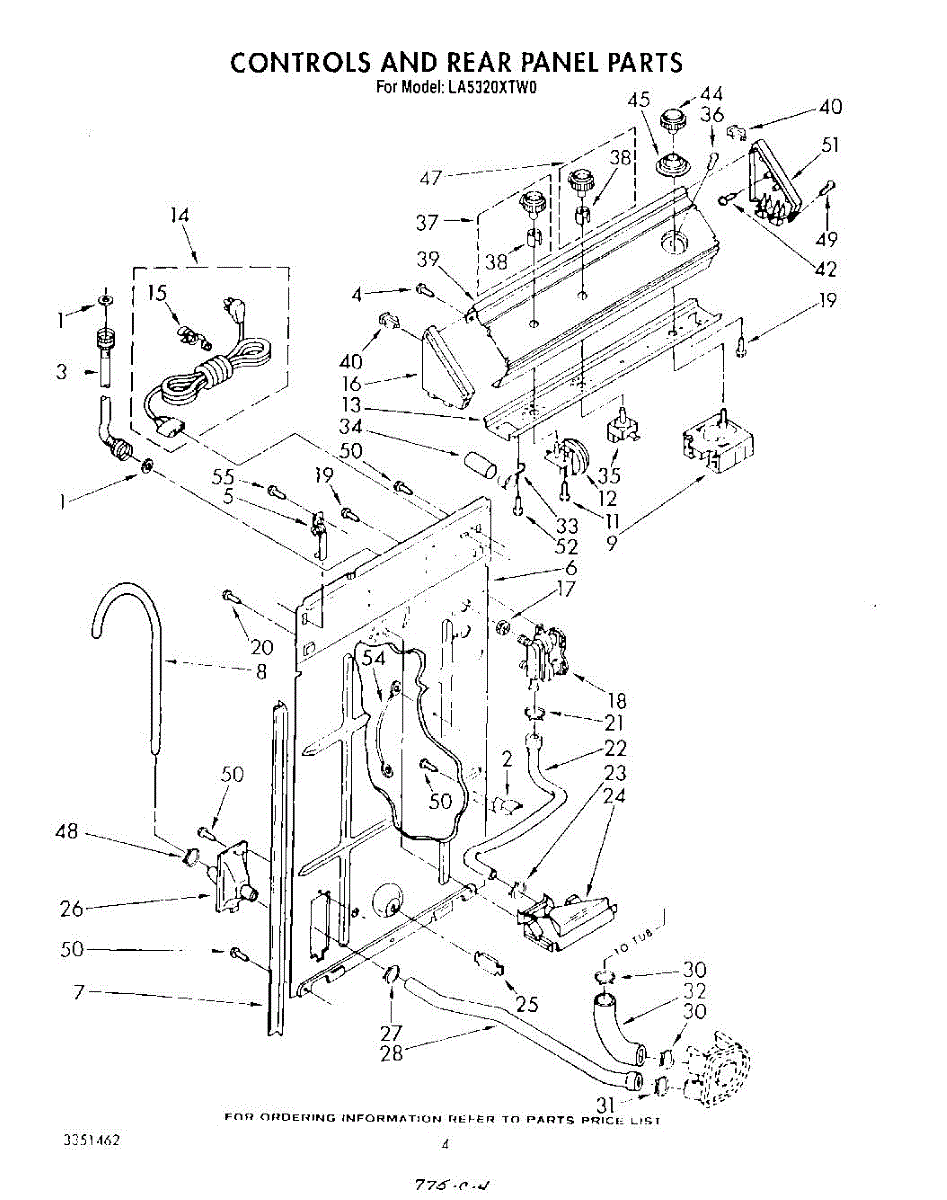

Parts for Whirlpool LA5320XTW0: Controls and Rear Panel Parts

Start New Search



Location on Diagram Part Description Price & Availability
1
Rubber Washer

Rubber Washer

by Whirlpool
Part Number AP3039494

Our Price
$2.80
Add to Cart
2

Pin, Cabinet Guide

by Whirlpool
Part Number AP2905210

  • Not available
3
Fill Hose

Fill Hose

by Whirlpool
Part Number AP3123043

Our Price
$8.64
Add to Cart
4
Screw

Screw

by Whirlpool
Part Number AP3011603

Our Price
$2.35
Add to Cart
5
Hinge

Hinge

by Whirlpool
Part Number AP2975929

Our Price
$3.74
Add to Cart
6

Panel-Rear

by Whirlpool
Part Number AP3182799

Our Price
$106.19
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
7
Rear Panel Pad

Rear Panel Pad

by Whirlpool
Part Number AP3020650

Our Price
$22.25
Add to Cart
8
Drain Hose

Drain Hose

by Whirlpool
Part Number AP3038448

Our Price
$22.72
Add to Cart
9
Timer

Timer

by Whirlpool
Part Number AP3607885

Our Price
$121.13
Add to Cart
11
Screw

Screw

by Whirlpool
Part Number AP3127552

Our Price
$2.80
Add to Cart
12
Switch, Water Level

Switch, Water Level

by Whirlpool
Part Number AP2905388

  • Not available
13

Bracket

by Whirlpool
Part Number AP2906705

  • Not available
14
Power Cord

Power Cord

by Whirlpool
Part Number AP3138837

 (1)
Our Price
$27.53
Add to Cart
15
Strain Reliever

Strain Reliever

by Whirlpool
Part Number AP3094534

Our Price
$2.07
Add to Cart
16
End Cap Kit

End Cap Kit

by Whirlpool
Part Number AP3094490

  • Not available
17
Inlet Valve Screen

Inlet Valve Screen

by Whirlpool
Part Number AP2914098

 (1)
Our Price
$3.68
Add to Cart
18
Water Inlet Valve

Water Inlet Valve

by Whirlpool
Part Number AP3094541

 (38)
Our Price
$15.88
Add to Cart
19
Ground Screw

Ground Screw

by Whirlpool
Part Number AP3020444

Our Price
$1.93
Add to Cart
20
Screw

Screw

by Whirlpool
Part Number AP3011603

Our Price
$2.35
Add to Cart
21
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP2920314

Our Price
$1.93
Add to Cart
22
Vacuum Break Inlet Hose

Vacuum Break Inlet Hose

by Whirlpool
Part Number AP2907478

 (1)
Our Price
$8.48
Add to Cart
23
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP2920314

Our Price
$1.93
Add to Cart
24
Break Vac

Break Vac

by Whirlpool
Part Number AP2905718

 (1)
Our Price
$22.92
Add to Cart
25
Rear Panel Support

Rear Panel Support

by Whirlpool
Part Number AP3080905

Our Price
$20.79
Add to Cart
26
Drain Hose Connector

Drain Hose Connector

by Whirlpool
Part Number AP3128495

Our Price
$21.27
Add to Cart
27
Spring Tension Hose Clamp

Spring Tension Hose Clamp

by Whirlpool
Part Number AP3039180

Our Price
$1.93
Add to Cart
28
Hose, Pump to Drain

Hose, Pump to Drain

by Whirlpool
Part Number AP2906149

Our Price
$20.02
Add to Cart
30
Clamp, Hose

Clamp, Hose

by Whirlpool
Part Number AP3043107

Our Price
$4.25
Add to Cart
31
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP2920316

Our Price
$1.93
Add to Cart
32
Tub to Pump Hose

Tub to Pump Hose

by Whirlpool
Part Number AP3094571

 (1)
Our Price
$10.55
Add to Cart
33
Tube Clamp

Tube Clamp

by Whirlpool
Part Number AP2915358

Our Price
$1.93
Add to Cart
34
Capacitor

Capacitor

by Whirlpool
Part Number AP3866194

 (1)
Our Price
$31.10
Add to Cart
35
Switch-Temp

Switch-Temp

by Whirlpool
Part Number AP2946900

 (1)
Our Price
$37.01
Add to Cart
36
Screw

Screw

by Whirlpool
Part Number AP2910167

Our Price
$2.36
Add to Cart
37
Knob, Water Level

Knob, Water Level

by Whirlpool
Part Number AP2906327

  • Not available
38
Clip

Clip

by Whirlpool
Part Number AP3075388

Our Price
$1.93
Add to Cart
39

Panel, Console

by Whirlpool
Part Number AP2907318

  • Not available
40
Nut

Nut

by Whirlpool
Part Number AP2974295

Our Price
$1.93
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
42

Screw

by Whirlpool
Part Number AP3095211

  • Not available
44
Knob, Timer (for White Model)

Knob, Timer (for White Model)

by Whirlpool
Part Number AP2915888

 (2)
Our Price
$15.91
Add to Cart
45
Dial, Timer Washer

Dial, Timer Washer

by Whirlpool
Part Number AP2905249

Our Price
$24.23
Add to Cart
47
Knob, Water Level

Knob, Water Level

by Whirlpool
Part Number AP2906327

  • Not available
48
Spring Tension Hose Clamp

Spring Tension Hose Clamp

by Whirlpool
Part Number AP3039180

Our Price
$1.93
Add to Cart
49
Console Screw

Console Screw

by Whirlpool
Part Number AP3037951

Our Price
$1.93
Add to Cart
50
Screw

Screw

by Whirlpool
Part Number AP3085356

Our Price
$2.36
Add to Cart
51
End Cap Kit

End Cap Kit

by Whirlpool
Part Number AP3094490

  • Not available
52
Screw

Screw

by Whirlpool
Part Number AP3011603

Our Price
$2.35
Add to Cart
54

Wire, Ground

by Whirlpool
Part Number AP2908999

  • Not available
55
Cover Screw

Cover Screw

by Whirlpool
Part Number AP3070701

Our Price
$1.93
Add to Cart
