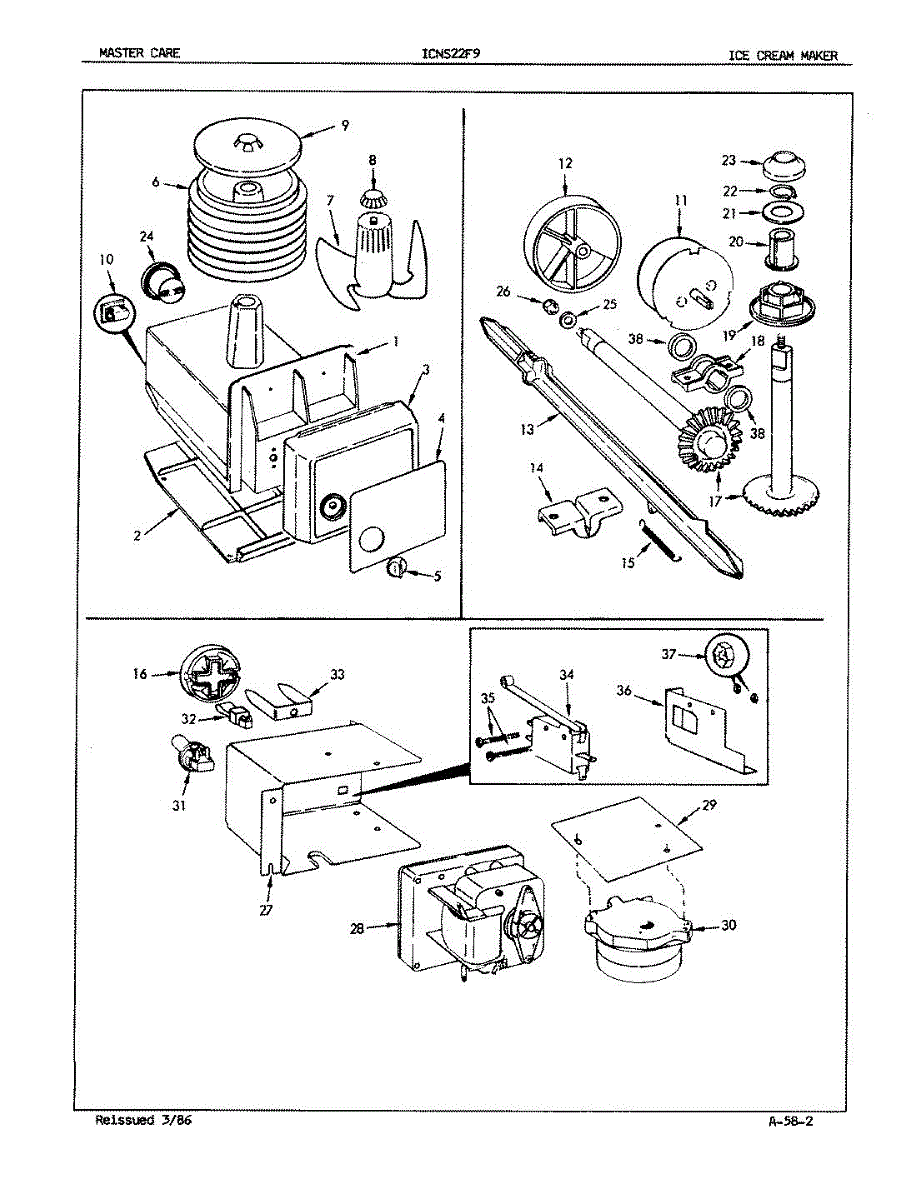

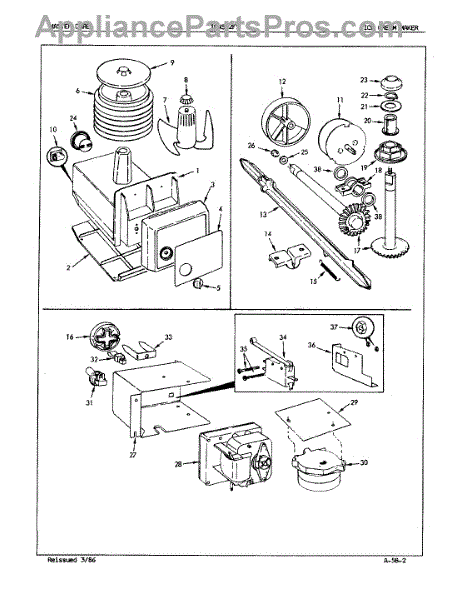

03-Ice Cream Maker Parts for Admiral ICNS22F9H / 5L47B

Start New Search

Ref-SXS/I&W

Location on Diagram Part Description Price & Availability
1

Base

by Maytag
Part Number AP348369

  • Not available
2

Screw

by Maytag
Part Number AP296652

  • Not available
2

Bottom Base

by Maytag
Part Number AP350796

  • Not available
3

Base Front

by Maytag
Part Number AP348372

  • Not available
3

Screw-Tc

by Whirlpool
Part Number AP4243260

  • Not available
4

Insert

by Maytag
Part Number AP349120

  • Not available
5

Timer Knob

by Maytag
Part Number AP348376

  • Not available
6

Cannister

by Maytag
Part Number AP348368

  • Not available
7

Stirrer

by Maytag
Part Number AP348374

  • Not available
8

Stirrer Knob

by Maytag
Part Number AP348396

  • Not available
9

Cannister Lid

by Maytag
Part Number AP348364

  • Not available
10

Latch

by Whirlpool
Part Number AP4073571

  • Not available
11

Screw

by Maytag
Part Number AP297337

  • Not available
11

Timer, Mechanical

by Maytag
Part Number AP349242

  • Not available
12

Timer Cam

by Maytag
Part Number AP348359

  • Not available
13

Plunger

by Maytag
Part Number AP348361

  • Not available
14

Bracket

by Maytag
Part Number AP348365

  • Not available
14
Screw

Screw

by Whirlpool
Part Number AP3040180

Our Price
$1.93
Add to Cart
15

Spring

by Maytag
Part Number AP348393

  • Not available
16

Bushing, Plunger Guide

by Maytag
Part Number AP348730

  • Not available
17

Gear & Shaft Assembly

by Maytag
Part Number AP348358

  • Not available
18

Bearing Horizontal

by Maytag
Part Number AP348362

  • Not available
18
Screw

Screw

by Whirlpool
Part Number AP3040180

Our Price
$1.93
Add to Cart
19

Bearing, Lower Vertical

by Maytag
Part Number AP348360

  • Not available
20

Bearing, Upper Vertical

by Maytag
Part Number AP348363

  • Not available
21

Washer

by Maytag
Part Number AP299695

  • Not available
22
Retaining Clip

Retaining Clip

by Whirlpool
Part Number AP3038076

Our Price
$1.93
Add to Cart
23

Seal

by Maytag
Part Number AP348792

  • Not available
24

Drive Ring

by Maytag
Part Number AP348728

  • Not available
25

Washer

by Maytag
Part Number AP299674

  • Not available
26

Locknut

by Maytag
Part Number AP300901

  • Not available
27

Box, Auger Motor

by Maytag
Part Number AP348826

  • Not available
28

Screw

by Maytag
Part Number AP297182

  • Not available
28
Assy, Auger Motor/yoke

Assy, Auger Motor/yoke

by Whirlpool
Part Number AP4009036

Our Price
$100.52
Add to Cart
29

Insulation, Motor Control

by Maytag
Part Number AP348394

  • Not available
30

Screw

by Maytag
Part Number AP297199

  • Not available
30

Control, Auger Motor

by Maytag
Part Number AP348379

  • Not available
31
Switch, Door Ajar

Switch, Door Ajar

by Whirlpool
Part Number AP4063660

  • Not available
32

Strike

by Maytag
Part Number AP348745

  • Not available
33
Yoke, Ice Dispenser

Yoke, Ice Dispenser

by Whirlpool
Part Number AP4072309

Our Price
$19.79
Add to Cart
34

Switch, 2 Circuit

by Maytag
Part Number AP349127

  • Not available
35

Wire Harness

by Maytag
Part Number AP349132

  • Not available
35

Screw

by Maytag
Part Number AP369279

  • Not available
36

Bracket

by Maytag
Part Number AP349129

  • Not available
37

Nut

by Maytag
Part Number AP300873

  • Not available
38
Shim-Non

Shim-Non

by Whirlpool
Part Number AP4242864

Our Price
$3.52
Add to Cart
