03-Oven, Microwave Parts for Amana 610.000

Start New Search

Mwave-Family Size (60 Hz)

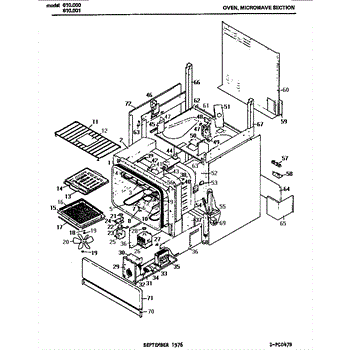

Location on Diagram Part Description Price & Availability
1

Discontinued

by Maytag
Part Number AP3912542

  • Not available
2

Not Available

by Maytag
Part Number AP39574

  • Not available
3

Screw

by Maytag
Part Number AP38139

  • Not available
3

Use M61D 42

by Maytag
Part Number AP38389

  • Not available
3

Element, Broil

by Whirlpool
Part Number AP4247084

  • Not available
4

Screw

by Maytag
Part Number AP38139

  • Not available
4

Bracket

by Maytag
Part Number AP166248

  • Not available
5

Screw

by Maytag
Part Number AP38139

  • Not available
5

No Longer Available

by Whirlpool
Part Number AP4243684

  • Not available
6

Screw

by Maytag
Part Number AP38139

  • Not available
6

Frame

by Maytag
Part Number AP166880

  • Not available
7

Globe

by Mac
Part Number AP3158373

  • Not available
8

Screw

by Maytag
Part Number AP38139

  • Not available
8

Clip,

by Maytag
Part Number AP38151

  • Not available
9

Use M 1D695

by Maytag
Part Number AP38159

  • Not available
10

Screw

by Maytag
Part Number AP38139

  • Not available
10

Heat Deflector Brkt.

by Maytag
Part Number AP38158

  • Not available
11

Rack

by Maytag
Part Number AP2523804

  • Not available
12

Tray, Mcrowv

by Maytag
Part Number AP161523

  • Not available
13
Broil Pan Set

Broil Pan Set

by Whirlpool
Part Number AP3837379

Our Price
$18.00
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
14

Use M67D 28

by Maytag
Part Number AP38157

  • Not available
15

Screw-Frame Mounting

by Maytag
Part Number AP38756

  • Not available
15

Trim, Bezel Kit

by Maytag
Part Number AP114736

  • Not available
16

Shelf

by Maytag
Part Number AP38757

  • Not available
17

Gasket

by Maytag
Part Number AP39577

  • Not available
18

.156 Dia Push on Clip

by Maytag
Part Number AP165588

  • Not available
19

Washer, Stirrer

by Maytag
Part Number AP166352

  • Not available
20

Stirrer Conv Kit

by Maytag
Part Number AP115888

  • Not available
21

M2D264 Stirrer Disc

by Maytag
Part Number AP3494289

  • Not available
22

Retainer

by Maytag
Part Number AP39579

  • Not available
23

Stirrer Motor

by Maytag
Part Number AP39580

  • Not available
24

Discontinued

by Maytag
Part Number AP10941

  • Not available
24

Use M85D 39

by Maytag
Part Number AP39581

  • Not available
25

Discontinued

by Maytag
Part Number AP10941

  • Not available
25

Use M85D 39

by Maytag
Part Number AP39582

  • Not available
26

Use M1 D619

by Maytag
Part Number AP7807

  • Not available
26

Washer

by Maytag
Part Number AP10677

  • Not available
26

Magnetron

by Acp
Part Number AP4314861

  • Not available
27

Therm Protec

by Maytag
Part Number AP2529684

  • Not available
27
Nut 1 4-20

Nut 1 4-20

by Whirlpool
Part Number AP4086933

  • Not available
28

R F Gasket

by Maytag
Part Number AP9170

  • Not available
29

Discontinued

by Maytag
Part Number AP10941

  • Not available
29

Not Available

by Maytag
Part Number AP39584

  • Not available
30

Blower Motor Kit

by Maytag
Part Number AP9162

  • Not available
30

#8 Hi-Lo X 1/2" Screw

by Maytag
Part Number AP165826

  • Not available
31

Component Tray

by Acp
Part Number AP4314928

  • Not available
32
Hex Nut

Hex Nut

by Whirlpool
Part Number AP3126895

Our Price
$1.93
Add to Cart
32
Kit-Diode

Kit-Diode

by Whirlpool
Part Number AP4243629

  • Not available
33

Capacitor

by Maytag
Part Number AP164338

  • Not available
34

Capacitor Bracket

by Maytag
Part Number AP9106

  • Not available
34
Hex Nut

Hex Nut

by Whirlpool
Part Number AP3126895

Our Price
$1.93
Add to Cart
35

#10-32 Flange Whiz-Lk Nut

by Whirlpool
Part Number AP4054080

  • Not available
35

Kit-Trans

by Whirlpool
Part Number AP4243683

  • Not available
36

Discontinued

by Maytag
Part Number AP10941

  • Not available
36

Not Available

by Maytag
Part Number AP39587

  • Not available
37

Discontinued

by Maytag
Part Number AP10941

  • Not available
37

Not Available

by Maytag
Part Number AP39588

  • Not available
38

See Note Rear Frame

by Maytag
Part Number AP4960431

  • Not available
39

See Note Rear Frame

by Maytag
Part Number AP4960431

  • Not available
40

See Note Rear Frame

by Maytag
Part Number AP4960431

  • Not available
41
Light Bulb

Light Bulb

by Whirlpool
Part Number AP3607217

Our Price
$1.49
Add to Cart
42

Socket Oven

by Maytag
Part Number AP166329

  • Not available
43

Housing Frame

by Maytag
Part Number AP38772

  • Not available
44

Screw

by Maytag
Part Number AP38139

  • Not available
44

Vent Housing Assembly

by Maytag
Part Number AP39589

  • Not available
45

Discontinued

by Maytag
Part Number AP10941

  • Not available
45

Shield

by Maytag
Part Number AP39590

  • Not available
46

Discontinued

by Maytag
Part Number AP10941

  • Not available
46

Washer

by Maytag
Part Number AP38774

  • Not available
46

Strike Assembly

by Maytag
Part Number AP82391

  • Not available
46

Ia Clip

by Maytag
Part Number AP166129

  • Not available
47

Switch

by Maytag
Part Number AP82390

  • Not available
47

#4-40 Pan Head Machine Screw

by Maytag
Part Number AP164965

  • Not available
47

#4-40 Twin Whiz-Lock

by Acp
Part Number AP4312314

  • Not available
48

Discontinued

by Maytag
Part Number AP10941

  • Not available
48

Washer

by Maytag
Part Number AP38774

  • Not available
48

Use M85D 44

by Maytag
Part Number AP39652

  • Not available
48

Ia Clip

by Maytag
Part Number AP166129

  • Not available
49

Cover

by Maytag
Part Number AP39655

  • Not available
49

Strike Assembly Kit

by Maytag
Part Number AP115892

  • Not available
49

#4-40 Pan Head Machine Screw

by Maytag
Part Number AP164965

  • Not available
49

#4-40 Twin Whiz-Lock

by Acp
Part Number AP4312314

  • Not available
50

Oven Light Cover

by Maytag
Part Number AP38787

  • Not available
51

Not Available

by Maytag
Part Number AP39592

  • Not available
52

Not Available

by Maytag
Part Number AP38141

  • Not available
53

Oven Spring

by Maytag
Part Number AP38143

  • Not available
54

Screw

by Maytag
Part Number AP7447

  • Not available
54

Screw

by Maytag
Part Number AP38139

  • Not available
54

Washer Cup

by Maytag
Part Number AP165339

  • Not available
54

No Longer Available

by Maytag
Part Number AP3504496

  • Not available
55

Bracket-

by Maytag
Part Number AP166539

  • Not available
55

#10 T X 3/8" Screw

by Acp
Part Number AP4312198

  • Not available
56

Pin

by Maytag
Part Number AP38792

  • Not available
56

Nut K

by Whirlpool
Part Number AP4242962

Our Price
$3.31
Add to Cart
57

Screw

by Maytag
Part Number AP38793

  • Not available
57

Terminal

by Maytag
Part Number AP166684

  • Not available
57
Terminal Block

Terminal Block

by Whirlpool
Part Number AP3841238

Our Price
$12.54
Add to Cart
58

Not Available

by Maytag
Part Number AP9082

  • Not available
58

Discontinued

by Maytag
Part Number AP10941

  • Not available
59

Discontinued

by Maytag
Part Number AP10941

  • Not available
59

Use M20D 73 Assembly

by Maytag
Part Number AP38794

  • Not available
60

Discontinued

by Maytag
Part Number AP10941

  • Not available
60

Not Available

by Maytag
Part Number AP38432

  • Not available
61

Discontinued

by Maytag
Part Number AP10941

  • Not available
61

Not Available

by Maytag
Part Number AP38795

  • Not available
62

Discontinued

by Maytag
Part Number AP10941

  • Not available
62

Not Available

by Maytag
Part Number AP39593

  • Not available
63

Discontinued

by Maytag
Part Number AP10941

  • Not available
63

Support Bracket

by Maytag
Part Number AP38982

  • Not available
64

Discontinued

by Maytag
Part Number AP10941

  • Not available
64

Not Available

by Maytag
Part Number AP39594

  • Not available
65

Discontinued

by Maytag
Part Number AP10941

  • Not available
65

Not Available

by Maytag
Part Number AP39595

  • Not available
66

Discontinued

by Maytag
Part Number AP10941

  • Not available
66

Not Available

by Maytag
Part Number AP38797

  • Not available
67

Discontinued

by Maytag
Part Number AP10941

  • Not available
67

Frame Assembly-Rt

by Maytag
Part Number AP38798

  • Not available
68

Foot

by Maytag
Part Number AP38425

  • Not available
69

Discontinued

by Maytag
Part Number AP10941

  • Not available
69

Not Available

by Maytag
Part Number AP38173

  • Not available
70

Discontinued

by Maytag
Part Number AP10941

  • Not available
70

Not Available

by Maytag
Part Number AP38799

  • Not available
71

Panel

by Maytag
Part Number AP38800

  • Not available
71

Not Available

by Maytag
Part Number AP38801

  • Not available
71

Panel

by Acp
Part Number AP4315006

  • Not available
71

Panel

by Acp
Part Number AP4315007

  • Not available
71
Screw

Screw

by Whirlpool
Part Number AP4926952

Our Price
$3.70
Add to Cart
72

Discontinued

by Maytag
Part Number AP10941

  • Not available
72

Not Available

by Maytag
Part Number AP38175

  • Not available
72

Not Available

by Maytag
Part Number AP38426

  • Not available
72

Lower Panel Avoc

by Maytag
Part Number AP38427

  • Not available
72

Not Available

by Maytag
Part Number AP38428

  • Not available
72
Screw

Screw

by Whirlpool
Part Number AP4926952

Our Price
$3.70
Add to Cart
