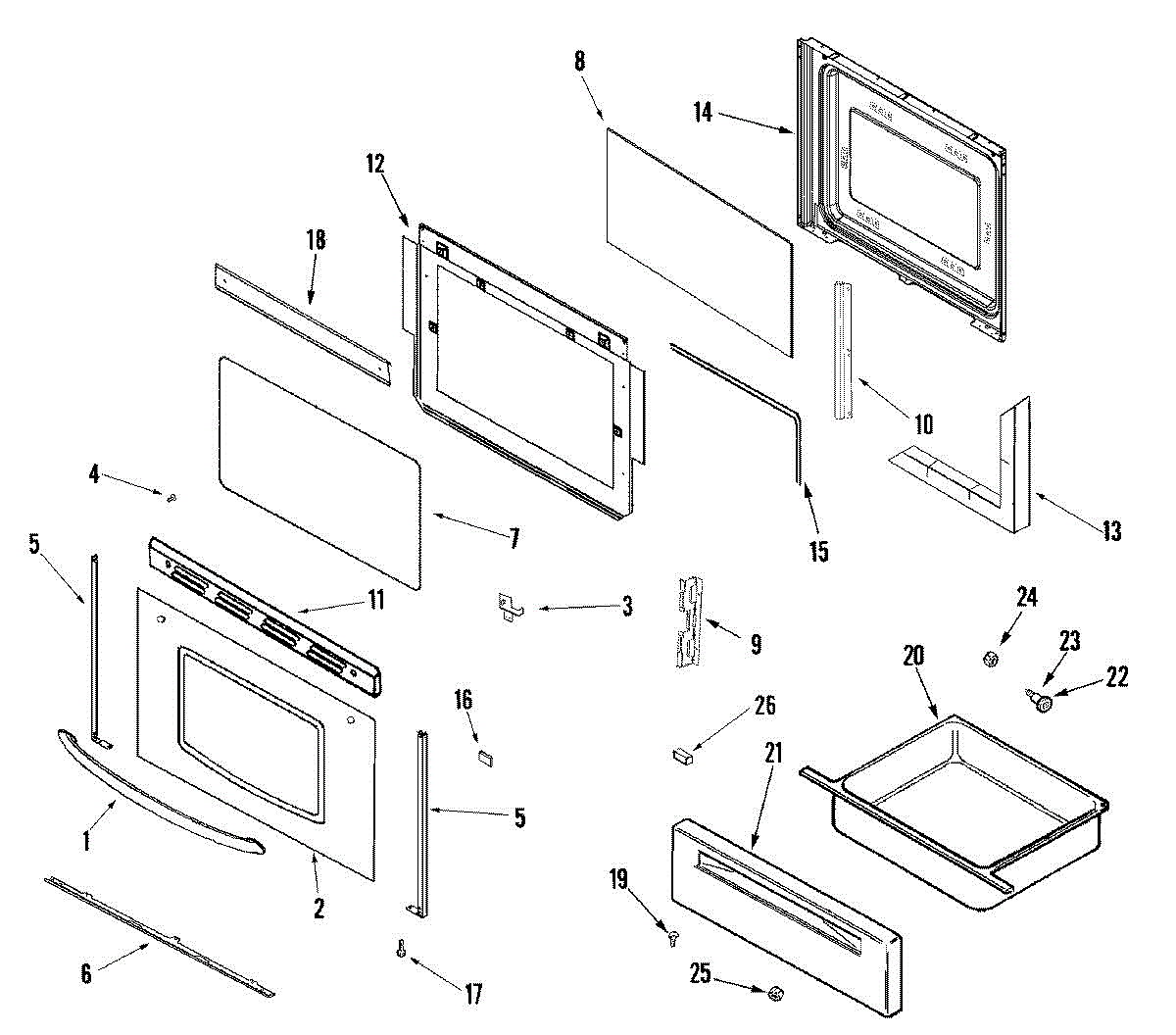

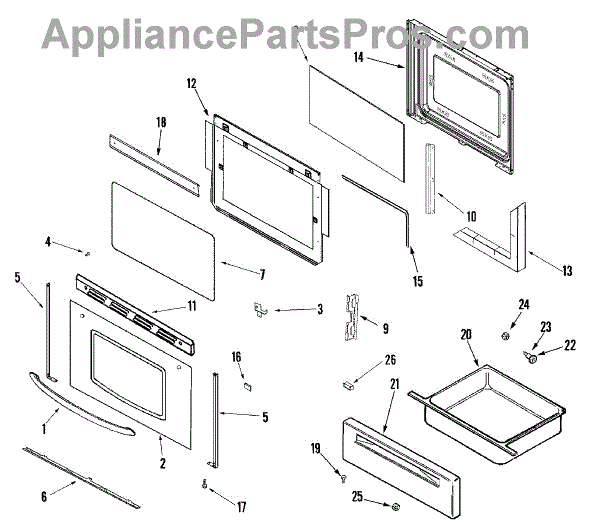

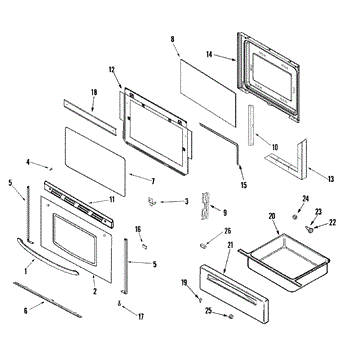

Parts for Admiral LER3330AAZ: Door / Drawer (series 15) Parts

Start New Search

Range-S/c F/s Ele

Location on Diagram Part Description Price & Availability
1
Door Handle

Door Handle

by Whirlpool
Part Number AP4099491

Our Price
$60.18
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
2

Tape, Foil 29" X 2" No Longer Available.

by Maytag
Part Number AP375533

  • Not available
2

Door Glass Assy. (stl

by Whirlpool
Part Number AP4101165

  • Not available
3
Screw

Screw

by Whirlpool
Part Number AP3040180

 (2)
Our Price
$1.98
Add to Cart
3
Screw, Ground

Screw, Ground

by Whirlpool
Part Number AP4089877

Our Price
$4.48
Add to Cart
3
Bracket

Bracket

by Whirlpool
Part Number AP4395006

Our Price
$3.67
Add to Cart
3
Bracket

Bracket

by Whirlpool
Part Number AP4395370

Our Price
$3.67
Add to Cart
4
Screw

Screw

by Whirlpool
Part Number AP4095778

 (1)
Our Price
$1.98
Add to Cart
5
Tape, Single Sided

Tape, Single Sided

by Whirlpool
Part Number AP4296708

Our Price
$28.07
Add to Cart
5

Trim-Door

by Whirlpool
Part Number AP4395196

Our Price
$21.99
Add to Cart
5

Trim-Door

by Whirlpool
Part Number AP4395248

Our Price
$22.06
Add to Cart
6
Support

Support

by Whirlpool
Part Number AP4416977

Our Price
$39.97
Add to Cart
7
Door Glass

Door Glass

by Whirlpool
Part Number AP4094490

Our Price
$59.17
Add to Cart
8
Inner Door Glass

Inner Door Glass

by Whirlpool
Part Number AP4093513

 (4)
Our Price
$51.23
Add to Cart
9
Screw

Screw

by Whirlpool
Part Number AP3040180

 (2)
Our Price
$1.98
Add to Cart
9
Retainer

Retainer

by Whirlpool
Part Number AP4428171

  • Not available
10
Bracket, Inner Glass

Bracket, Inner Glass

by Whirlpool
Part Number AP4100193

  • Not available
11

Trim-Door

by Whirlpool
Part Number AP4428351

Our Price
$17.84
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
12
Screw

Screw

by Whirlpool
Part Number AP4089497

Our Price
$1.93
Add to Cart
12

Oven Door Baffle

by Whirlpool
Part Number AP4416937

Our Price
$24.57
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
13

Insulation, Door

by Whirlpool
Part Number AP4653124

  • Not available
14
Snap Nut

Snap Nut

by Whirlpool
Part Number AP4092165

Our Price
$1.98
Add to Cart
14
Door Lining

Door Lining

by Whirlpool
Part Number AP4420187

Our Price
$92.69
Add to Cart
15
Oven Door Gasket

Oven Door Gasket

by Whirlpool
Part Number AP4356159

 (15)
Our Price
$29.99
Add to Cart
16
Spacer-Ru

Spacer-Ru

by Whirlpool
Part Number AP4101021

Our Price
$3.68
Add to Cart
17
Screw

Screw

by Whirlpool
Part Number AP3742939

Our Price
$2.03
Add to Cart
18

Shield, Door Heat

by Whirlpool
Part Number AP4100127

  • Not available
19
Screw

Screw

by Whirlpool
Part Number AP4089524

Our Price
$1.97
Add to Cart
20
Drawer, Storage

Drawer, Storage

by Whirlpool
Part Number AP4098635

Our Price
$128.25
Add to Cart
21

Drawer Panel Assy. (s

by Whirlpool
Part Number AP4100137

  • Not available
22
Roller, Drawer

Roller, Drawer

by Whirlpool
Part Number AP4093741

Our Price
$4.34
Add to Cart
23
Shaft, Storage Drawer Roller

Shaft, Storage Drawer Roller

by Whirlpool
Part Number AP4094581

Our Price
$4.32
Add to Cart
24
Hex Nut

Hex Nut

by Whirlpool
Part Number AP3126895

Our Price
$1.97
Add to Cart
25
Nut, Lock

Nut, Lock

by Whirlpool
Part Number AP4310670

Our Price
$3.67
Add to Cart
26
Spacer, Rubber

Spacer, Rubber

by Whirlpool
Part Number AP4094948

Our Price
$4.47
Add to Cart
