Parts for Amana ARG7102L / P1143370N L: Main Top Parts

Start New Search

Range-S/c S/i Ddraft Gas

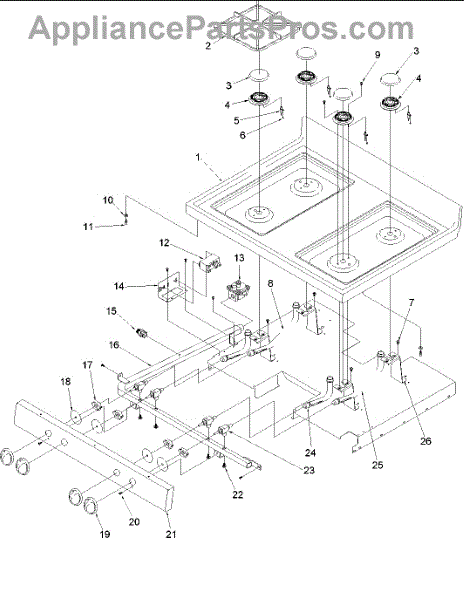

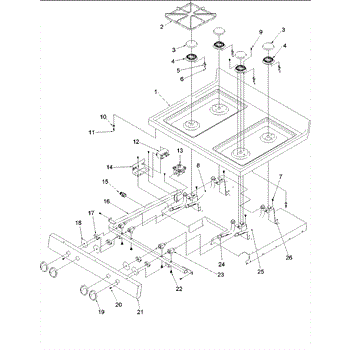

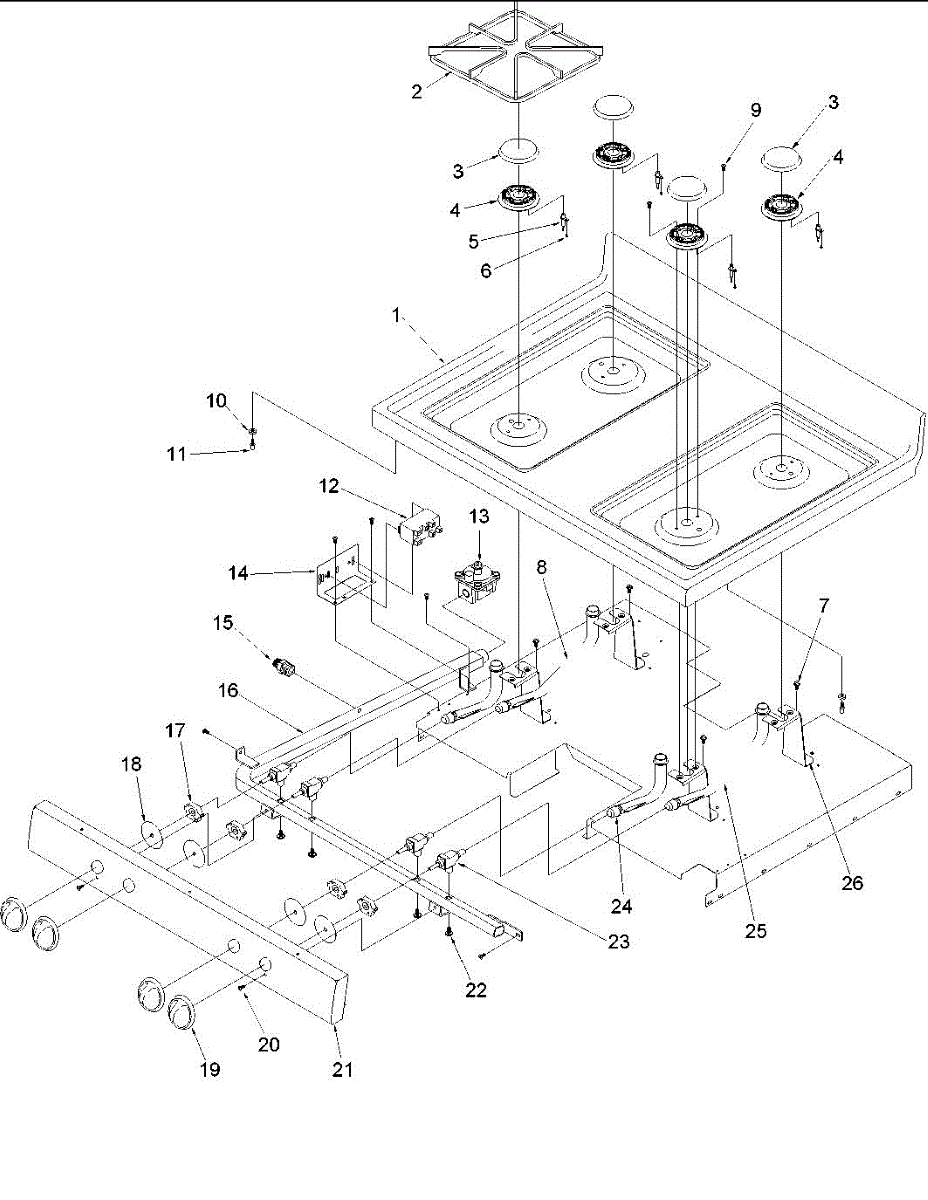

Location on Diagram Part Description Price & Availability
1

Main Top (almond)

by Whirlpool
Part Number AP4039099

  • Not available
2

Grate-Bur

by Whirlpool
Part Number AP4039129

  • Not available
3
Burner Cap

Burner Cap

by Whirlpool
Part Number AP4040627

Our Price
$23.40
Add to Cart
4
Top Burner (medium 9K

Top Burner (medium 9K

by Whirlpool
Part Number AP4283177

 (1)
Our Price
$32.34
Add to Cart
5
Top Burner Igniter

Top Burner Igniter

by Whirlpool
Part Number AP4283295

Our Price
$13.89
Add to Cart
6
Bolt (M3 X 6)

Bolt (M3 X 6)

by Whirlpool
Part Number AP4028643

Our Price
$1.97
Add to Cart
7
Screw, 8-18 X 5/8

Screw, 8-18 X 5/8

by Whirlpool
Part Number AP3136083

Our Price
$2.80
Add to Cart
8

Tube, Venturi-L. Rea

by Maytag
Part Number AP159829

  • Not available
9
Screw

Screw

by Whirlpool
Part Number AP4283490

Our Price
$4.29
Add to Cart
10

Spacer, Nylon (.14")

by Whirlpool
Part Number AP4272743

  • Not available
11
Screw

Screw

by Whirlpool
Part Number AP3891679

Our Price
$18.22
Add to Cart
12
Module W/bracket

Module W/bracket

by Whirlpool
Part Number AP4041505

 (1)
Our Price
$70.73
Add to Cart
13

Regulator, Pressure

by Maytag
Part Number AP4965849

  • Not available
14

Bracket

by Whirlpool
Part Number AP4261202

Our Price
$17.84
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
15

Fitting-1

by Whirlpool
Part Number AP4277716

  • Not available
16

Pipe-Mani

by Whirlpool
Part Number AP4282627

  • Not available
17
Switch, Spark

Switch, Spark

by Whirlpool
Part Number AP4283282

  • Not available
18

Shield-Sw

by Whirlpool
Part Number AP4282650

  • Not available
19
Knob-Top

Knob-Top

by Whirlpool
Part Number AP4041121

  • Not available
20

Screw, 8-18 X .500 B

by Whirlpool
Part Number AP4040833

  • Not available
21

Pnl, Manifold (black)

by Maytag
Part Number AP93791

  • Not available
22
Screw

Screw

by Whirlpool
Part Number AP3081833

Our Price
$1.97
Add to Cart
23
90 Degree Valve

90 Degree Valve

by Whirlpool
Part Number AP4246869

  • Not available
24

Tube-Vent

by Whirlpool
Part Number AP4041180

  • Not available
25

Tube, Venturi-R. Rea

by Maytag
Part Number AP159830

  • Not available
26

Brkt-Vent

by Whirlpool
Part Number AP4284488

  • Not available
NI

Clip, Tinnerman

by Maytag
Part Number AP92880

  • Not available
NI
Harness, Ign Wire 20"

Harness, Ign Wire 20"

by Whirlpool
Part Number AP4041273

  • Not available
NI
Harness-I

Harness-I

by Whirlpool
Part Number AP4041754

  • Not available
