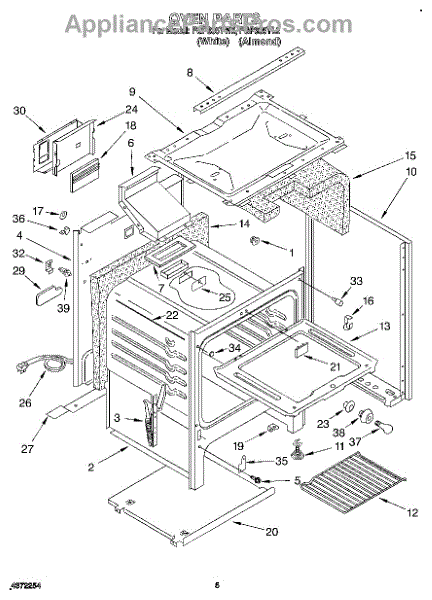

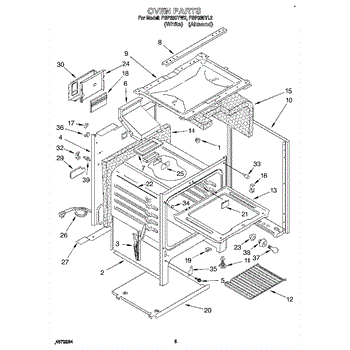

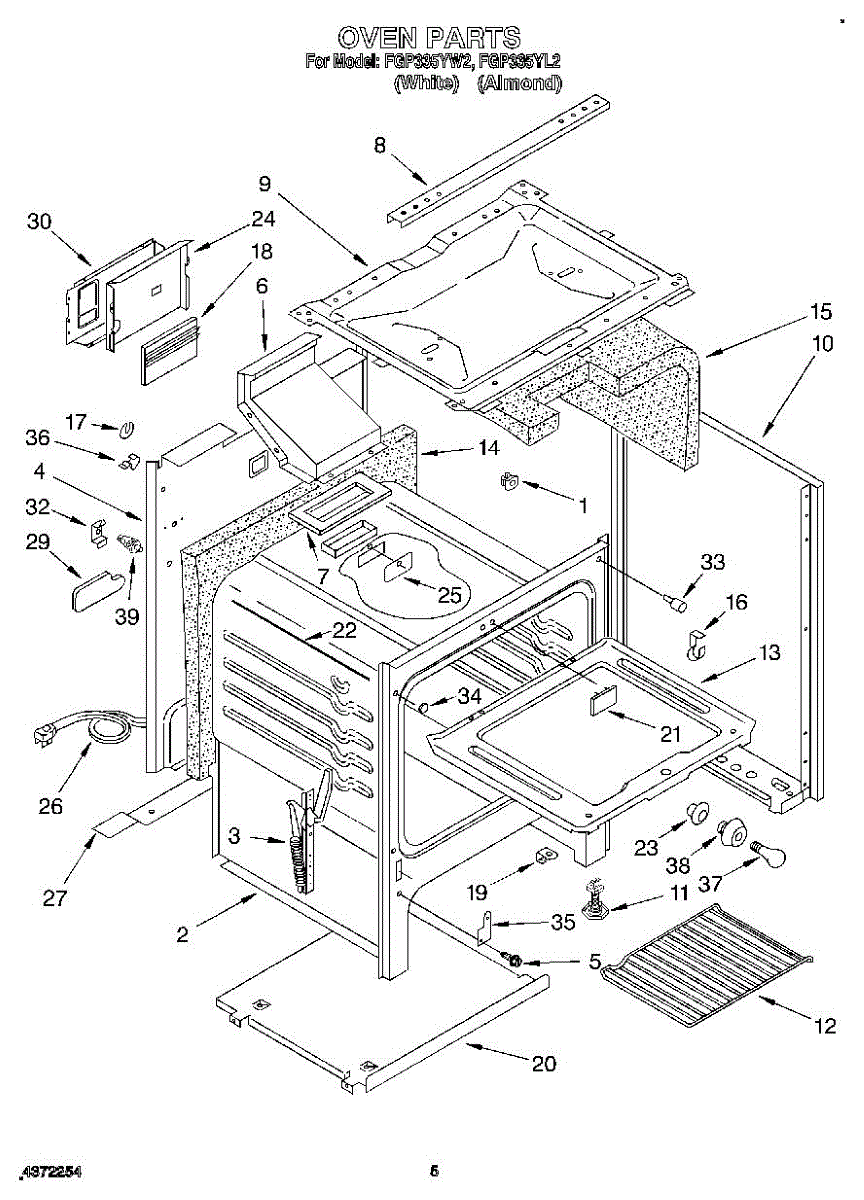

Parts for Whirlpool FGP335YW2: Oven Parts

Start New Search



Location on Diagram Part Description Price & Availability
1
Spacer

Spacer

by Whirlpool
Part Number AP2972912

  • Not available
3
Hinge

Hinge

by Whirlpool
Part Number AP2972167

  • Not available
4

Back, Main

by Whirlpool
Part Number AP2973330

  • Not available
5

Screw, Oven

by Whirlpool
Part Number AP2972724

  • Not available
6

Flue

by Whirlpool
Part Number AP2971324

  • Not available
7

Gasket, Flue

by Whirlpool
Part Number AP2971164

  • Not available
8

Support, Burner

by Whirlpool
Part Number AP2972764

  • Not available
9

Burner Box

by Whirlpool
Part Number AP2972983

  • Not available
10

Panel, Side (white Rh)

by Whirlpool
Part Number AP2972976

  • Not available
10

Panel, Side (white Lh)

by Whirlpool
Part Number AP2972977

  • Not available
10

Panel B/s (almond Rh)

by Whirlpool
Part Number AP2972978

  • Not available
10

Panel B/s (almond Lh)

by Whirlpool
Part Number AP2972979

  • Not available
11

Screw, Leveler

by Whirlpool
Part Number AP2972919

  • Not available
12

Rack, Oven

by Pro
Part Number AP5647646

  • Not available
13

Bottom, Oven

by Whirlpool
Part Number AP2972765

  • Not available
14

Insulation, Back

by Whirlpool
Part Number AP2972170

  • Not available
15
Fiberglass Insulation

Fiberglass Insulation

by Whirlpool
Part Number AP3134057

Our Price
$48.11
Add to Cart
16

Clip, Thermostat Bulb

by Whirlpool
Part Number AP2972312

  • Not available
17

Clip, Hinge

by Whirlpool
Part Number AP3043303

  • Not available
18

Shield, Flue

by Whirlpool
Part Number AP2972780

  • Not available
19

Support, Oven Bottom

by Whirlpool
Part Number AP2972848

  • Not available
20

Base, Broiler

by Whirlpool
Part Number AP2971388

  • Not available
21

Cover, Front

by Whirlpool
Part Number AP2971396

  • Not available
22

Rod, Light Switch

by Whirlpool
Part Number AP2971330

  • Not available
23

Housing, Oven Lamp

by Whirlpool
Part Number AP2973299

  • Not available
24

Shield, Flue

by Whirlpool
Part Number AP2972176

  • Not available
25

Plate, Cover

by Whirlpool
Part Number AP2972177

  • Not available
26

Cord, Power

by Whirlpool
Part Number AP2970923

  • Not available
27

Brackets, Anti Tip

by Whirlpool
Part Number AP2972980

  • Not available
29

Cover, Top Rear

by Whirlpool
Part Number AP2971332

  • Not available
30

Shield, Module

by Whirlpool
Part Number AP2972570

  • Not available
32

Bracket, Door Switch

by Whirlpool
Part Number AP2971692

  • Not available
33

Bumper, Drawer

by Whirlpool
Part Number AP2973523

  • Not available
34

Cover, Rod End

by Whirlpool
Part Number AP2971335

  • Not available
35

Cover, Hinge

by Whirlpool
Part Number AP2972096

  • Not available
36

Fastener, Wire

by Whirlpool
Part Number AP2971636

  • Not available
37
Light Bulb
Sale

Light Bulb

by Whirlpool
Part Number AP3607217

 (15)
Our Price
$2.50
Add to Cart
38
Light Socket

Light Socket

by Whirlpool
Part Number AP4307277

Our Price
$21.90
Add to Cart
39
Switch, Light

Switch, Light

by Whirlpool
Part Number AP3022461

Our Price
$40.38
Add to Cart
