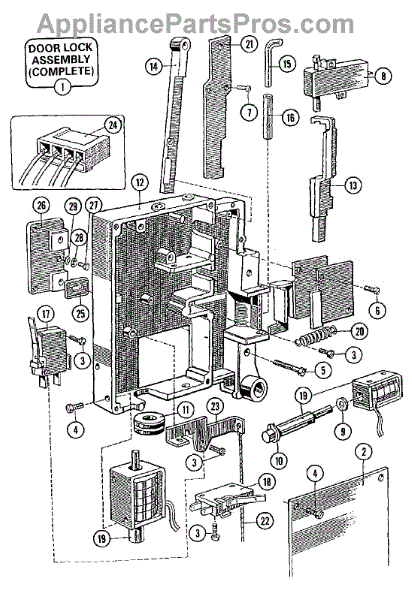

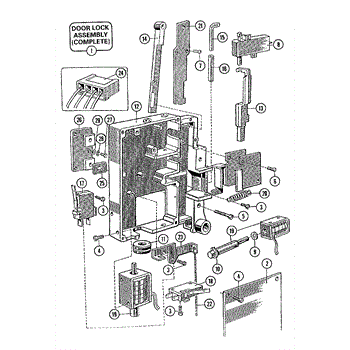

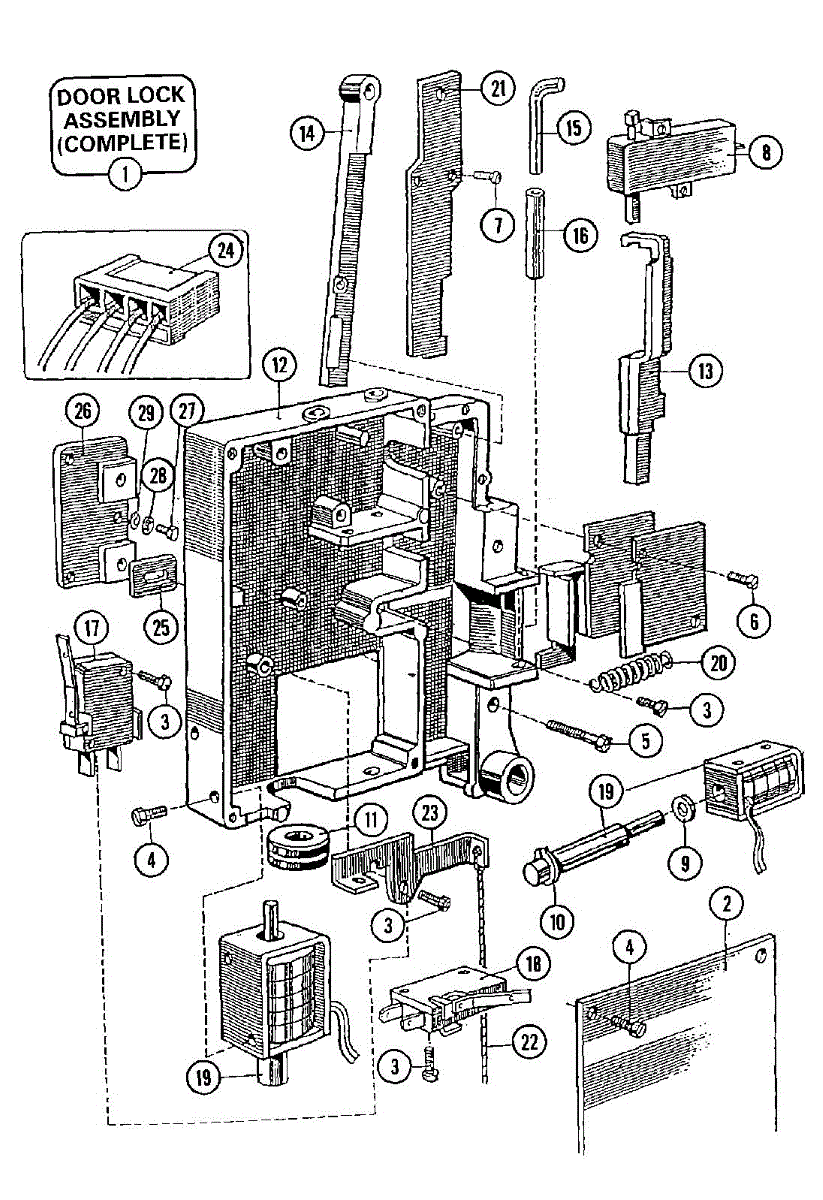

Parts for Maytag MFR25PCAVS: Door Lock Assembly (series 10) Parts

Start New Search

Manual, Parts (washer)

Location on Diagram Part Description Price & Availability
001

Lock, Door (complete)

by Whirlpool
Part Number AP4289714

  • Not available
002

Plate, Cover (stnls Steel)

by Whirlpool
Part Number AP4028594

  • Not available
003

Screw (M3 X 14 Cross Recessed)

by Whirlpool
Part Number AP4028595

Our Price
$3.66
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
004

Screw (M3 X 4 Cross Recessed)

by Whirlpool
Part Number AP4028642

Our Price
$3.67
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
005

Screw (M5 X 25 Stainless Steel

by Whirlpool
Part Number AP4028596

  • Not available
006

Screw (M4X10)

by Whirlpool
Part Number AP4029570

Our Price
$3.65
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
007
Bolt (M3 X 6)

Bolt (M3 X 6)

by Whirlpool
Part Number AP4028643

Our Price
$1.97
Add to Cart
008

Bimetal, Actuator (230V)

by Whirlpool
Part Number AP4031297

  • Not available
009

Washer (dia. 5.1 X 3.3 X 0.1)

by Whirlpool
Part Number AP4029584

  • Not available
010

Ring, Retaining (G10)

by Whirlpool
Part Number AP4031298

  • Not available
011

Bushing, Cable Passage

by Whirlpool
Part Number AP4029585

  • Not available
012

Ground-Pl

by Whirlpool
Part Number AP4289715

  • Not available
013

Bar, Locking

by Whirlpool
Part Number AP4028644

  • Not available
014

Bar, Handle Latch

by Whirlpool
Part Number AP4031299

  • Not available
015

Retainer, Lock Tube (DIA.4X45)

by Whirlpool
Part Number AP4029587

  • Not available
016

Lock Tube (dia. 4X23.5 Stnls)

by Whirlpool
Part Number AP4029588

  • Not available
017

Microswitch, Short Lever

by Whirlpool
Part Number AP4029589

  • Not available
018

Microswitch, Long Lever

by Whirlpool
Part Number AP4029590

  • Not available
019

Coil (120V)

by Whirlpool
Part Number AP4028645

  • Not available
019

Rectifier (240V)

by Whirlpool
Part Number AP4031300

  • Not available
020

Use Wpl 23001148

by Whirlpool
Part Number AP4030160

  • Not available
021

Leaf Spring, Latch Bar

by Whirlpool
Part Number AP4028646

  • Not available
022

Cord, Emergency Opening

by Whirlpool
Part Number AP4029591

  • Not available
023

Lever, Emergency Opening

by Whirlpool
Part Number AP4031302

  • Not available
024

Wiring Harness, Doorlock

by Whirlpool
Part Number AP4029592

  • Not available
025

Base, Hinge Base

by Whirlpool
Part Number AP4028800

  • Not available
026

Spacer, Lock

by Whirlpool
Part Number AP4031303

  • Not available
027

Bolt (M6 X 12 Stainless Steel)

by Whirlpool
Part Number AP4029594

  • Not available
028

Washer (M6)

by Whirlpool
Part Number AP4031304

  • Not available
029

Washer (dia. 14X8.6X1 Stnls)

by Whirlpool
Part Number AP4028647

  • Not available
