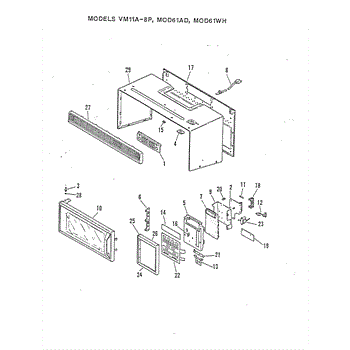

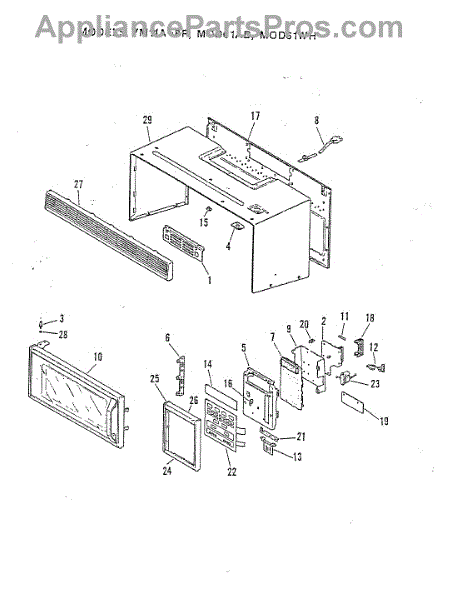

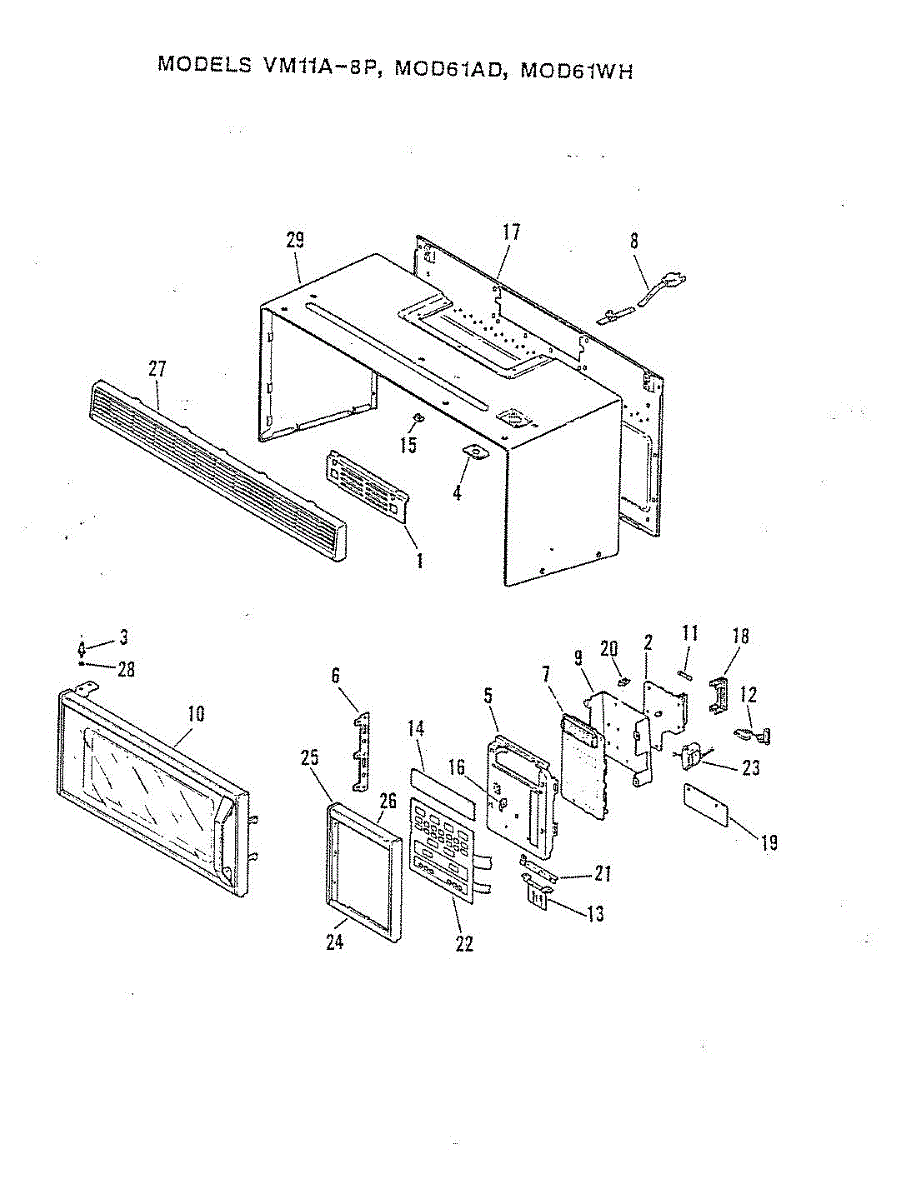

05-Microwave-Upper (VM11A-8P) Parts for Magic Chef 28FN-7CXWV8-QM

Start New Search

Chat with a Pro

Range-S/c Mwave Ele

Location on Diagram Part Description Price & Availability
1

Damper

by Maytag
Part Number AP246115
MFG Part Number 2080-0003

  • Not available
2

Board Net

by Whirlpool
Part Number AP4025882
MFG Part Number 2125-0005

  • Not available
3

Bolt

by Maytag
Part Number AP274999
MFG Part Number 3005-0112

  • Not available
4

Bracket, Cord

by Maytag
Part Number AP248516
MFG Part Number 2145-0043

  • Not available
5

Bracket, Control Board

by Maytag
Part Number AP248524
MFG Part Number 2145-0051

  • Not available
6

Bracket, Ft.panel

by Maytag
Part Number AP248518
MFG Part Number 2145-0045

  • Not available
7

Control-Display

by Maytag
Part Number AP247915
MFG Part Number 2125-0004

  • Not available
8

Cord Power

by Maytag
Part Number AP253432
MFG Part Number 2270-0002

  • Not available
9

Cover, Control Panel

by Maytag
Part Number AP253497
MFG Part Number 2275-0028

  • Not available
10

Door Kit

by Maytag
Part Number AP2669507
MFG Part Number 2325-0009K

  • Not available
11
Fuse 15A 250V

Fuse 15A 250V

by Whirlpool
Part Number AP4280181
MFG Part Number Y01050009

Our Price
$4.11
Add to Cart
12

Heater

by Maytag
Part Number AP261634
MFG Part Number 2515-0001

  • Not available
13

Hinge Assembly

by Maytag
Part Number AP261663
MFG Part Number 2520-0010

  • Not available
14

Lens

by Maytag
Part Number AP264460
MFG Part Number 2655-0007

  • Not available
15

Nut

by Maytag
Part Number AP266090
MFG Part Number 2735-0022

  • Not available
16

Plate, Ground

by Maytag
Part Number AP270210
MFG Part Number 2845-0022

  • Not available
17

Plate, Mounting

by Maytag
Part Number AP270209
MFG Part Number 2845-0021

  • Not available
17

Screw

by Maytag
Part Number AP274998
MFG Part Number 3005-0111

  • Not available
18

Shield

by Maytag
Part Number AP275631
MFG Part Number 3030-0007

  • Not available
19

Shield, Condenser

by Maytag
Part Number AP275632
MFG Part Number 3030-0008

  • Not available
20

Spacer Power Control Module

by Maytag
Part Number AP276739
MFG Part Number 3065-0007

  • Not available
21

Support

by Maytag
Part Number AP278921
MFG Part Number 3130-0016

  • Not available
22

Switch, Membrane

by Maytag
Part Number AP279054
MFG Part Number 3135-0058

  • Not available
23

Transformer

by Whirlpool
Part Number AP4041851
MFG Part Number 3215-0014

  • Not available
24

Control Trim Bottom

by Maytag
Part Number AP280731
MFG Part Number 3230-0074

  • Not available
25
Trim

Trim

by Maytag
Part Number AP280732
MFG Part Number 3230-0075

  • Not available
26

Control Trim Top

by Whirlpool
Part Number AP4041881
MFG Part Number 3230-0073

  • Not available
27

Vent

by Maytag
Part Number AP280816
MFG Part Number 3265-0003

  • Not available
28

Washer

by Maytag
Part Number AP280895
MFG Part Number 3280-0033

  • Not available
29

Wrapper

by Maytag
Part Number AP280940
MFG Part Number 3295-0001

  • Not available
