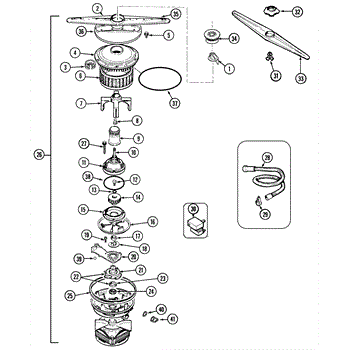

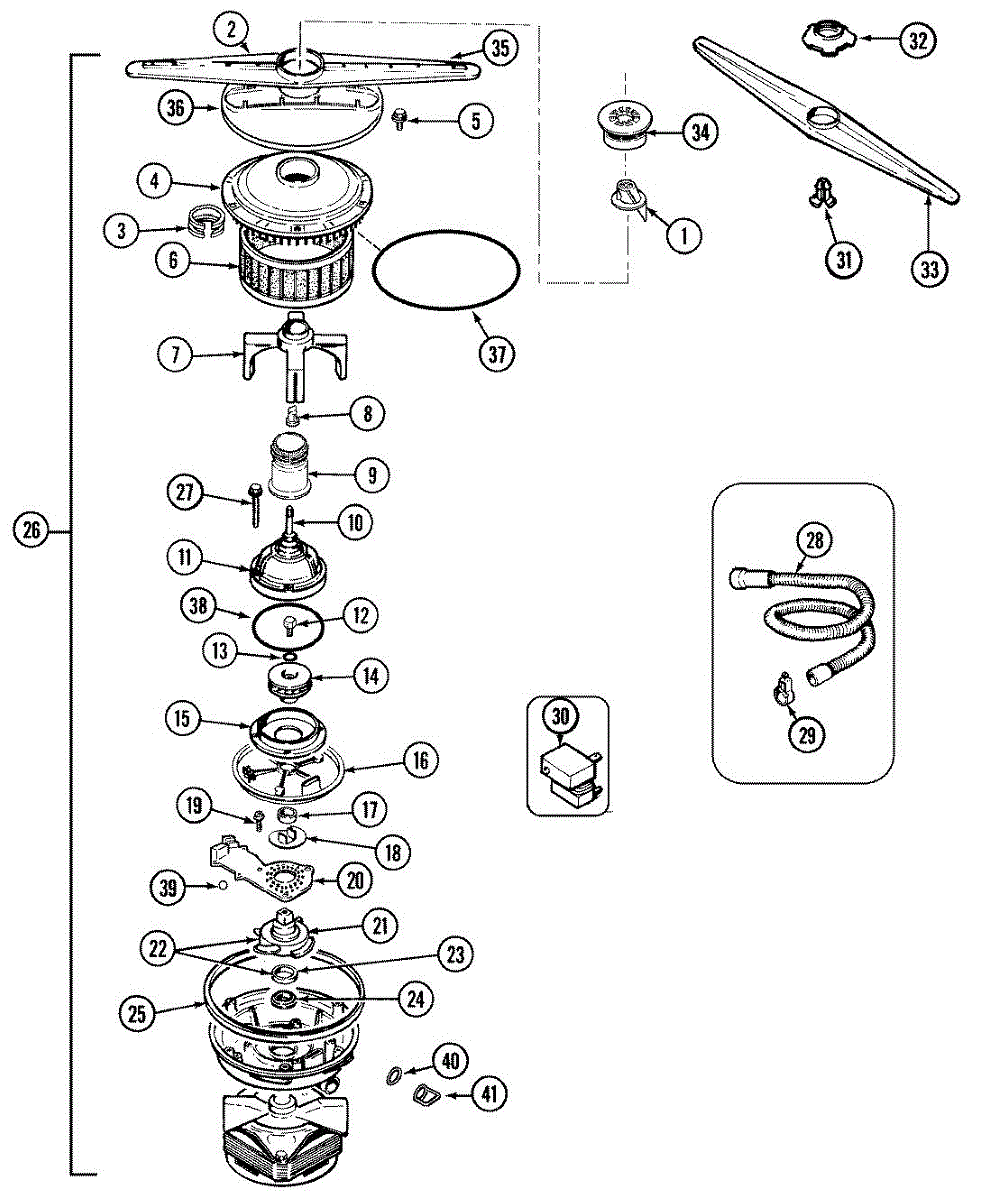

Parts for Maytag DWU9922AAM: Pump & Motor (series 34) Parts

Start New Search

Dishwasher-Undercounter

Location on Diagram Part Description Price & Availability
1
Nozzle, Jump Up

Nozzle, Jump Up

by Whirlpool
Part Number AP4113054

 (1)
Our Price
$4.29
Add to Cart
2
Lower Washarm

Lower Washarm

by Whirlpool
Part Number AP4112900

 (2)
Our Price
$25.09
Add to Cart
3
Ring, Seal

Ring, Seal

by Whirlpool
Part Number AP4111379

Our Price
$24.50
Add to Cart
4
Filter-Plt

Filter-Plt

by KitchenAid
Part Number AP5306025

 (2)
Our Price
$66.54
Add to Cart
5
Screw, Secondary Filter

Screw, Secondary Filter

by Whirlpool
Part Number AP4113928

  • Not available
6
Pump Filter

Pump Filter

by Whirlpool
Part Number AP4112901

 (2)
Our Price
$16.72
Add to Cart
7
Assembly, Rinse Arm

Assembly, Rinse Arm

by Whirlpool
Part Number AP4114148

Our Price
$18.41
Add to Cart
8
Nut, Discharge Housing

Nut, Discharge Housing

by Whirlpool
Part Number AP4114624

 (1)
Our Price
$1.97
Add to Cart
9

Support, Spray Arm

by Whirlpool
Part Number AP4112827

  • Not available
10
Assy-Disc

Assy-Disc

by Whirlpool
Part Number AP4364376

Our Price
$21.24
Add to Cart
11
Assy-Disc

Assy-Disc

by Whirlpool
Part Number AP4364376

Our Price
$21.24
Add to Cart
12
Screw, Impeller

Screw, Impeller

by Whirlpool
Part Number AP4111324

Our Price
$26.23
Add to Cart
13
Seal, O-Ring

Seal, O-Ring

by Whirlpool
Part Number AP4111820

Our Price
$3.81
Add to Cart
14
Impeller Assembly

Impeller Assembly

by Whirlpool
Part Number AP4110858

Our Price
$15.13
Add to Cart
15
Plate, Suction

Plate, Suction

by Whirlpool
Part Number AP4112902

 (1)
Our Price
$4.71
Add to Cart
16
Support, Filter

Support, Filter

by Whirlpool
Part Number AP4113055

Our Price
$20.63
Add to Cart
17
O-Ring

O-Ring

by Whirlpool
Part Number AP4111146

Our Price
$3.91
Add to Cart
18
Disc, Cutter

Disc, Cutter

by Whirlpool
Part Number AP4111183

  • Not available
19
Screw-Han

Screw-Han

by Whirlpool
Part Number AP4067519

Our Price
$3.67
Add to Cart
20
Cover, Drain

Cover, Drain

by Whirlpool
Part Number AP4113056

  • Not available
21
Drain Impeller

Drain Impeller

by Whirlpool
Part Number AP4111883

  • Not available
22
Impeller, Drain

Impeller, Drain

by Whirlpool
Part Number AP4427507

Our Price
$23.51
Add to Cart
23
Assembly, Seal Seat

Assembly, Seal Seat

by Whirlpool
Part Number AP4110905

  • Not available
24
Pump Seal ( New Style No Spring )

Pump Seal ( New Style No Spring )

by Whirlpool
Part Number AP4111632

Our Price
$20.63
Add to Cart
25
Gasket, Pump

Gasket, Pump

by Whirlpool
Part Number AP4111149

Our Price
$18.11
Add to Cart
26
Motor Pump

Motor Pump

by Whirlpool
Part Number AP4364087

  • Not available
26
Wire Tie

Wire Tie

by Whirlpool
Part Number AP4588389

Our Price
$3.47
Add to Cart
27

Screw

by Whirlpool
Part Number AP4111891

  • Not available
28
Hose-Drai

Hose-Drai

by Whirlpool
Part Number AP4113052

 (1)
Our Price
$34.90
Add to Cart
29
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP2920290

Our Price
$2.41
Add to Cart
30
Motor Relay

Motor Relay

by Whirlpool
Part Number AP4113622

Our Price
$42.31
Add to Cart
30

Bracket, Relay

by Whirlpool
Part Number AP4293293

  • Not available
30

Screw

by Whirlpool
Part Number AP4373288

Our Price
$3.67
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
31
Wash Arm Retaining Clip

Wash Arm Retaining Clip

by Whirlpool
Part Number AP4298429

Our Price
$4.30
Add to Cart
32
Outlet, Snap

Outlet, Snap

by Whirlpool
Part Number AP4111405

Our Price
$15.94
Add to Cart
33
Upper Wash Arm

Upper Wash Arm

by Whirlpool
Part Number AP4307167

Our Price
$19.26
Add to Cart
34
Cap, Wash Arm

Cap, Wash Arm

by Whirlpool
Part Number AP4114625

 (1)
Our Price
$4.43
Add to Cart
35
Shield, Radiant

Shield, Radiant

by Whirlpool
Part Number AP4114746

 (2)
Our Price
$62.41
Add to Cart
36
Guard, Filter

Guard, Filter

by Whirlpool
Part Number AP4113057

 (1)
Our Price
$15.67
Add to Cart
37
O-Ring

O-Ring

by Whirlpool
Part Number AP4113058

Our Price
$18.74
Add to Cart
38
Discharge Housing Gasket

Discharge Housing Gasket

by Whirlpool
Part Number AP4112968

Our Price
$3.81
Add to Cart
39

Ball-Chec

by Whirlpool
Part Number AP4112903

  • Not available
40
Flapper, Valve

Flapper, Valve

by Whirlpool
Part Number AP4113931

  • Not available
41
Clip, Retainer

Clip, Retainer

by Whirlpool
Part Number AP4113932

  • Not available
