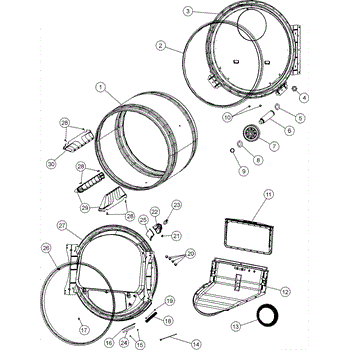

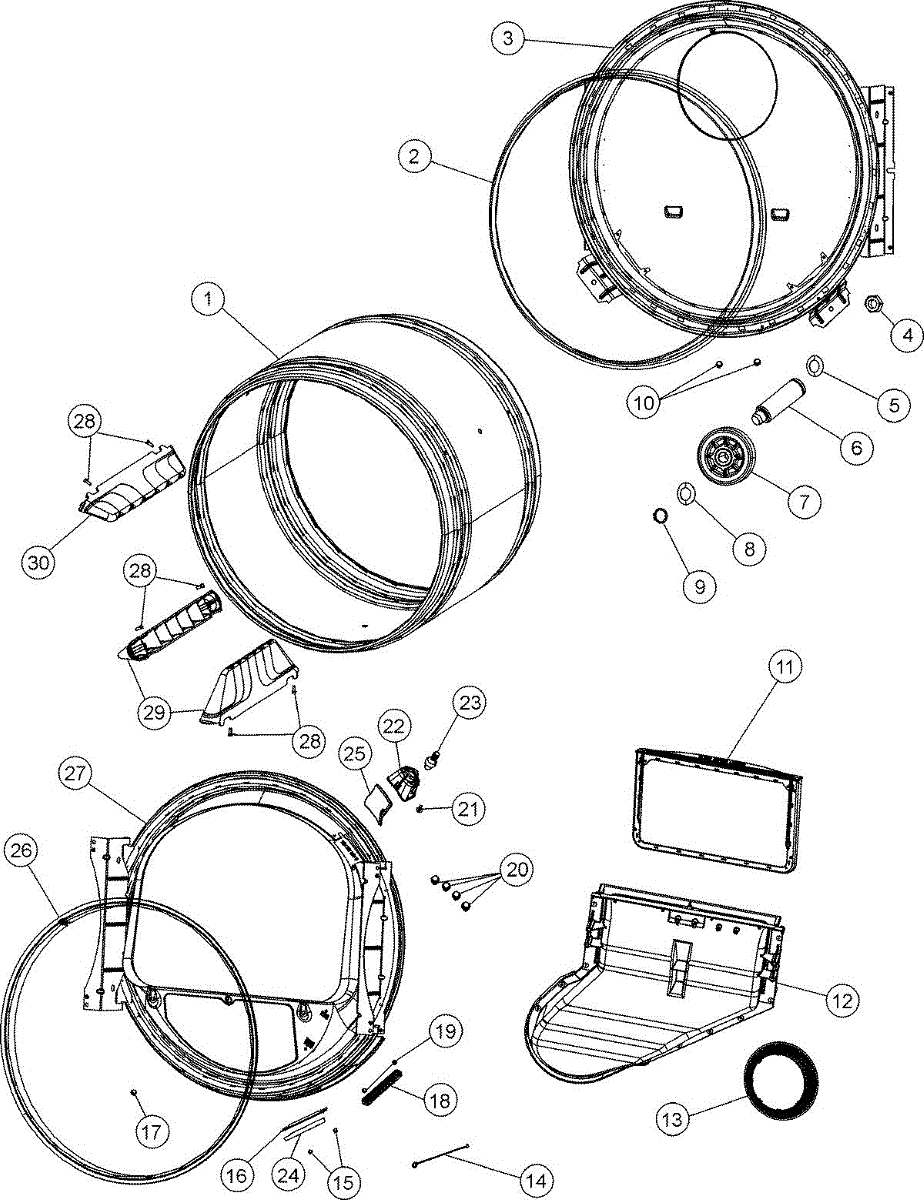

05-Tumbler Parts for Maytag MDE9800AZW

Start New Search

Dryer-Ele

Location on Diagram Part Description Price & Availability
1
Dryer, Tumbler

Dryer, Tumbler

by Whirlpool
Part Number AP4043852

Our Price
$158.81
Add to Cart
2
Dryer Drum Felt Seal

Dryer Drum Felt Seal

by Whirlpool
Part Number AP4043269

Our Price
$8.96
Add to Cart
3
Back, Tumbler

Back, Tumbler

by Whirlpool
Part Number AP4042506

Our Price
$98.52
Add to Cart
4
Hex Nut

Hex Nut

by Whirlpool
Part Number AP4043169

Our Price
$1.93
Add to Cart
5
Fiber Washer

Fiber Washer

by Whirlpool
Part Number AP4038738

Our Price
$1.93
Add to Cart
6
Dryer Drum Roller Axle

Dryer Drum Roller Axle

by Whirlpool
Part Number AP4373312

Our Price
$5.53
Add to Cart
7
Drum Support Roller

Drum Support Roller

by Whirlpool
Part Number AP4008534

 (7)
Our Price
$17.44
Add to Cart
8
Fiber Washer

Fiber Washer

by Whirlpool
Part Number AP4038738

Our Price
$1.93
Add to Cart
9
Retaining Clip

Retaining Clip

by Whirlpool
Part Number AP3038076

Our Price
$1.93
Add to Cart
10
Screw

Screw

by Whirlpool
Part Number AP4025254

Our Price
$2.80
Add to Cart
11
Dryer Lint Filter

Dryer Lint Filter

by Whirlpool
Part Number AP4042508

 (6)
Our Price
$29.60
Add to Cart
12
Duct Assy, Outlet

Duct Assy, Outlet

by Whirlpool
Part Number AP4043267

Our Price
$47.73
Add to Cart
13
Seal, Blower

Seal, Blower

by Whirlpool
Part Number AP4043965

 (1)
Our Price
$28.91
Add to Cart
14
Sensor Ground Wire

Sensor Ground Wire

by Whirlpool
Part Number AP4290411

  • Not available
15
Pop Rivet

Pop Rivet

by Whirlpool
Part Number AP4024827

Our Price
$22.88
Add to Cart
16
Tumbler Bearing Kit

Tumbler Bearing Kit

by Whirlpool
Part Number AP4037304

 (4)
Our Price
$11.17
Add to Cart
17

Screw-Knob to Door(ph

by Maytag
Part Number AP2672821

  • Not available
18
Sensor Bar Assembley

Sensor Bar Assembley

by Whirlpool
Part Number AP4043270

Our Price
$18.76
Add to Cart
19

Panel, Control (blk)

by Maytag
Part Number AP284550

  • Not available
20
Screw

Screw

by Whirlpool
Part Number AP4044044

Our Price
$1.93
Add to Cart
21
Screw

Screw

by Whirlpool
Part Number AP4042521

  • Not available
22
Receptical, Lamp

Receptical, Lamp

by Whirlpool
Part Number AP4319123

  • Not available
23
Light Bulb

Light Bulb

by Whirlpool
Part Number AP4026967

 (3)
Our Price
$7.84
Add to Cart
24
Bearing Pad F/tumbler Front

Bearing Pad F/tumbler Front

by Whirlpool
Part Number AP4039332

Our Price
$25.55
Add to Cart
25
Lens, Drum Light

Lens, Drum Light

by Whirlpool
Part Number AP4043324

  • Not available
26
Dryer Drum Felt Seal

Dryer Drum Felt Seal

by Whirlpool
Part Number AP4043269

Our Price
$8.96
Add to Cart
27
Front, Tumbler

Front, Tumbler

by Whirlpool
Part Number AP4043849

  • Not available
28
Screw

Screw

by Whirlpool
Part Number AP4043568

Our Price
$4.11
Add to Cart
29
Dryer Drum Baffle

Dryer Drum Baffle

by Whirlpool
Part Number AP4042638

 (2)
Our Price
$17.21
Add to Cart
30
Dryer Drum Baffle

Dryer Drum Baffle

by Whirlpool
Part Number AP4042434

 (2)
Our Price
$18.80
Add to Cart
