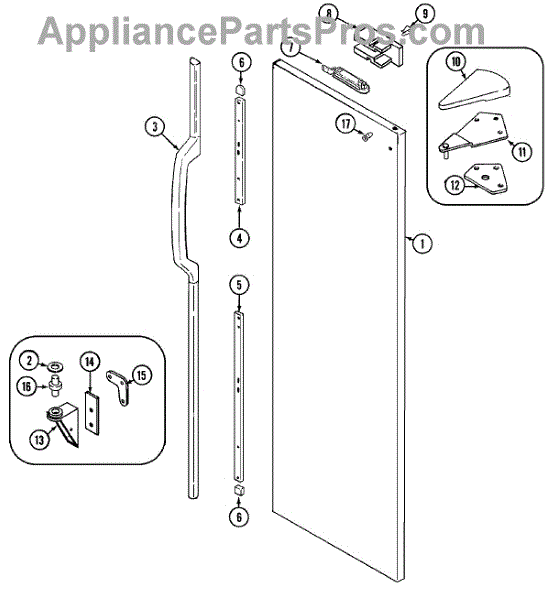

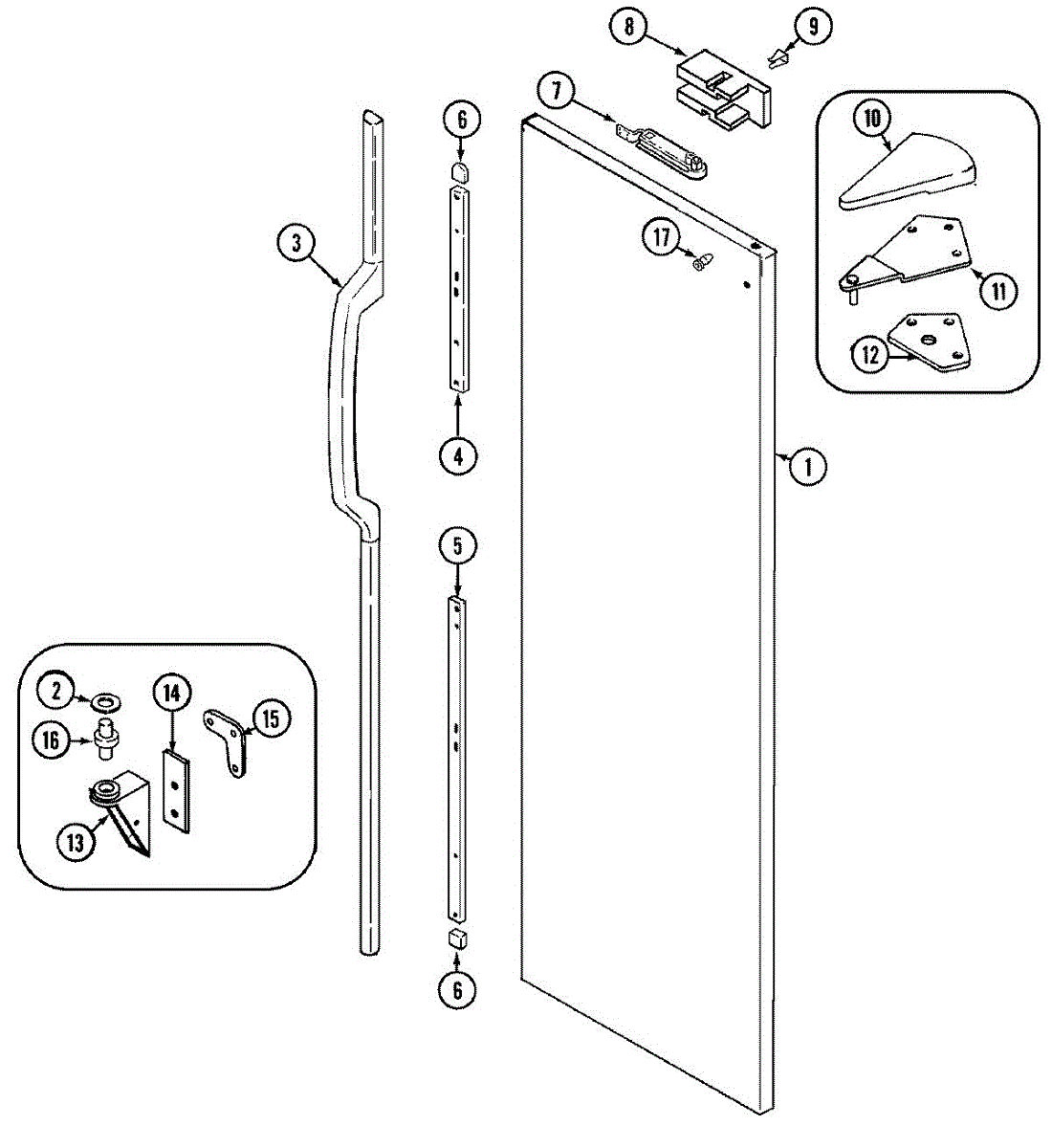

Parts for Admiral GS20B6D3EV: Fresh Food Outer Door Parts

Start New Search

Ref-SXS/I&W

Location on Diagram Part Description Price & Availability
1

Panel, F.f. Door (wht)

by Maytag
Part Number AP371810

  • Not available
1

Plug Button, Door

by Whirlpool
Part Number AP4053194

  • Not available
2
Washer-Do

Washer-Do

by Whirlpool
Part Number AP4082338

Our Price
$3.82
Add to Cart
3

Kit-Handl

by Whirlpool
Part Number AP4009818

  • Not available
4

Trim-Hand

by Whirlpool
Part Number AP4085220

  • Not available
5
Screw

Screw

by Whirlpool
Part Number AP4067602

Our Price
$1.97
Add to Cart
5

Trim-Hand

by Whirlpool
Part Number AP4084755

  • Not available
6

End Cap-H

by Whirlpool
Part Number AP4085221

  • Not available
7
Door Closer (nla)

Door Closer (nla)

by Maytag
Part Number AP359315

  • Not available
7

Screw

by Whirlpool
Part Number AP4049464

  • Not available
8

Insulation

by Whirlpool
Part Number AP4055214

  • Not available
8

Insulation Door

by Whirlpool
Part Number AP4087090

  • Not available
9

Bracket, Closer

by Whirlpool
Part Number AP4085188

  • Not available
10

Cover, Upper Hinge (wht)

by Whirlpool
Part Number AP4087433

  • Not available
11

Hinge, Door Upper Ff

by Maytag
Part Number AP314334

  • Not available
11
Screw

Screw

by Whirlpool
Part Number AP5608131

Our Price
$3.68
Add to Cart
12
Shim, Upper Hinge

Shim, Upper Hinge

by Whirlpool
Part Number AP4073774

  • Not available
13

Hinge, Door Lwr Ff

by Maytag
Part Number AP359531

  • Not available
13

Screw

by Whirlpool
Part Number AP4074532

  • Not available
14
Shim-Lowe

Shim-Lowe

by Whirlpool
Part Number AP4084619

  • Not available
15

Screw

by Whirlpool
Part Number AP4073924

Our Price
$2.80
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
15

Tapping Pl

by Whirlpool
Part Number AP4083686

  • Not available
16
Pin-Lower

Pin-Lower

by Whirlpool
Part Number AP4085273

Our Price
$31.25
Add to Cart
17

Retainer, Nameplate

by Maytag
Part Number AP272649

  • Not available
