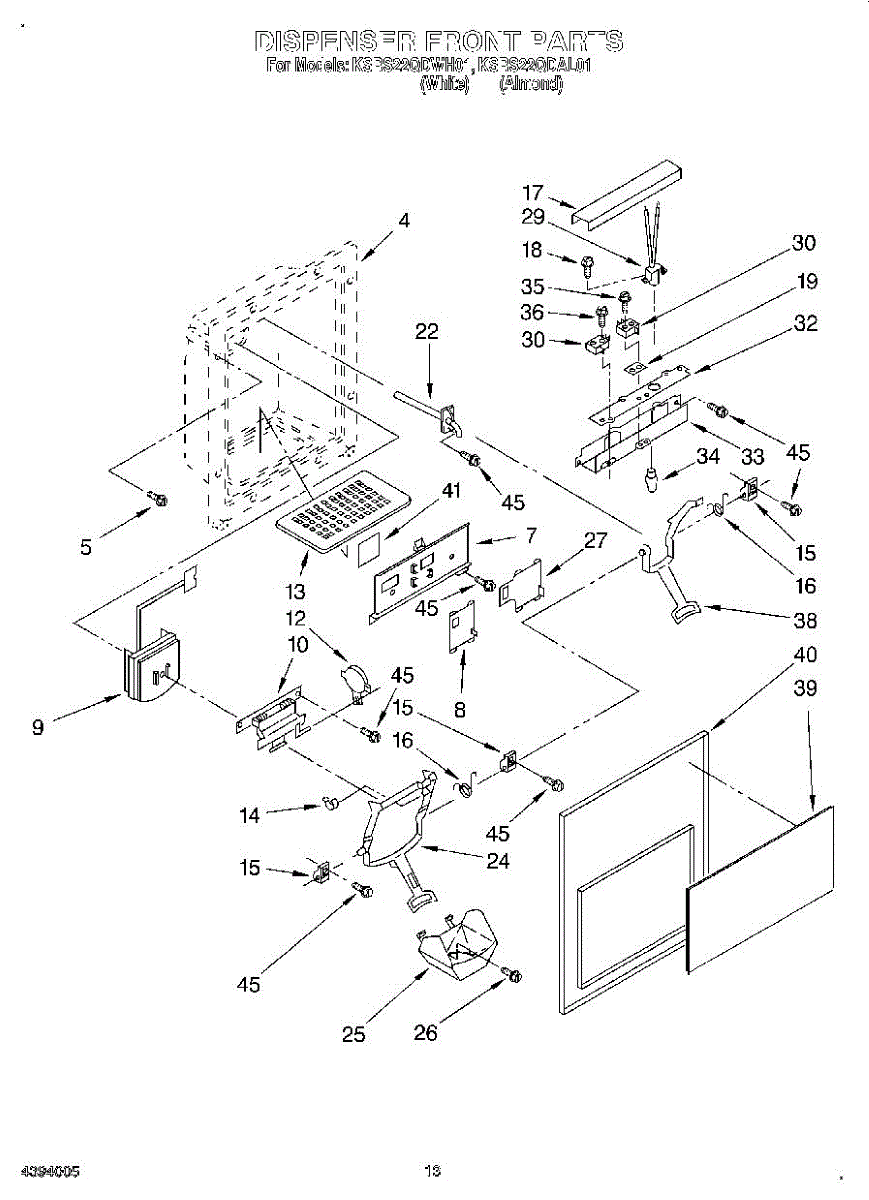

08-Dispenser Front Parts for Whirlpool KSRS22QDWH01

Start New Search

Refrigerator

Location on Diagram Part Description Price & Availability
4

N/a

by LG
Part Number AP4681147

  • Not available
5
Screw

Screw

by Whirlpool
Part Number AP2967837

Our Price
$1.93
Add to Cart
7
Frame, Slides (stainless Steel and Black Models)

Frame, Slides (stainless Steel and Black Models)

by Whirlpool
Part Number AP3042031

  • Not available
8
Slide, Cube/crush Switch (almond)

Slide, Cube/crush Switch (almond)

by Whirlpool
Part Number AP2978533

  • Not available
8
Slide, Cube/crush Switch (white)

Slide, Cube/crush Switch (white)

by Whirlpool
Part Number AP3042135

  • Not available
9
Ice Dispenser Chute Door

Ice Dispenser Chute Door

by Whirlpool
Part Number AP3601811

 (5)
Our Price
$10.54
Add to Cart
10
Ice Chute Door Assembly with Mounting Bracket
Our Price
$47.92
Add to Cart
12
Icemaker Delay

Icemaker Delay

by Whirlpool
Part Number AP2978182

Our Price
$50.01
Add to Cart
13
Overflow Grille

Overflow Grille

by Whirlpool
Part Number AP2977337

Our Price
$27.05
Add to Cart
14
Bearing, Lever Clip

Bearing, Lever Clip

by Whirlpool
Part Number AP2998644

  • Not available
15
Bearing

Bearing

by Whirlpool
Part Number AP2967271

  • Not available
16
Spring

Spring

by Whirlpool
Part Number AP2998645

Our Price
$11.94
Add to Cart
17
Shield

Shield

by Whirlpool
Part Number AP2936542

  • Not available
18
Screw

Screw

by Whirlpool
Part Number AP3005830

Our Price
$4.15
Add to Cart
19
Spacer-Hol

Spacer-Hol

by Whirlpool
Part Number AP3042040

Our Price
$4.28
Add to Cart
22
Water Tube Assembly

Water Tube Assembly

by Whirlpool
Part Number AP3108776

 (9)
Our Price
$37.95
Add to Cart
24
Ice Dispenser Lever

Ice Dispenser Lever

by Whirlpool
Part Number AP2982370

Our Price
$29.22
Add to Cart
25
Ice Dispenser Guide

Ice Dispenser Guide

by Whirlpool
Part Number AP3042439

Our Price
$12.59
Add to Cart
26

Screw (white)

by Whirlpool
Part Number AP3042543

  • Not available
27
Slide,light Switch (almond)

Slide,light Switch (almond)

by Whirlpool
Part Number AP2977597

  • Not available
27
Slide,light Switch (white)

Slide,light Switch (white)

by Whirlpool
Part Number AP3042136

  • Not available
29

Lamp Holder

by Whirlpool
Part Number AP2980017

  • Not available
30
Microswitch

Microswitch

by Whirlpool
Part Number AP3131893

 (2)
Our Price
$9.85
Add to Cart
32

Insulator, Bracket Control

by Whirlpool
Part Number AP3042028

  • Not available
33

Bracket, Control

by Whirlpool
Part Number AP2940823

  • Not available
34
Light Bulb

Light Bulb

by Whirlpool
Part Number AP4026967

 (3)
Our Price
$7.84
Add to Cart
35

Screw, 4-4-X 1

by Whirlpool
Part Number AP3042573

  • Not available
36

Screw, 4-40 X 1

by Whirlpool
Part Number AP2967272

  • Not available
38
Lever, Water Dispenser (white)

Lever, Water Dispenser (white)

by Whirlpool
Part Number AP2982371

Our Price
$25.63
Add to Cart
39

Insert, Cover (white)

by Whirlpool
Part Number AP2981484

  • Not available
39

Plaque, Front Cover (almond)

by Whirlpool
Part Number AP3042834

  • Not available
40

Cover, Housing (white)

by Whirlpool
Part Number AP2981487

  • Not available
40

Cover, Housing (almond)

by Whirlpool
Part Number AP2981488

  • Not available
41

Shield

by Whirlpool
Part Number AP2936565

  • Not available
45
Screw

Screw

by Whirlpool
Part Number AP3097646

Our Price
$2.21
Add to Cart
