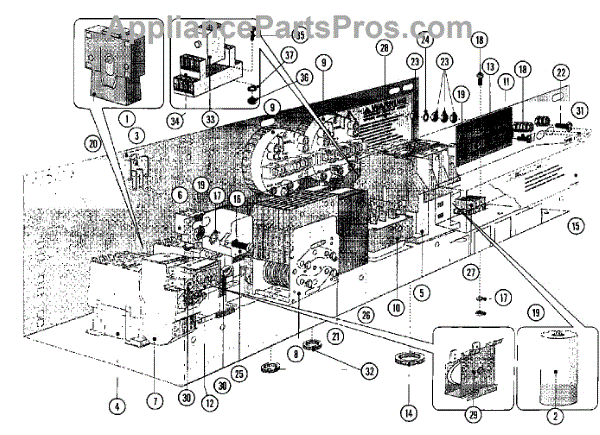

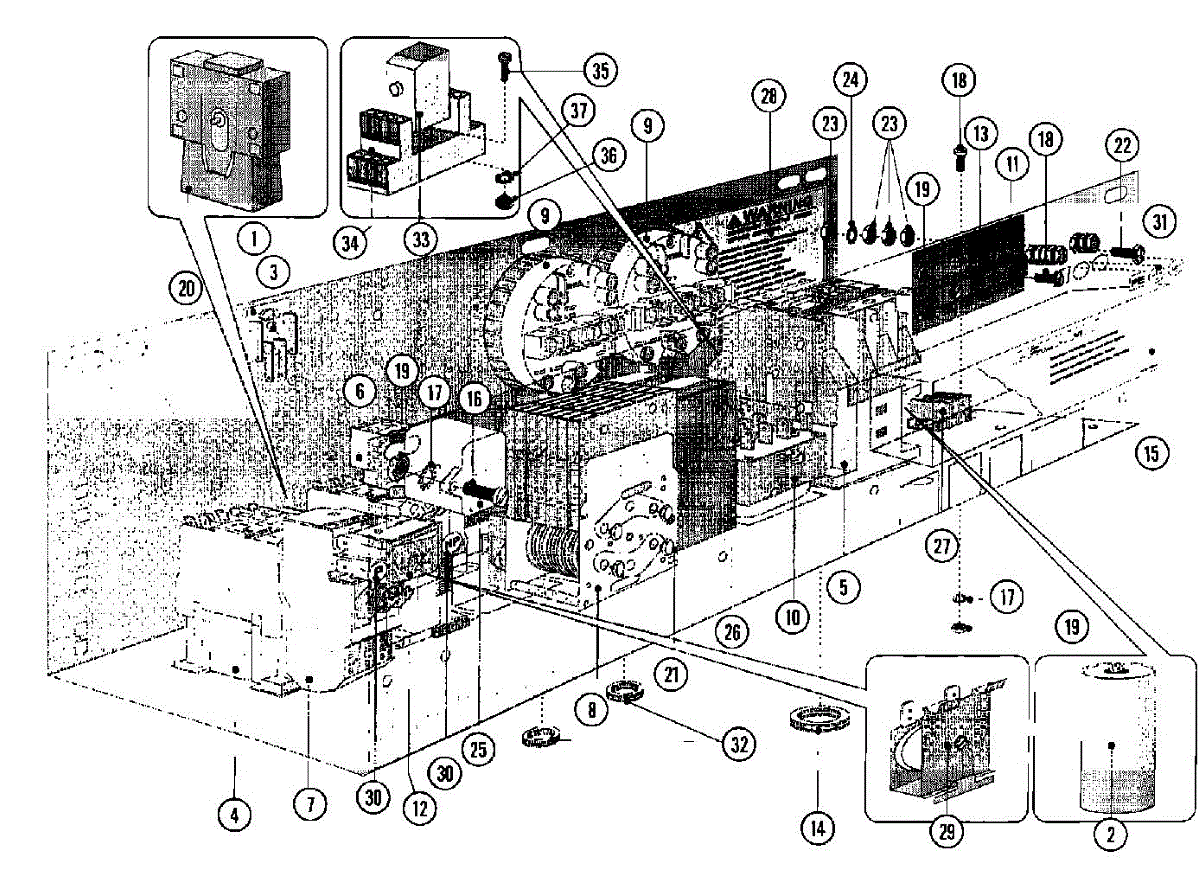

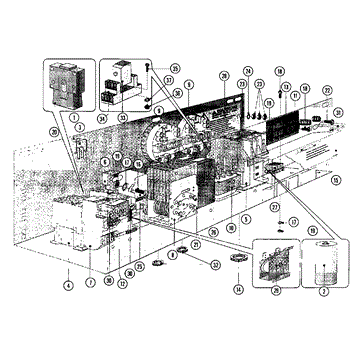

Parts for Maytag MFR50PDAVS: Electrical Components Parts

Start New Search

Maytag Washer (washer)

Location on Diagram Part Description Price & Availability
001

Bridge, Rectifier

by Whirlpool
Part Number AP4028588

  • Not available
002

Not Required Part or See Note Stator Assembly

by Maytag
Part Number AP4960360

  • Not available
003

Pc Board Socket

by Whirlpool
Part Number AP4031290

  • Not available
004

Contactor LC1 DO9

by Whirlpool
Part Number AP4031020

  • Not available
004

Contactor

by Whirlpool
Part Number AP4031021

  • Not available
005

Not Required Part or See Note Stator Assembly

by Maytag
Part Number AP4960360

  • Not available
006

Not Required Part or See Note Stator Assembly

by Maytag
Part Number AP4960360

  • Not available
007

Relay, Thermal Overload (4-6A)

by Whirlpool
Part Number AP4029573

  • Not available
007

Overload Relay 4-6A

by Whirlpool
Part Number AP4030405

  • Not available
007

Overload Relay 5.5-8

by Whirlpool
Part Number AP4030406

  • Not available
007

Overload Relay LR2D

by Whirlpool
Part Number AP4030407

  • Not available
007

Overload Relay LR2D

by Whirlpool
Part Number AP4031023

  • Not available
007

Relay, Thermal Overload (7-10A

by Whirlpool
Part Number AP4031293

  • Not available
008

Not Required Part or See Note Stator Assembly

by Maytag
Part Number AP4960360

  • Not available
009

Switch, Water Level (opl)

by Whirlpool
Part Number AP4028861

Our Price
$109.28
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
010

Thermostat (4 Temp)

by Whirlpool
Part Number AP4029654

  • Not available
011

Board, Terminal (6 Poles)

by Whirlpool
Part Number AP4029329

  • Not available
012

Rocker Switch, Prewash/no Prew

by Whirlpool
Part Number AP4028640

  • Not available
013

Insulation Paper

by Whirlpool
Part Number AP4031295

  • Not available
014

Ring, Rubber (dia. 25)

by Whirlpool
Part Number AP4029577

  • Not available
015

Sticker, Liquid Soap

by Whirlpool
Part Number AP4029578

  • Not available
016

Bolt (M4X10)

by Whirlpool
Part Number AP4028797

  • Not available
017

Lock Washer External Teeth M4

by Whirlpool
Part Number AP4029559

  • Not available
018

Screw (M4 X 16 Ck)

by Whirlpool
Part Number AP4031288

  • Not available
019

Nut (M4)

by Whirlpool
Part Number AP4031272

  • Not available
020

Mechanical

by Whirlpool
Part Number AP4031834

  • Not available
021

Bolt (M4X4)

by Whirlpool
Part Number AP4028583

  • Not available
022

Screw (M6 X 25)

by Whirlpool
Part Number AP4029958

  • Not available
023

Nut (M6)

by Whirlpool
Part Number AP4028823

  • Not available
024

Washer, Lock

by Whirlpool
Part Number AP4031597

  • Not available
026

Transformer-Ls-A52

by Whirlpool
Part Number AP4031017

  • Not available
027

Connector

by Whirlpool
Part Number AP4030046

  • Not available
028

Sticker, Electricity Warning

by Whirlpool
Part Number AP4029781

  • Not available
029

Buzzer

by Whirlpool
Part Number AP4029986

  • Not available
032

Bushing, Cable Passage

by Whirlpool
Part Number AP4029585

  • Not available
033

Schrach, Relay

by Whirlpool
Part Number AP4030043

  • Not available
034

Base, Relay

by Whirlpool
Part Number AP4030044

  • Not available
035

Screw (M3X25)

by Whirlpool
Part Number AP4031671

Our Price
$3.66
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
036

Nut (M3)

by Whirlpool
Part Number AP4030045

  • Not available
037

Locking Washer

by Whirlpool
Part Number AP4031283

  • Not available
