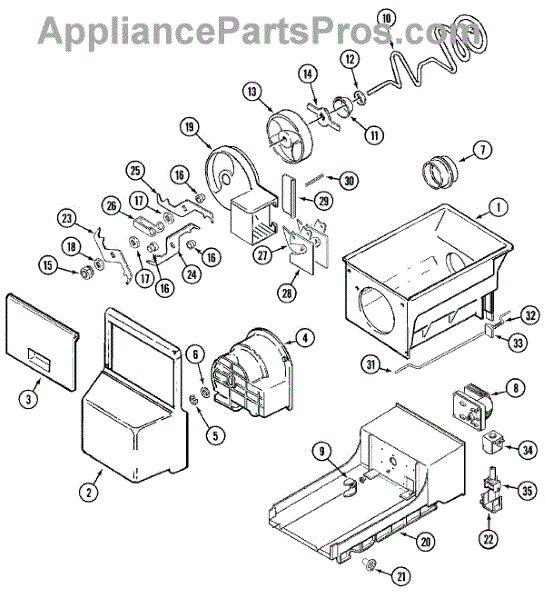

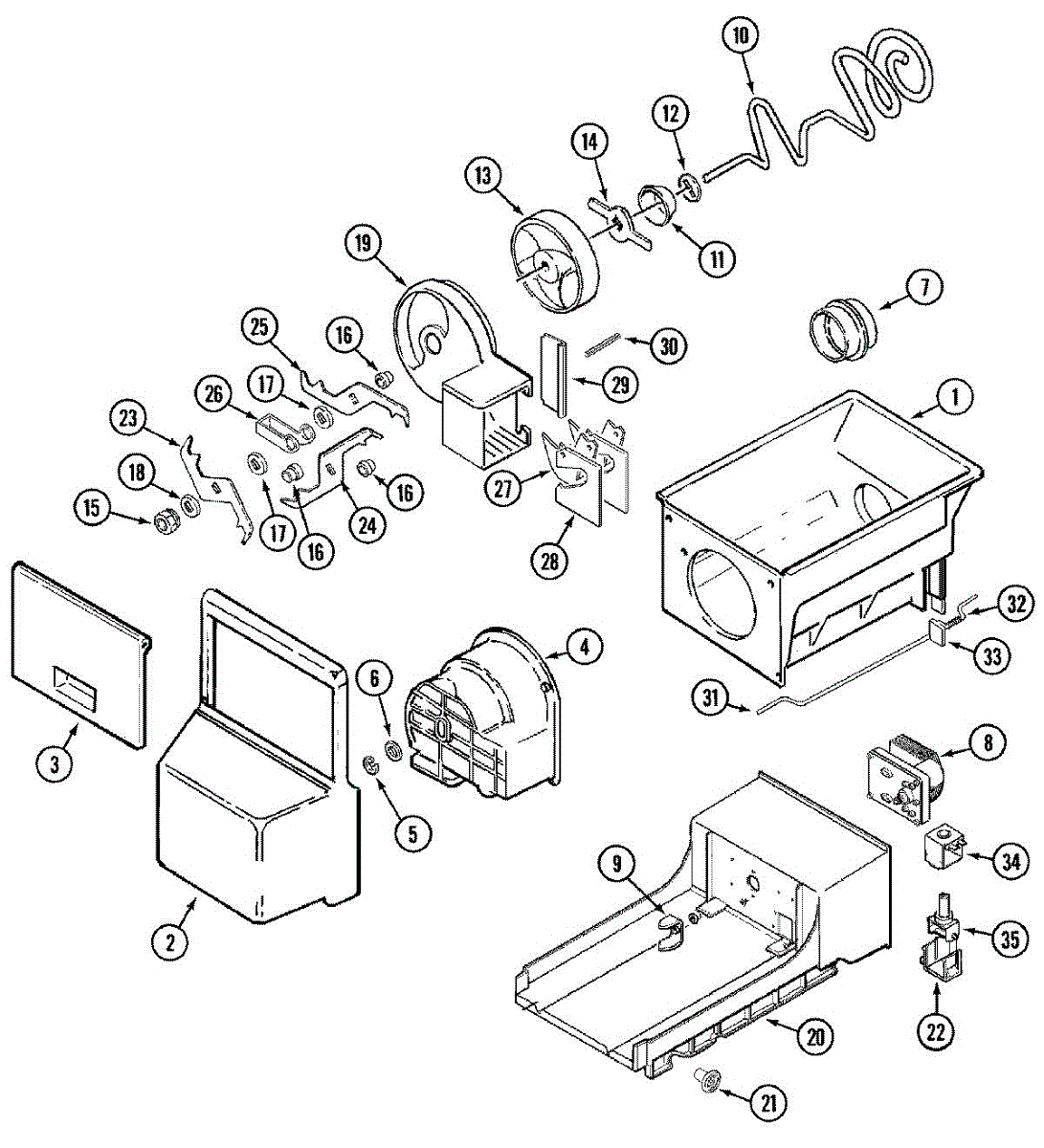

09-Ice Bin Parts for Hoover RS23D011

Start New Search

Ref-SXS/I&W

Location on Diagram Part Description Price & Availability
1

Bin, Ice

by Maytag
Part Number AP341025

  • Not available
2
Screw

Screw

by Whirlpool
Part Number AP4049605

Our Price
$1.93
Add to Cart
2

Front, Ice Bin

by Whirlpool
Part Number AP4068357

  • Not available
3
Door-Bin

Door-Bin

by Whirlpool
Part Number AP4068966

Our Price
$31.53
Add to Cart
4

Housing, Crusher

by Maytag
Part Number AP341028

  • Not available
4
Screw

Screw

by Whirlpool
Part Number AP4049605

Our Price
$1.93
Add to Cart
5
Ring-Snap

Ring-Snap

by Whirlpool
Part Number AP4084828

  • Not available
6
Plain Washer

Plain Washer

by Whirlpool
Part Number AP2936522

Our Price
$4.25
Add to Cart
7
Ring, Drive

Ring, Drive

by Whirlpool
Part Number AP4069460

Our Price
$15.72
Add to Cart
8
Screw, 8-32 X .340

Screw, 8-32 X .340

by Whirlpool
Part Number AP2992683

Our Price
$3.55
Add to Cart
8

Assy., Auger Motor/yoke-230/50

by Whirlpool
Part Number AP4009037

Our Price
$127.70
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
8
Wire Harness, Auger Motor

Wire Harness, Auger Motor

by Whirlpool
Part Number AP4070156

  • Not available
9
Yoke, Ice Dispenser

Yoke, Ice Dispenser

by Whirlpool
Part Number AP4072309

Our Price
$19.79
Add to Cart
10
Auger

Auger

by Whirlpool
Part Number AP4069458

  • Not available
11
Cone, Ice Deflector

Cone, Ice Deflector

by Whirlpool
Part Number AP4084902

  • Not available
12
Washer, Cone Stop

Washer, Cone Stop

by Whirlpool
Part Number AP4084827

  • Not available
13
Impeller

Impeller

by Whirlpool
Part Number AP4068329

  • Not available
14

Plate, Drive

by Whirlpool
Part Number AP4069459

  • Not available
15
Nut-Auger

Nut-Auger

by Whirlpool
Part Number AP4085241

  • Not available
16
Bearing Spacer

Bearing Spacer

by Whirlpool
Part Number AP4085237

  • Not available
17
Spacer, Crusher

Spacer, Crusher

by Whirlpool
Part Number AP4084901

  • Not available
18
Spacer, Crusher Blade

Spacer, Crusher Blade

by Whirlpool
Part Number AP4085236

  • Not available
19
Mandiplate

Mandiplate

by Whirlpool
Part Number AP4070974

  • Not available
20

Crusher Bin/enclosure (

by Maytag
Part Number AP2660808

  • Not available
20
Screw

Screw

by Whirlpool
Part Number AP4048116

Our Price
$3.25
Add to Cart
21
Screw

Screw

by Whirlpool
Part Number AP4048116

Our Price
$3.25
Add to Cart
21
Support, Enclosure

Support, Enclosure

by Whirlpool
Part Number AP4069155

Our Price
$3.56
Add to Cart
22
Screw

Screw

by Whirlpool
Part Number AP3040180

Our Price
$1.93
Add to Cart
22
Guide, Yoke

Guide, Yoke

by Whirlpool
Part Number AP4084905

Our Price
$3.64
Add to Cart
23
Blade, Crusher

Blade, Crusher

by Whirlpool
Part Number AP4084904

  • Not available
24
Blade Crusher

Blade Crusher

by Whirlpool
Part Number AP4085238

  • Not available
25
Blade, Crusher

Blade, Crusher

by Whirlpool
Part Number AP4068165

  • Not available
26
Diverter, Ice

Diverter, Ice

by Whirlpool
Part Number AP4069483

  • Not available
27
Blade, Actuated

Blade, Actuated

by Whirlpool
Part Number AP4070989

  • Not available
28
Support, Control Rod

Support, Control Rod

by Whirlpool
Part Number AP4070987

  • Not available
29

Shield, Snow

by Whirlpool
Part Number AP4070986

  • Not available
30
Pin, Mandible

Pin, Mandible

by Whirlpool
Part Number AP4070990

  • Not available
31

Rod, Crusher Control

by Whirlpool
Part Number AP4068164

  • Not available
32
Spring, Control Rod

Spring, Control Rod

by Whirlpool
Part Number AP4070988

  • Not available
33
Bracket-C

Bracket-C

by Whirlpool
Part Number AP4085244

  • Not available
34
Screw, 8-32 X .340

Screw, 8-32 X .340

by Whirlpool
Part Number AP2992683

Our Price
$3.55
Add to Cart
34

Solenoid

by Whirlpool
Part Number AP4069659

  • Not available
35
Yoke Assembly

Yoke Assembly

by Whirlpool
Part Number AP4070372

Our Price
$15.30
Add to Cart
