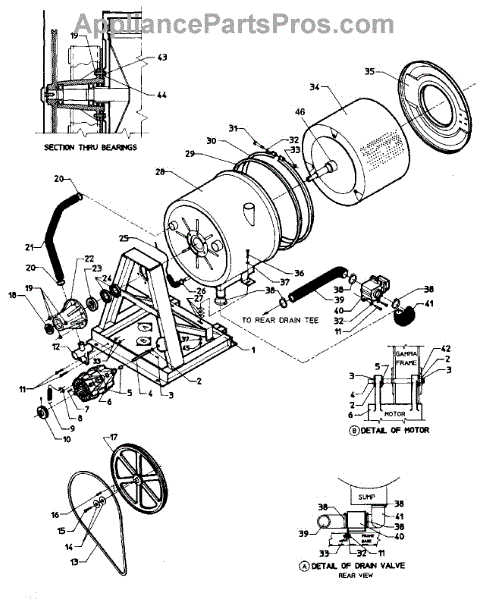

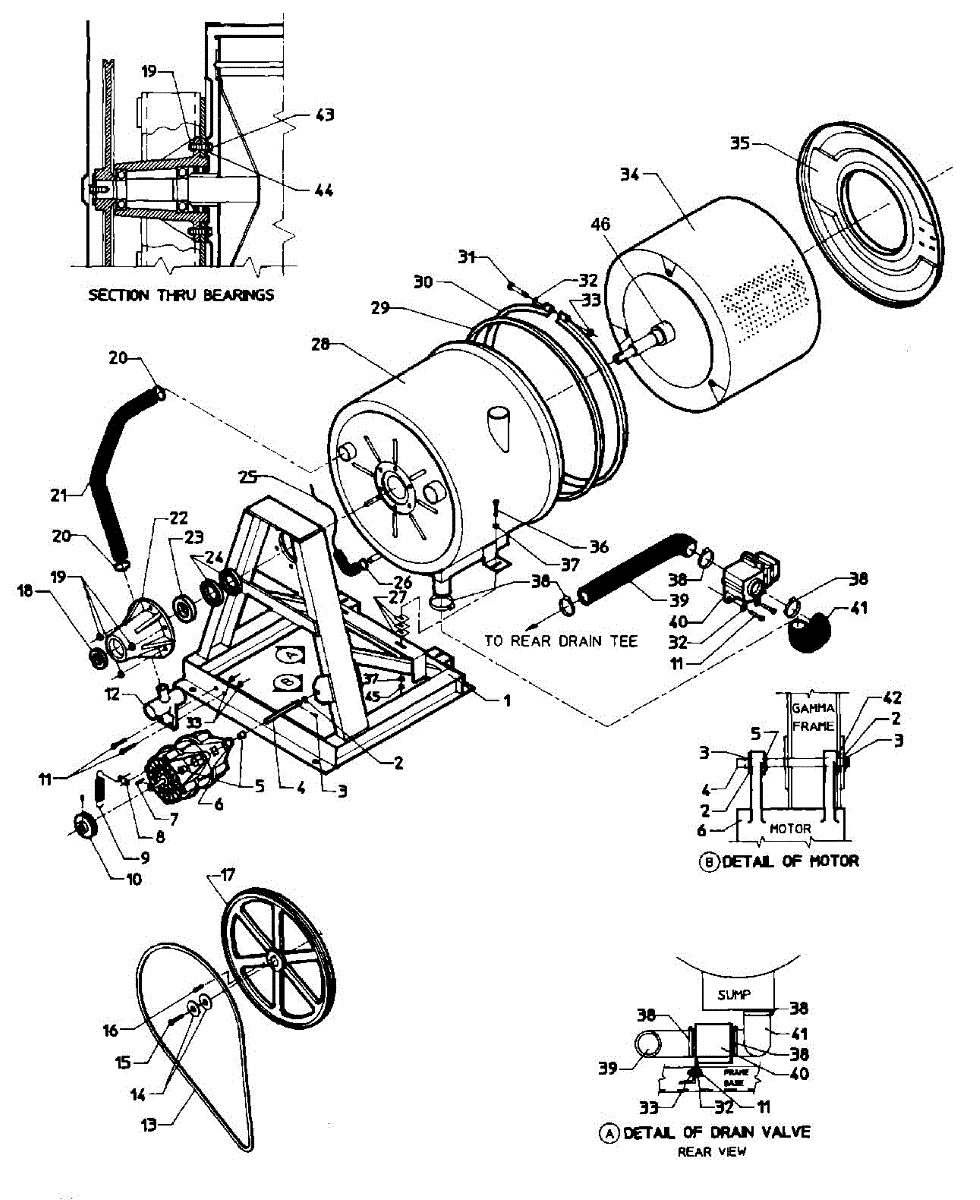

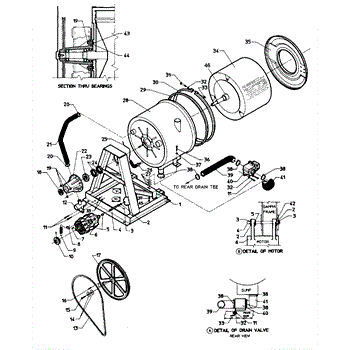

Parts for Maytag MAF18PN2: Main Exployded View-Sub Assembly Parts

Start New Search

Manual, Parts (washer)

Location on Diagram Part Description Price & Availability
001

Kit Assy., Frame (2 Speed)

by Whirlpool
Part Number AP4032407

  • Not available
002

Washer, Hardened (pltd. 5/8)

by Whirlpool
Part Number AP4033249

Our Price
$3.67
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
003

Pin, Cotter Pltd. (1/8X1 1/2)

by Whirlpool
Part Number AP4033250

  • Not available
004

Rod, Motor Support

by Whirlpool
Part Number AP4032463

  • Not available
005

Bushing, Motor (uc/uw)

by Whirlpool
Part Number AP4032304

Our Price
$14.21
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
006

Motor, 2SP (120/60/1/)

by Whirlpool
Part Number AP4033130

Our Price
$1,188.80
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
006

Motor, 2SP (208/240/60/3)

by Whirlpool
Part Number AP4033148

  • Not available
007

Key (motor 3/16" X 1 1/2")

by Whirlpool
Part Number AP4032464

  • Not available
008

Clip, Motor Spring

by Whirlpool
Part Number AP4033277

  • Not available
009

Spring (belt Tension)

by Whirlpool
Part Number AP4033276

  • Not available
010

Pulley, Motor

by Whirlpool
Part Number AP4032709

Our Price
$48.54
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
011
Bolt, Stringer

Bolt, Stringer

by Whirlpool
Part Number AP3180268

Our Price
$8.99
Add to Cart
012

Connection, Tee-Drain

by Whirlpool
Part Number AP4032864

  • Not available
013

Belt, V (3V-710)

by Whirlpool
Part Number AP4032712

  • Not available
014

Washer, S.s.

by Whirlpool
Part Number AP4033245

  • Not available
015

Screw, S.s. (3/8"-16X

by Whirlpool
Part Number AP4290531

  • Not available
016

Key (3/8" X 1 1/4")

by Whirlpool
Part Number AP4033244

  • Not available
017

Pulley, Basket

by Whirlpool
Part Number AP4033151

  • Not available
018

Bearing (6207 2RS C3)

by Whirlpool
Part Number AP4032701

Our Price
$30.48
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
019

Nut, Fiberlock Pltd. (3/8-16)

by Whirlpool
Part Number AP4032434

Our Price
$3.66
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
020

Clamp, Hose (#28)

by Whirlpool
Part Number AP4032357

  • Not available
021

Hose, Overflow

by Whirlpool
Part Number AP4032842

Our Price
$21.82
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
022

Kit, Trunnion (2SP.)

by Whirlpool
Part Number AP4032394

  • Not available
023

Bearing (6208 2RS C3)

by Whirlpool
Part Number AP4032302

  • Not available
024

Seal, Shaft (ss SPR60X80X10MM)

by Whirlpool
Part Number AP4032703

  • Not available
025

Trap-Air

by Whirlpool
Part Number AP4032296

  • Not available
026
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP2920316

Our Price
$1.93
Add to Cart
027

Shim, Shell

by Whirlpool
Part Number AP4033332

  • Not available
028

Kit, Shield Retro

by Whirlpool
Part Number AP4033196

  • Not available
029

Gasket Kit (front Shell)

by Whirlpool
Part Number AP4032325

  • Not available
030

Kit, Band Shell

by Whirlpool
Part Number AP4032411

  • Not available
031

Kit, Band Fastener

by Whirlpool
Part Number AP4032328

Our Price
$3.67
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
032

Kit, Band Fastener

by Whirlpool
Part Number AP4032328

Our Price
$3.67
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
033

Kit, Band Fastener

by Whirlpool
Part Number AP4032328

Our Price
$3.67
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
034

Basket (18-2 Speed)

by Whirlpool
Part Number AP4032350

  • Not available
035

Kit, Front Shell

by Whirlpool
Part Number AP4032364

  • Not available
036

Bolt (s.s. 3/8-16 X 1 1/2")

by Whirlpool
Part Number AP4032499

  • Not available
037

Washer, Flat Pltd. (3/8")

by Whirlpool
Part Number AP4032798

  • Not available
038
Clamp

Clamp

by Whirlpool
Part Number AP3115999

Our Price
$4.02
Add to Cart
039

Hose, Drain (rear)

by Whirlpool
Part Number AP4033278

  • Not available
040

Valve, Drain (2" 110V,60HZ)

by Whirlpool
Part Number AP4032272

  • Not available
041

Hose, Drain (front)

by Whirlpool
Part Number AP4032484

  • Not available
042

Trim, Front Panel

by Whirlpool
Part Number AP4032518

  • Not available
043

Bolt (s.s. 1/2"-13 X2)

by Whirlpool
Part Number AP4032468

  • Not available
044

Washer, S.s.

by Whirlpool
Part Number AP4032537

Our Price
$3.66
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
045

Kit, Trunnion (2SP.)

by Whirlpool
Part Number AP4032394

  • Not available
045

Nut, Fiberlock Pltd. (3/8-16)

by Whirlpool
Part Number AP4032434

Our Price
$3.66
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
046

Sleeve, Sft (2SP)

by Whirlpool
Part Number AP4033158

  • Not available
