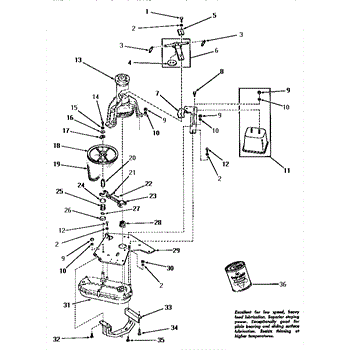

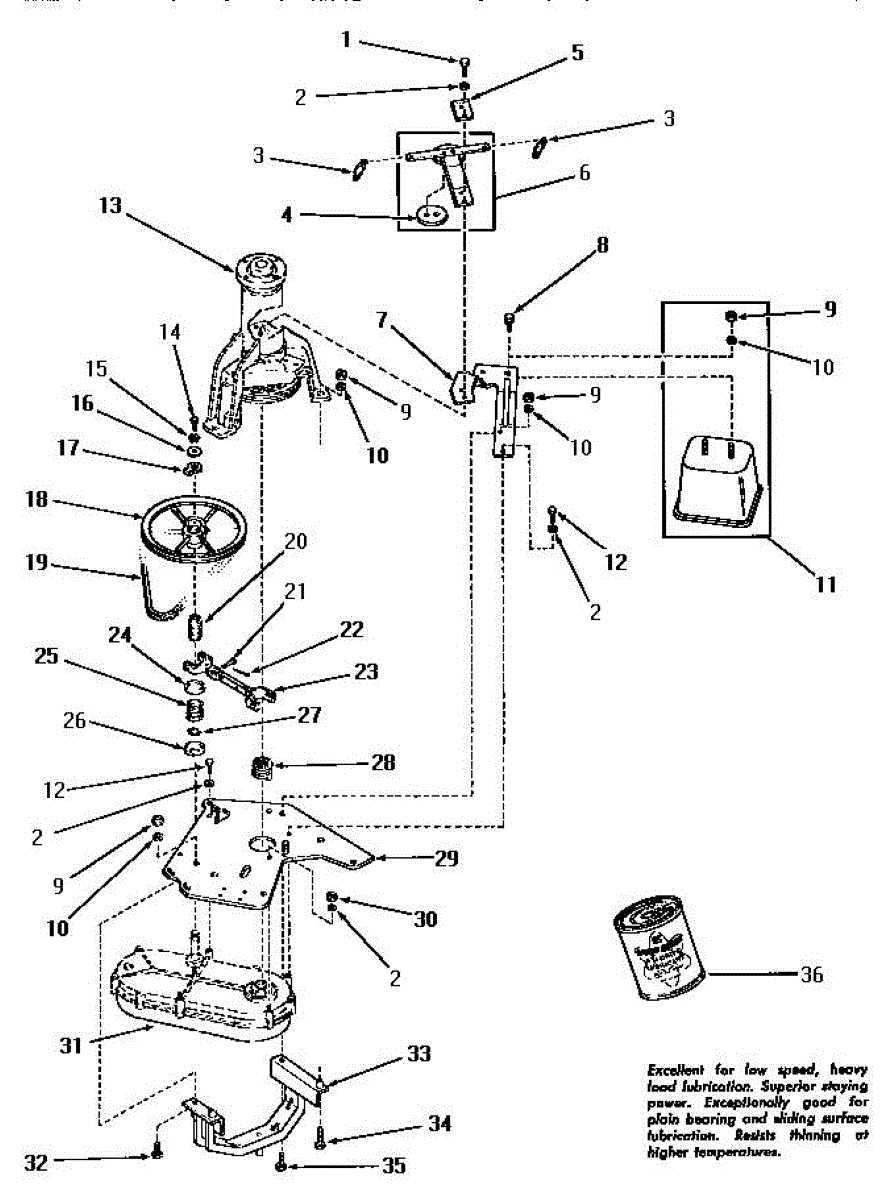

Parts for Amana DA6201: Counterbalance Weight, Brkt & Mtg Plate Parts

Start New Search

Washer-Top Loading

Location on Diagram Part Description Price & Availability
1

Screw, Cap-1/4-20 X 3/4

by Maytag
Part Number AP77459

  • Not available
2

Lockwasher, 1/4 Std-C P

by Maytag
Part Number AP77322

  • Not available
3

Spring

by Whirlpool
Part Number AP4032243

  • Not available
4

Disc, Friction

by Maytag
Part Number AP77461

  • Not available
5

Plate, Support

by Maytag
Part Number AP77640

  • Not available
6

Assy, Snubber

by Maytag
Part Number AP77462

  • Not available
7

Bracket

by Maytag
Part Number AP77463

  • Not available
8

Cap Screw

by Whirlpool
Part Number AP4032251

  • Not available
9
Nut

Nut

by Whirlpool
Part Number AP3018604

Our Price
$2.80
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
10

Lockwasher, 3/8 Std X 3

by Maytag
Part Number AP77465

  • Not available
11

Counterbal

by Whirlpool
Part Number AP4034406

  • Not available
12

Screw, 1/4-20 X 2 Hex H

by Maytag
Part Number AP77467

  • Not available
13

See Note Rear Frame

by Maytag
Part Number AP4960431

  • Not available
14

Screw, 1/4-20 X 1/2 Hex

by Maytag
Part Number AP77454

  • Not available
15

Lockwasher, 1/4 Ext Shk

by Maytag
Part Number AP74907

  • Not available
16

Washer

by Maytag
Part Number AP77468

  • Not available
17

Retainer

by Whirlpool
Part Number AP4032231

  • Not available
18

Timer

by Whirlpool
Part Number AP4822694

  • Not available
19
Belt Gen.

Belt Gen.

by Maytag
Part Number AP77471

  • Not available
20

Hub

by Maytag
Part Number AP77472

  • Not available
21

Pin, Shifter

by Maytag
Part Number AP77473

  • Not available
22

Pin, Cotter

by Maytag
Part Number AP77474

  • Not available
23

Shifter

by Maytag
Part Number AP77475

  • Not available
24

Retainer, Spring-Upper

by Maytag
Part Number AP77476

  • Not available
25

Spring

by Maytag
Part Number AP77477

  • Not available
26

Retainer, Spring-Lower

by Maytag
Part Number AP77478

  • Not available
27

Ring, Retaining

by Maytag
Part Number AP77479

  • Not available
28

Clutch

by Maytag
Part Number AP77480

  • Not available
29

Mounting P

by Whirlpool
Part Number AP4035251

  • Not available
30
Nut

Nut

by Whirlpool
Part Number AP4310492

Our Price
$4.42
Add to Cart
31

See Note Rear Frame

by Maytag
Part Number AP4960431

  • Not available
32

Screw

by Maytag
Part Number AP77482

  • Not available
33

Escutcheon

by Whirlpool
Part Number AP4888939

  • Not available
34

Screw-Cap-

by Whirlpool
Part Number AP4292452

  • Not available
35

Screw, 3/8-16 X 1 Hex H

by Whirlpool
Part Number AP4023908

  • Not available
NI

Grease, White Lithium

by Maytag
Part Number AP177981

  • Not available
NI

Pin

by Maytag
Part Number AP2508905

  • Not available
