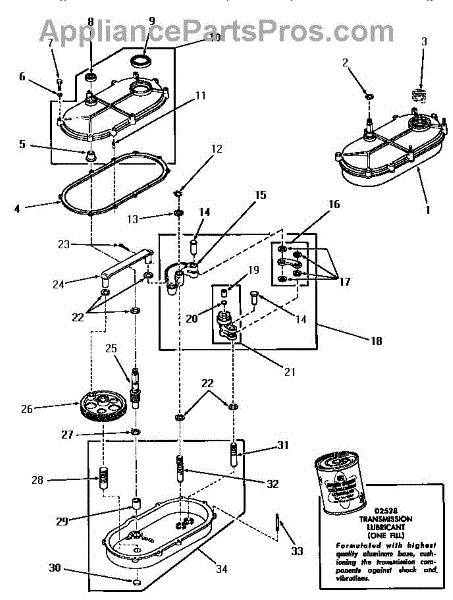

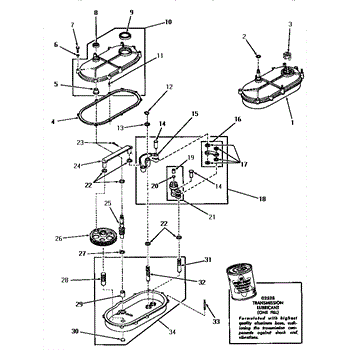

21-Transmission Assy Parts for Amana DA6201

Start New Search

Washer-Top Loading

Location on Diagram Part Description Price & Availability
1

Assy, Transmission

by Maytag
Part Number AP77518

  • Not available
2

Ring, Retaining

by Maytag
Part Number AP77479

  • Not available
3

See Note Rear Frame

by Maytag
Part Number AP4960431

  • Not available
4

Gasket

by Maytag
Part Number AP77519

  • Not available
5

Bearing

by Maytag
Part Number AP77520

  • Not available
6

Lockwasher, 1/4 Std-C P

by Maytag
Part Number AP77322

  • Not available
7

Screw, 1/4-20 X 1-1/4 H

by Maytag
Part Number AP77521

  • Not available
8

Seal

by Maytag
Part Number AP77522

  • Not available
9

Seal

by Maytag
Part Number AP77523

  • Not available
10

Assy, Transmission Cover

by Maytag
Part Number AP77524

  • Not available
11

Dowel Pin

by Whirlpool
Part Number AP4023127

  • Not available
12

Ring, Retaining

by Maytag
Part Number AP77479

  • Not available
13

Washer, 3628ID X 1.00 X .056

by Whirlpool
Part Number AP4045958

  • Not available
14

Pin, Link

by Maytag
Part Number AP77527

  • Not available
15

Assy, Rocker Arm

by Maytag
Part Number AP143986

  • Not available
16

Link

by Whirlpool
Part Number AP4413618

  • Not available
17

Washer, 3628ID X 1.00 X .056

by Whirlpool
Part Number AP4045958

  • Not available
18

Assy, Rocker Arm

by Maytag
Part Number AP77529

  • Not available
19

Bearing

by Maytag
Part Number AP77530

  • Not available
20

Disc-Expan

by Whirlpool
Part Number AP4277476

  • Not available
21

Drive Clut

by Whirlpool
Part Number AP4023893

  • Not available
22

Washer, .626 X 1.125 X1

by Maytag
Part Number AP77532

  • Not available
23

Pin, Cotter

by Maytag
Part Number AP77533

  • Not available
24

Rod, Connecting

by Maytag
Part Number AP143608

  • Not available
25

Pinion

by Maytag
Part Number AP77535

  • Not available
26

Gear

by Maytag
Part Number AP144079

  • Not available
27

Security Lock & Cam Assembly

by Whirlpool
Part Number AP2914209

  • Not available
28

Pin

by Maytag
Part Number AP77538

  • Not available
29

Bearing, 7/8ODX5/8ID

by Maytag
Part Number AP77539

  • Not available
30

Disc

by Whirlpool
Part Number AP4277450

  • Not available
31

Pin

by Maytag
Part Number AP77541

  • Not available
32

Pin, Rocker Arm

by Maytag
Part Number AP77542

  • Not available
33

Stud, Double End 1/4-20

by Maytag
Part Number AP77543

  • Not available
34

Assy, Transmission Replace

by Maytag
Part Number AP77544

  • Not available
NI

Grease,transmission-

by Maytag
Part Number AP3464740

  • Not available
