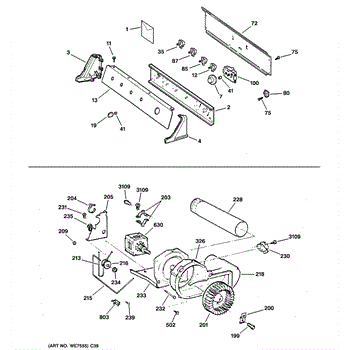

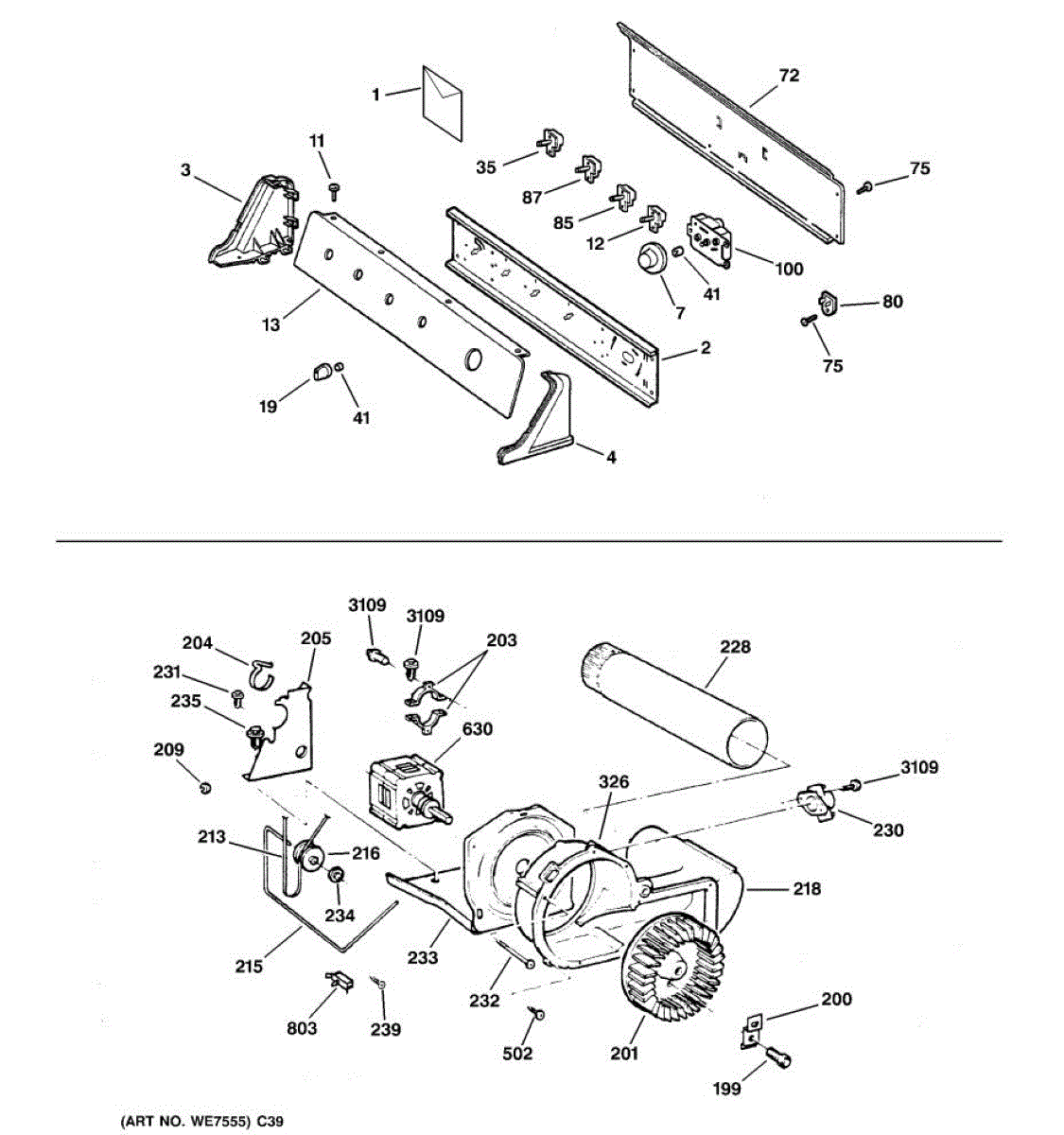

Parts for GE DRSR483ED1WW: Backsplash, Blower & Motor Assembly Parts

Start New Search

Electric Dryer

Location on Diagram Part Description Price & Availability
1

This Document Is Not Available

by GE
Part Number AP3190065

  • Not available
2
Support Switch

Support Switch

by GE
Part Number AP3188666

Our Price
$61.71
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
3

End Cap

by GE
Part Number AP3949697

Our Price
$10.67
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
4

End Cap

by GE
Part Number AP3885797

Our Price
$9.73
Add to Cart
7
Dryer Timer Knob Assembly

Dryer Timer Knob Assembly

by GE
Part Number AP3995088

 (26)
Our Price
$12.74
Add to Cart
11
Screw

Screw

by GE
Part Number AP3419304

Our Price
$1.64
Add to Cart
12
Buzzer Variable

Buzzer Variable

by GE
Part Number AP2044426

Our Price
$37.40
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
13

Switch Trim Wh

by GE
Part Number AP3190669

Our Price
$49.95
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
19
Selector Knob

Selector Knob

by GE
Part Number AP2044504

 (2)
Our Price
$8.18
Add to Cart
35
Rotary Start Switch

Rotary Start Switch

by GE
Part Number AP4980910

 (19)
Our Price
$8.21
Add to Cart
41
Knob Insert

Knob Insert

by GE
Part Number AP2041989

 (3)
Our Price
$3.32
Add to Cart
72

Back Panel

by GE
Part Number AP2044304

Our Price
$42.22
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
75
Screw

Screw

by GE
Part Number AP2042299

Our Price
$2.76
Add to Cart
75
Screw (12-Pack)

Screw (12-Pack)

by GE
Part Number AP2614475

Our Price
$9.59
Add to Cart
80
Timer Resistor

Timer Resistor

by GE
Part Number AP2044425

Our Price
$12.88
Add to Cart
85
Switch

Switch

by GE
Part Number AP4346222

Our Price
$8.23
Add to Cart
87
Tempurature Switch

Tempurature Switch

by GE
Part Number AP4344737

Our Price
$78.36
Add to Cart
100
Timer

Timer

by GE
Part Number AP2042594

Our Price
$88.67
Add to Cart
199
Screw

Screw

by GE
Part Number AP2042282

Our Price
$3.62
Add to Cart
200
Clamp and Screw Kit

Clamp and Screw Kit

by GE
Part Number AP2041905

Our Price
$8.98
Add to Cart
201
Blower Wheel

Blower Wheel

by GE
Part Number AP3794635

 (2)
Our Price
$33.83
Add to Cart
203
Motor Strap

Motor Strap

by GE
Part Number AP2043326

Our Price
$1.64
Add to Cart
204
Motor Strap

Motor Strap

by GE
Part Number AP2041945

Our Price
$15.92
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
205

Motor Support

by GE
Part Number AP3794670

Our Price
$10.18
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
209

Speed Nut

by GE
Part Number AP2042294

  • Not available
213
Dryer Drum Drive Belt

Dryer Drum Drive Belt

by GE
Part Number AP4324040

 (19)
Our Price
$18.47
Add to Cart
215
Idler Spring Arm

Idler Spring Arm

by GE
Part Number AP3794706

Our Price
$20.68
Add to Cart
216
Idler Pulley

Idler Pulley

by GE
Part Number AP2043227

 (4)
Our Price
$13.75
Add to Cart
218
Blower Housing

Blower Housing

by GE
Part Number AP3184084

Our Price
$20.69
Add to Cart
228
Exhaust Pipe

Exhaust Pipe

by GE
Part Number AP2619550

Our Price
$14.79
Add to Cart
230
Thermostat

Thermostat

by GE
Part Number AP2042618

 (1)
Our Price
$50.64
Add to Cart
231
Screw 10-16X1/2 Ab Hxw S

Screw 10-16X1/2 Ab Hxw S

by GE
Part Number AP2038632

Our Price
$1.59
Add to Cart
232

Screw

by GE
Part Number AP3794716

Our Price
$0.70
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
233

Plate Motor

by GE
Part Number AP5669799

Our Price
$16.46
Add to Cart
234
Cap Nut

Cap Nut

by GE
Part Number AP2042396

Our Price
$3.82
Add to Cart
235
Screw

Screw

by GE
Part Number AP2041802

Our Price
$2.17
Add to Cart
239

Screw

by GE
Part Number AP2042295

  • Not available
326
Gasket Seal

Gasket Seal

by GE
Part Number AP3206753

Our Price
$2.47
Add to Cart
502
Screw

Screw

by GE
Part Number AP2042300

Our Price
$1.78
Add to Cart
630
Dryer Motor Kit

Dryer Motor Kit

by GE
Part Number AP4295548

 (5)
Our Price
$145.97
Add to Cart
803
Interlock Switch

Interlock Switch

by GE
Part Number AP3994765

 (5)
Our Price
$9.47
Add to Cart
3109
Screw 10-16X1/2 Ab Hxw S

Screw 10-16X1/2 Ab Hxw S

by GE
Part Number AP2038632

Our Price
$1.59
Add to Cart
