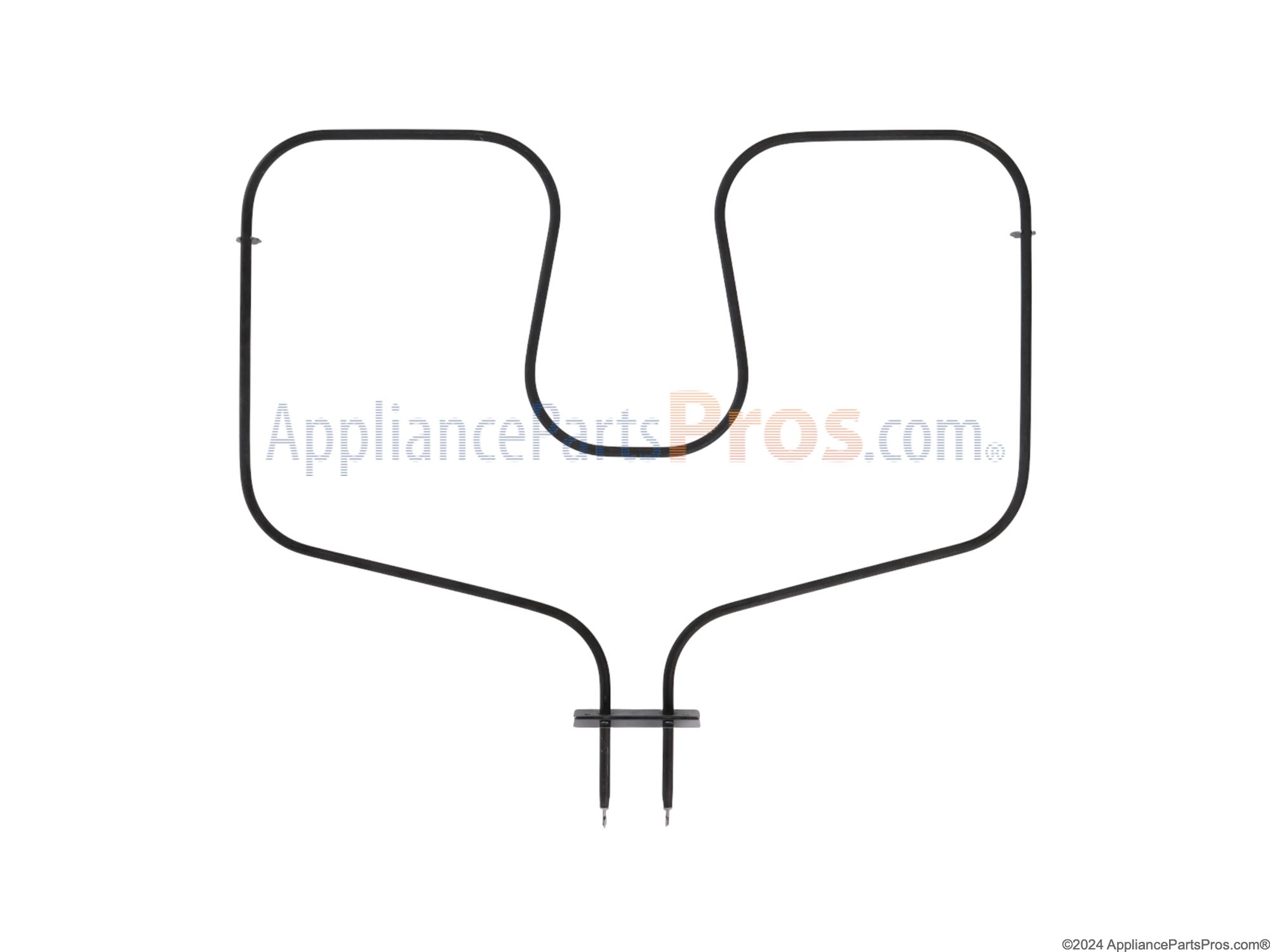

Bosch 367648 Bake Element, 30" Oven - AppliancePartsPros.com

Total
$0.00

Part Number:	AP2826720
MFG Part Number:	367648
Made by:	Bosch

Our Price
$39.35
Regularly	You Save
~~$47.22~~	$7.87

Most Interesting

Upper oven bake setting is heating too slowly and not making it up to the set temperature. The bake element is turning on and off during the preheat and never quite getting up to temperature, sometimes just staying off all together. Broil function works properly on upper oven and in lower oven all functions work properly. Removed upper oven bake element and tested it - resistance is 19 Ohms. Is it possible coil is on its way to failing and that's causing the problem or is it some other component causing the problem? Was hoping it was the coil because that's an easy fix... Any insight would be very helpful! Thanks.

Rachel for Model Number SC302TS

Answer Hello Rachel, You should check the oven sensor 414152 for resistance. The sensor should read 1090 ohms at room temperature. This does sound more like the sensor rather than the bake element.

Was this helpful?

The oven is taking far too long to come to bake temperature (35 minutes to get to 375°F). I ran self-cleaning and it appeared to do its job. Could this still just be a faulty bake element or is it more likely the control panel?

Tod for Model Number 3SCD302T

Answer Hello Tod, This is much more likely to be a Thermal Sensor Kit 414152 out of tolerance. It is possible that the electronic control is mis-reading the information sent by the sensor, but since the sensor is in the bake compartment with the 900°F to 1100°F temperatures, it is suspect for a long pre-heat.

Was this helpful?

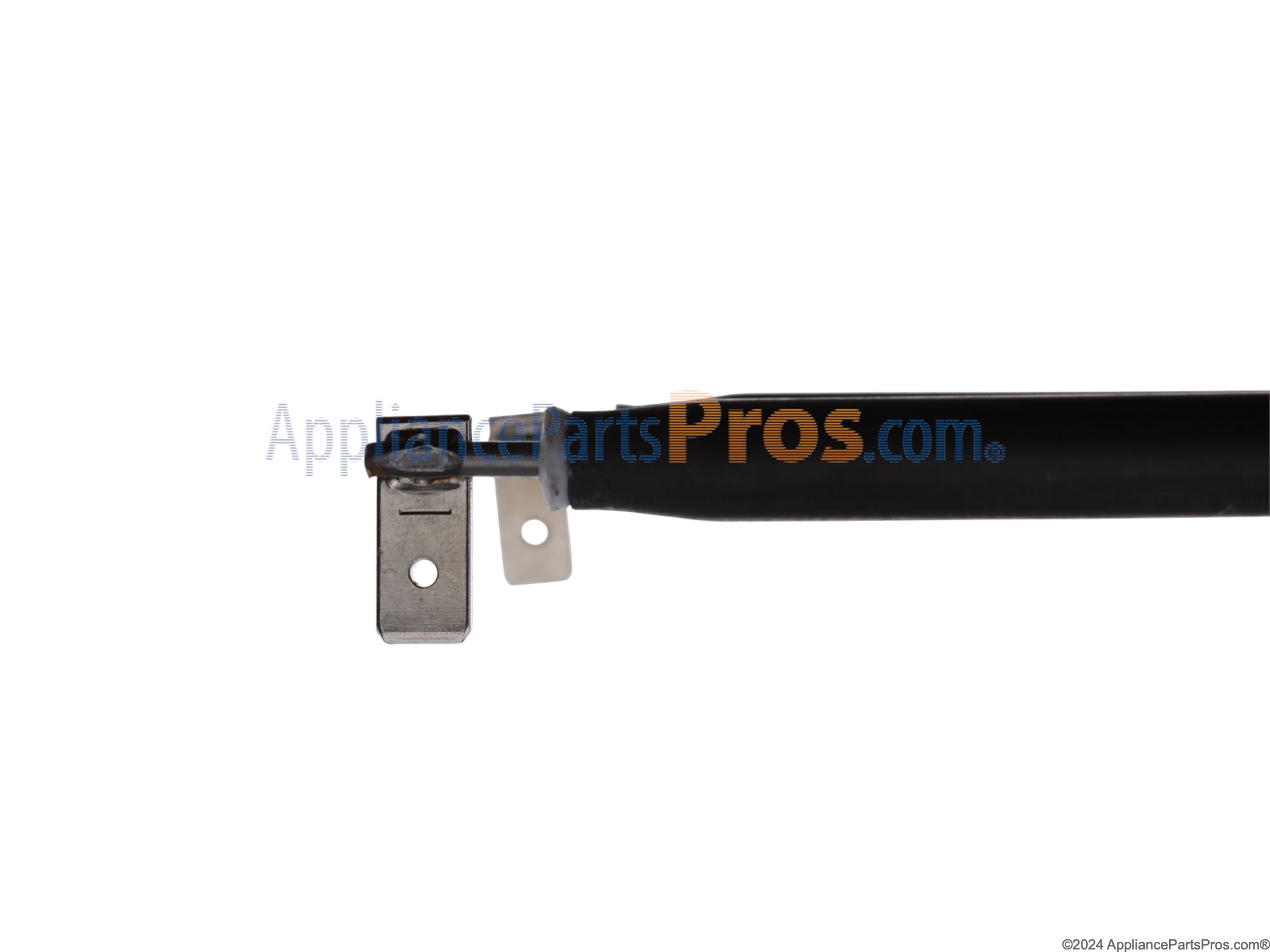

Successfully removed the element, just tugged. How do I install the new element: it's very difficult to see inside those holes and I can't see the wires or connectors that attach to the element spades. Thanks.

Joe for Model Number AP2826720

Answer Hello Joe. You will need to remove the back of the unit and locate the wire connectors and install them onto the new element 367648. Hope this helps.

Was this helpful?

Latest Questions

How are the wires connected to the element? I do not see any clips. Do they just pull out or do they require a special tool? I have it unbolted and have access to the wires.

Del for Model Number scd302

Answer Hello Del. The wires pull off the element 367648 spades. Hope this helps.

Was this helpful?

The heating element we took out says it is 2600 watt and 240 volt. Is this the heating element that will work for a Thermador oven/convection oven and self cleaning.

Lojosti for Model Number SC272TW

Answer Hello Lojosti. According to your model number, you will need the 27 inch element 367649, and not the 30 inch element. Hope this helps.

Was this helpful?

Bake Element, 30" Oven

Questions & Answers

Appliance Compatibility Tool

Repair Help

Repair Video

How to Replace Bake Element, 30" Oven #367648
