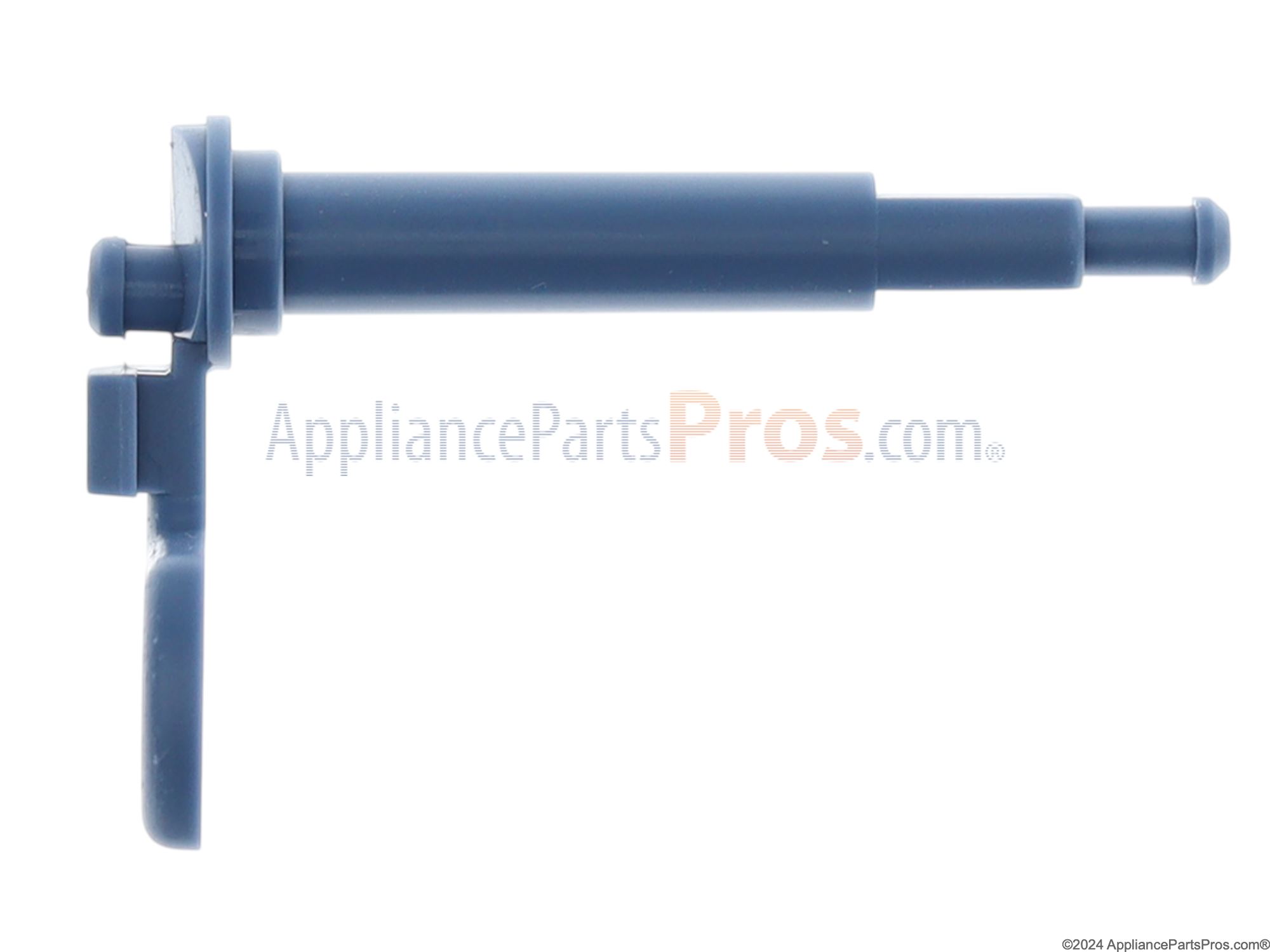

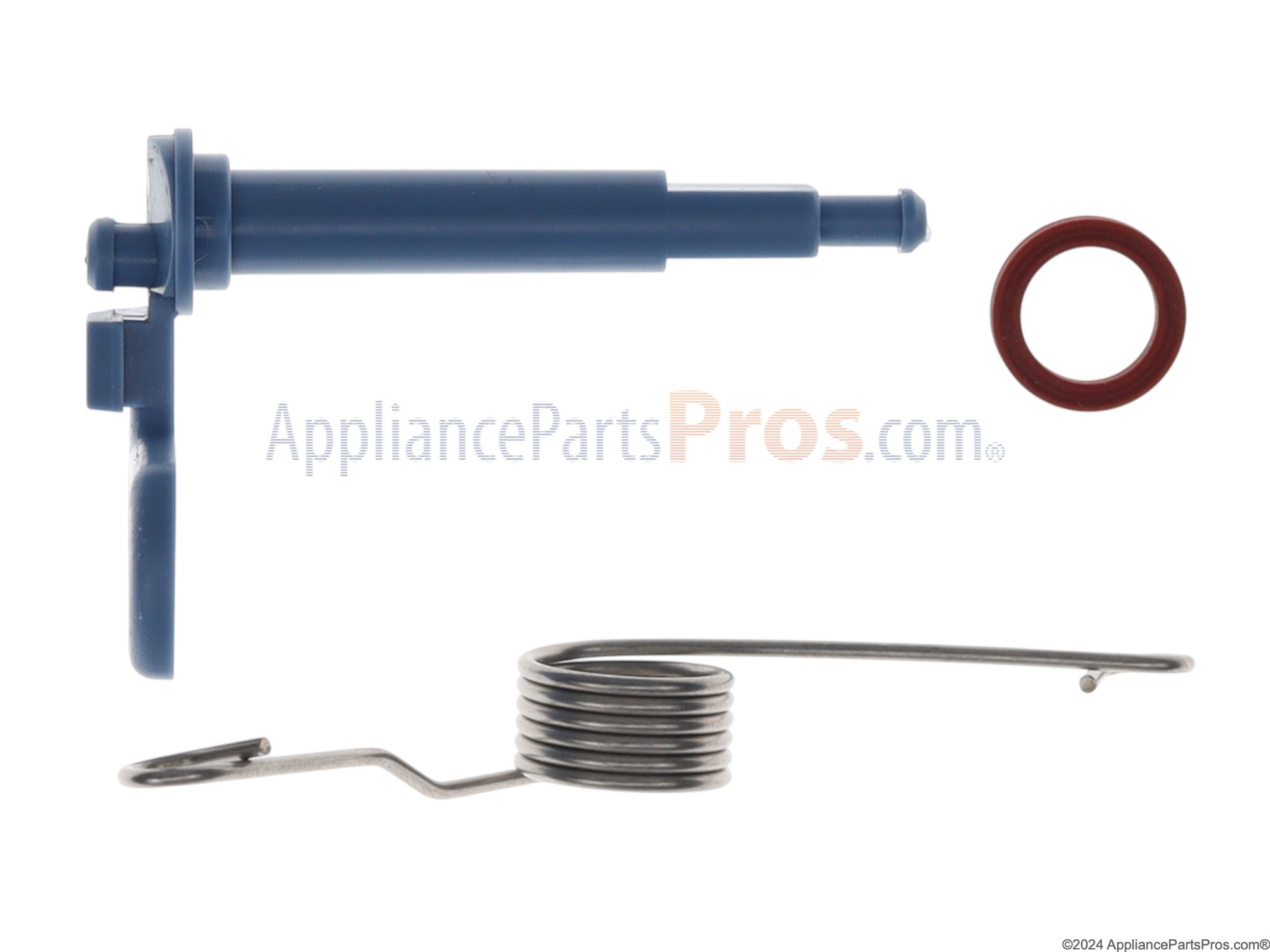

Detergent Cup Latch (with Spring)

J.m. for Model Number SHU3002UC/U06

Answer Hello J.M., The latch and spring can be replaced individually, but this is a very difficult task to perform so the detergent cup will open correctly. It also is a waste of money many times when you order the latch and spring when you get into the apparatus and find that there are more tiny parts with damage that prevents the new parts from operating properly. The most common occurrence is the door itself will have damage and will not remain in its' installed position. You do not have to order the entire assembly, but I strongly recommend to go ahead and closely inspect the small parts inside it and make sure there are no tabs broken off that will prevent the assembly from holding together.

Ron for Model Number SHU9906

Answer Hi. This part does not come with instructions. This answer was located on our Repair Forum, this is a free service in which technicians will assist with answering repair questions for our customers. Please use this link to assist in your repair.http://forum.appliancepartspros.com/dishwasher-repair/2910-bosch-dishwasher-soap-tray-doesnt-pop-open.html . Thank You.

Heidi for Model Number SHU5316UC/U12

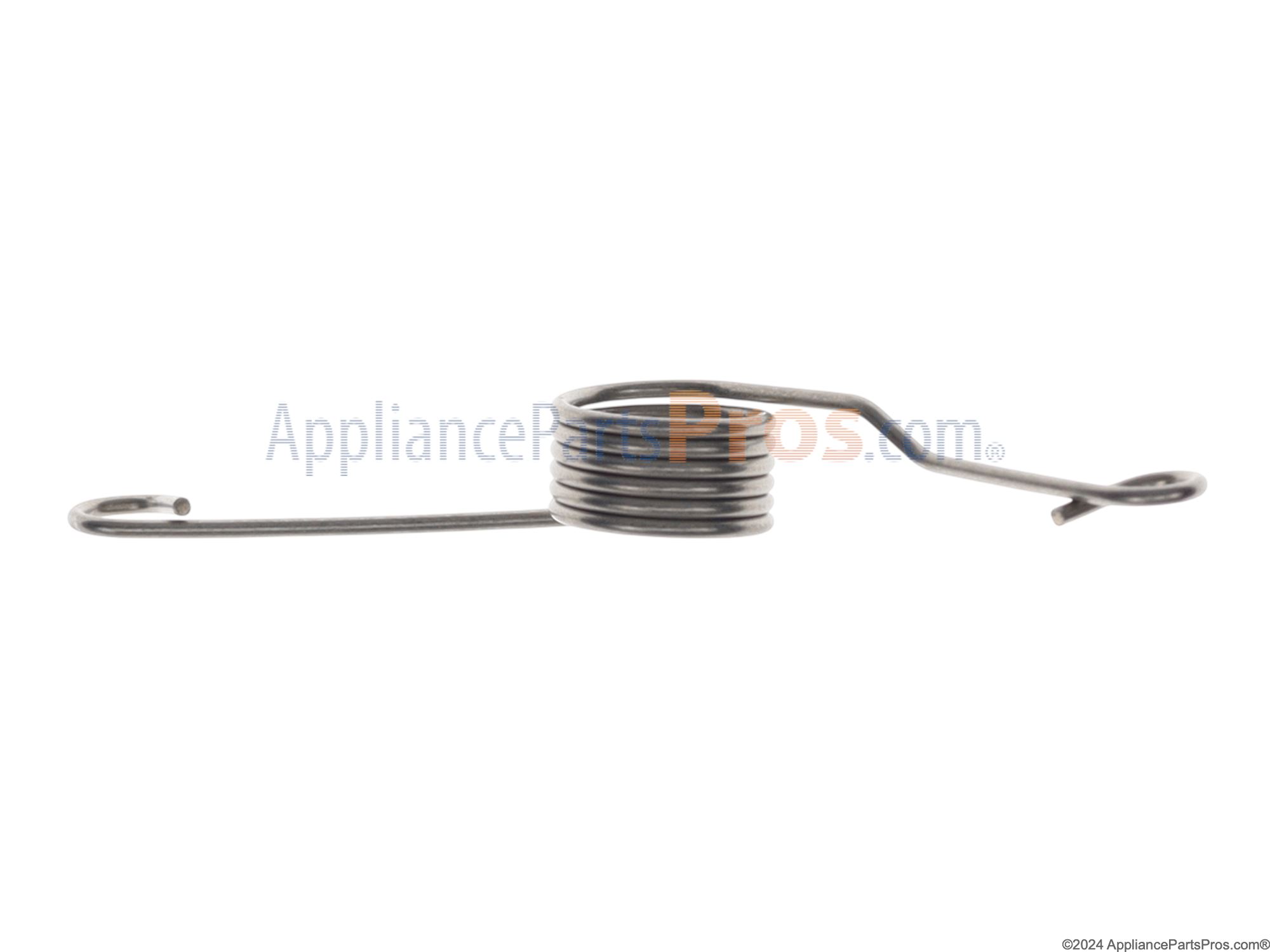

Answer Hello Heidi! I've located an online picture of the spring in the detergent cup latch kit 166630. This spring coils over 6 times. Thanks!

Cbh for Model Number SHU4016UC/U06

Answer Hello CBH, Since the soap dispenser is not serviceable, meaning individual parts are not available, the entire dispenser has to be changed out. The outer door panel must be removed to do this so before you start, discontinue power to the unit. When you remove the door panel, you will raise the curtain to see six miniature screws. I have seen two variations. Hex headed, about 3/16 inch, and miniature torx. Which ever it is, I found the tiny tools at a local electronics store. Be sure to reinstall the little black curtain as if there is a leak, it protects you from the shock and fire hazards that are possible when electricity and water combine.

Rtdaly for Model Number SHV4308UC/U12

Answer Dispenser – Top Load Dispenser (2) Top-load dispensers measure rinse-aid levels, but not with removable reed switches as with traditional dispensers. The dispensing mechanism also operates differently from traditional dispensers. All top-load dispensers are unvented.Detergent doorRinse-aid reservoirDetergent cup HINT: Resistances of actuator and rinse-aid sensor cannot be measured. Top-load dispenser actuator terminalRinse-aid level sensorMechanism latches at the bottom of the dispenser. Thank you.

Guest

Answer This part does not come with instructions. This answer was located on our Repair Forum, this is a free service in which technicians will assist with answering repair questions for our customers. Please use this link to assist in your repair. http://forum.appliancepartspros.com/dishwasher-repair/2910-bosch-dishwasher-soap-tray-doesnt-pop-open.html
