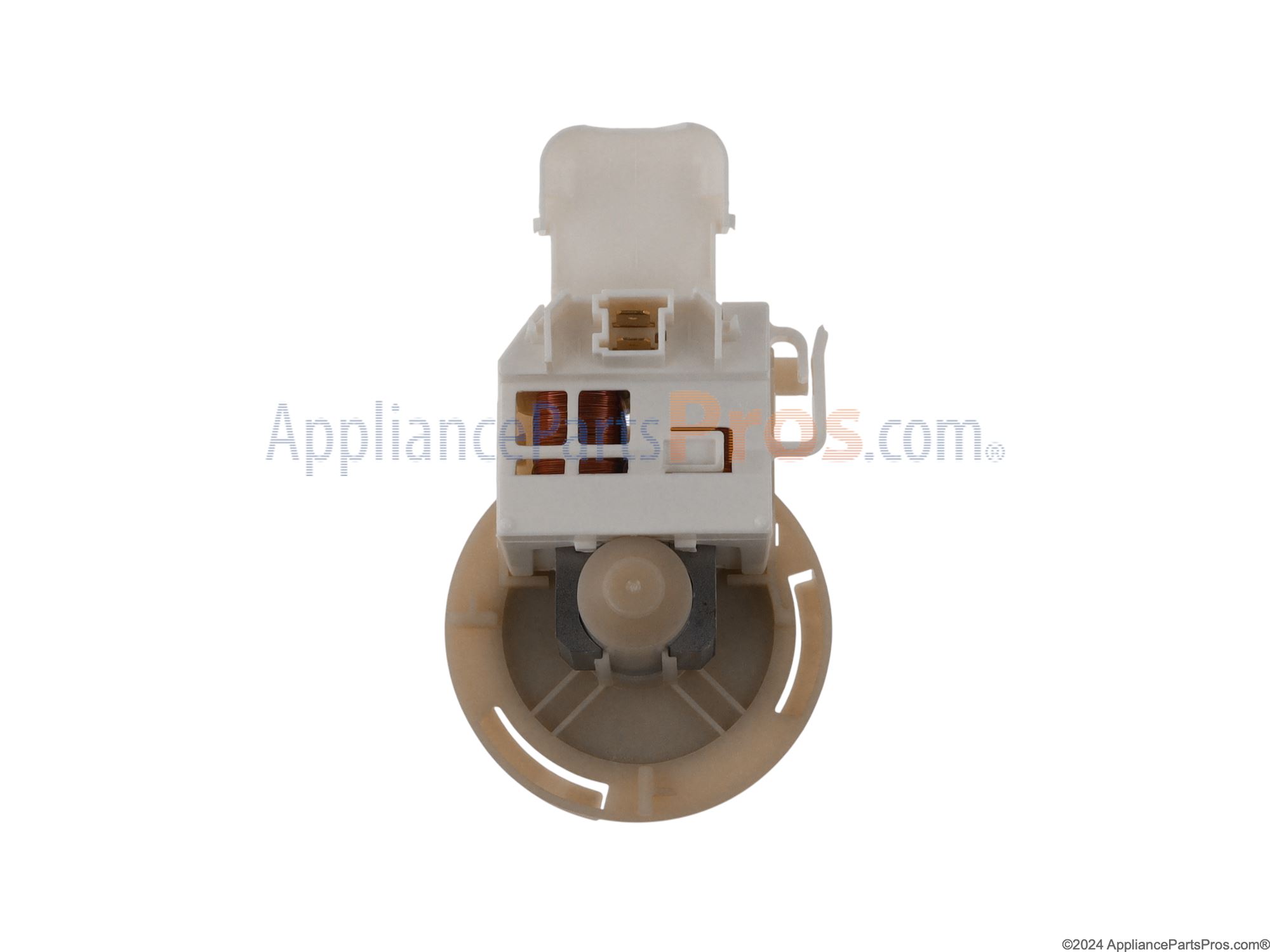

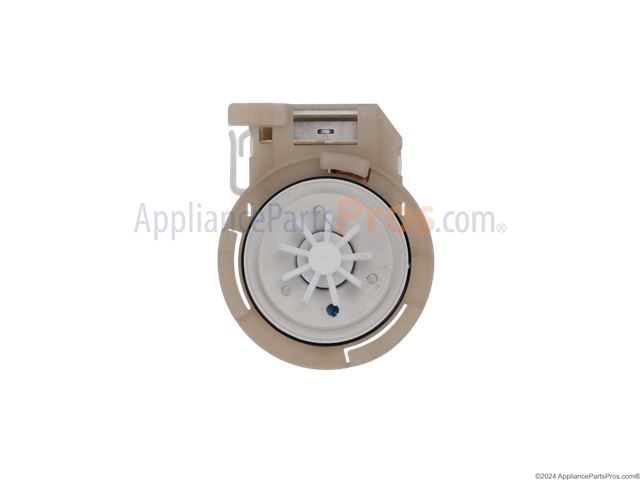

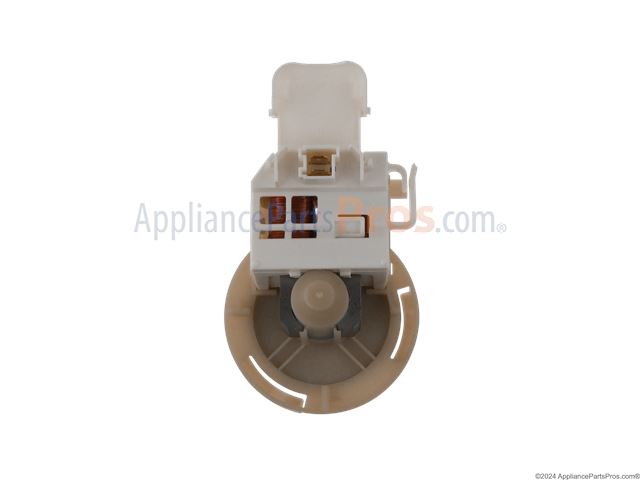

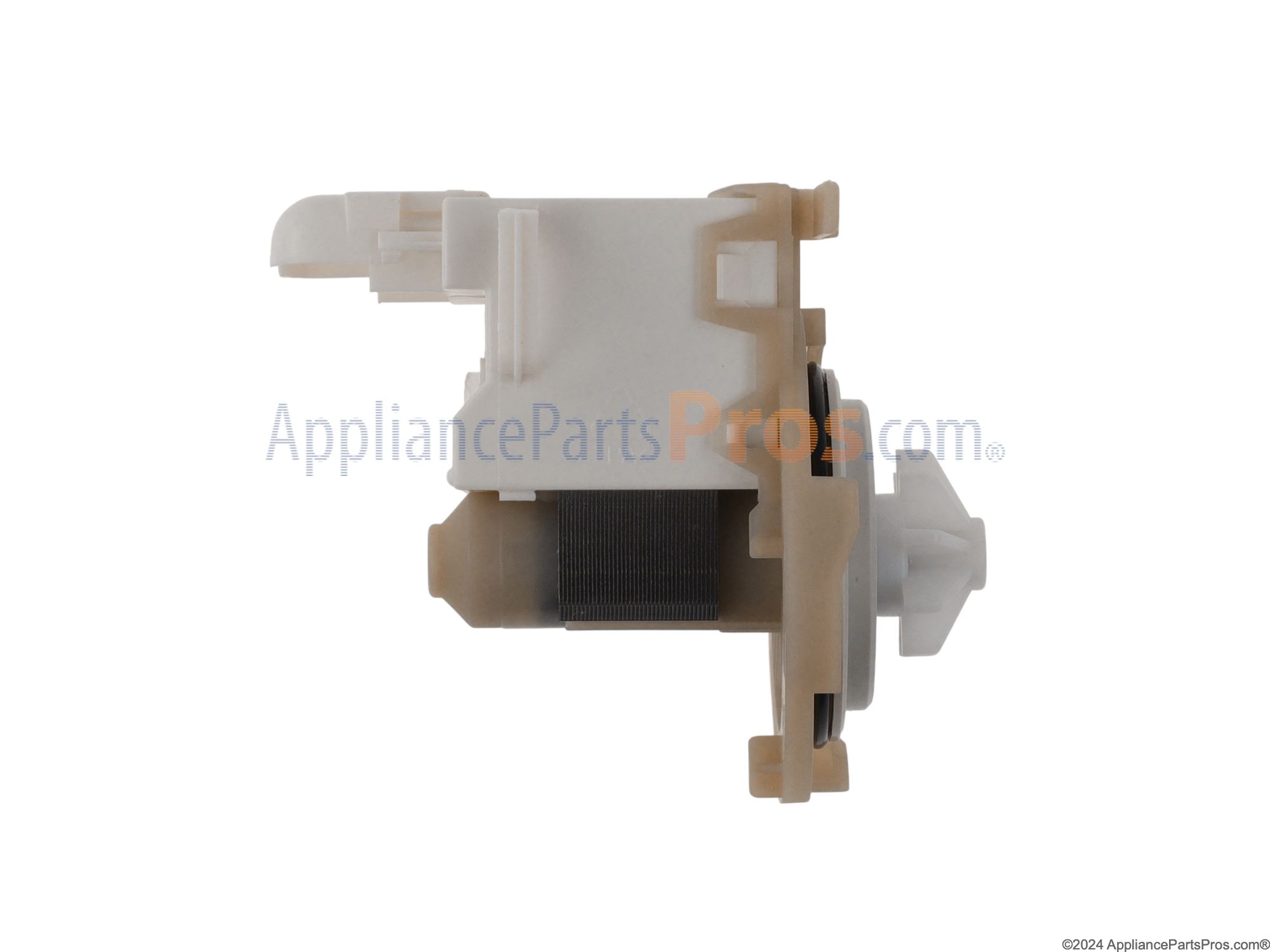

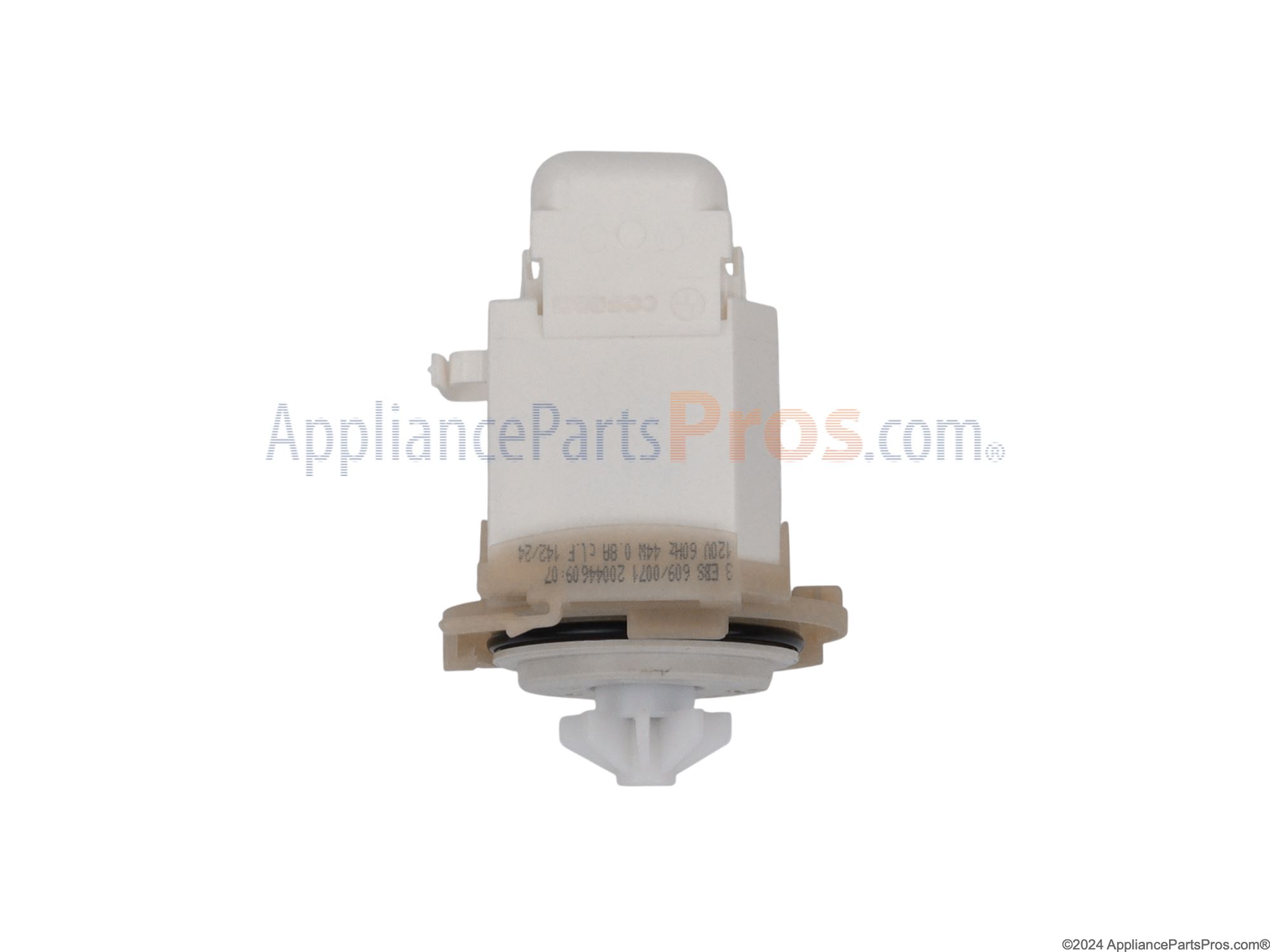

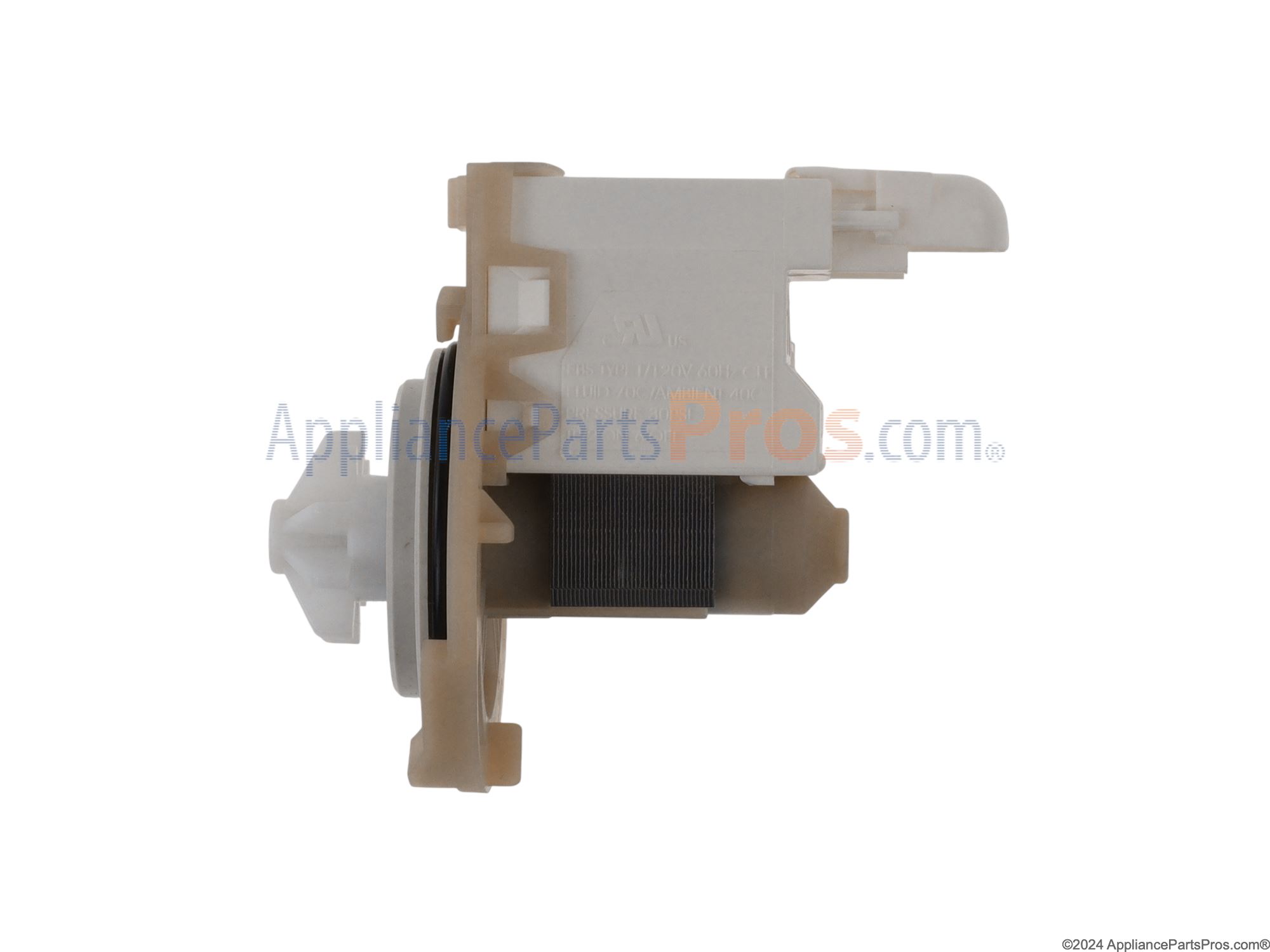

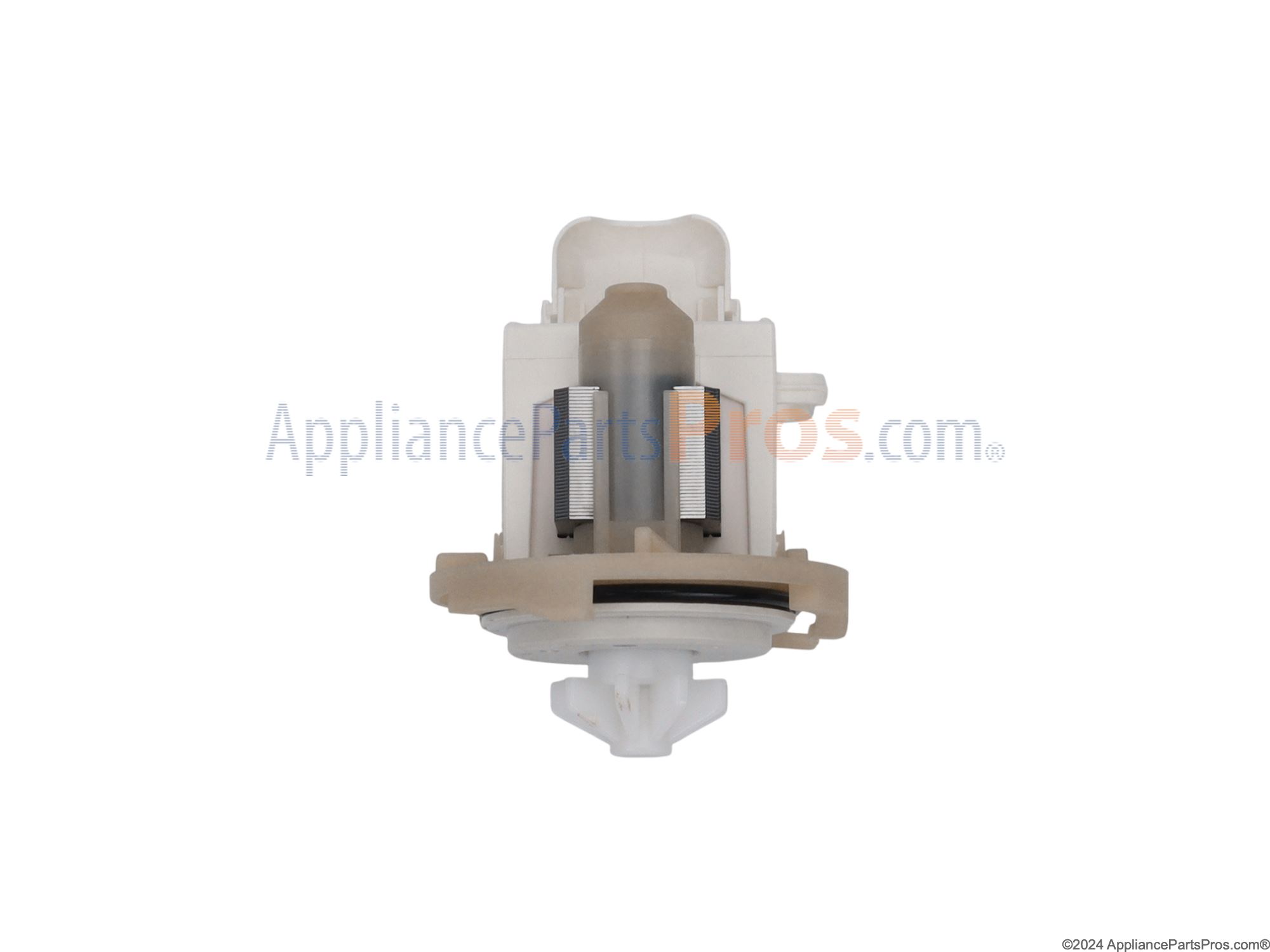

Drain Pump

Elaine U. for Model Number Bosch SHV4803UC/U07 FD 8004

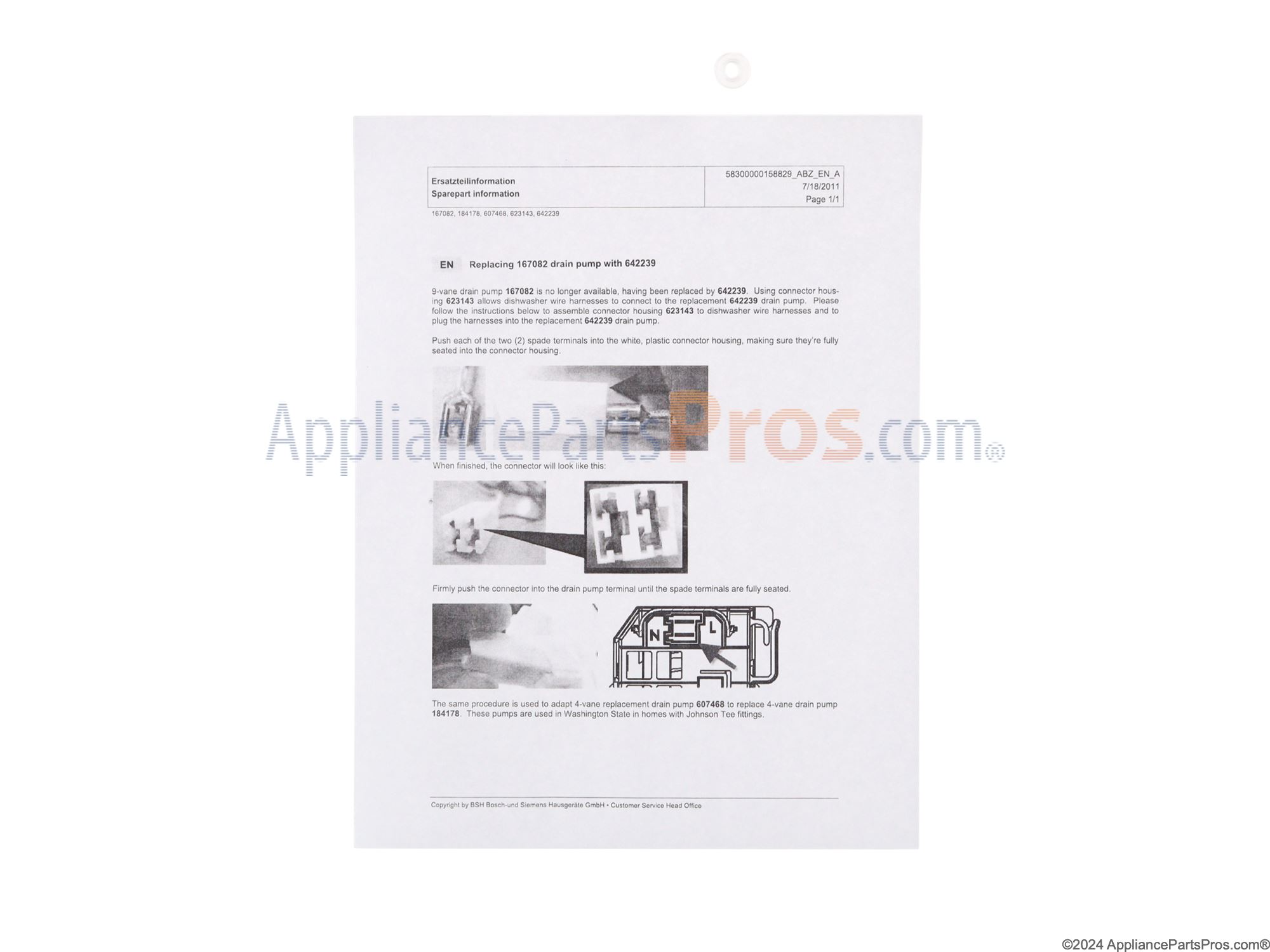

Answer Hello Elaine, This sounds like you have removed the check valve 165262 that allows for either drain or circulation. Without this valve in place, the pump will constantly try to both circulate and drain at the same time, preventing the normal operation in either mode. In case I am incorrect in this assumption and the drain pump is in fact the only issue, the pump 642239 will have to be replaced with an additional connector 623143 for the electrical connection. The wire4s are not polarized by the way, so placement of the wires in the connector can be either way. The pump will not know the difference and will operate normally either way.

Sandra for Model Number SHU9915UC/U11

Answer Hello Sandra, The pump is not polarized so the two connectors can connect to either of the two terminals. Just plug them in and the unit will operate normally either way.

Sseibt for Model Number SHU9915UC/U11

Answer Hello Sseibt, The motor is not polarized so the wires can connect to either of the two connectors. The pump will not no the difference and will operate normally either way.

Ken for Model Number Bosch SHE58C05UC/48

Answer Hello, the drain motor suggested by the manufacturer is part number 642239. Thanks!

Brian for Model Number shu33a05uc/40 bosh dishwasher

Answer Hi. By all means if the pump part # 642239 armature is water logged then replace it since it is running shorted. The water got past the internal impeller housing into the motor itself. All the reason for the unnatural noise. Make sure the drain hose under the sink is looped and mounted as high to the back of the under counter wall. Forming a P-trap so the sink water does not back up into the pump and dishwasher. Thank You.

Drew for Model Number SHX46B05UC/14

Answer Hello Drew, for your model number the manufacturer recommends you use part number 642239. They usually offer the one that will work with the unit the best. Thanks!
