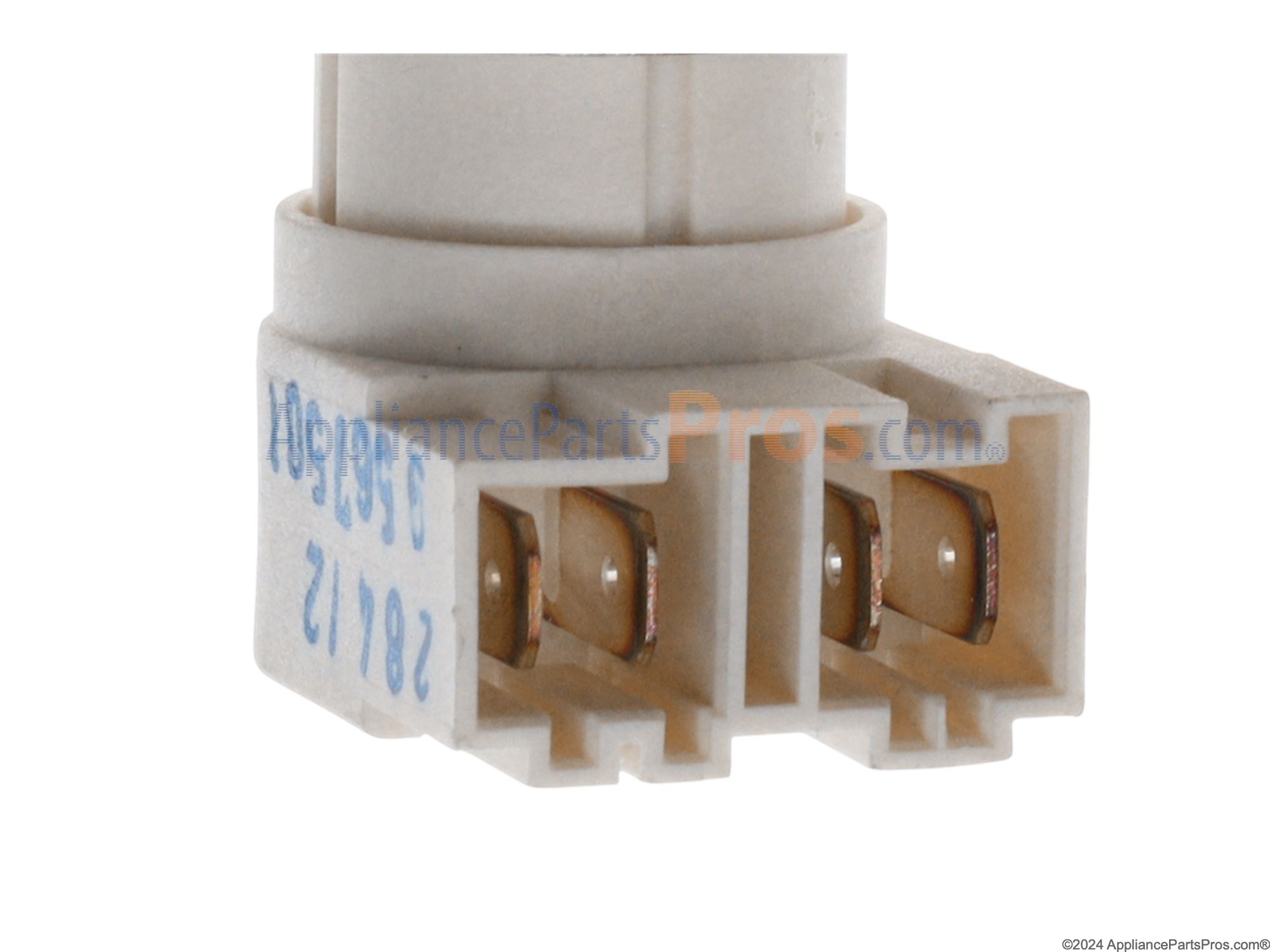

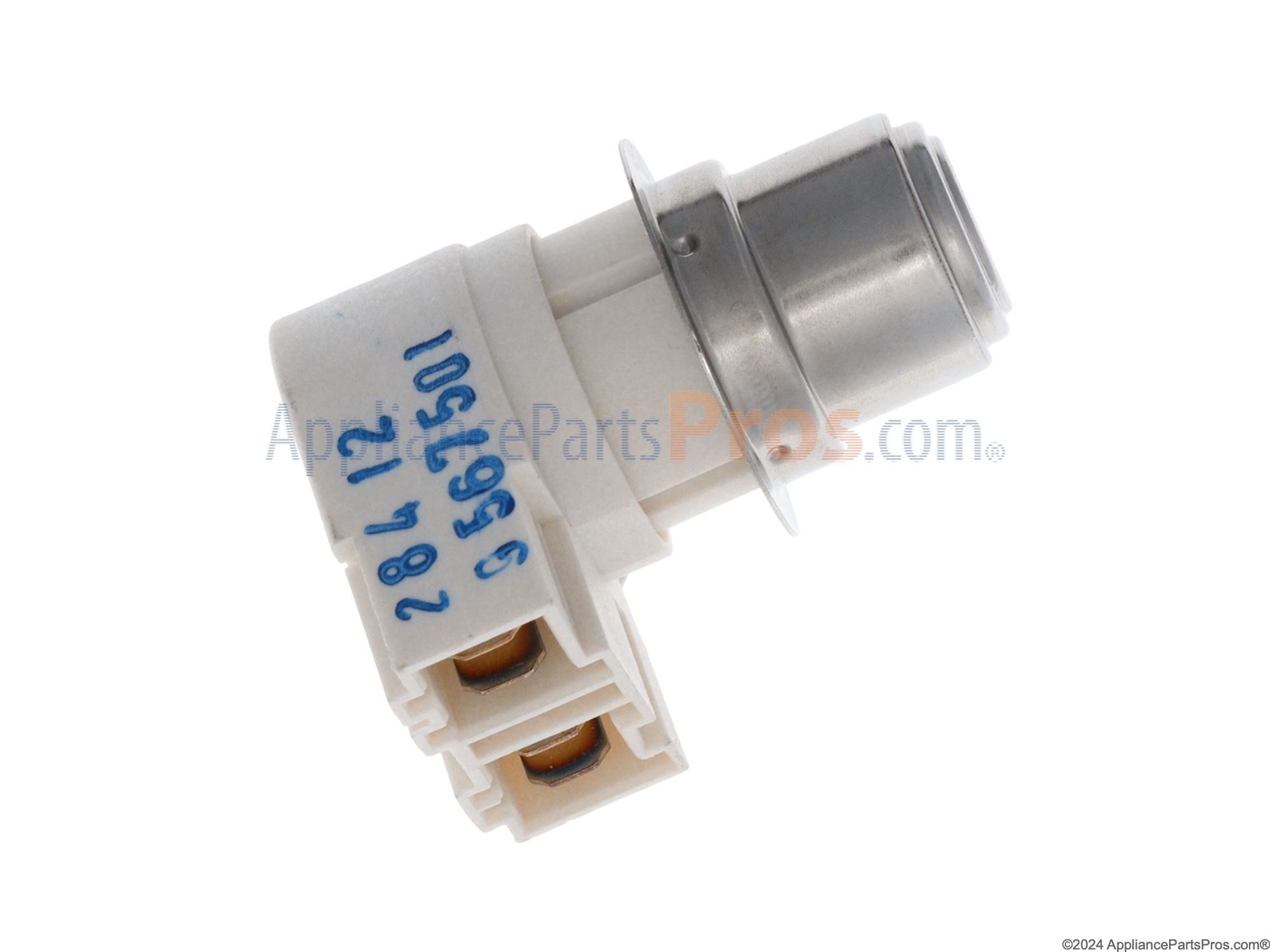

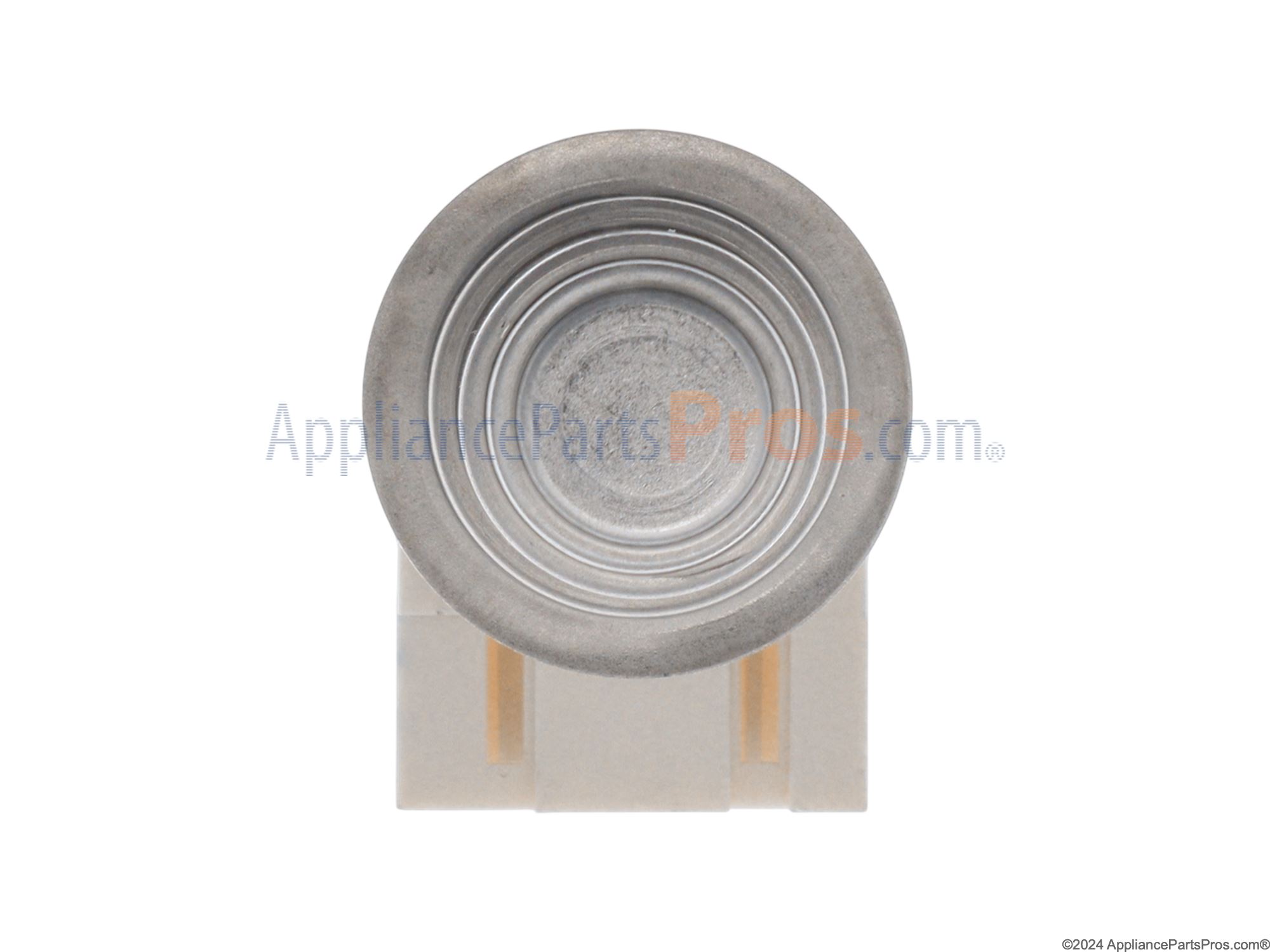

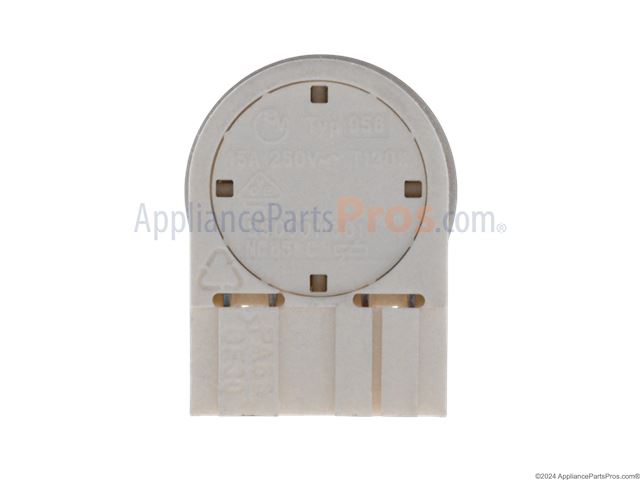

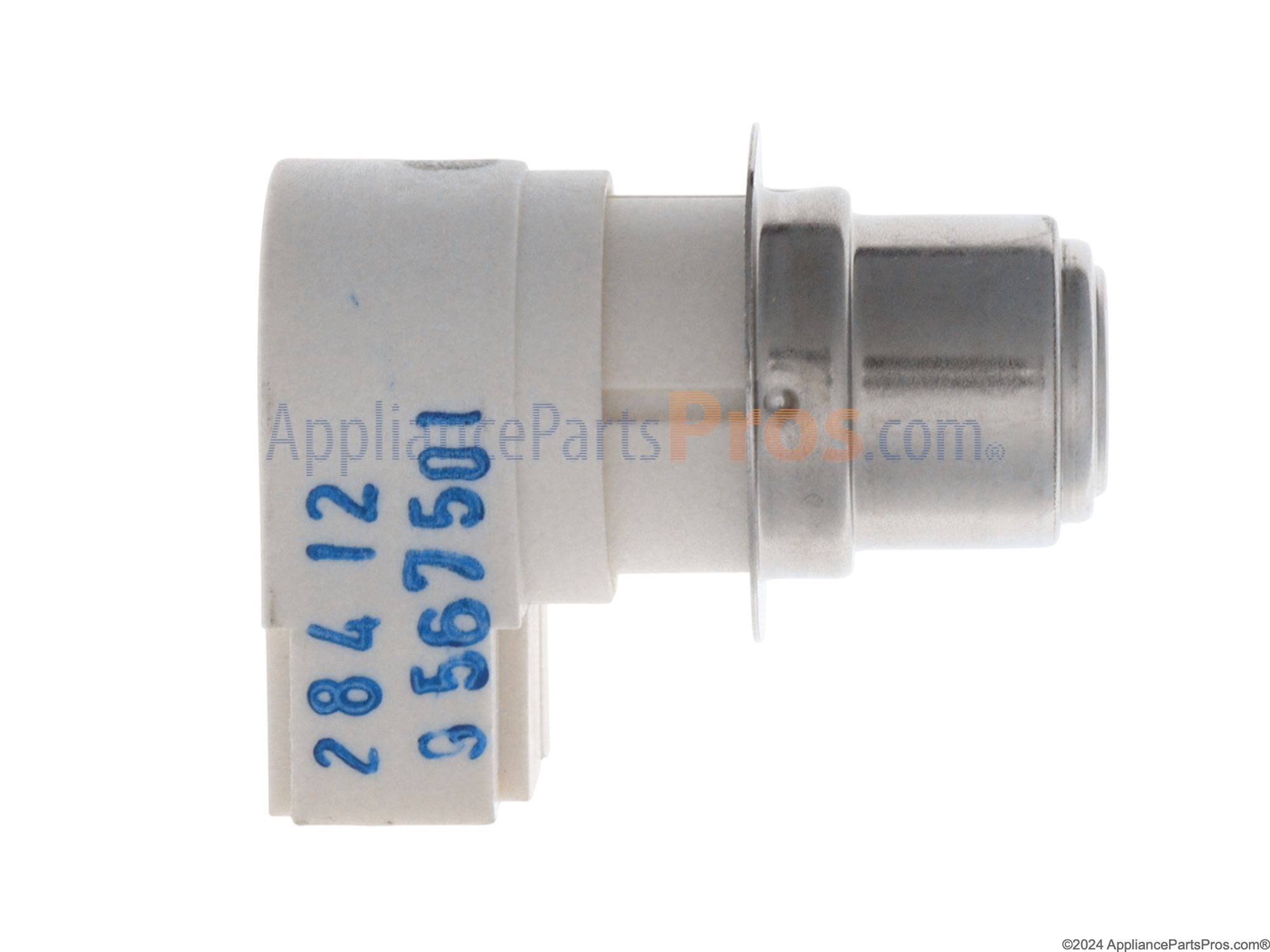

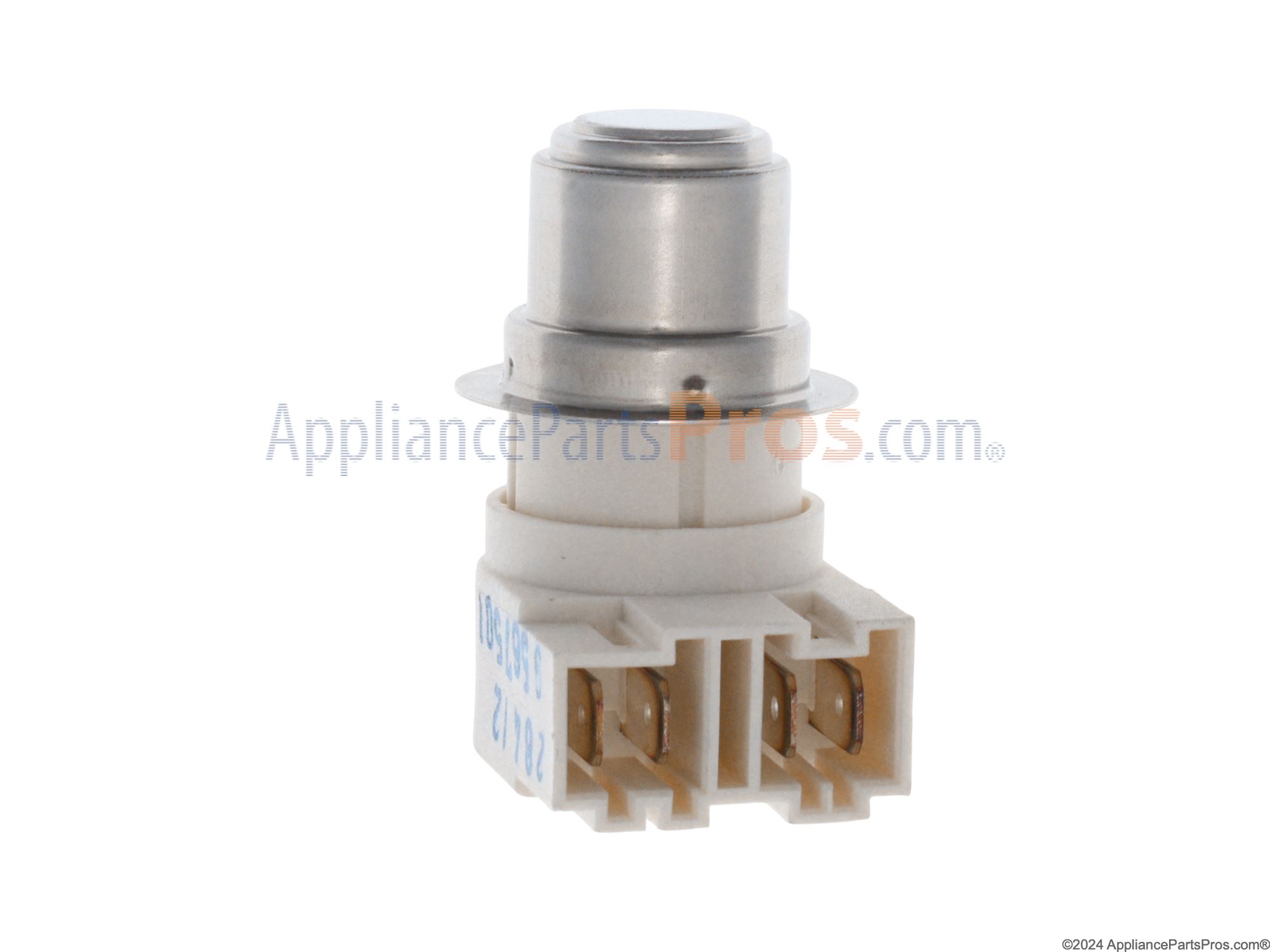

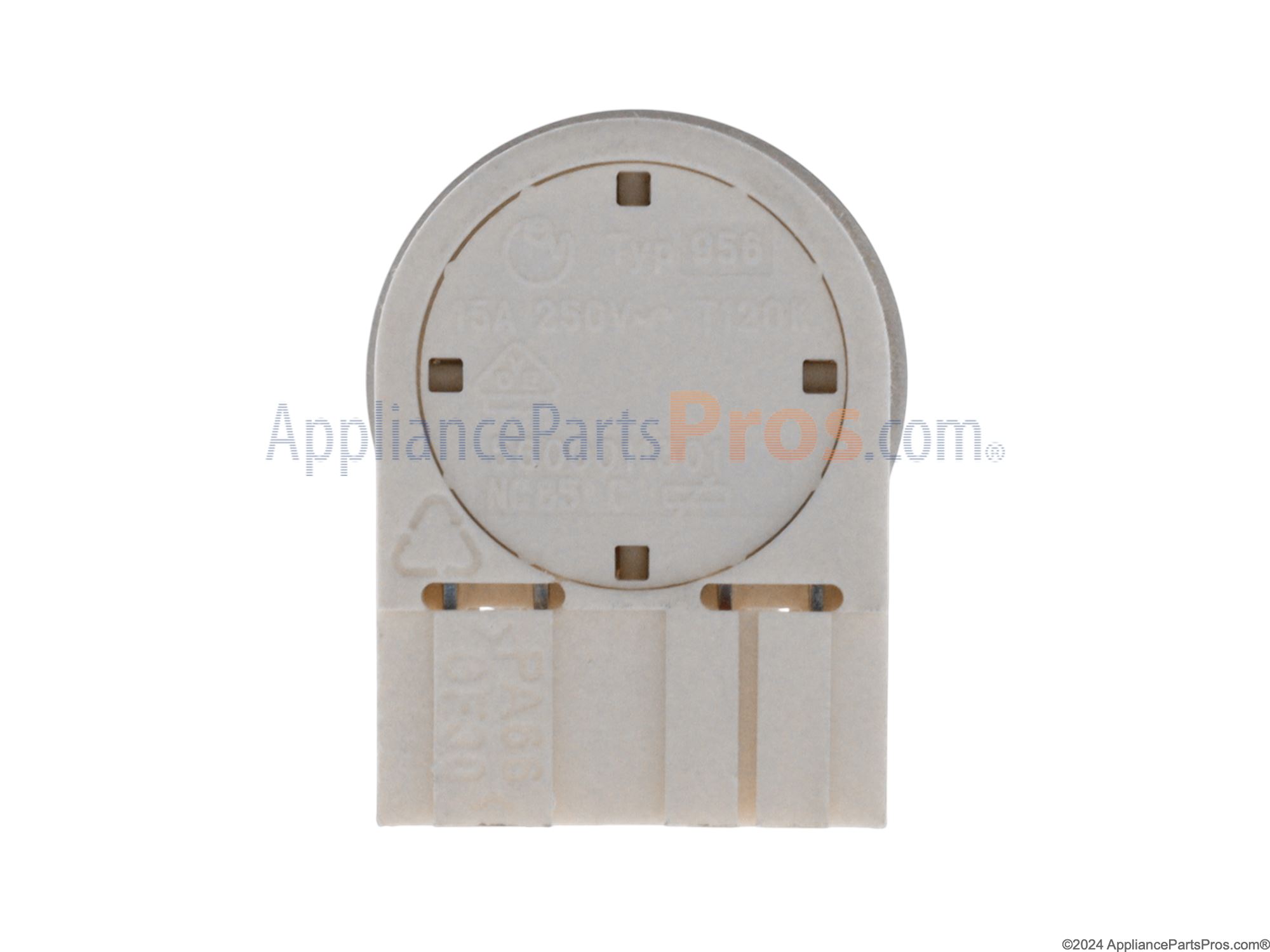

Thermistor with Hi-Limit

Part Number: AP2802365
MFG Part Number: 00165281
Made by: Bosch
Our Price
Regularly You Save
$32.33 $5.16

In Stock — Ships Today Guaranteed

Questions & Answers

11 Questions & Answers


NTC (negative temperature coefficient). Resistance or capacitance decreases when temperature increases.

Genuine Bosch part. Bosch brands include Bosch, Thermador, Gaggenau, and others.

Appliance Compatibility Tool

Check your model number or use our Cross Reference Tool to determine if this part will work with your appliance.

Where can I find my model number?

More Product Images

Repair Help

Cross Reference Information

Part Number 00165281 (AP2802365) replaces 165281, 935369, AH3439111, EA3439111, PS3439111.

Have a Repair Question?
AppliancePartsPros has your Answer!

Questions & Answers

Read all 11 Questions

Ask a Question

Most Interesting

Hi - I noticed my DW was leaking a bit from the base so I removed some panels, ran a cycle and found the leak at the base of the thermistor. Water slowly wells up around the metal base where it meets the plastic housing, especially near the clamps (where there are notches in the housing, which seems ill-advised, but anyway). I removed the thermistor and inspected the housing and all other areas of the heating element - no cracks or other issues. The o-ring seal did look a little scuffed on one side, so I turned it around and put the "good" side water-side down, re-ran a cycle and same result. I have ordered the factory seal and will try again soon with that new part. But I'm wondering if I'm missing something. Has anyone seen this problem before? Could it be as simple as a bad seal, even if to my (admittedly untrained) eyes the current seal doesn't look all that bad? Thank you!

Cochese for Model Number SHX46A05UC/40


Was this helpful?

I have an issue with my whirlpool dishwasher. The dishwasher will not complete a cycle. It will stop and the clean light will flash 7 times. I have checked the heating element(10 ohms), and the over temp switch(closed). The component I have a question about is the Thermistor. With a meter connected to it, I hold it over my stove top element and watch it as it is heating up. It starts at about 50 ohms then starts to drop as it gets hotter. It will go open for a nano second at around 40 ohms, then continue to drop. It will do the same on the way back up when it is cooling in the freezer, open at around 40 ohms. I don't believe this is normal, but Im not sure if this is something built in to this particular sensor. Any advise?

Fred for Model Number Whirlpool GU2548XTPQ6


Was this helpful?

The unit runs, heat but stop as soon it gets hot, after about 30 minutes, then it cools down until a restart for another stopping few minutes later. Main switch... check Board connectors... check Could have been the motor thermal protection... Change the motor... done, it doesn't change the problem. Could have been the Thermistor Hi-limit Change the 85oC Thermistor... done it doesn't change the problem. What could it be then ? Change the dishwasher... not done yet. Any suggesting somebody?

Jean-Pierre for Model Number Bosh Dishwasher SHU5316UC/14 serial 76X6


Was this helpful?

Latest Questions

All cycle times are longer (Power scrub wash 158, regular wash 146, quick wash 52, rinse 9). Water heater does not appear to be heat water. Diagnostic Procedures (press and hold regular wash / rinse buttons, then press power switch) cycle count down states PO, quick wash light is on solid, rinse light blinks. If continue to press buttons, additional lights come on and off. How can I determine if i need a thermistor, heater or control module?

John Doe for Model Number SHE44C02UC / 46


Was this helpful?

I have a "2H" error code. I have replaced the control module and the heater assembly. Stiil have the error code. Starts, then sits silent with 2H for 1-2 hours, starts running from the high 90's and stalls out again in the 50 minute range, sits for another couple of hours, then finishes. Please advise

Al for Model Number SHU5315UC/U06


Was this helpful?

So, I ran a test! They said to press the Power Scrub Plus at the same time as the regular wash cycle, press the on switch and then the two lights would flash. From there, press each individual cycle and if the clean button illuminated, then you could correctly assume that it was the temperature sensor? So now my question? Is a thermistor the same thing as a temperature sensor and does part (AP 2802365) fit my model SHU9915UC/U11? This particular BOSCH dishwasher is 12 years old so I do not want to have a hefty service bill if this is something my husband could repair himself? But, I want to make sure that I order the correct part and I need to know if I performed the diagnostic in the correct manner? HELP?

Darla for Model Number SHU9915UC/U11


Was this helpful?
