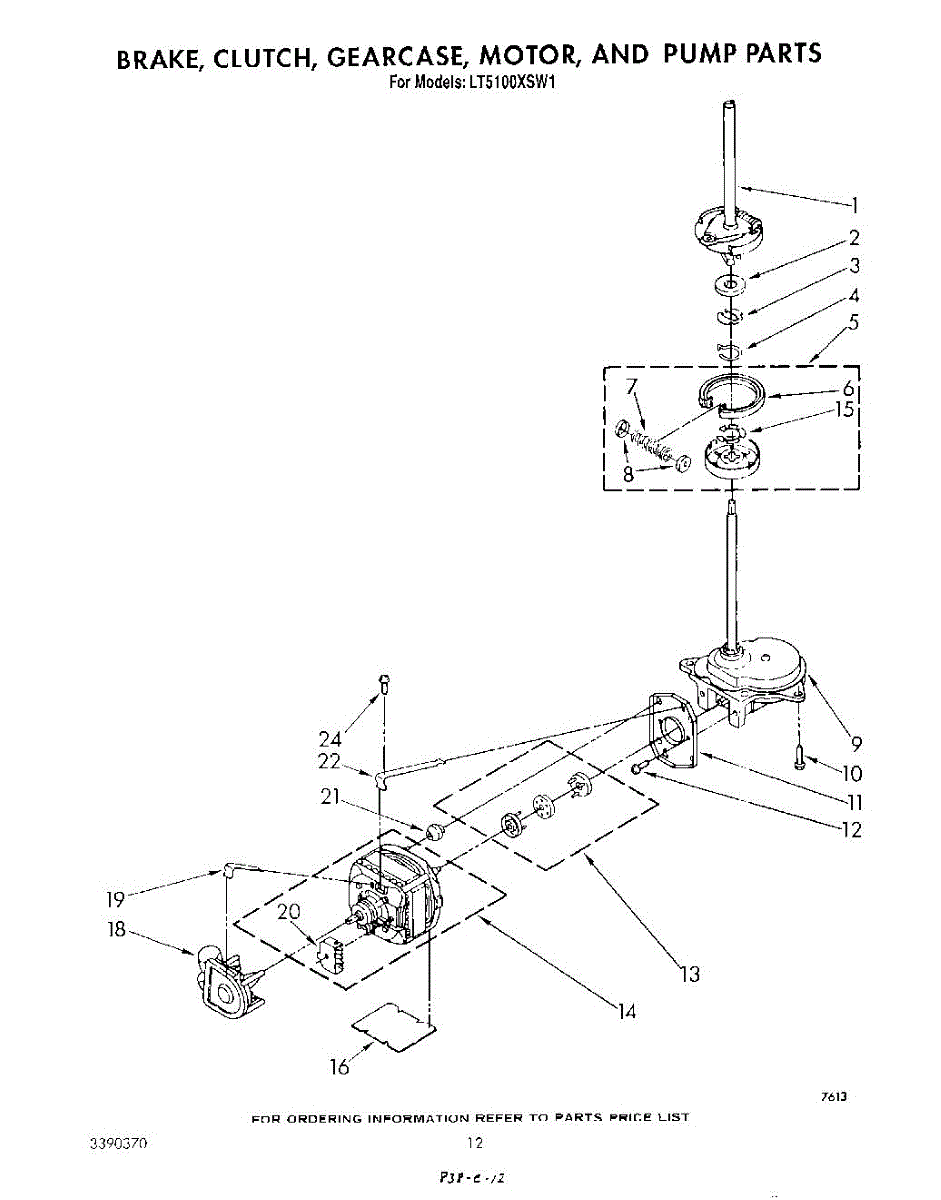

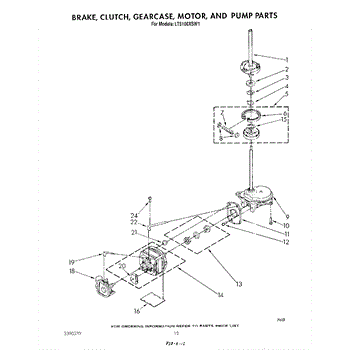

Parts for Whirlpool LT5100XSW1: Brake, Clutch, Gearcase, Motor and Pump Parts

Start New Search

Laundry Centers

Location on Diagram Part Description Price & Availability
1
Basket Drive and Brake Assembly

Basket Drive and Brake Assembly

by Whirlpool
Part Number AP3094539

 (3)
Our Price
$127.21
Add to Cart
2
Spin Tube Thrust Washer

Spin Tube Thrust Washer

by Whirlpool
Part Number AP2905330

Our Price
$4.30
Add to Cart
3
Ring

Ring

by Whirlpool
Part Number AP4260762

 (1)
Our Price
$1.98
Add to Cart
4
Guard Ring

Guard Ring

by Whirlpool
Part Number AP3094404

 (1)
Our Price
$1.97
Add to Cart
5
Clutch Assembly

Clutch Assembly

by Whirlpool
Part Number AP3094537

 (78)
Our Price
$26.94
Add to Cart
6
Clutch Band and Lining Kit

Clutch Band and Lining Kit

by Whirlpool
Part Number AP3094538

 (8)
Our Price
$27.52
Add to Cart
7
Clutch Band and Lining Kit

Clutch Band and Lining Kit

by Whirlpool
Part Number AP3094538

 (8)
Our Price
$27.52
Add to Cart
8
Clutch Spring Cap

Clutch Spring Cap

by Whirlpool
Part Number AP2905335

Our Price
$3.25
Add to Cart
9
Neutral Drain Transmission

Neutral Drain Transmission

by Whirlpool
Part Number AP3096209

 (9)
Our Price
$182.66
Add to Cart
10
Screw

Screw

by Whirlpool
Part Number AP2915504

  • Not available
11
Motor Mount Plate

Motor Mount Plate

by Whirlpool
Part Number AP2905267

Our Price
$26.57
Add to Cart
12
Anti-Rattle Screw

Anti-Rattle Screw

by Whirlpool
Part Number AP3130906

Our Price
$1.97
Add to Cart
13
Whirlpool Direct Drive Washer Motor Coupling
Sale

Whirlpool Direct Drive Washer Motor Coupling

by Whirlpool
Part Number AP3963893

 (151)
Our Price
$10.94
Add to Cart
14
Direct Drive Washer Motor

Direct Drive Washer Motor

by Whirlpool
Part Number AP2907974

 (3)
Our Price
$158.57
Add to Cart
15
Anti-Rattle Clip

Anti-Rattle Clip

by Whirlpool
Part Number AP3130905

 (1)
Our Price
$1.97
Add to Cart
16
Motor Shield

Motor Shield

by Whirlpool
Part Number AP2947204

Our Price
$16.89
Add to Cart
18
Whirlpool Direct Drive Washer Pump
Sale

Whirlpool Direct Drive Washer Pump

by Whirlpool
Part Number AP2907492

 (106)
Our Price
$27.88
Add to Cart
19
Retainer Clip

Retainer Clip

by Whirlpool
Part Number AP3595466

 (2)
Our Price
$1.96
Add to Cart
20
Motor Start Switch

Motor Start Switch

by Whirlpool
Part Number AP3125984

Our Price
$51.95
Add to Cart
21
Grommet

Grommet

by Whirlpool
Part Number AP2907652

Our Price
$3.47
Add to Cart
22
Retainer

Retainer

by Whirlpool
Part Number AP4324883

Our Price
$3.67
Add to Cart
24
Screw

Screw

by Whirlpool
Part Number AP4026440

Our Price
$3.66
Add to Cart

Wiring Diagram

by Whirlpool
Part Number AP3050930

  • Not available

Instructions, Installation

by Whirlpool
Part Number AP3051113

  • Not available

Guide, Use & Care

by Whirlpool
Part Number AP3051114

  • Not available

List, Repair Parts

by Whirlpool
Part Number AP3051115

  • Not available

Guide, Laundry (LT5000XVW0 and LT5004XVW0)

by Whirlpool
Part Number AP3051189

  • Not available
Gear Case Oil

Gear Case Oil

by Whirlpool
Part Number AP3072960

Our Price
$17.45
Add to Cart
Gasket Sealer

Gasket Sealer

by Whirlpool
Part Number AP3073576

Our Price
$31.11
Add to Cart

Spray Paint (toast) 12 Oz. Can

by Whirlpool
Part Number AP3075394

  • Not available

Spray Paint (platinum) 12 Oz. Can

by Whirlpool
Part Number AP3075395

  • Not available
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3131372

Our Price
$19.35
Add to Cart
Lubricant

Lubricant

by Whirlpool
Part Number AP3131935

Our Price
$31.83
Add to Cart
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134037

 (4)
Our Price
$4.00
Add to Cart
Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

by Whirlpool
Part Number AP3134038

Our Price
$3.37
Add to Cart
Touch Up Acrylic Appliance Paint-0.6 Oz. (harvest Gold)

Touch Up Acrylic Appliance Paint-0.6 Oz. (harvest Gold)

by Whirlpool
Part Number AP3134039

 (2)
Our Price
$4.06
Add to Cart
Touch Up Acrylic Appliance Paint-0.6 Oz. (toast)

Touch Up Acrylic Appliance Paint-0.6 Oz. (toast)

by Whirlpool
Part Number AP3134040

  • Not available
Touch Up Acrylic Appliance Paint-0.6 Oz. (platinum)

Touch Up Acrylic Appliance Paint-0.6 Oz. (platinum)

by Whirlpool
Part Number AP3134041

Our Price
$7.16
Add to Cart

Primer (white)

by Whirlpool
Part Number AP3134048

  • Not available

Almond Touch-Up Paint-1 Qt. Can

by Whirlpool
Part Number AP3134051

  • Not available
Spray Paint (harvest Gold) 12 Oz. Can

Spray Paint (harvest Gold) 12 Oz. Can

by Whirlpool
Part Number AP3134632

  • Not available

Touch-Up Paint (harvest Gold) 1 Qt. Can

by Whirlpool
Part Number AP3134637

  • Not available

Touch-Up Paint (toast) 1 Qt. Can

by Whirlpool
Part Number AP3134643

  • Not available

Touch-Up Paint (platinum) 1 Qt. Can

by Whirlpool
Part Number AP3134644

  • Not available
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134813

Our Price
$7.08
Add to Cart
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134817

Our Price
$12.12
Add to Cart
Appliance Touch Up Paint

Appliance Touch Up Paint

by Whirlpool
Part Number AP3135053

Our Price
$80.08
Add to Cart
