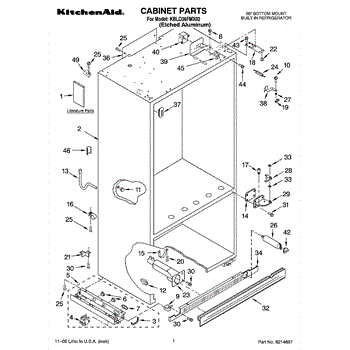

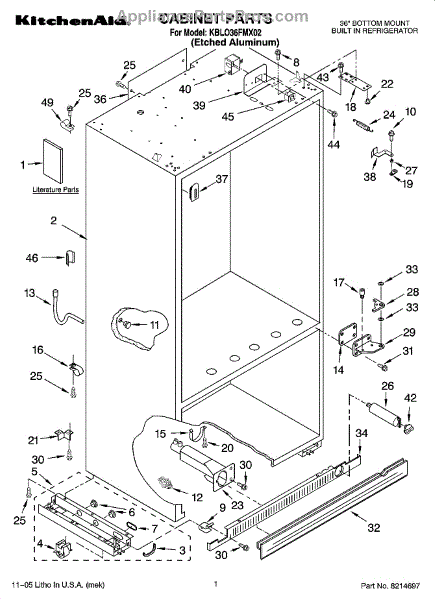

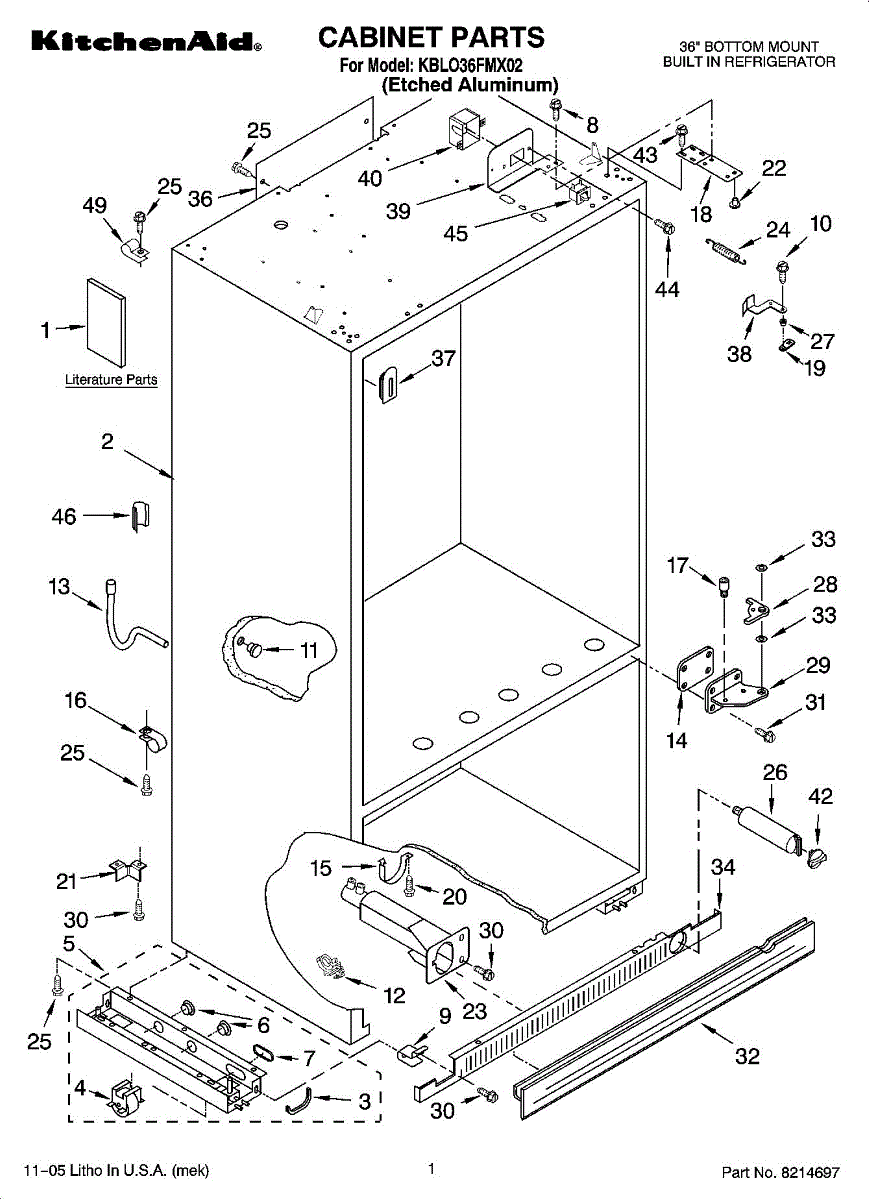

Parts for KitchenAid KBLO36FMX02: Cabinet Parts

Start New Search

36" Bottom Mount Built in Refrigerator

Location on Diagram Part Description Price & Availability
1

Modular Im Svc 120V

by Whirlpool
Part Number AP4434485

  • Not available
1

Use & Care Guide

by Whirlpool
Part Number AP4953765

  • Not available
1

Installation Instructions

by Whirlpool
Part Number AP4954322

  • Not available
1

Energy Label

by Whirlpool
Part Number AP4954871

  • Not available
1

Service & Wiring Sheet

by Whirlpool
Part Number AP4955234

  • Not available
1

Main Control Service Sheet

by Whirlpool
Part Number AP4955825

  • Not available
3

Grommet, Tube Crossover

by Whirlpool
Part Number AP2987379

  • Not available
4
Roller, Front & Rear

Roller, Front & Rear

by Whirlpool
Part Number AP4307310

Our Price
$21.76
Add to Cart
5
Support, Leveler Assembly

Support, Leveler Assembly

by Whirlpool
Part Number AP4371315

  • Not available
5

Support

by Whirlpool
Part Number AP4482607

Our Price
$108.77
Add to Cart
6

Grommet, Wiring

by Whirlpool
Part Number AP2987382

  • Not available
7

Grommet, Flexible

by Whirlpool
Part Number AP2987383

  • Not available
8
Screw

Screw

by Whirlpool
Part Number AP3085030

Our Price
$4.28
Add to Cart
9
Mounting Bracket, Grill

Mounting Bracket, Grill

by Whirlpool
Part Number AP2992607

  • Not available
10
Screw

Screw

by Whirlpool
Part Number AP2992608

Our Price
$4.16
Add to Cart
11

Cap, Grommet

by Whirlpool
Part Number AP2935808

  • Not available
12

Tube, Clamp

by Whirlpool
Part Number AP3046745

Our Price
$3.68
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
13

Tube, Drain Condensate

by Whirlpool
Part Number AP2992609

  • Not available
14
Shim-Hinge, Door

Shim-Hinge, Door

by Whirlpool
Part Number AP2993700

Our Price
$3.69
Add to Cart
15

Clamp, Filter Housing

by Whirlpool
Part Number AP3044037

Our Price
$25.99
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
16
Xxtube, Clamp

Xxtube, Clamp

by Whirlpool
Part Number AP3134924

Our Price
$1.93
Add to Cart
17
Screw, Door Stop

Screw, Door Stop

by Whirlpool
Part Number AP2992611

Our Price
$12.46
Add to Cart
18
Hinge, Door Refrigerator Top

Hinge, Door Refrigerator Top

by Whirlpool
Part Number AP3179719

Our Price
$44.55
Add to Cart
19
Cam, Door Closer

Cam, Door Closer

by Whirlpool
Part Number AP3085963

Our Price
$18.44
Add to Cart
20
Screw

Screw

by Whirlpool
Part Number AP3134934

Our Price
$2.60
Add to Cart
21

Bracket, Rear Support Base

by Whirlpool
Part Number AP3130618

Our Price
$24.88
Add to Cart
22
Bushing

Bushing

by Whirlpool
Part Number AP3799311

Our Price
$22.23
Add to Cart
23
Water Filter Housing

Water Filter Housing

by Whirlpool
Part Number AP3044033

Our Price
$65.73
Add to Cart
24
Spring, Door Closure

Spring, Door Closure

by Whirlpool
Part Number AP3085966

Our Price
$17.36
Add to Cart
25
Screw

Screw

by Whirlpool
Part Number AP3039491

Our Price
$1.88
Add to Cart
26
Refrigerater Water Filter

Refrigerater Water Filter

by Whirlpool
Part Number AP3672633

Our Price
$43.27
Add to Cart
26
Refrigerator Water Filter 2 Pack

Refrigerator Water Filter 2 Pack

by Whirlpool
Part Number AP3962047

Our Price
$86.44
Add to Cart
27
Bushing

Bushing

by Whirlpool
Part Number AP3607535

Our Price
$3.81
Add to Cart
28
Gap-Hinge

Gap-Hinge

by Whirlpool
Part Number AP4364779

Our Price
$20.14
Add to Cart
29

Hinge, Bottom Refrigerator

by Whirlpool
Part Number AP2992618

Our Price
$29.81
Add to Cart
30
Screw

Screw

by Whirlpool
Part Number AP3128541

Our Price
$4.29
Add to Cart
31
Screw, 10-32 X 3/4

Screw, 10-32 X 3/4

by Whirlpool
Part Number AP3128621

Our Price
$2.08
Add to Cart
32
Skirt, Grille-Bottom (black)

Skirt, Grille-Bottom (black)

by Whirlpool
Part Number AP3130619

Our Price
$47.74
Add to Cart
33
Washer

Washer

by Whirlpool
Part Number AP2987970

Our Price
$3.42
Add to Cart
34
Grille Base, Front (black)

Grille Base, Front (black)

by Whirlpool
Part Number AP3130622

Our Price
$45.66
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
36
Cover, Air Duct

Cover, Air Duct

by Whirlpool
Part Number AP3086016

Our Price
$27.08
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
37

Grommet, Wiring

by Whirlpool
Part Number AP2935810

Our Price
$3.66
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
38
Extension Arm, Door Closer

Extension Arm, Door Closer

by Whirlpool
Part Number AP3711981

Our Price
$40.68
Add to Cart
39

Bracket, Switch

by Whirlpool
Part Number AP3175349

Our Price
$20.58
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
40

Cover, Switch

by Whirlpool
Part Number AP3128547

Our Price
$18.70
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
42
Water Filter Cap

Water Filter Cap

by Whirlpool
Part Number AP3037369

 (2)
Our Price
$15.40
Add to Cart
43
Screw

Screw

by Whirlpool
Part Number AP3179243

Our Price
$3.69
Add to Cart
44
Screw

Screw

by Whirlpool
Part Number AP3061489

Our Price
$5.33
Add to Cart
45
Door Switch

Door Switch

by Whirlpool
Part Number AP3132744

 (2)
Our Price
$8.06
Add to Cart
46

Clip, Bi-Metal

by Whirlpool
Part Number AP3066628

Our Price
$3.68
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
49
Tube Clamp

Tube Clamp

by Whirlpool
Part Number AP3175332

Our Price
$3.69
Add to Cart
