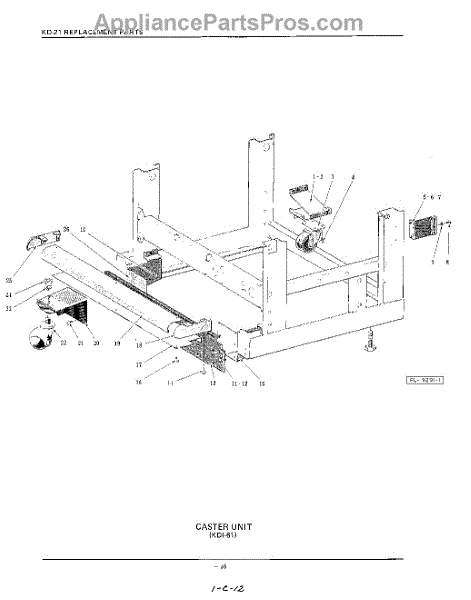

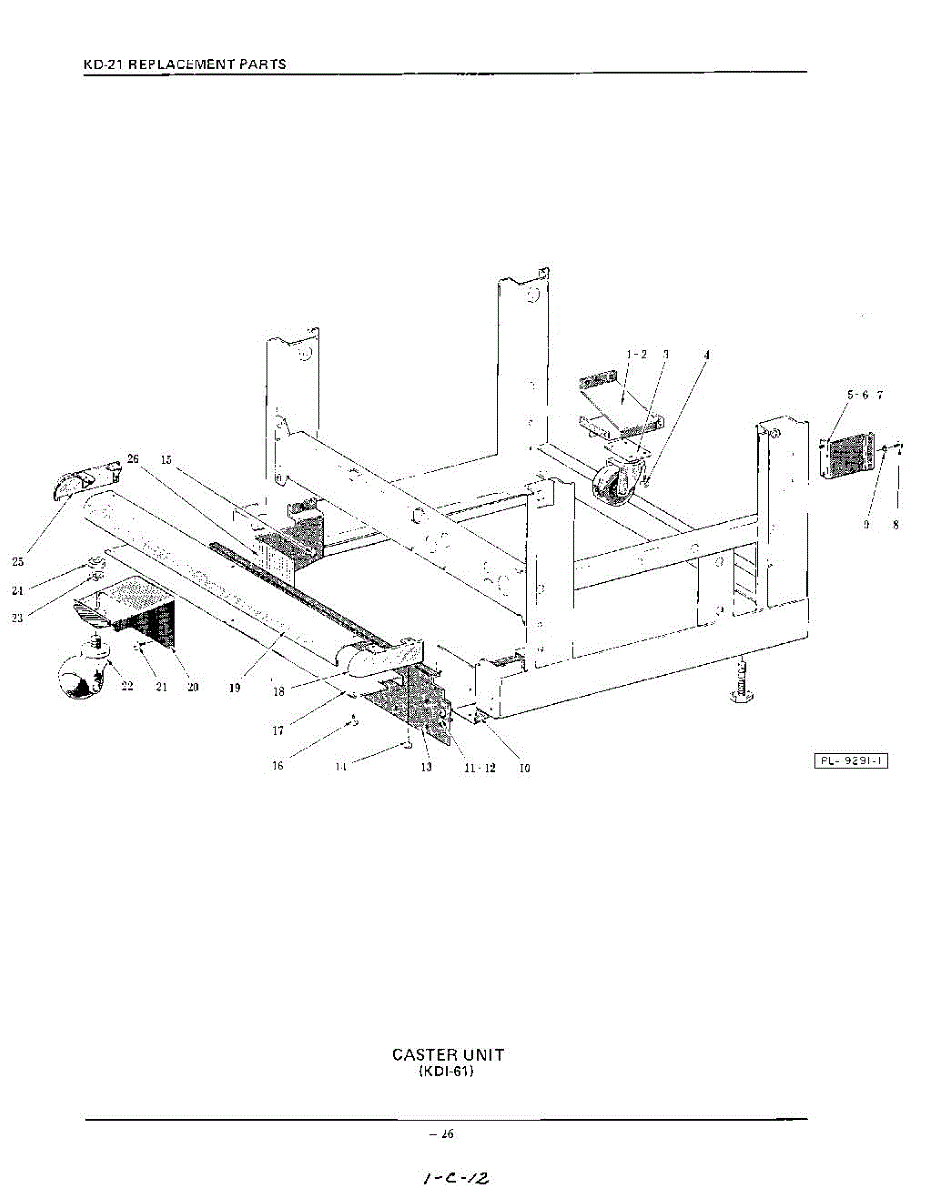

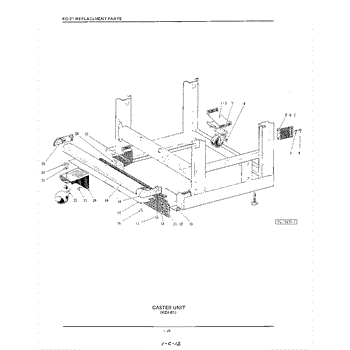

15-Caster Kdi-61 Parts for Whirlpool KUDA210S0

Start New Search

Dishwasher

Location on Diagram Part Description Price & Availability
1

Bracket-Rear Caster

by Whirlpool
Part Number AP3040970

  • Not available
2

Self-Tapping Screw 10-16 X 1/2 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041054

  • Not available
3

Caster-Rear

by Whirlpool
Part Number AP3040971

  • Not available
4

Self-Tapping Screw 10-16 X 1/2 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041054

  • Not available
5

Bracket-Side Panel Mounting

by Whirlpool
Part Number AP3040972

  • Not available
6

Self-Tapping Screw 10-16 X 1/2 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041054

  • Not available
7

Xlock Washer-NO.10 Ext. Shakeproof

by Whirlpool
Part Number AP3135216

  • Not available
8
  • Not available
9

Xlock Washer-NO.10 Ext. Shakeproof

by Whirlpool
Part Number AP3135216

  • Not available
10

Support-Front Caster Bracket Right

by Whirlpool
Part Number AP3040973

  • Not available
11

Self-Tapping Screw 10-16 X 3/8 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041095

  • Not available
12

Xlock Washer-NO.10 Ext. Shakeproof

by Whirlpool
Part Number AP3135216

  • Not available
13

Kickboard

by Whirlpool
Part Number AP3040974

  • Not available
14

Self-Tapping Screw 10-16 X 3/8 Ind. Hex Hd., Type Ab

by Whirlpool
Part Number AP3041132

  • Not available
15

Self-Tapping Screw 10-16 X 1/2 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041054

  • Not available
16

Self-Tapping Screw 6-20 X 3/8 Phil. Rd. Hd., Type Ab

by Whirlpool
Part Number AP3041133

  • Not available
17

Barrier-Front Panel

by Whirlpool
Part Number AP3040977

  • Not available
18

End Cap-Caster Trim Right

by Whirlpool
Part Number AP3040978

  • Not available
19

Trim-Front Caster

by Whirlpool
Part Number AP3040979

  • Not available
20

Bracket-Front Caster

by Whirlpool
Part Number AP3040980

  • Not available
21

Self-Tapping Screw 10-16 X 1/2 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041138

  • Not available
22

Caster-Front

by Whirlpool
Part Number AP3040982

  • Not available
23

Lock Washer-3/8`` Light

by Whirlpool
Part Number AP3041140

  • Not available
24

Jam Nut 3/8-16 Hex Fin

by Whirlpool
Part Number AP3041141

  • Not available
25

End Cap-Caster Trim Left

by Whirlpool
Part Number AP3040985

  • Not available
26

Support-Front Caster Bracket Left

by Whirlpool
Part Number AP3040986

  • Not available
