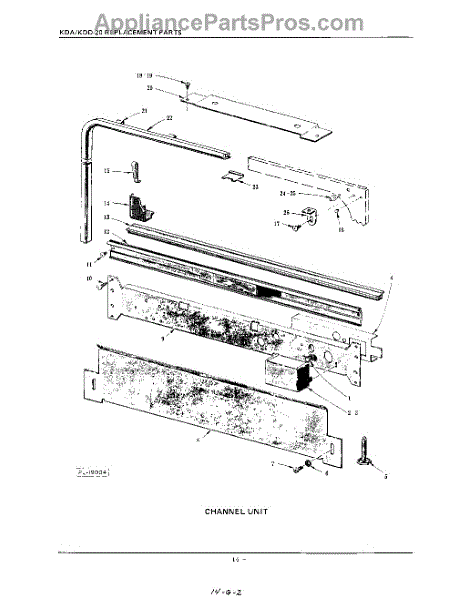

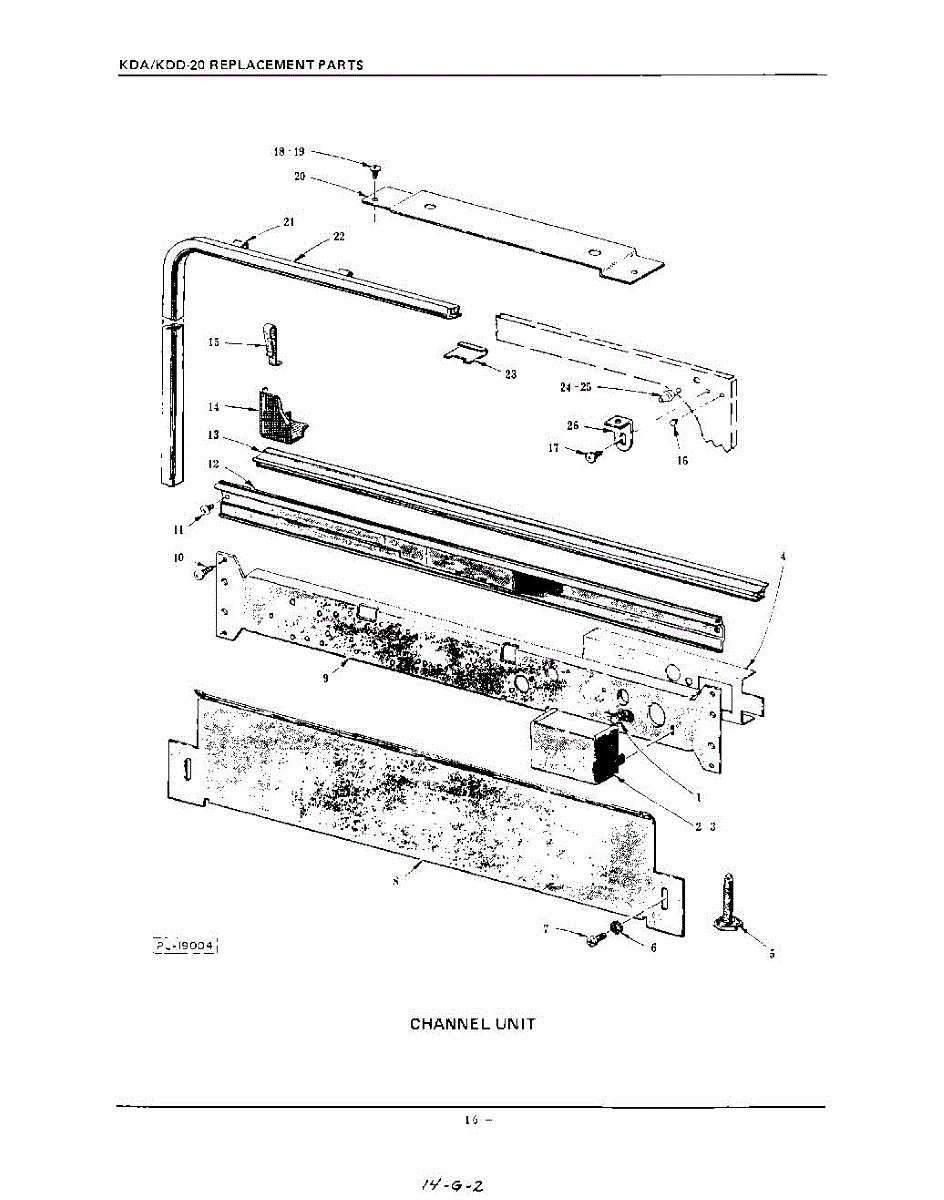

11-Channel Parts for Whirlpool KDD20

Start New Search

Dishwasher

Location on Diagram Part Description Price & Availability
1
  • Not available
2

Enclosure-Electrical Supply

by Whirlpool
Part Number AP3040946

  • Not available
3

Self-Tapping Screw 8-18 X 1/2 Phil. Bind Hd., Type Ab

by Whirlpool
Part Number AP3041214

  • Not available
4

Barrier-Cross Channel

by Whirlpool
Part Number AP3040870

  • Not available
5

Foot-Leveling Bolt (5/16``-18)

by Whirlpool
Part Number AP3041199

  • Not available
6

Xlock Washer-NO.10 Ext. Shakeproof

by Whirlpool
Part Number AP3135216

  • Not available
7

Self-Tapping Screw 10-16 X 3/8 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041095

  • Not available
8

Kick Board

by Whirlpool
Part Number AP3040943

  • Not available
9

Cross Frame-Front

by Whirlpool
Part Number AP3040942

  • Not available
10
  • Not available
11
  • Not available
12

Support-Evaporation Channel

by Whirlpool
Part Number AP3040876

  • Not available
13

Channel-Evaporation

by Whirlpool
Part Number AP3040877

  • Not available
14

Seal-Corner

by Whirlpool
Part Number AP3040878

  • Not available
15

Clip-Corner Seal

by Whirlpool
Part Number AP3040879

  • Not available
16

Plug Button-Tank

by Whirlpool
Part Number AP3040880

  • Not available
17

Self-Tapping Screw 10-16 X 1/2 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041213

  • Not available
18

Self-Tapping Screw 10-16 X 1/2 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041054

  • Not available
19

Speed Nut-NO.10, Type U

by Whirlpool
Part Number AP3040882

  • Not available
20

Protector-Upper Water Inlet

by Whirlpool
Part Number AP3040883

  • Not available
21

Clip-Seal

by Whirlpool
Part Number AP3040932

  • Not available
22

Door Seal Assembly

by Whirlpool
Part Number AP3040931

  • Not available
23

Keeper-Latch

by Whirlpool
Part Number AP3040936

  • Not available
24

Actuator-Interlock Switch

by Whirlpool
Part Number AP3040887

  • Not available
25

Bumper-Door

by Whirlpool
Part Number AP3040933

  • Not available
26

Bracket-Top Panel Anchor

by Whirlpool
Part Number AP3040889

  • Not available
26

Tank-Dish.

by Whirlpool
Part Number AP3124214

  • Not available
