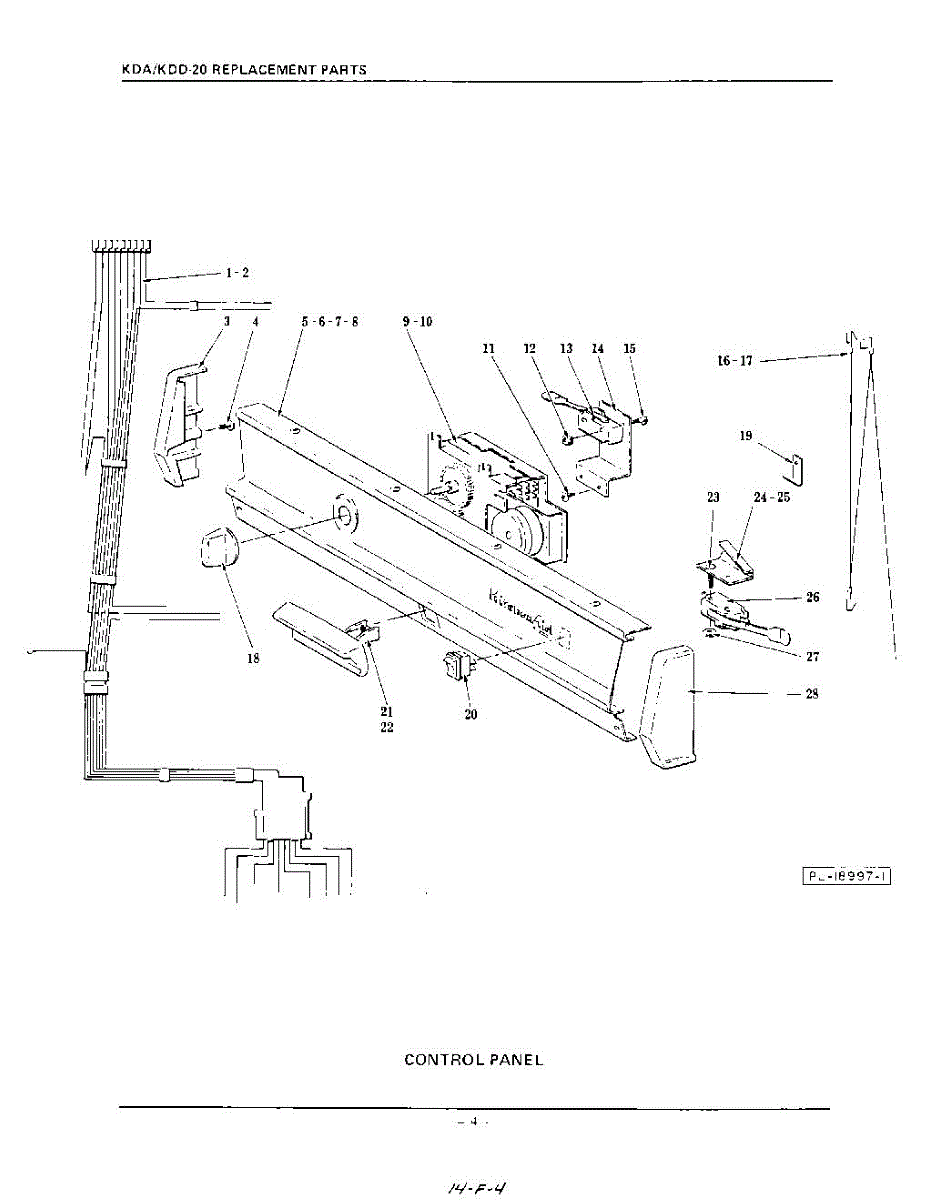

Parts for KitchenAid KDD20: Control Panel Parts

Start New Search

Dishwasher

Location on Diagram Part Description Price & Availability
1

Main Wiring Harness Assembly (kda)

by Whirlpool
Part Number AP2931021

  • Not available
2

Main Wiring Harness Assembly (kdd)

by Whirlpool
Part Number AP2931022

  • Not available
3

Xcap-End Left

by Whirlpool
Part Number AP3135176

  • Not available
4

Screw & Washer Assembly

by Whirlpool
Part Number AP2930905

  • Not available
5

Control Panel Assembly (kda)

by Whirlpool
Part Number AP2931024

  • Not available
6

Control Panel Assembly (kdd)

by Whirlpool
Part Number AP2931025

  • Not available
7

Xspecial Nut-1/8`` Stud ``palnut``

by Whirlpool
Part Number AP3135211

  • Not available
8
  • Not available
9

Timer-Interval (115 V., 60 Hz.)

by Whirlpool
Part Number AP2931028

  • Not available
10

Self-Tapping Screw 8-18 X 1/2 Phil. Pan Hd., Type 25

by Whirlpool
Part Number AP3041219

  • Not available
11

Self-Tapping Screw 6-32 X 3/8 Phil. Truss Hd., Type 17

by Whirlpool
Part Number AP2932297

  • Not available
12

Special Nut-NO.6-32 ``palnut``

by Whirlpool
Part Number AP2930876

  • Not available
13

Switch-Interlock

by Whirlpool
Part Number AP2930877

  • Not available
14

Bracket-Switch Mounting

by Whirlpool
Part Number AP2931030

  • Not available
15

Mach. Screw-NO.6-32 X 7/8`` Rd. Head

by Whirlpool
Part Number AP2930880

  • Not available
16

Wiring Harness Assembly (lower) (kda)

by Whirlpool
Part Number AP2931031

  • Not available
17

Wiring Harness Assembly (lower) (kdd)

by Whirlpool
Part Number AP2931032

  • Not available
18

Knob-Timer Control

by Whirlpool
Part Number AP2931033

  • Not available
19
  • Not available
20

Switch, Fan-2 Position

by Whirlpool
Part Number AP3005480

  • Not available
21

Handle-Latch

by Whirlpool
Part Number AP2930885

  • Not available
22

Mach. Screw 10-32 X 5/8 Phil. Oval Head

by Whirlpool
Part Number AP2932008

  • Not available
23

Mach. Screw-NO.6-32 X 7/8`` Rd. Head

by Whirlpool
Part Number AP2930880

  • Not available
24

Bracket-Interlock Switch

by Whirlpool
Part Number AP2930879

  • Not available
25

Self-Tapping Screw 6-32 X 3/8 Phil. Truss Hd., Type 17

by Whirlpool
Part Number AP2932297

  • Not available
26

Switch-Interlock

by Whirlpool
Part Number AP2930877

  • Not available
27

Special Nut-NO.6-32 ``palnut``

by Whirlpool
Part Number AP2930876

  • Not available
28

Cap-End Right

by Whirlpool
Part Number AP2931037

  • Not available
