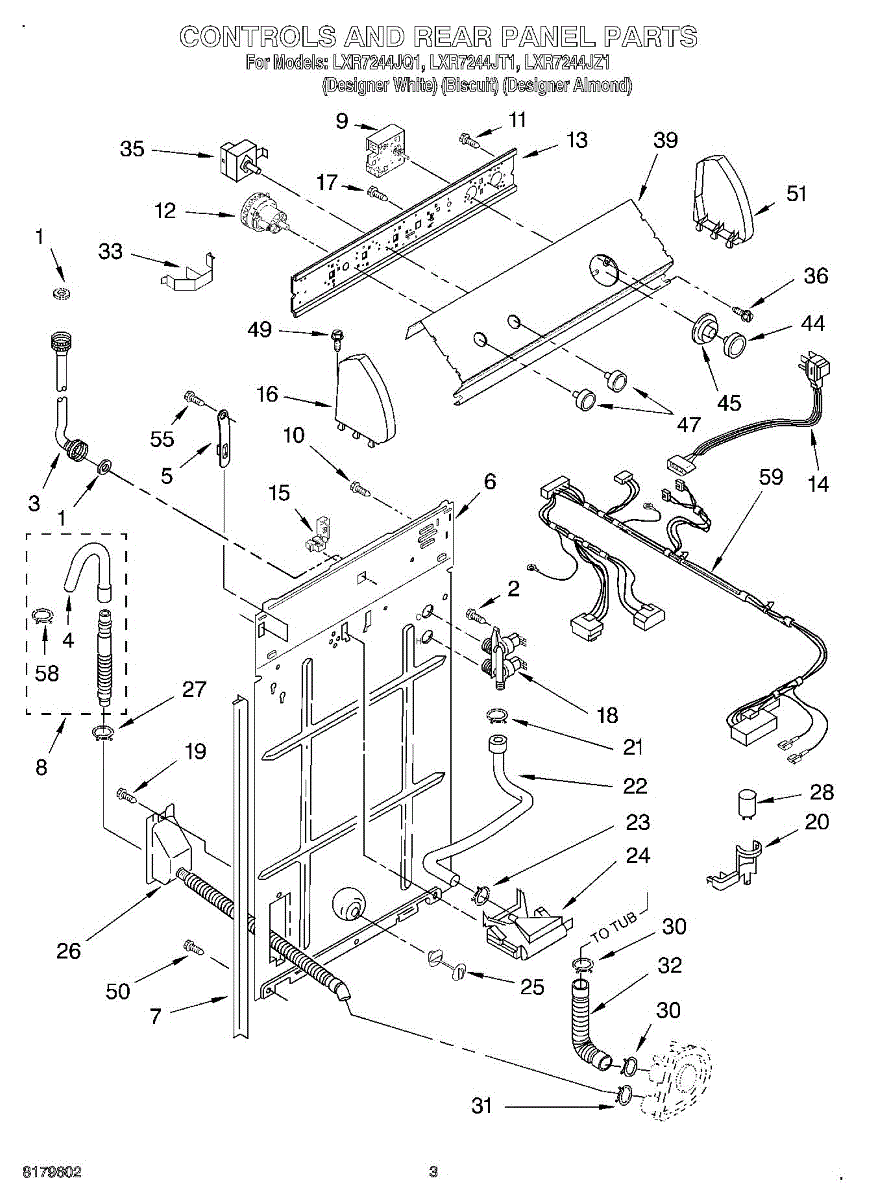

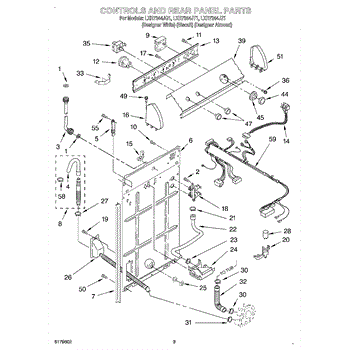

Parts for Whirlpool LXR7244JZ1: Controls and Rear Panel Parts

Start New Search

Washer

Location on Diagram Part Description Price & Availability
1
Rubber Washer

Rubber Washer

by Whirlpool
Part Number AP3039494

Our Price
$2.80
Add to Cart
2
Switch Mounting Screw

Switch Mounting Screw

by Whirlpool
Part Number AP3130893

Our Price
$1.93
Add to Cart
3
Fill Hose

Fill Hose

by Whirlpool
Part Number AP3123043

Our Price
$8.64
Add to Cart
4
Nozzle

Nozzle

by Whirlpool
Part Number AP3019130

Our Price
$21.21
Add to Cart
5
Strap

Strap

by Whirlpool
Part Number AP3841281

Our Price
$1.93
Add to Cart
6

Rear Panel

by Whirlpool
Part Number AP2908195

Our Price
$105.30
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
7
Rear Panel Pad

Rear Panel Pad

by Whirlpool
Part Number AP3020650

Our Price
$22.25
Add to Cart
8
External Drain Hose

External Drain Hose

by Whirlpool
Part Number AP3094496

 (2)
Our Price
$21.47
Add to Cart
8
External Drain Hose

External Drain Hose

by Whirlpool
Part Number AP3094497

Our Price
$39.52
Add to Cart
8
Drain Hose Extension

Drain Hose Extension

by Whirlpool
Part Number AP3094508

Our Price
$9.53
Add to Cart
9
Timer

Timer

by Whirlpool
Part Number AP3020256

Our Price
$135.37
Add to Cart
10
Ground Screw

Ground Screw

by Whirlpool
Part Number AP3020444

Our Price
$1.93
Add to Cart
11
Screw

Screw

by Whirlpool
Part Number AP3127552

Our Price
$2.80
Add to Cart
12
Water Level Switch Kit

Water Level Switch Kit

by Whirlpool
Part Number AP4567828

 (2)
Our Price
$45.94
Add to Cart
13
Rear Control Bracket

Rear Control Bracket

by Whirlpool
Part Number AP3019010

Our Price
$30.05
Add to Cart
14
Power Cord

Power Cord

by Whirlpool
Part Number AP3138837

 (1)
Our Price
$27.53
Add to Cart
15
Strain Reliever

Strain Reliever

by Whirlpool
Part Number AP3094534

Our Price
$2.07
Add to Cart
16
Control Panel End Cap (white)

Control Panel End Cap (white)

by Whirlpool
Part Number AP3094317

Our Price
$36.10
Add to Cart
16
Endcap

Endcap

by Whirlpool
Part Number AP3094319

Our Price
$29.52
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
16

Endcap

by Whirlpool
Part Number AP3137113

  • Not available
17

Screw

by Whirlpool
Part Number AP3086537

Our Price
$3.54
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
18
Water Inlet Valve

Water Inlet Valve

by Whirlpool
Part Number AP3094541

 (40)
Our Price
$15.88
Add to Cart
19
Ground Screw

Ground Screw

by Whirlpool
Part Number AP3020444

Our Price
$1.93
Add to Cart
20
Clip

Clip

by Whirlpool
Part Number AP3712867

Our Price
$27.50
Add to Cart
21
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP2920314

Our Price
$1.93
Add to Cart
22
Vacuum Break Inlet Hose

Vacuum Break Inlet Hose

by Whirlpool
Part Number AP2907478

 (1)
Our Price
$8.48
Add to Cart
23
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP2920314

Our Price
$1.93
Add to Cart
24
Break Vac

Break Vac

by Whirlpool
Part Number AP2905718

 (1)
Our Price
$22.92
Add to Cart
25
Rear Panel Support

Rear Panel Support

by Whirlpool
Part Number AP3080905

Our Price
$20.79
Add to Cart
26
Internal Drain Hose

Internal Drain Hose

by Whirlpool
Part Number AP5305410

 (5)
Our Price
$16.00
Add to Cart
27
Spring Tension Hose Clamp

Spring Tension Hose Clamp

by Whirlpool
Part Number AP3039180

Our Price
$1.93
Add to Cart
28
Capacitor

Capacitor

by Whirlpool
Part Number AP3866194

 (1)
Our Price
$31.10
Add to Cart
30
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP2920290

Our Price
$2.31
Add to Cart
31
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP2920316

Our Price
$1.93
Add to Cart
32
Tub to Pump Hose

Tub to Pump Hose

by Whirlpool
Part Number AP3094571

 (1)
Our Price
$10.55
Add to Cart
33
Harness Clip

Harness Clip

by Whirlpool
Part Number AP3038589

Our Price
$18.22
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
35
Water Temperature Switch

Water Temperature Switch

by Whirlpool
Part Number AP3020234

Our Price
$37.60
Add to Cart
36
Timer Screw

Timer Screw

by Whirlpool
Part Number AP3082289

Our Price
$2.50
Add to Cart
39

Panel, Console (white)

by Whirlpool
Part Number AP3020562

  • Not available
39

Panel, Console (biscuit)

by Whirlpool
Part Number AP3020563

  • Not available
39

Panel, Console (almond)

by Whirlpool
Part Number AP3020564

  • Not available
44
Knob, Timer (washer) (biscuit)

Knob, Timer (washer) (biscuit)

by Whirlpool
Part Number AP3872611

Our Price
$26.58
Add to Cart
44
Timer Knob (white)

Timer Knob (white)

by Whirlpool
Part Number AP3872612

Our Price
$16.89
Add to Cart
45

Dial, Timer (almond)

by Whirlpool
Part Number AP3020528

  • Not available
45
Timer Dial (white)

Timer Dial (white)

by Whirlpool
Part Number AP3873414

Our Price
$15.87
Add to Cart
45
Dial, Timer (biscuit)

Dial, Timer (biscuit)

by Whirlpool
Part Number AP3873415

Our Price
$22.96
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
47
Knob, Push-to-Start (biscuit)

Knob, Push-to-Start (biscuit)

by Whirlpool
Part Number AP3081148

  • Not available
47
Control Knob (white)

Control Knob (white)

by Whirlpool
Part Number AP3872767

Our Price
$20.94
Add to Cart
49
Console Screw

Console Screw

by Whirlpool
Part Number AP3037951

Our Price
$1.93
Add to Cart
50
Screw

Screw

by Whirlpool
Part Number AP3085356

Our Price
$2.36
Add to Cart
51
Control Panel End Cap (white)

Control Panel End Cap (white)

by Whirlpool
Part Number AP3094317

Our Price
$36.10
Add to Cart
51
Endcap

Endcap

by Whirlpool
Part Number AP3094319

Our Price
$29.52
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
51

Endcap

by Whirlpool
Part Number AP3137113

  • Not available
55
Screw

Screw

by Whirlpool
Part Number AP3039491

Our Price
$1.88
Add to Cart
58
Drain Hose Clamp

Drain Hose Clamp

by Whirlpool
Part Number AP3039495

Our Price
$1.93
Add to Cart
59

Wiring Harness (for Detail See Parts Page)

by Whirlpool
Part Number AP3125988

  • Not available
