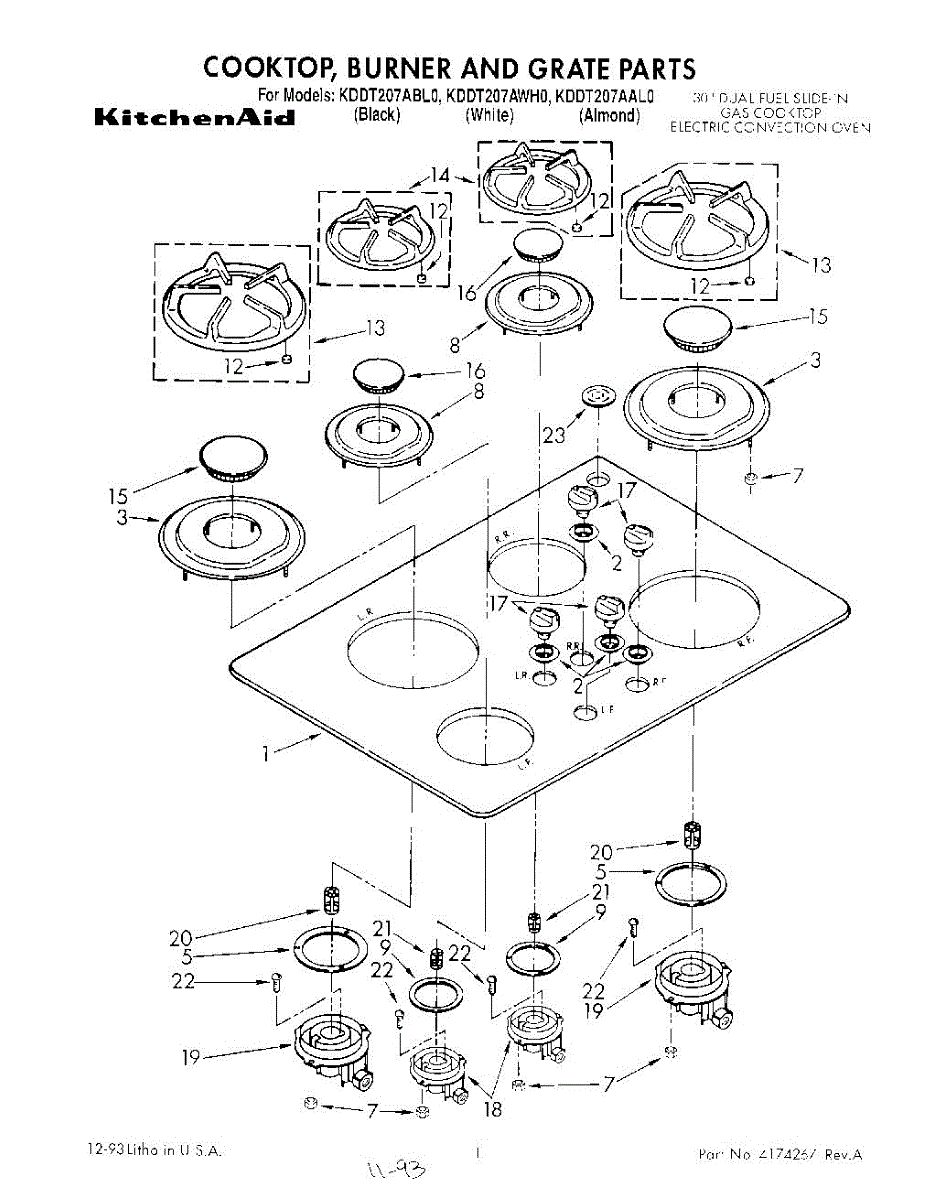

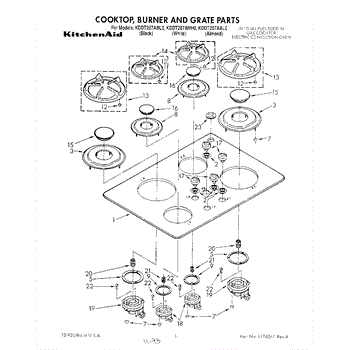

Parts for KitchenAid KDDT207AWH0: Cooktop, Burner and Grate Parts

Start New Search

Range (gas)*

Location on Diagram Part Description Price & Availability
1

Cooktop, Glass (white)

by Whirlpool
Part Number AP2927735

  • Not available
1

Cooktop, Glass(black)

by Whirlpool
Part Number AP2927736

  • Not available
1

Cooktop, Glass (almond)

by Whirlpool
Part Number AP2927737

  • Not available
2
Knob Skirt (almond)

Knob Skirt (almond)

by Whirlpool
Part Number AP3009275

Our Price
$4.12
Add to Cart
2
Cooktop Knob Skirt

Cooktop Knob Skirt

by Whirlpool
Part Number AP3009848

Our Price
$3.66
Add to Cart
2
Cooktop Knob Skirt

Cooktop Knob Skirt

by Whirlpool
Part Number AP3030628

Our Price
$4.13
Add to Cart
3
Bezel

Bezel

by Whirlpool
Part Number AP3103042

  • Not available
3

Bezel

by Whirlpool
Part Number AP3103043

  • Not available
3

Bezel

by Whirlpool
Part Number AP3103044

  • Not available
5

Gasket

by Whirlpool
Part Number AP2927948

  • Not available
7

Nut Assembly No Longer Available.

by Whirlpool
Part Number AP3076033

  • Not available
8

Bezel, Small Lr-Rf (white Mdl.) No Longer Available

by Whirlpool
Part Number AP2994506

  • Not available
8
Bezel

Bezel

by Whirlpool
Part Number AP3103046

  • Not available
8
Bezel

Bezel

by Whirlpool
Part Number AP3103047

  • Not available
9

Gasket

by Whirlpool
Part Number AP2927952

  • Not available
12
Pad-Grate

Pad-Grate

by Whirlpool
Part Number AP3103048

Our Price
$10.81
Add to Cart
13

Grate, Large Burner (black Model)

by Whirlpool
Part Number AP2927986

  • Not available
13

Grate, Large Almond

by Whirlpool
Part Number AP2927987

  • Not available
13

Grate, Large Burner (white Model)

by Whirlpool
Part Number AP2927988

  • Not available
14

Grate, Small (lf & Rr) (white Model)

by Whirlpool
Part Number AP2928008

  • Not available
14
Grate, Small (lf & Rr) (black Model)

Grate, Small (lf & Rr) (black Model)

by Whirlpool
Part Number AP2928009

  • Not available
14

Grate, Small Almond

by Whirlpool
Part Number AP2928010

  • Not available
15

Cap, Rapid Burner (white)

by Whirlpool
Part Number AP2926927

  • Not available
15

Cap, Rapid Burner (black)

by Whirlpool
Part Number AP2926928

  • Not available
15
Cap, Rapid Bnr Almond

Cap, Rapid Bnr Almond

by Whirlpool
Part Number AP2926929

  • Not available
16
Cap, Semi-Rapid Bnr Almond

Cap, Semi-Rapid Bnr Almond

by Whirlpool
Part Number AP2926822

  • Not available
16

Cap, Semi Rapid (white)

by Whirlpool
Part Number AP2926930

  • Not available
16

Cap, Semi Rapid Burner (BLACK(KGCT305XBL1))

by Whirlpool
Part Number AP2926931

  • Not available
17
Top Burner Control Knob

Top Burner Control Knob

by Whirlpool
Part Number AP2925224

 (1)
Our Price
$11.79
Add to Cart
17
Top Burner Control Knob

Top Burner Control Knob

by Whirlpool
Part Number AP2926435

Our Price
$12.43
Add to Cart
17
Top Burner Control Knob

Top Burner Control Knob

by Whirlpool
Part Number AP2926437

Our Price
$15.42
Add to Cart
18
Burner, Top Small

Burner, Top Small

by Whirlpool
Part Number AP2926815

  • Not available
19

Burnr-Top

by Whirlpool
Part Number AP3892361

  • Not available
20

Shutter, Air (large Shutter)

by Whirlpool
Part Number AP2925586

  • Not available
21

Shutter, Air (small Shutter)

by Whirlpool
Part Number AP2925585

  • Not available
22

Screw, Burner

by Whirlpool
Part Number AP2925256

  • Not available
23

Cover, Vent (black)

by Whirlpool
Part Number AP2926241

  • Not available
23

Cover, Vent (white)

by Whirlpool
Part Number AP2926242

  • Not available
23

Cover, Vent (almond)

by Whirlpool
Part Number AP2928605

  • Not available

Insulation, Rear

by Whirlpool
Part Number AP3008575

  • Not available

Insulation

by Whirlpool
Part Number AP3054588

  • Not available

Lp Gas Conversion

by Whirlpool
Part Number AP3054867

  • Not available

Lp Gas Conversion

by Whirlpool
Part Number AP3054868

  • Not available

Liner Adhesive

by Whirlpool
Part Number AP3054871

  • Not available

Tech Sheet

by Whirlpool
Part Number AP3054872

  • Not available

Use & Care Guide

by Whirlpool
Part Number AP3054874

  • Not available

Repair Parts List

by Whirlpool
Part Number AP3054875

  • Not available

Instruction Insert

by Whirlpool
Part Number AP3054876

  • Not available

Guide, Auto Set

by Whirlpool
Part Number AP3054877

  • Not available

Cookbook T/c Ovens

by Whirlpool
Part Number AP3066854

  • Not available

Insulation, Back

by Whirlpool
Part Number AP3076326

  • Not available

Insulation

by Whirlpool
Part Number AP3076723

  • Not available
