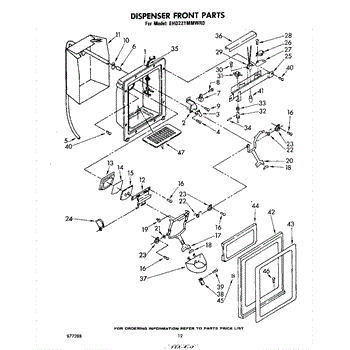

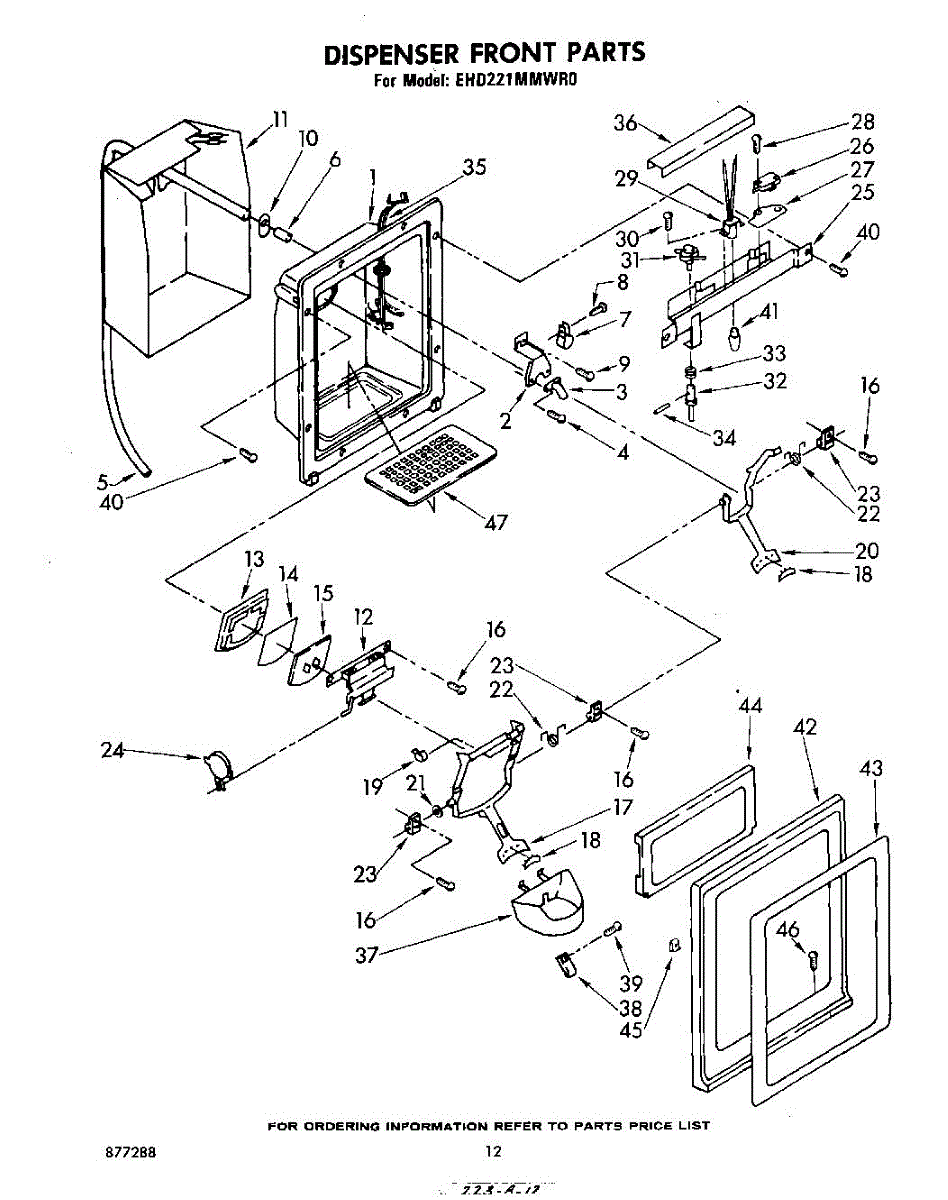

Parts for Whirlpool EHD221MMWR0: Dispenser Front Parts

Start New Search

Side-By-Side Refrigerator

Location on Diagram Part Description Price & Availability
1

Housing

by Whirlpool
Part Number AP2936934

  • Not available
2
Bracket

Bracket

by Whirlpool
Part Number AP3042571

  • Not available
3
Water Tube Assembly

Water Tube Assembly

by Whirlpool
Part Number AP3108776

 (9)
Our Price
$38.07
Add to Cart
4
Screw

Screw

by Whirlpool
Part Number AP3061489

Our Price
$5.13
Add to Cart
5
Water Tube Kit

Water Tube Kit

by Whirlpool
Part Number AP3108446

 (1)
Our Price
$3.28
Add to Cart
6
Insert (4-Pack)

Insert (4-Pack)

by Whirlpool
Part Number AP2986357

Our Price
$4.11
Add to Cart
7
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP3134933

Our Price
$1.93
Add to Cart
8
Screw

Screw

by Whirlpool
Part Number AP3061489

Our Price
$5.13
Add to Cart
9

Screw

by Whirlpool
Part Number AP3012031

  • Not available
10

Grommet

by Whirlpool
Part Number AP2936504

  • Not available
11

Heater, Ice Disp.

by Whirlpool
Part Number AP2998640

  • Not available
12
Mechanism

Mechanism

by Whirlpool
Part Number AP3110925

  • Not available
13
Gasket

Gasket

by Whirlpool
Part Number AP3042572

Our Price
$4.11
Add to Cart
14
Shield

Shield

by Whirlpool
Part Number AP3041755

Our Price
$3.51
Add to Cart
15
Chute Door

Chute Door

by Whirlpool
Part Number AP2937103

Our Price
$19.53
Add to Cart
16
Screw

Screw

by Whirlpool
Part Number AP3097646

Our Price
$2.21
Add to Cart
17
Ice Disp.arm

Ice Disp.arm

by Whirlpool
Part Number AP2936945

Our Price
$31.52
Add to Cart
18
Pad

Pad

by Whirlpool
Part Number AP2998643

Our Price
$24.61
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
19
Bearing, Lever Clip

Bearing, Lever Clip

by Whirlpool
Part Number AP2998644

  • Not available
20
Water Disp.arm

Water Disp.arm

by Whirlpool
Part Number AP2936848

Our Price
$24.39
Add to Cart
21

Washer

by Whirlpool
Part Number AP2923779

  • Not available
22
Spring

Spring

by Whirlpool
Part Number AP2998645

Our Price
$11.96
Add to Cart
23
Bearing

Bearing

by Whirlpool
Part Number AP2967271

  • Not available
24
Icemaker Delay

Icemaker Delay

by Whirlpool
Part Number AP2978182

Our Price
$51.52
Add to Cart
25

Bracket, Control

by Whirlpool
Part Number AP2998646

  • Not available
26
Switch, Ice Spdt

Switch, Ice Spdt

by Whirlpool
Part Number AP3040471

Our Price
$14.76
Add to Cart
27

Insulator

by Whirlpool
Part Number AP3041759

  • Not available
28

Screw

by Whirlpool
Part Number AP3041753

  • Not available
29

Socket, Lamp

by Whirlpool
Part Number AP2985798

  • Not available
30
Screw

Screw

by Whirlpool
Part Number AP3005830

Our Price
$4.16
Add to Cart
31
Switch, Disp.lite

Switch, Disp.lite

by Whirlpool
Part Number AP3133645

Our Price
$28.32
Add to Cart
32

Plunger, Extension

by Whirlpool
Part Number AP2937796

  • Not available
33

Spring

by Whirlpool
Part Number AP3041757

  • Not available
34

Pin

by Whirlpool
Part Number AP3041758

  • Not available
35

Wiring, Door

by Whirlpool
Part Number AP2998649

  • Not available
36

Shield, Wiring

by Whirlpool
Part Number AP2978185

  • Not available
37
Guide, Ice

Guide, Ice

by Whirlpool
Part Number AP2998650

Our Price
$12.32
Add to Cart
38
Stop, Glass (for Almond Model)

Stop, Glass (for Almond Model)

by Whirlpool
Part Number AP3042719

  • Not available
39

Screw (white)

by Whirlpool
Part Number AP3042543

  • Not available
40
Screw

Screw

by Whirlpool
Part Number AP2967837

Our Price
$1.93
Add to Cart
41
Light Bulb

Light Bulb

by Whirlpool
Part Number AP4026967

 (3)
Our Price
$7.86
Add to Cart
42

Front Cover

by Whirlpool
Part Number AP3089171

  • Not available
43

Insert

by Whirlpool
Part Number AP3016427

  • Not available
44
Cover

Cover

by Whirlpool
Part Number AP3125626

  • Not available
45

Nut

by Whirlpool
Part Number AP3011016

  • Not available
46
Screw

Screw

by Whirlpool
Part Number AP3039491

Our Price
$1.88
Add to Cart
47
Overflow Grille

Overflow Grille

by Whirlpool
Part Number AP2977337

Our Price
$25.79
Add to Cart

Touch-Up Paint (coffee) 0.6 Fl.oz. Bottle

by Whirlpool
Part Number AP3069381

  • Not available
Door Insulation

Door Insulation

by Whirlpool
Part Number AP3069998

Our Price
$53.71
Add to Cart

Blend, Thinner (1 Ga.)

by Whirlpool
Part Number AP3071224

  • Not available
Touch-Up Paint (new Avocado) 0.6 Fl.oz. Bottle

Touch-Up Paint (new Avocado) 0.6 Fl.oz. Bottle

by Whirlpool
Part Number AP3071424

Our Price
$7.13
Add to Cart

Putty Sealer

by Whirlpool
Part Number AP3071650

Our Price
$43.78
Add to Cart
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3075396

 (1)
Our Price
$14.09
Add to Cart

Epoxy Repair Kit (aluminum Tubing)

by Whirlpool
Part Number AP3078606

  • Not available
Vinyl Tape

Vinyl Tape

by Whirlpool
Part Number AP3078669

Our Price
$28.96
Add to Cart
Permagum Sealer

Permagum Sealer

by Whirlpool
Part Number AP3080365

Our Price
$25.58
Add to Cart

Energy Guide

by Whirlpool
Part Number AP3080400

  • Not available

Guide, Use & Care

by Whirlpool
Part Number AP3080401

  • Not available

List, Parts

by Whirlpool
Part Number AP3080402

  • Not available
Alumilastic Cement

Alumilastic Cement

by Whirlpool
Part Number AP3103415

Our Price
$25.69
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130529

Our Price
$29.28
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130530

Our Price
$30.41
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130531

Our Price
$31.17
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130532

  • Not available
Service Valve

Service Valve

by Whirlpool
Part Number AP3130533

Our Price
$33.02
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130534

Our Price
$25.45
Add to Cart
Insulation

Insulation

by Whirlpool
Part Number AP3131348

Our Price
$169.07
Add to Cart

Envelope

by Whirlpool
Part Number AP3132225

Our Price
$18.22
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
Grease

Grease

by Whirlpool
Part Number AP3133334

Our Price
$24.18
Add to Cart
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134037

Our Price
$4.00
Add to Cart
Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

by Whirlpool
Part Number AP3134038

Our Price
$3.37
Add to Cart
Touch Up Acrylic Appliance Paint-0.6 Oz. (harvest Gold)

Touch Up Acrylic Appliance Paint-0.6 Oz. (harvest Gold)

by Whirlpool
Part Number AP3134039

 (1)
Our Price
$4.06
Add to Cart
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134042

Our Price
$4.65
Add to Cart

Primer (white)

by Whirlpool
Part Number AP3134048

  • Not available

Almond Touch-Up Paint-1 Qt. Can

by Whirlpool
Part Number AP3134051

  • Not available
Epoxy Kit

Epoxy Kit

by Whirlpool
Part Number AP3134063

  • Not available

Spray Paint (coffee) 13 Oz. Can

by Whirlpool
Part Number AP3134627

  • Not available
  • Not available

Spray Paint (new Avocado) 13 Oz. Can

by Whirlpool
Part Number AP3134629

  • Not available
Spray Paint (harvest Gold) 12 Oz. Can

Spray Paint (harvest Gold) 12 Oz. Can

by Whirlpool
Part Number AP3134632

  • Not available

Touch-Up Paint (harvest Gold) 1 Qt. Can

by Whirlpool
Part Number AP3134637

  • Not available
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134813

Our Price
$7.19
Add to Cart
Primer

Primer

by Whirlpool
Part Number AP3134815

Our Price
$19.62
Add to Cart
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134817

Our Price
$11.60
Add to Cart
Porcelain Touch-Up Paint

Porcelain Touch-Up Paint

by Whirlpool
Part Number AP3134941

Our Price
$13.42
Add to Cart

Xlacquer, Aluminum (13 Oz. Spray Can)

by Whirlpool
Part Number AP3134942

  • Not available
Appliance Touch Up Paint

Appliance Touch Up Paint

by Whirlpool
Part Number AP3135053

Our Price
$78.35
Add to Cart
