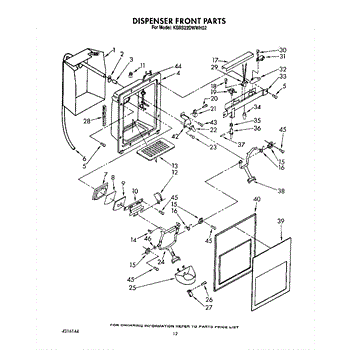

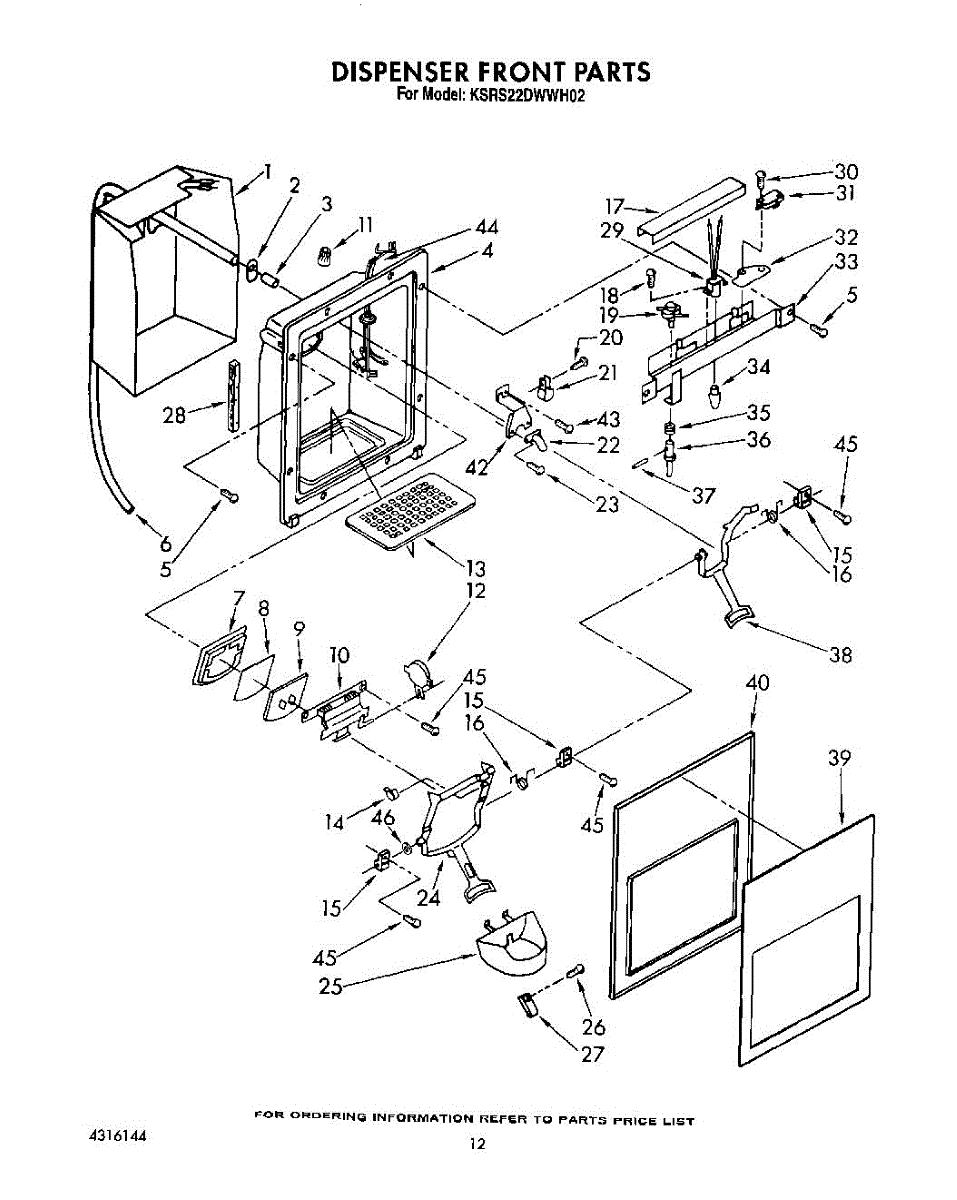

Parts for Whirlpool KSRS22DWWH02: Dispenser Front Parts

Start New Search

Side-By-Side Refrigerator

Location on Diagram Part Description Price & Availability
1
Heater, Ice Disp.

Heater, Ice Disp.

by Whirlpool
Part Number AP3110988

  • Not available
2

Grommet

by Whirlpool
Part Number AP2936504

  • Not available
3
Insert (4-Pack)

Insert (4-Pack)

by Whirlpool
Part Number AP2986357

Our Price
$4.11
Add to Cart
4
Housing, Dispenser (black)

Housing, Dispenser (black)

by Whirlpool
Part Number AP3042027

  • Not available
5
Screw

Screw

by Whirlpool
Part Number AP2967837

Our Price
$1.93
Add to Cart
6
Water Tube Kit

Water Tube Kit

by Whirlpool
Part Number AP3108446

 (1)
Our Price
$3.47
Add to Cart
7
Gasket

Gasket

by Whirlpool
Part Number AP3042572

Our Price
$4.12
Add to Cart
8
Sheild

Sheild

by Whirlpool
Part Number AP3041755

Our Price
$3.51
Add to Cart
9
Chute Door

Chute Door

by Whirlpool
Part Number AP2937103

Our Price
$19.59
Add to Cart
10
Mechanism

Mechanism

by Whirlpool
Part Number AP3110925

  • Not available
11

Nut, Wire

by Whirlpool
Part Number AP3040451

  • Not available
12
Icemaker Delay

Icemaker Delay

by Whirlpool
Part Number AP2978182

Our Price
$50.01
Add to Cart
13
Overflow Grille

Overflow Grille

by Whirlpool
Part Number AP2977337

Our Price
$27.05
Add to Cart
14
Bearing, Lever Clip

Bearing, Lever Clip

by Whirlpool
Part Number AP2998644

  • Not available
15
Bearing

Bearing

by Whirlpool
Part Number AP2967271

  • Not available
16
Spring

Spring

by Whirlpool
Part Number AP2998645

Our Price
$11.94
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
17

Shield, Wiring

by Whirlpool
Part Number AP2978185

  • Not available
18
Screw

Screw

by Whirlpool
Part Number AP3005830

Our Price
$4.15
Add to Cart
19
Switch, Disp.lite

Switch, Disp.lite

by Whirlpool
Part Number AP3133645

Our Price
$28.31
Add to Cart
20
Screw

Screw

by Whirlpool
Part Number AP3001684

Our Price
$1.93
Add to Cart
21
Hose Clamp

Hose Clamp

by Whirlpool
Part Number AP3134933

Our Price
$1.93
Add to Cart
22
Water Tube Assembly

Water Tube Assembly

by Whirlpool
Part Number AP3108776

 (9)
Our Price
$37.95
Add to Cart
23
Screw

Screw

by Whirlpool
Part Number AP3061489

Our Price
$5.11
Add to Cart
24
Ice Dispenser Lever

Ice Dispenser Lever

by Whirlpool
Part Number AP2982370

Our Price
$29.22
Add to Cart
25
Guide, Ice

Guide, Ice

by Whirlpool
Part Number AP2998650

Our Price
$12.31
Add to Cart
26

Screw (white)

by Whirlpool
Part Number AP3042543

  • Not available
27

Stop, Glass (almond)

by Whirlpool
Part Number AP2986423

  • Not available
27
Stop, Glass (for Almond Model)

Stop, Glass (for Almond Model)

by Whirlpool
Part Number AP3042719

  • Not available
28

Seal 5

by Whirlpool
Part Number AP3006123

  • Not available
29

Socket, Lamp

by Whirlpool
Part Number AP2985798

  • Not available
30

Screw

by Whirlpool
Part Number AP3041753

  • Not available
31
Sw, Interlock P-S

Sw, Interlock P-S

by Whirlpool
Part Number AP3119440

Our Price
$22.19
Add to Cart
32

Insulator

by Whirlpool
Part Number AP3041759

  • Not available
33

Bracket

by Whirlpool
Part Number AP3015139

  • Not available
34
Light Bulb

Light Bulb

by Whirlpool
Part Number AP4026967

 (3)
Our Price
$7.84
Add to Cart
35

Spring

by Whirlpool
Part Number AP3041757

  • Not available
36

Plunger, Ext.

by Whirlpool
Part Number AP3041756

  • Not available
37

Pin

by Whirlpool
Part Number AP3041758

  • Not available
38
Lever, Water Dispenser (white)

Lever, Water Dispenser (white)

by Whirlpool
Part Number AP2982371

Our Price
$25.63
Add to Cart
39

Insert, Cover (white)

by Whirlpool
Part Number AP2940926

  • Not available
39

Insert, Cover (almond)

by Whirlpool
Part Number AP2940927

  • Not available
39

Insert, Cover (black)

by Whirlpool
Part Number AP2940928

  • Not available
40

Cover, Housing (white)

by Whirlpool
Part Number AP2940929

  • Not available
40

Cover, Housing (almond)

by Whirlpool
Part Number AP2940930

  • Not available
40

Cover, Housing (black)

by Whirlpool
Part Number AP2940931

  • Not available
42
Bracket

Bracket

by Whirlpool
Part Number AP3042571

  • Not available
43

Screw

by Whirlpool
Part Number AP3012031

  • Not available
44

Wiring Assembly, Door

by Whirlpool
Part Number AP2941149

  • Not available
45
Screw

Screw

by Whirlpool
Part Number AP3097646

Our Price
$2.21
Add to Cart
46

Washer

by Whirlpool
Part Number AP2923779

  • Not available

Label, Use & Care Guide

by Whirlpool
Part Number AP3057226

  • Not available

Energy Label

by Whirlpool
Part Number AP3057227

  • Not available

Service & Wiring Sheet

by Whirlpool
Part Number AP3057511

  • Not available

Parts List

by Whirlpool
Part Number AP3057512

  • Not available
Clip Kit

Clip Kit

by Whirlpool
Part Number AP3069258

Our Price
$3.54
Add to Cart
Cork Sealer

Cork Sealer

by Whirlpool
Part Number AP3069517

Our Price
$29.90
Add to Cart

Step Down Transformer

by Whirlpool
Part Number AP3069518

  • Not available
Door Insulation

Door Insulation

by Whirlpool
Part Number AP3069998

Our Price
$53.96
Add to Cart

Putty Sealer

by Whirlpool
Part Number AP3071650

Our Price
$44.21
Add to Cart
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3075396

 (1)
Our Price
$14.08
Add to Cart

Epoxy Repair Kit (aluminum Tubing)

by Whirlpool
Part Number AP3078606

  • Not available
Vinyl Tape

Vinyl Tape

by Whirlpool
Part Number AP3078669

Our Price
$29.26
Add to Cart

Modular Ice Maker, Service Sheet

by Whirlpool
Part Number AP3080096

  • Not available
Permagum Sealer

Permagum Sealer

by Whirlpool
Part Number AP3080365

Our Price
$25.65
Add to Cart
Alumilastic Cement

Alumilastic Cement

by Whirlpool
Part Number AP3103415

Our Price
$25.22
Add to Cart
Insulation

Insulation

by Whirlpool
Part Number AP3131348

Our Price
$168.84
Add to Cart

Envelope

by Whirlpool
Part Number AP3132225

Our Price
$18.22
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
Grease

Grease

by Whirlpool
Part Number AP3133334

Our Price
$24.41
Add to Cart
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134037

Our Price
$4.00
Add to Cart
Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

Touch-Up Acrylic Appliance Paint-0.6 Oz. (almond)

by Whirlpool
Part Number AP3134038

Our Price
$3.37
Add to Cart
Appliance Touchup Paint

Appliance Touchup Paint

by Whirlpool
Part Number AP3134042

Our Price
$4.65
Add to Cart

Primer (white)

by Whirlpool
Part Number AP3134048

  • Not available

Almond Touch-Up Paint-1 Qt. Can

by Whirlpool
Part Number AP3134051

  • Not available
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134813

Our Price
$7.61
Add to Cart
Primer

Primer

by Whirlpool
Part Number AP3134815

Our Price
$19.79
Add to Cart
Appliance Spray Paint

Appliance Spray Paint

by Whirlpool
Part Number AP3134817

Our Price
$11.65
Add to Cart
Porcelain Touch-Up Paint

Porcelain Touch-Up Paint

by Whirlpool
Part Number AP3134941

Our Price
$13.46
Add to Cart
Appliance Touch Up Paint

Appliance Touch Up Paint

by Whirlpool
Part Number AP3135053

Our Price
$78.21
Add to Cart

Torx KEY3

by Whirlpool
Part Number AP3136045

Our Price
$3.54
Add to Cart
