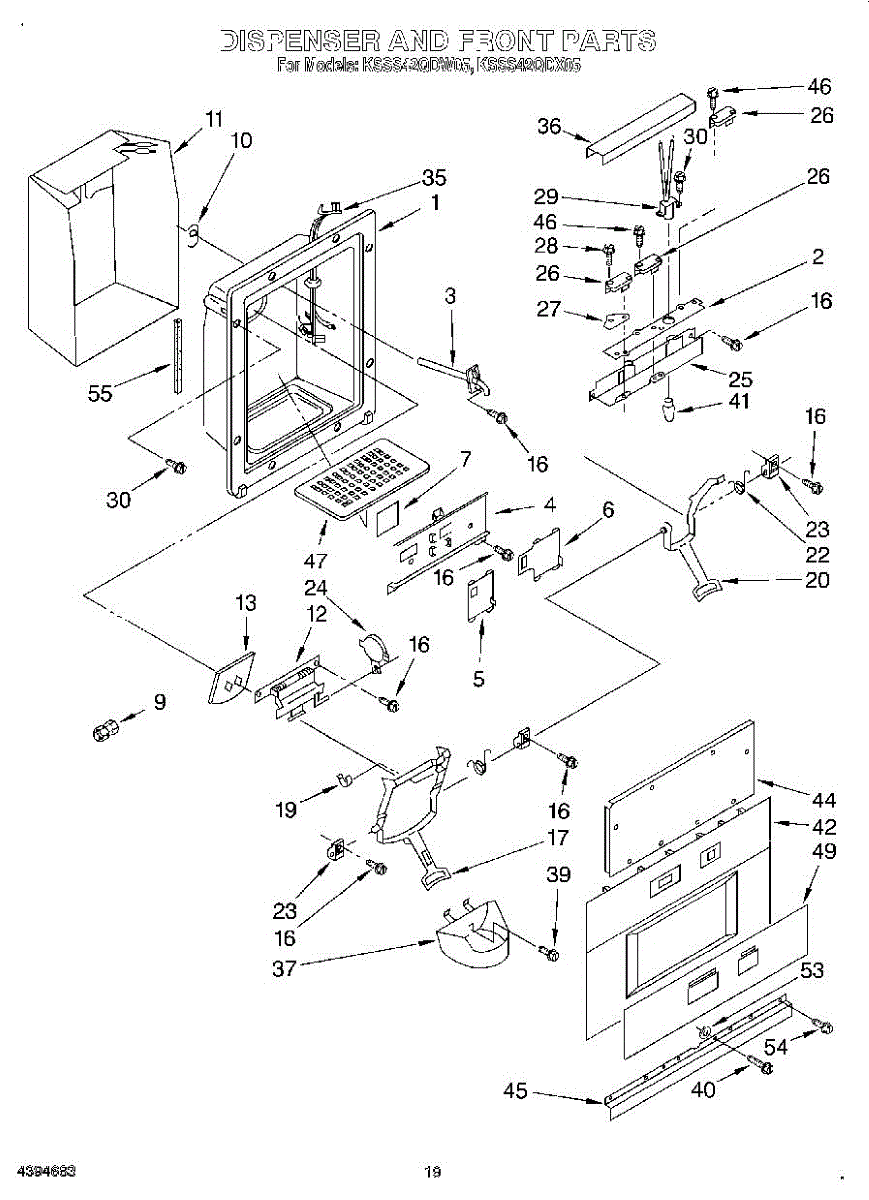

Parts for KitchenAid KSSS42QDX05: Dispenser and Front Parts

Start New Search

Built-in Refrigerator

Location on Diagram Part Description Price & Availability
1
Housing, Dispenser (black)

Housing, Dispenser (black)

by Whirlpool
Part Number AP3042027

  • Not available
2

Insulator, Bracket Control

by Whirlpool
Part Number AP3042028

  • Not available
3
Water Tube Assembly

Water Tube Assembly

by Whirlpool
Part Number AP3108776

 (14)
Our Price
$39.11
Add to Cart
4
Frame, Slides (stainless Steel and Black Models)

Frame, Slides (stainless Steel and Black Models)

by Whirlpool
Part Number AP3042031

  • Not available
5
Slide, Cube/crush Switch (stainless Steel and Black Models)
  • Not available
5
Slide, Cube/crush Switch (white)

Slide, Cube/crush Switch (white)

by Whirlpool
Part Number AP3042135

  • Not available
6
Slide,light Switch (white)

Slide,light Switch (white)

by Whirlpool
Part Number AP3042136

  • Not available
6

Slide,light Switch (black)

by Whirlpool
Part Number AP3057513

  • Not available
7

Shield

by Whirlpool
Part Number AP2936565

  • Not available
9
Union-Tube

Union-Tube

by Whirlpool
Part Number AP3103255

Our Price
$3.36
Add to Cart
10

Grommet

by Whirlpool
Part Number AP2936504

  • Not available
11
Heater, Ice Disp.

Heater, Ice Disp.

by Whirlpool
Part Number AP3110988

  • Not available
12
Ice Chute Door Assembly with Mounting Bracket

Ice Chute Door Assembly with Mounting Bracket

by Whirlpool
Part Number AP2978178

 (2)
Our Price
$49.21
Add to Cart
13
Door-Chute

Door-Chute

by Whirlpool
Part Number AP3040270

Our Price
$18.74
Add to Cart
16
Screw

Screw

by Whirlpool
Part Number AP3097646

Our Price
$2.32
Add to Cart
17
Ice Dispenser Lever

Ice Dispenser Lever

by Whirlpool
Part Number AP2982370

Our Price
$29.92
Add to Cart
19
Bearing, Lever Clip

Bearing, Lever Clip

by Whirlpool
Part Number AP2998644

  • Not available
20
Lever, Water Dispenser (white)

Lever, Water Dispenser (white)

by Whirlpool
Part Number AP2982371

Our Price
$26.01
Add to Cart
22
Spring

Spring

by Whirlpool
Part Number AP2998645

Our Price
$12.48
Add to Cart
23
Bearing

Bearing

by Whirlpool
Part Number AP2967271

  • Not available
24
Icemaker Delay

Icemaker Delay

by Whirlpool
Part Number AP2978182

Our Price
$51.43
Add to Cart
25

Bracket, Control

by Whirlpool
Part Number AP2940823

  • Not available
26
Microswitch

Microswitch

by Whirlpool
Part Number AP3131893

 (6)
Our Price
$9.26
Add to Cart
27
Spacer-Hol

Spacer-Hol

by Whirlpool
Part Number AP3042040

 (2)
Our Price
$4.47
Add to Cart
28

Screw, 4-4-X 1

by Whirlpool
Part Number AP3042573

  • Not available
29

Lamp Holder

by Whirlpool
Part Number AP2980017

  • Not available
30
Screw

Screw

by Whirlpool
Part Number AP3005830

Our Price
$4.34
Add to Cart
35

Wiring Harness, Door

by Whirlpool
Part Number AP3042041

Our Price
$99.00
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
36
Shield

Shield

by Whirlpool
Part Number AP2936542

  • Not available
37
Ice Dispenser Guide

Ice Dispenser Guide

by Whirlpool
Part Number AP3042439

Our Price
$13.00
Add to Cart
39
Screw (stainless Steel)

Screw (stainless Steel)

by Whirlpool
Part Number AP3042461

  • Not available
39

Screw (white)

by Whirlpool
Part Number AP3042543

  • Not available
40
Screw

Screw

by Whirlpool
Part Number AP3039491

 (1)
Our Price
$1.88
Add to Cart
41
Light Bulb

Light Bulb

by Whirlpool
Part Number AP4026967

 (10)
Our Price
$8.20
Add to Cart
42

Front Cover, Housing (white)

by Whirlpool
Part Number AP3042628

  • Not available
42

Front Cover, Housing (stainless Steel and Black Models)

by Whirlpool
Part Number AP3042650

  • Not available
44

Cover, Dispenser Opening

by Whirlpool
Part Number AP3042049

Our Price
$125.98
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
45

Trim, Front (white)

by Whirlpool
Part Number AP3042644

  • Not available
45

Trim-Dispenser, Front (black)

by Whirlpool
Part Number AP3042663

  • Not available
46

Screw, 4-40 X 1

by Whirlpool
Part Number AP2967272

  • Not available
47
Overflow Grille

Overflow Grille

by Whirlpool
Part Number AP2977337

Our Price
$23.72
Add to Cart
49

Overlay, Cover (white)

by Whirlpool
Part Number AP3042646

  • Not available
49

Overlay, Cover (stainless Steel and Black Models)

by Whirlpool
Part Number AP3042651

  • Not available
53
Washer

Washer

by Whirlpool
Part Number AP3086603

Our Price
$4.48
Add to Cart
54
Screw

Screw

by Whirlpool
Part Number AP3086604

Our Price
$3.67
Add to Cart
55

Seal 5

by Whirlpool
Part Number AP3006123

  • Not available

Front Panel Kit (white)

by Whirlpool
Part Number AP3065199

  • Not available

Front Panel Kit (black)

by Whirlpool
Part Number AP3065200

  • Not available

Front Panel Kit (almond)

by Whirlpool
Part Number AP3065201

  • Not available

Front Panel Kit (stainless Steel)

by Whirlpool
Part Number AP3065202

  • Not available

Use & Care Guide

by Whirlpool
Part Number AP3065785

  • Not available

Service & Wiring Sheet

by Whirlpool
Part Number AP3065787

  • Not available

Energy Label

by Whirlpool
Part Number AP3065791

  • Not available
Service Valve

Service Valve

by Whirlpool
Part Number AP3072564

Our Price
$25.83
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130529

Our Price
$30.02
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130530

Our Price
$30.76
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130531

Our Price
$31.33
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130532

  • Not available
Service Valve

Service Valve

by Whirlpool
Part Number AP3130533

Our Price
$33.24
Add to Cart
Service Valve

Service Valve

by Whirlpool
Part Number AP3130534

Our Price
$25.82
Add to Cart
Static Cleaner, Black Panel

Static Cleaner, Black Panel

by Whirlpool
Part Number AP3135169

Our Price
$12.82
Add to Cart

Modular Im Svc 120V

by Whirlpool
Part Number AP4434485

  • Not available
