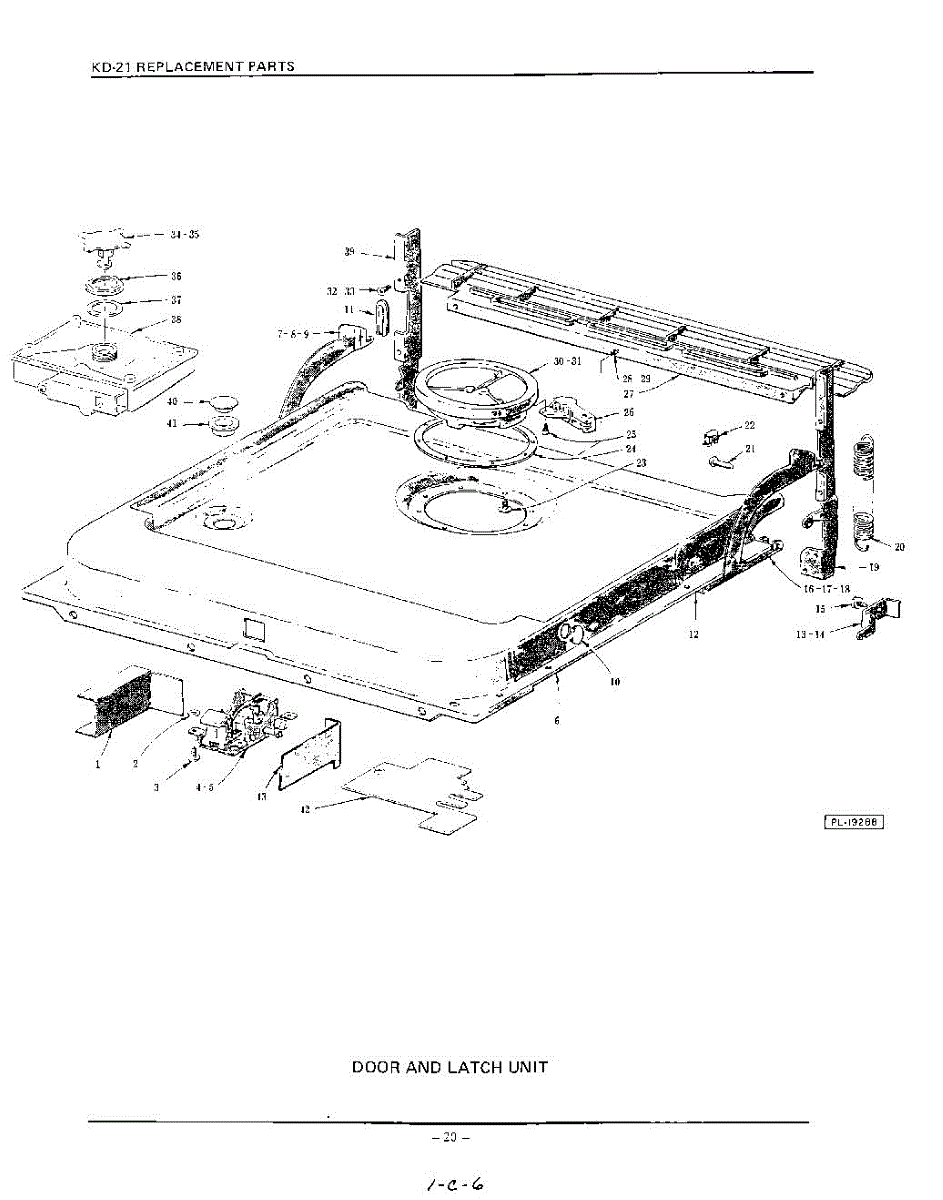

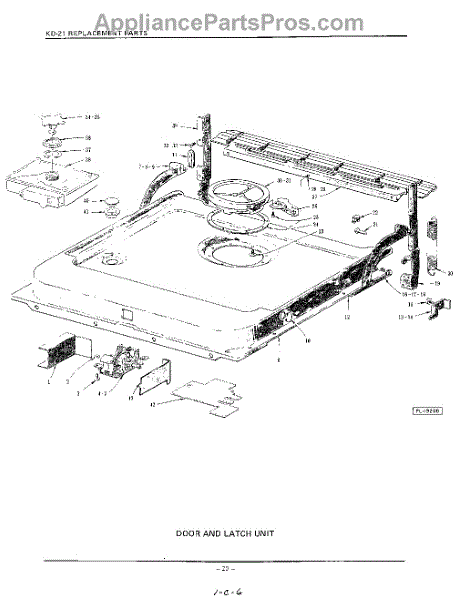

Parts for KitchenAid KUDA210S0: Door and Latch Parts

Start New Search

Dishwasher

Location on Diagram Part Description Price & Availability
1

Cover-Wiring Harness

by Whirlpool
Part Number AP2930971

  • Not available
2

Washer

by Whirlpool
Part Number AP2930972

  • Not available
3

Self-Tapping Screw 10-16 X 1/2 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041054

  • Not available
4

Latch Mechanism Assembly (kdb-21B & Kdi-21B)

by Whirlpool
Part Number AP3040918

  • Not available
5
  • Not available
6

Inner Door Assembly

by Whirlpool
Part Number AP3040920

  • Not available
7

Washer (rubber)

by Whirlpool
Part Number AP2930976

  • Not available
8

Mach. Screw 10-32 X 5/16 Phil. Truss Head

by Whirlpool
Part Number AP3041057

  • Not available
9

Bracket-Left Door Stop

by Whirlpool
Part Number AP2930978

  • Not available
10

Plug Button

by Whirlpool
Part Number AP2930979

  • Not available
11

Bearing-Door Stop Insert

by Whirlpool
Part Number AP2930980

  • Not available
12

Vapor Shield Kit

by Whirlpool
Part Number AP2930998

  • Not available
13

Bracket-Right Spring Mounting

by Whirlpool
Part Number AP2930982

  • Not available
14

Bracket-Left Spring Mounting (not Shown)

by Whirlpool
Part Number AP2930983

  • Not available
15

Screw & Washer Assembly 10 X 3/8 Phil. Hex Hd., Type Ab

by Whirlpool
Part Number AP3041218

  • Not available
16

Bracket-Right Door Stop

by Whirlpool
Part Number AP2930985

  • Not available
17

Mach. Screw 10-32 X 5/16 Phil. Truss Head

by Whirlpool
Part Number AP3041057

  • Not available
18

Washer (rubber)

by Whirlpool
Part Number AP2930976

  • Not available
19

Bracket-Right Hinge

by Whirlpool
Part Number AP2930986

  • Not available
20

Spring-Door Co-Balance

by Whirlpool
Part Number AP2930987

  • Not available
21

Pin-Hinge

by Whirlpool
Part Number AP2930988

  • Not available
22

Clip-Hinge Pin Retaining

by Whirlpool
Part Number AP2930989

  • Not available
23

Screw & Washer Assembly

by Whirlpool
Part Number AP2930990

  • Not available
24

Gasket-Detergent Dispenser

by Whirlpool
Part Number AP2930991

  • Not available
25

Self-Tapping Screw 8-18 X 1/2 Phil. Pan Hd., Type 25

by Whirlpool
Part Number AP3041219

  • Not available
26

Bimetal Assembly

by Whirlpool
Part Number AP2930992

  • Not available
27

Baffle-Lower

by Whirlpool
Part Number AP2930993

  • Not available
28

Self-Tapping Screw 8-18 X 1/2 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041220

  • Not available
29

Cap

by Whirlpool
Part Number AP2930995

  • Not available
30
  • Not available
31
  • Not available
32

Washer (rubber)

by Whirlpool
Part Number AP2930976

  • Not available
33
  • Not available
34

Fill Hole Plug Assembly (incls. Item NO.35)

by Whirlpool
Part Number AP3040924

  • Not available
35

Washer-Fill Hole Plug

by Whirlpool
Part Number AP2930898

  • Not available
36

Nut (fill Air Gap)

by Whirlpool
Part Number AP2930911

  • Not available
37

Gasket-Rubber (white)

by Whirlpool
Part Number AP3040925

  • Not available
38

Rinse Agent Dispensing Valve

by Whirlpool
Part Number AP2930901

  • Not available
39

Bracket-Left Hinge

by Whirlpool
Part Number AP2930997

  • Not available
40

Plug Button (mach. Without Rinse Agent)

by Whirlpool
Part Number AP3040926

  • Not available
41

Gasket-Plug Button (mach. Without Rinse Agent)

by Whirlpool
Part Number AP3040927

  • Not available
42

Barrier-Program Switch

by Whirlpool
Part Number AP3040928

  • Not available
43

Insulation-Switch

by Whirlpool
Part Number AP2930974

  • Not available
43

Inner Door (service)/kdsc-21A & Kdsm-21A

by Whirlpool
Part Number AP3055717

  • Not available

Door

by Whirlpool
Part Number AP3102243

  • Not available
