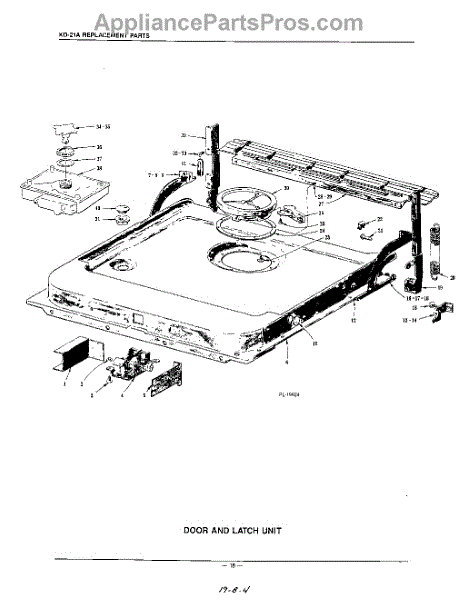

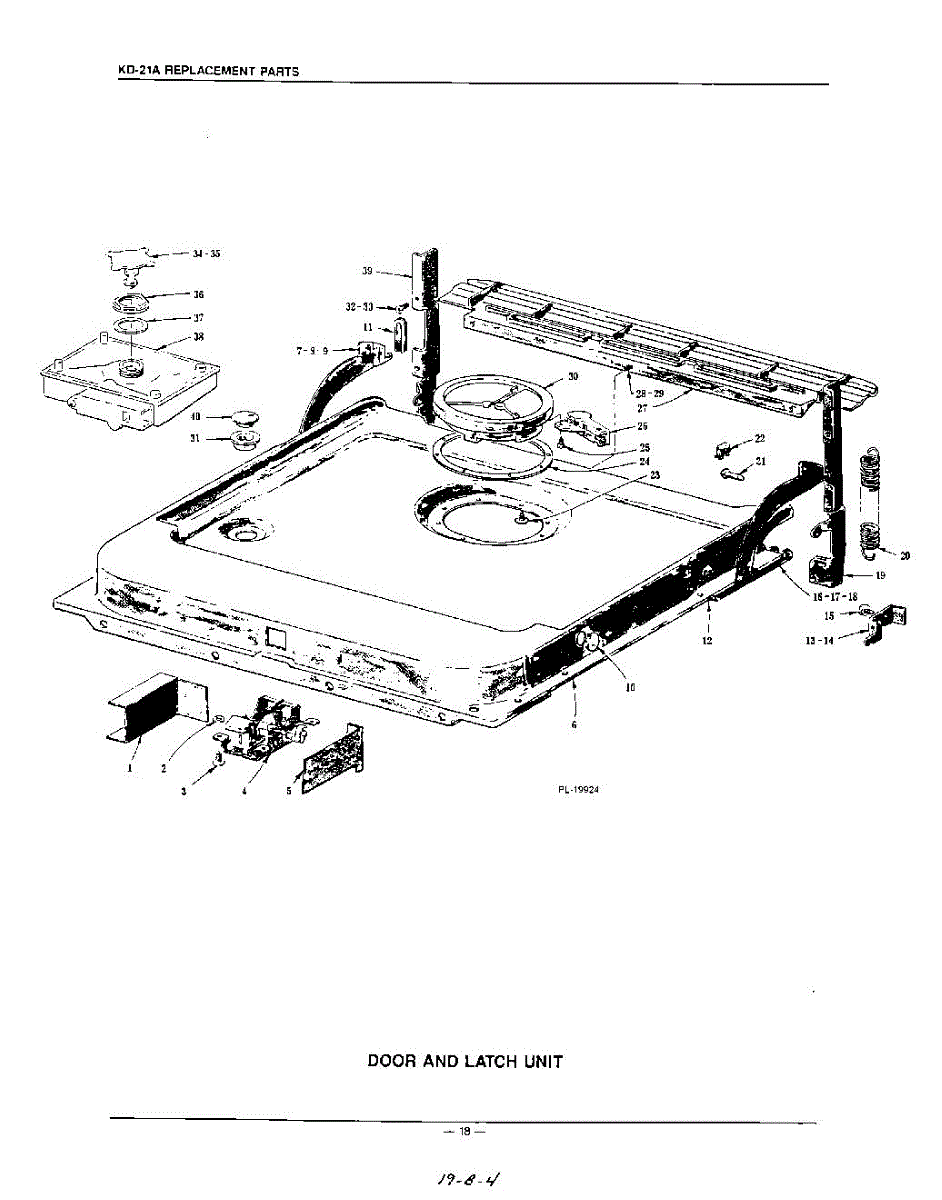

Parts for KitchenAid KUDB21S0: Door and Latch Parts

Start New Search

Dishwasher

Location on Diagram Part Description Price & Availability
1

Cover-Wiring Harness

by Whirlpool
Part Number AP3041053

  • Not available
2

Washer

by Whirlpool
Part Number AP2930972

  • Not available
3

Self-Tapping Screw 10-16 X 1/2 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041054

  • Not available
4
Door Latch

Door Latch

by Whirlpool
Part Number AP3043023

  • Not available
5

Insulation-Switch

by Whirlpool
Part Number AP2931996

  • Not available
6

Door

by Whirlpool
Part Number AP3102243

  • Not available
7

Washer (rubber)

by Whirlpool
Part Number AP2930976

  • Not available
8

Mach. Screw 10-32 X 5/16 Phil. Truss Head

by Whirlpool
Part Number AP3041057

  • Not available
9
Hinge, Door Left

Hinge, Door Left

by Whirlpool
Part Number AP3042854

Our Price
$66.50
Add to Cart
10

Plug Button

by Whirlpool
Part Number AP2930979

  • Not available
11
Bearing

Bearing

by Whirlpool
Part Number AP3039953

Our Price
$3.57
Add to Cart
12

Vapor Shield Kit

by Whirlpool
Part Number AP3041060

  • Not available
13

Bracket-Right Spring Mounting

by Whirlpool
Part Number AP3041061

  • Not available
14

Bracket-Left Spring Mounting (not Shown)

by Whirlpool
Part Number AP3041062

  • Not available
15
  • Not available
16
Hinge, Door Right

Hinge, Door Right

by Whirlpool
Part Number AP3042856

Our Price
$48.22
Add to Cart
17

Mach. Screw 10-32 X 5/16 Phil. Truss Head

by Whirlpool
Part Number AP3041057

  • Not available
18

Washer (rubber)

by Whirlpool
Part Number AP2930976

  • Not available
19
Bracket

Bracket

by Whirlpool
Part Number AP3039622

  • Not available
20
Door Spring

Door Spring

by Whirlpool
Part Number AP3041655

 (1)
Our Price
$10.22
Add to Cart
21

Pin

by Whirlpool
Part Number AP3039624

  • Not available
22
Clip

Clip

by Whirlpool
Part Number AP3039625

  • Not available
23

Screw & Washer Assembly

by Whirlpool
Part Number AP3041069

  • Not available
24

Gasket

by Whirlpool
Part Number AP3039627

  • Not available
25

Self-Tapping Screw 8-18 X 1/2 Phil. Pan Hd., Type 25

by Whirlpool
Part Number AP3041219

  • Not available
26
Bi-Metal

Bi-Metal

by Whirlpool
Part Number AP3041675

Our Price
$24.11
Add to Cart
27
Baffle

Baffle

by Whirlpool
Part Number AP3039972

Our Price
$27.81
Add to Cart
28

Self-Tapping Screw 8-18 X 1/2 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041220

  • Not available
29

Cap

by Whirlpool
Part Number AP3041074

  • Not available
30
Det Dispenser No Longer Available.

Det Dispenser No Longer Available.

by Whirlpool
Part Number AP3042989

  • Not available
31
Gasket

Gasket

by Whirlpool
Part Number AP3042896

  • Not available
32

Washer (rubber)

by Whirlpool
Part Number AP2930976

  • Not available
33
  • Not available
34
Cap

Cap

by Whirlpool
Part Number AP3041694

Our Price
$18.43
Add to Cart
35

Washer

by Whirlpool
Part Number AP3039633

Our Price
$25.37
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
36
Nut

Nut

by Whirlpool
Part Number AP3039634

Our Price
$24.68
Add to Cart
37
O Ring

O Ring

by Whirlpool
Part Number AP3039635

  • Not available
38
Rinse Disp.

Rinse Disp.

by Whirlpool
Part Number AP3053269

  • Not available
39
Bracket

Bracket

by Whirlpool
Part Number AP3039637

  • Not available
40
Button

Button

by Whirlpool
Part Number AP3042895

  • Not available
40

Door

by Whirlpool
Part Number AP3102243

  • Not available
