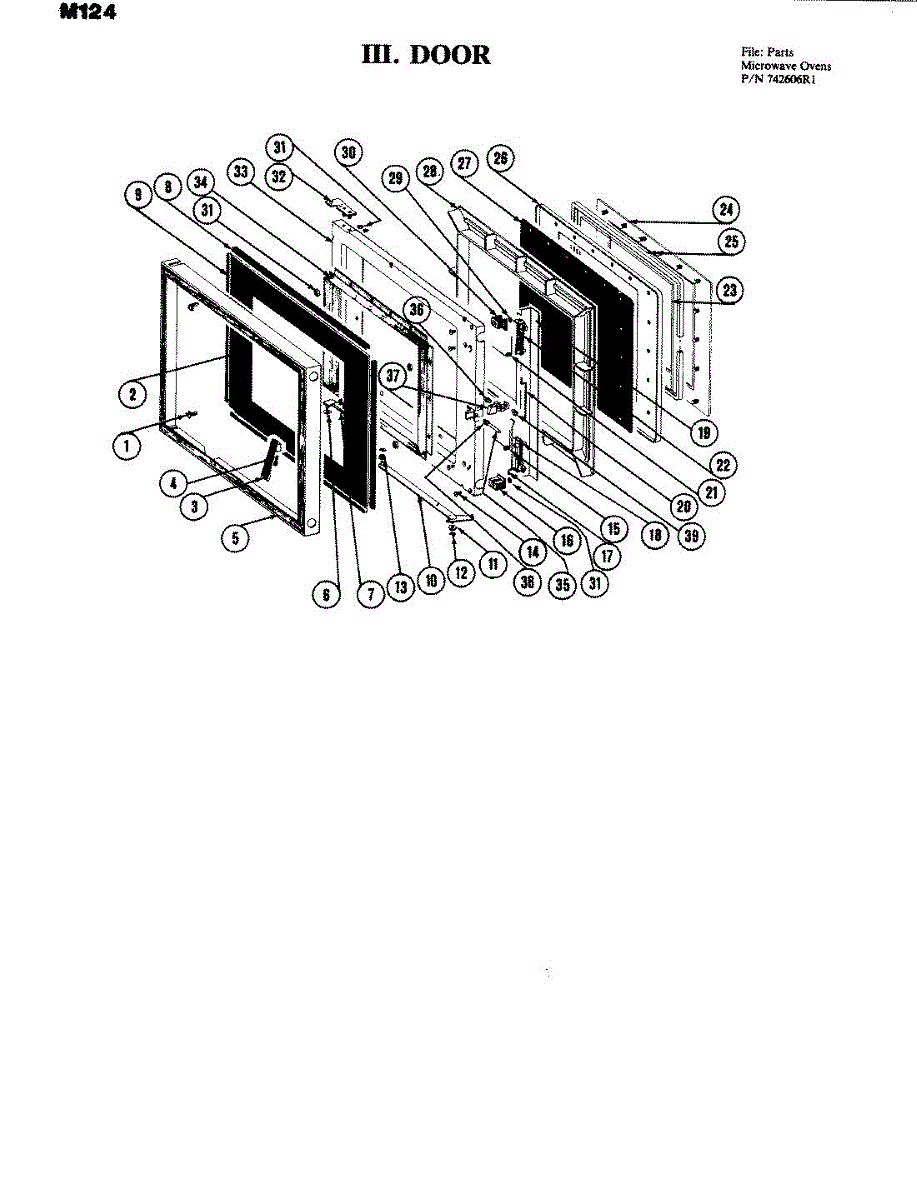

Parts for Jenn-Air M124: Door Parts

Start New Search

Mwave-Cntrtp / Stand Alone

Location on Diagram Part Description Price & Availability
1

Clip

by Maytag
Part Number AP383194

  • Not available
2

Glass Door

by Whirlpool
Part Number AP4244596

  • Not available
3

Handle

by Maytag
Part Number AP418114

  • Not available
4

Screw

by Maytag
Part Number AP419142

  • Not available
5

Door Frame

by Maytag
Part Number AP383190

  • Not available
6

Washer

by Maytag
Part Number AP419353

  • Not available
7

Bracket, Hinge Assembly

by Maytag
Part Number AP274014

  • Not available
8

Gasket, Gls Outer

by Maytag
Part Number AP418101

  • Not available
9

Gasket, Glass Outer

by Maytag
Part Number AP418102

  • Not available
10

Link, Door Assembly

by Maytag
Part Number AP274028

  • Not available
11

Bushing

by Maytag
Part Number AP383223

  • Not available
12

Clip, Retainer

by Maytag
Part Number AP183758

  • Not available
13

Bearing, Door

by Maytag
Part Number AP417878

  • Not available
14

Screw 8-32

by Maytag
Part Number AP383221

  • Not available
15

Spring, Torsion

by Maytag
Part Number AP419111

  • Not available
17

Link, Lower

by Maytag
Part Number AP383216

  • Not available
18

Latch Door Btm

by Maytag
Part Number AP418284

  • Not available
19

Door Latch Cover

by Maytag
Part Number AP383219

  • Not available
20

Link, Upper

by Maytag
Part Number AP383209

  • Not available
21

Spring, Lower

by Maytag
Part Number AP383210

  • Not available
22

Latch Door Top

by Maytag
Part Number AP418283

  • Not available
23

Glass Inner Door

by Whirlpool
Part Number AP4244425

  • Not available
24

Retainer

by Maytag
Part Number AP383206

  • Not available
25

Gasket Glass Inner

by Maytag
Part Number AP418100

  • Not available
26

Door Seal Plate

by Maytag
Part Number AP383203

  • Not available
27

Door Screen

by Maytag
Part Number AP383202

  • Not available
28

Cover, Choke

by Maytag
Part Number AP417984

  • Not available
29

Nut

by Maytag
Part Number AP418484

  • Not available
30

Door Latch Guide

by Maytag
Part Number AP383220

  • Not available
31

Nut 10-32

by Maytag
Part Number AP383200

  • Not available
32

Brkt, Hinge Assembly

by Maytag
Part Number AP274012

  • Not available
33

Door, Inner

by Maytag
Part Number AP383198

  • Not available
34

Retainer

by Maytag
Part Number AP383195

  • Not available
35

Pin, Door Handle

by Maytag
Part Number AP418625

  • Not available
36

Pivot Bushing

by Maytag
Part Number AP383212

  • Not available
37

Link Handle Pivot

by Maytag
Part Number AP418282

  • Not available
38

Bearing, Door

by Maytag
Part Number AP417876

  • Not available
