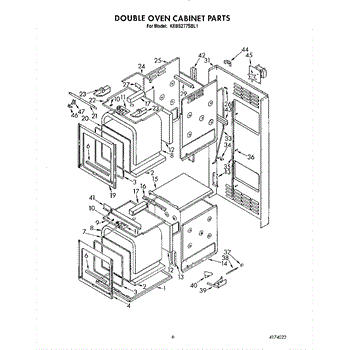

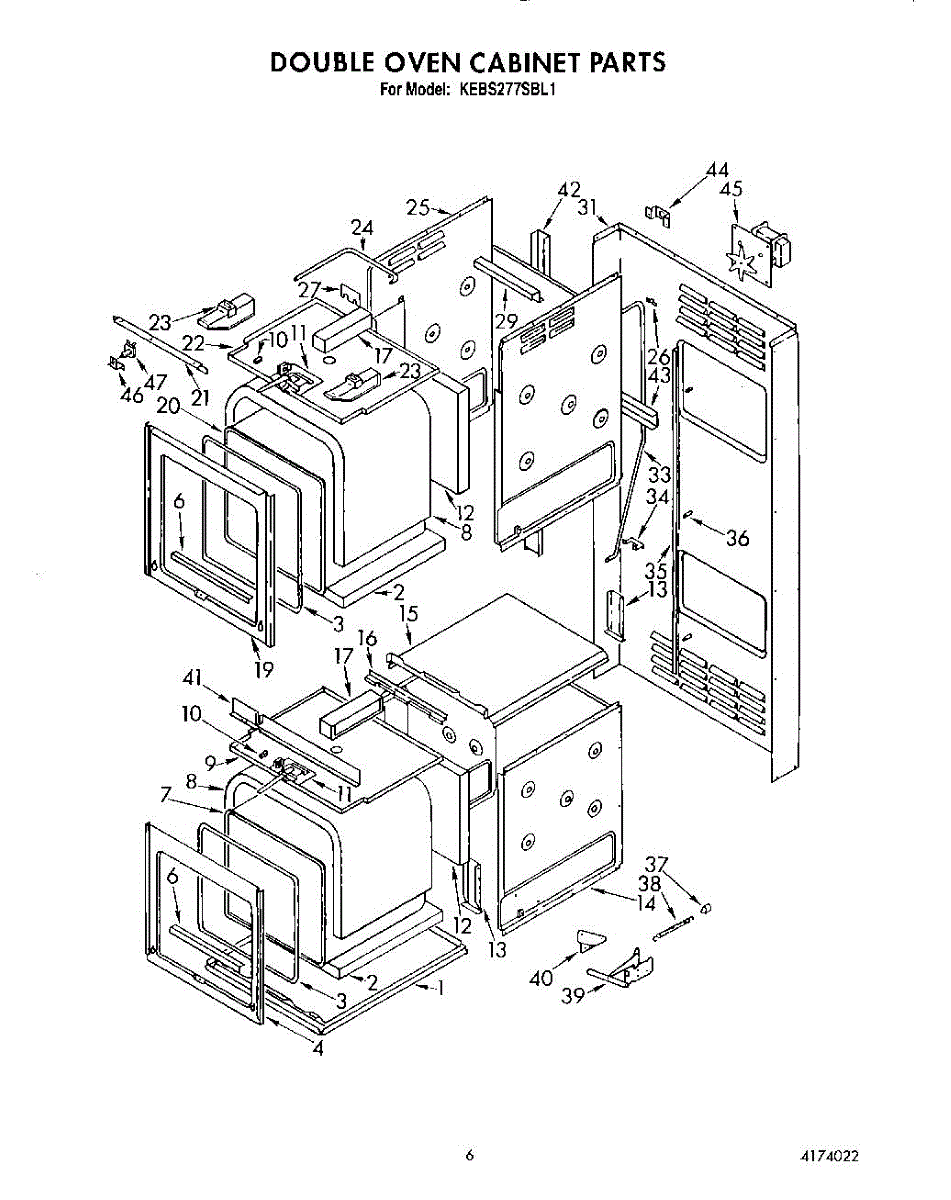

Parts for KitchenAid KEBS177SWH0: Double Oven Cabinet Parts

Start New Search

Electric Built in Oven

Location on Diagram Part Description Price & Availability
1

Main Botom

by Whirlpool
Part Number AP2921304

  • Not available
2

Insulation, Bottom

by Whirlpool
Part Number AP2921305

  • Not available
3
Gasket

Gasket

by Whirlpool
Part Number AP3041244

  • Not available
4

Front Frame (lower Oven)

by Whirlpool
Part Number AP3026360

  • Not available
6

Seal

by Whirlpool
Part Number AP3054036

Our Price
$3.53
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
8

Insulation

by Whirlpool
Part Number AP3026309

  • Not available
9

Cabinet

by Whirlpool
Part Number AP3026363

  • Not available
10
Knob

Knob

by Whirlpool
Part Number AP3040310

  • Not available
12

Insulation, Rear

by Whirlpool
Part Number AP3026310

  • Not available
13

Rear Anchor

by Whirlpool
Part Number AP2922953

  • Not available
14

Cabnt-Side

by Whirlpool
Part Number AP2924847

  • Not available
15

Support-Upper Oven

by Whirlpool
Part Number AP2923099

  • Not available
16

Support, Frame

by Whirlpool
Part Number AP3026316

  • Not available
17

Coll Box

by Whirlpool
Part Number AP2921923

  • Not available
19

Front Frame, Upper Oven No Longer Available.

by Whirlpool
Part Number AP2923101

  • Not available
21

Support

by Whirlpool
Part Number AP2924784

  • Not available
22

Cabinet

by Whirlpool
Part Number AP3026363

  • Not available
23

Vent Box

by Whirlpool
Part Number AP2923069

  • Not available
24

Vent Tube (single or Upper Oven)

by Whirlpool
Part Number AP2921522

  • Not available
25

Side, Cabinet

by Whirlpool
Part Number AP2923070

  • Not available
26

Clamp

by Whirlpool
Part Number AP3054205

  • Not available
27

Bracket, Vent

by Whirlpool
Part Number AP3026320

  • Not available
29

Channel, Air Baffle

by Whirlpool
Part Number AP2921930

  • Not available
31

Cabinet Back (KEBS276SBL2)

by Whirlpool
Part Number AP2922875

  • Not available
33

Tube-Vent

by Whirlpool
Part Number AP2923102

  • Not available
34

Retainer, Tube

by Whirlpool
Part Number AP3075924

  • Not available
35

Right Side

by Whirlpool
Part Number AP3053802

  • Not available
35

Support

by Whirlpool
Part Number AP3053803

  • Not available
36

Spacer

by Whirlpool
Part Number AP3043562

  • Not available
37

Spring Anchor

by Whirlpool
Part Number AP3026373

  • Not available
38
Spring-Door

Spring-Door

by Whirlpool
Part Number AP3026440

 (1)
Our Price
$23.91
Add to Cart
39
Hinge

Hinge

by Whirlpool
Part Number AP3043560

  • Not available
40

Left

by Whirlpool
Part Number AP3053805

  • Not available
40

Cam Plate Right

by Whirlpool
Part Number AP3128110

  • Not available
41

Air Diverter

by Whirlpool
Part Number AP2922882

  • Not available
42

Support Bracket

by Whirlpool
Part Number AP3041247

  • Not available
43

Bracket, Support

by Whirlpool
Part Number AP2923076

  • Not available
44
Retainer

Retainer

by Whirlpool
Part Number AP3041248

  • Not available
46

Bracket, Oven Light Switch

by Whirlpool
Part Number AP2921938

  • Not available
47

Air Duct Extension (trim Kit-Double Oven)

by Whirlpool
Part Number AP2921942

  • Not available
47

Probe Cover

by Whirlpool
Part Number AP3053751

  • Not available
47

Air Duct-Right (single or Upper Oven)

by Whirlpool
Part Number AP3053754

  • Not available
47

Air Duct-Left (single or Upper Oven)

by Whirlpool
Part Number AP3053755

  • Not available
47

Cover, Plate

by Whirlpool
Part Number AP3053814

  • Not available
47

Air Duct, Right (lower Oven)

by Whirlpool
Part Number AP3075940

  • Not available
47

Air Duct, Left (lower Oven)

by Whirlpool
Part Number AP3075941

  • Not available
47

Extension, Air Duct Left

by Whirlpool
Part Number AP3075942

  • Not available
47

Extension, Air Duct Right

by Whirlpool
Part Number AP3075943

  • Not available
47
Trim Ring, Cooktop (screw, Black (14))

Trim Ring, Cooktop (screw, Black (14))

by Whirlpool
Part Number AP3081671

  • Not available
47
Switch, Disp.lite

Switch, Disp.lite

by Whirlpool
Part Number AP3133645

Our Price
$28.32
Add to Cart

Use & Care Guide

by Whirlpool
Part Number AP3053641

  • Not available

Instructions, Installation (trim Kit)

by Whirlpool
Part Number AP3053642

  • Not available

List, Repair Parts

by Whirlpool
Part Number AP3053643

  • Not available
