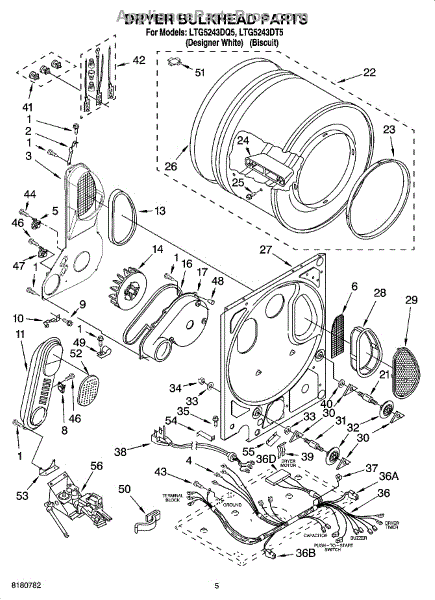

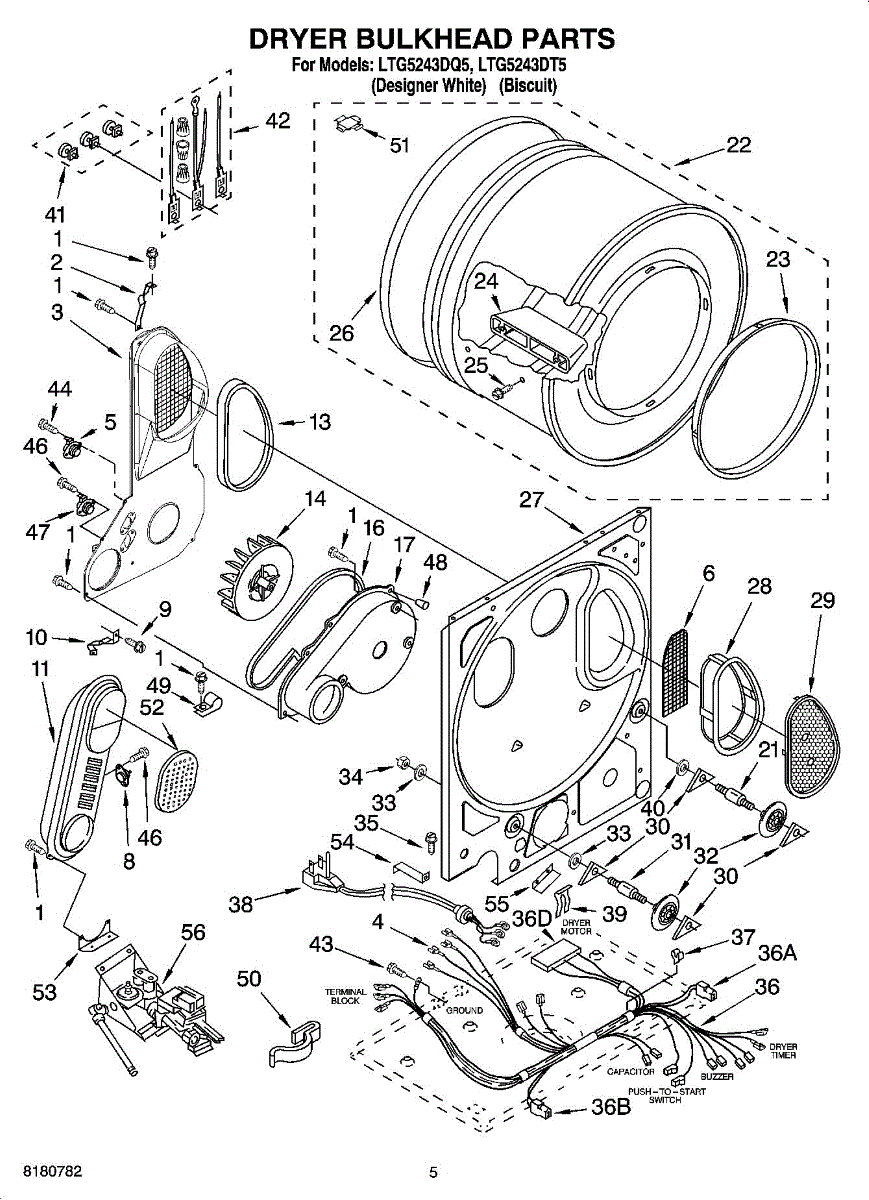

Parts for Whirlpool LTG5243DT5: Dryer Bulkhead Parts

Start New Search

Washer/dryer Laundry System

Location on Diagram Part Description Price & Availability
1
Screw

Screw

by Whirlpool
Part Number AP3011603

Our Price
$2.46
Add to Cart
2

Clip, Air Duct

by Whirlpool
Part Number AP2911891

Our Price
$23.11
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
3

Duct-Air

by Whirlpool
Part Number AP3779180

Our Price
$51.56
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
4
Terminal

Terminal

by Whirlpool
Part Number AP3073143

Our Price
$4.28
Add to Cart
5
Thermostat

Thermostat

by Whirlpool
Part Number AP2975271

 (1)
Our Price
$25.80
Add to Cart
6
Screen, Back-Up

Screen, Back-Up

by Whirlpool
Part Number AP2911306

Our Price
$38.06
Add to Cart
8
High Limit Thermostat

High Limit Thermostat

by Whirlpool
Part Number AP5589880

 (1)
Our Price
$24.46
Add to Cart
9
Screw

Screw

by Whirlpool
Part Number AP2947132

Our Price
$3.66
Add to Cart
10
Clip

Clip

by Whirlpool
Part Number AP3094225

Our Price
$22.96
Add to Cart
11

Box-Heater

by Whirlpool
Part Number AP3175934

Our Price
$67.29
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
13
Lint Screen Housing Foam Seal

Lint Screen Housing Foam Seal

by Whirlpool
Part Number AP3023087

 (4)
Our Price
$3.62
Add to Cart
14
Wheel-Blower

Wheel-Blower

by Whirlpool
Part Number AP2910465

Our Price
$30.89
Add to Cart
16
Seal

Seal

by Whirlpool
Part Number AP3046490

Our Price
$3.67
Add to Cart
17
Fan Scroll

Fan Scroll

by Whirlpool
Part Number AP2910468

Our Price
$28.98
Add to Cart
21
Shaft

Shaft

by Whirlpool
Part Number AP5176393

Our Price
$22.92
Add to Cart
22

Drum

by Whirlpool
Part Number AP3097396

Our Price
$166.63
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
23
Front Bearing Ring

Front Bearing Ring

by Whirlpool
Part Number AP3133485

Our Price
$22.54
Add to Cart
24
Bffl Drum

Bffl Drum

by Whirlpool
Part Number AP2911302

Our Price
$20.89
Add to Cart
25
Screw

Screw

by Whirlpool
Part Number AP3963137

Our Price
$1.97
Add to Cart
26
Felt Kit

Felt Kit

by Whirlpool
Part Number AP3138826

 (1)
Our Price
$33.66
Add to Cart
27

Bulkhead

by Whirlpool
Part Number AP2910633

Our Price
$86.86
Add to Cart
28
Dryer Lint Filter

Dryer Lint Filter

by Whirlpool
Part Number AP3608540

 (6)
Our Price
$27.53
Add to Cart
29
Dryer Lint Filter Cover

Dryer Lint Filter Cover

by Whirlpool
Part Number AP3598467

 (3)
Our Price
$28.17
Add to Cart
30
Tri-Ring

Tri-Ring

by KitchenAid
Part Number AP5684740

 (6)
Our Price
$2.17
Add to Cart
31
Shaft

Shaft

by Whirlpool
Part Number AP5176394

Our Price
$23.15
Add to Cart
32
Rear Drum Support Roller Kit

Rear Drum Support Roller Kit

by Whirlpool
Part Number AP3098345

 (44)
Our Price
$16.01
Add to Cart
33
Washer

Washer

by Whirlpool
Part Number AP3126765

 (1)
Our Price
$1.93
Add to Cart
34
Locking Nut

Locking Nut

by Whirlpool
Part Number AP2974021

Our Price
$1.97
Add to Cart
35
Screw

Screw

by Whirlpool
Part Number AP3085356

Our Price
$2.45
Add to Cart
36

Harns-Wire

by Whirlpool
Part Number AP3779136

Our Price
$58.33
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
36A

Terminal Receptacle (2-Way)

by Whirlpool
Part Number AP3130558

  • Not available
36B

Receptacle, (gas Valve)

by Whirlpool
Part Number AP2975460

Our Price
$29.56
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
36D
Connector Housing (motor)

Connector Housing (motor)

by Whirlpool
Part Number AP2975886

Our Price
$4.43
Add to Cart
37

Clip-Harns

by Whirlpool
Part Number AP2912308

  • Not available
38

Cord-Power

by Whirlpool
Part Number AP4502163

Our Price
$22.39
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
39

Clip, Strains Relief

by Whirlpool
Part Number AP2975291

Our Price
$18.22
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
40
Washer, Support (1 1/2`` Dia)

Washer, Support (1 1/2`` Dia)

by Whirlpool
Part Number AP3050906

Our Price
$3.66
Add to Cart
41
Terminal Block Screw Kit

Terminal Block Screw Kit

by Whirlpool
Part Number AP3020386

Our Price
$16.76
Add to Cart
42
Terminal & Wire Kit

Terminal & Wire Kit

by Whirlpool
Part Number AP3133484

Our Price
$24.05
Add to Cart
43
Screw

Screw

by Whirlpool
Part Number AP3132624

Our Price
$4.25
Add to Cart
44
Screw

Screw

by Whirlpool
Part Number AP3039491

 (1)
Our Price
$1.88
Add to Cart
46
Screw

Screw

by Whirlpool
Part Number AP3127552

 (1)
Our Price
$2.80
Add to Cart
47
Cutoff-Tml

Cutoff-Tml

by Whirlpool
Part Number AP3919267

Our Price
$13.04
Add to Cart
48

Tip-Tines

by Whirlpool
Part Number AP5617638

Our Price
$3.67
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
49

Tube Clamp

by Whirlpool
Part Number AP3041791

Our Price
$1.98
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
50
Clip

Clip

by Whirlpool
Part Number AP3085721

Our Price
$2.71
Add to Cart
51
Drum Hole Plug

Drum Hole Plug

by Whirlpool
Part Number AP3080776

Our Price
$3.67
Add to Cart
52
Cover, Manifold

Cover, Manifold

by Whirlpool
Part Number AP2910642

Our Price
$31.46
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
53

Support, Heater Box

by Whirlpool
Part Number AP2910643

Our Price
$3.67
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
54

Support, Corner Gas

by Whirlpool
Part Number AP2910644

Our Price
$3.66
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
55

Guard, Sock

by Whirlpool
Part Number AP2910645

Our Price
$3.66
  • Out of Stock
  • Usually ships within 5 - 6 days
Add to Cart
56
Burner-Gas

Burner-Gas

by Whirlpool
Part Number AP5620253

  • Not available
