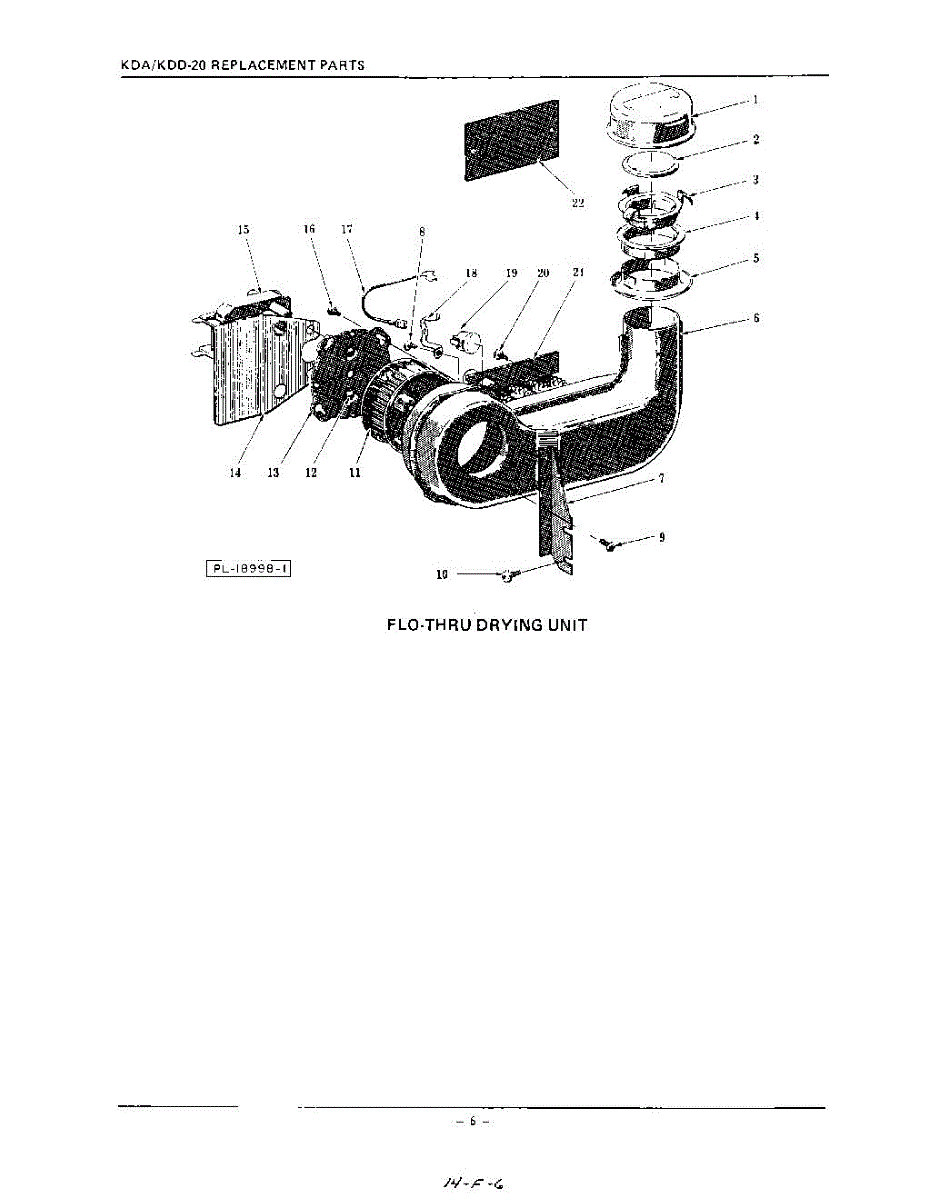

Flo-Thru Drying Parts for Whirlpool KDD20 from AppliancePartsPros.com

Location on Diagram	Part Description	Price & Availability
1	Cover-Air Inlet by Whirlpool Part Number AP2930999 MFG Part Number E-116189	Not available
2	Float-Check Valve by Whirlpool Part Number AP2931000 MFG Part Number C-115976	Not available
3	Support-Air Inlet Cover by Whirlpool Part Number AP2931001 MFG Part Number D-115988	Not available
4	Deflector-Air (upper) by Whirlpool Part Number AP2931002 MFG Part Number C-116151	Not available
5	Deflector-Air (lower) by Whirlpool Part Number AP2931003 MFG Part Number P-105174	Not available
6	Dryer Housing & Bracket Assembly (incls. Items NO.7 & 9) by Whirlpool Part Number AP2931004 MFG Part Number C-241594	Not available
7	Bracket-Housing Support by Whirlpool Part Number AP2931005 MFG Part Number D-241506	Not available
8	Xxself-Tapping Screw-NO.8 X 3/8`` Phil. Pan Undercut Hd., Type Ab by Whirlpool Part Number AP3135215 MFG Part Number SD-33-89	Not available
9	Xxself-Tapping Screw-NO.8 X 3/8`` Phil. Pan Undercut Hd., Type Ab by Whirlpool Part Number AP3135215 MFG Part Number SD-33-89	Not available
10	Screw & L.w. Assembly-NO.10 X 3/4`` Phil. Truss Hd., Ext. L.w. by Whirlpool Part Number AP2931038 MFG Part Number SA-21-11	Not available
11	Wheel-Blower (incls. Screw) by Whirlpool Part Number AP2931008 MFG Part Number C-241566	Not available
12	Self-Tapping Screw 10-24 X 5/16 Phil. Pan Hd. ``taptite`` by Whirlpool Part Number AP2932062 MFG Part Number SD-33-12	Not available
13	Blower Assembly by Whirlpool Part Number AP2919795 MFG Part Number 4162742	Not available
14	Cover-Dryer Motor by Whirlpool Part Number AP2931011 MFG Part Number C-240990	Not available
15	Blower Assembly by Whirlpool Part Number AP2919795 MFG Part Number 4162742	Not available
16	Xxself-Tapping Screw-NO.8 X 3/8`` Phil. Pan Undercut Hd., Type Ab by Whirlpool Part Number AP3135215 MFG Part Number SD-33-89	Not available
17	Xlead (heater to Thermostat) (115 V.) by Whirlpool Part Number AP3135213 MFG Part Number P-82098	Not available
18	Xclip-Thermoprotector by Whirlpool Part Number AP3135190 MFG Part Number C-242037	Not available
19	Xprotector-Control by Whirlpool Part Number AP3135182 MFG Part Number B-242113	Not available
20	Xxself-Tapping Screw-NO.8 X 3/8`` Phil. Pan Undercut Hd., Type Ab by Whirlpool Part Number AP3135215 MFG Part Number SD-33-89	Not available
21	Heater, Blower by Whirlpool Part Number AP2919995 MFG Part Number 9740629	Not available
22	Cover-Heater Hole by Whirlpool Part Number AP2931165 MFG Part Number B-242262	Not available
22A	Part Not Available	Not available
22B	Part Not Available	Not available
22C	Part Not Available	Not available
22D	Blower Assembly by Whirlpool Part Number AP2919795 MFG Part Number 4162742	Not available
22E	Part Not Available	Not available
