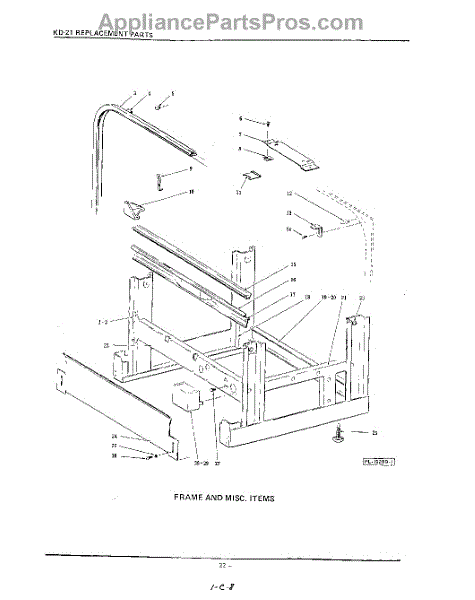

Frame and Miscellaneous Parts for Whirlpool KUDA210S0

Short Frame Assembly (incls. Items NO.2, 18, 19, 20, 21 & 23)

by Whirlpool
Part Number AP3040929
MFG Part Number D-241837

Screw & Lock Washer Assembly 10-16 X 5/8 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041200
MFG Part Number SA-11-8

Door Gasket

by Whirlpool
Part Number AP2919527
MFG Part Number 4161631

Clip-Seal

by Whirlpool
Part Number AP3040932
MFG Part Number C-116010

Bumper-Door

by Whirlpool
Part Number AP3040933
MFG Part Number B-116101

Screw

by Whirlpool
Part Number AP2912066
MFG Part Number 693304

Protector-Upper Water Inlet

by Whirlpool
Part Number AP3040883
MFG Part Number D-116247

Speed Nut-NO.10, Type U

by Whirlpool
Part Number AP3040934
MFG Part Number B-240423

Clip-Corner Seal

by Whirlpool
Part Number AP3040879
MFG Part Number C-241592

Seal-Corner

by Whirlpool
Part Number AP3040935
MFG Part Number B-242352

Keeper-Latch

by Whirlpool
Part Number AP3041094
MFG Part Number 81218

Door Strike

by Whirlpool
Part Number AP3102317
MFG Part Number 4163607

Bracket-Top Panel Anchor

by Whirlpool
Part Number AP3040889
MFG Part Number C-240412-1

Self-Tapping Screw 10-16 X 1/2 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041213
MFG Part Number SD-17-13

Channel-Evaporation

by Whirlpool
Part Number AP3040877
MFG Part Number C-240649

Support-Evaporation Channel

by Whirlpool
Part Number AP3040876
MFG Part Number D-115912

Mach. Screw-NO.10-32 X 1/2`` Phil. Truss Hd., Ca Pt. ``taptite``

by Whirlpool
Part Number AP2930981
MFG Part Number C-240388

Frame Assembly Left

by Whirlpool
Part Number AP3040938
MFG Part Number D-241852

Cross Frame, Rear

by Whirlpool
Part Number AP2919543
MFG Part Number 4162867

Screw & Lock Washer Assembly 10-16 X 5/8 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041200
MFG Part Number SA-11-8

Frame Assembly Right

by Whirlpool
Part Number AP3040940
MFG Part Number D-241851

Self-Tapping Screw 1/4-20 X 1/2 Hex Washer Hd., Type Tt

by Whirlpool
Part Number AP3041103
MFG Part Number SD-33-90

Cross Frame-Front

by Whirlpool
Part Number AP3040942
MFG Part Number E-115370

Kick Board

by Whirlpool
Part Number AP3040943
MFG Part Number D-115957

Foot-Leveling Bolt (5/16``-18)

by Whirlpool
Part Number AP3041199
MFG Part Number C-241857

Xlock Washer-NO.10 Ext. Shakeproof

by Whirlpool
Part Number AP3135216
MFG Part Number WL-7-12

Self-Tapping Screw 10-32 X 3/8 Indented Hex Washer Hd., Type T

by Whirlpool
Part Number AP3041107
MFG Part Number SD-12-38

Enclosure-Electrical Supply

by Whirlpool
Part Number AP3040946
MFG Part Number C-115371

Screw

by Whirlpool
Part Number AP3040180
MFG Part Number 489355

Self-Tapping Screw 10-16 X 3/8 Phil. Truss Hd., Type Ab

by Whirlpool
Part Number AP3041095
MFG Part Number SD-26-25

Part Not Available

Plug Button-Tank

by Whirlpool
Part Number AP3040880
MFG Part Number M-83745

Part Not Available

Tank Dish

by Whirlpool
Part Number AP2920511
MFG Part Number 9741213
