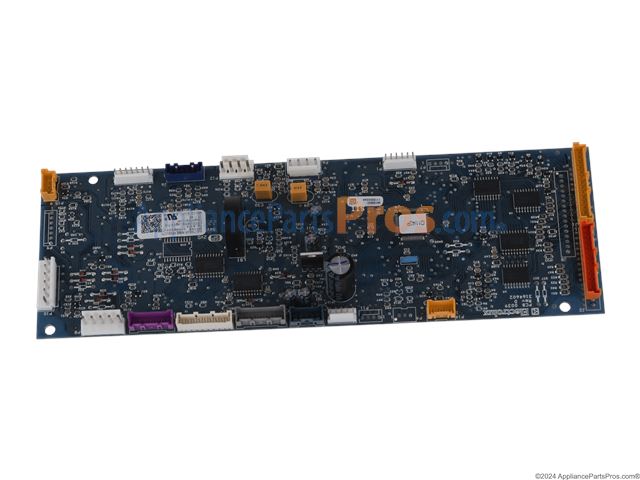

Part Number: AP3960187
MFG Part Number: 316443910
Made by: Frigidaire
Our Price
Regularly You Save
$208.67 $31.83

In Stock — Ships Tuesday Guaranteed

Questions & Answers

3 Questions & Answers

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and others. See all items in Range / Cooktop / Oven Control Board.
Electrolux also makes various appliance models for Sears / Kenmore

Appliance Compatibility Tool

Check your model number or use our Cross Reference Tool to determine if this part will work with your appliance.

Where can I find my model number?

Repair Help

Cross Reference Information

Part Number 316443910 (AP3960187) replaces 1197132, AH1528195, EA1528195, PS1528195.

Have a Repair Question?
AppliancePartsPros has your Answer!

Questions & Answers

Ask a Question

Most Interesting

I have a double oven Kenmore Elite. When the oven is started in either the warm up mode or the bake mode the elements click on and off so fast they don't hardly heat up. It take an hour for the oven to heat up. The oven works perfect in the broil mode. Can you suggest a solution.

Ron for Model Number 790497113604


Was this helpful?

My Kenmore Elite double oven will not hold the temperature in the upper oven. The lower oven works fine. I have never received an error code. When I set the temperature at 350°F, the digital readout displays the temperature as it goes up to 350°F and then the display stays at 350°F. Unfortunately, an oven thermometer inside the oven shows the temperature dropping down to around 225°F. If I start a new oven cycle the temperature is displayed starting at the 225°F until it goes up to 350°F. Then it behaves in the same way. One of your online assistants said the troubleshooting chart said it was either the controller or the temperature sensor. I asked if it could be the relay board and was told that didn't come up in the trouble shooting guide. My current controller is 316443837 and I was told AP4508430 was the replacement part so it was ordered. When the new controller was installed the oven behaved in the same way, so the controller is not the problem. So then I checked the resistance in both the upper and lower temperature sensors and they read the same. Since the lower oven works fine, I'm assuming the temperature sensor is not the issue. That leaves the relay board to question. My current relay board is 316443928A. Sears shows the replacement part to be 316443928. When I look up this part on your system it shows part # AP4365763 but it's "out of stock." I have not inquired about its availability but I am concerned it might not be the fix for the problem. I'm thinking the only other part that could be causing the problem would be the bottom heating element in the upper oven. When I turn the upper oven on the display shows the bottom element going on. After a short time it shows the upper heating element going on and then it shows the convection elements going on, so all 3 elements are used to bring the oven up to temperature. I can feel the heat from the convection and upper elements so I know they're working but I can't tell if the bottom element is working since it's hidden under the oven floor. When 350°F is reached, the elements are turned off. To retain the heat an element must be turned on sometime but it never is, so the temperature drops. Does this mean the bottom element could be bad or is it the relay board that is not turning it on? The online assistant said there should be a tech sheet available with instructions for running in diagnostic mode. Since I have never seen an error code, I'm thinking that would be a real time saver. I need this oven fixed for the holidays so what do I do? Please, can you provide me with assistance? Thanks, Mike

Mike for Model Number Kenmore Elite Double Oven 790.48143800


Was this helpful?

The upper oven of my Kenmore double wall oven works in all modes, except it continually beeps until I shut it off. The lower oven works normally. I've had the temp sensor (part# 316217002) and one of the control boards (parts# 316443910) replaced, to no avail. Your thoughts?

Larry for Model Number 790.42003600


Was this helpful?
