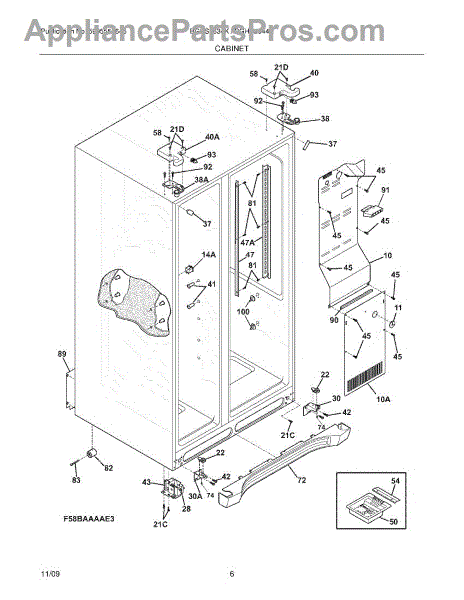

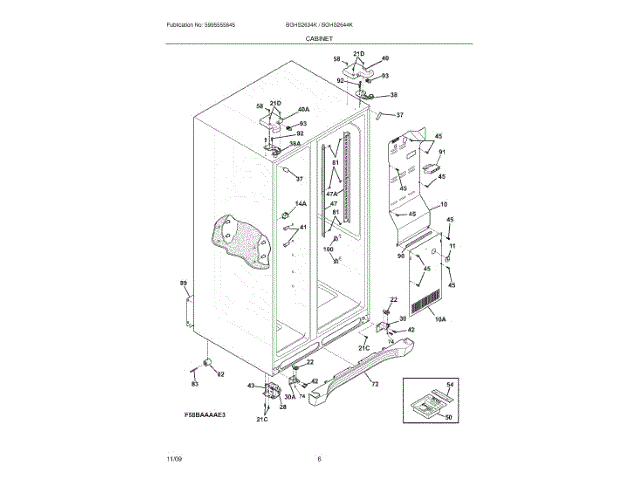

I need to replace the main control board 5303918514. Where is it located? I saw part # 50 in the small box, but not in the drawing itself. Can you be a little more specific? Thanks.
Answer Chris, the 5303918514 Main control / switch board, is located on the bottom of the refrigerator, behind the lower vent grill on the refrigerator/right side of the cabinet. You will find it easier to work with if you raise the front of the refrigerator a couple of inches off the floor and block the refrigerator up.
The two interior lights and the ice dispenser light is not working. What is the problem?
If the issue with the unit is that none of the interior lights are working then you would want to replace the main control board 5303918514.
