we have our stove locked in self clean but can not turn it off and will not work by holding clear button we can open oven door but can not get self turned off to use showing code f9 the clock works fine but I think that part of printed circut is out am I on the right track and need to replace clock unit.
Answer Hello Charles,
You would want to check the wiring between Clock and Lock motor. Also check for binding of the latch cam, lock motor rod and lock motor cam. Check to see if the lock motor coil is open and if open replace the lock motor assembly 5304447728. Check to see if the motor is continuously running if the micro swithc is open replace lock motor assembly. check the oven door light switch to see if it is an open switch when closed. If open when the door is closed then replace switch. If all these do not solve then replace clock assembly 316207526.
Turn on right side burner then control panel goes out. I unplug oven then plug back in to get clock to come on. Whats wrong ? Do I need a new control panel ?

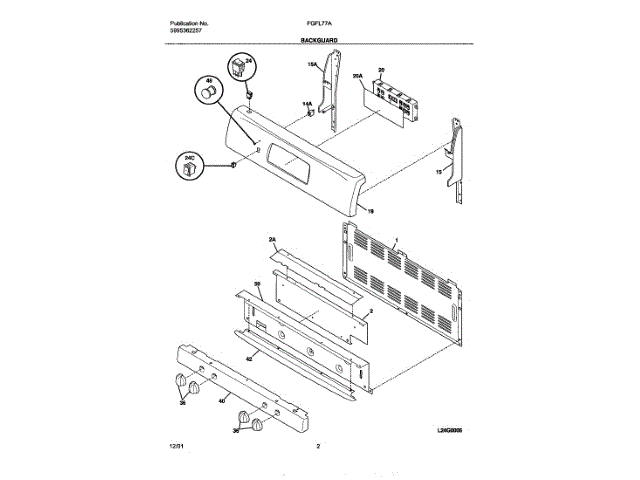

Answer Hi Jeff. This sounds you have a direct short. You may need to get a qualified service technician to assist you if you do not feel comfortable. Remove the power. Then remove the back guard and see if you have the wiring diagram. It will be there or by the drawer after you remove the drawer. It is also easier to remove the door and then pull the unit out. Make sure your 120 vac power cord is tight at the terminal block. Then remove the knobs, end caps and the switch panel. Inspect the switch to see if a wire is touching the frame or chassis. Let us know if you need the switch part # 316219004 , or the clock control part # 316207526. Thank You.
