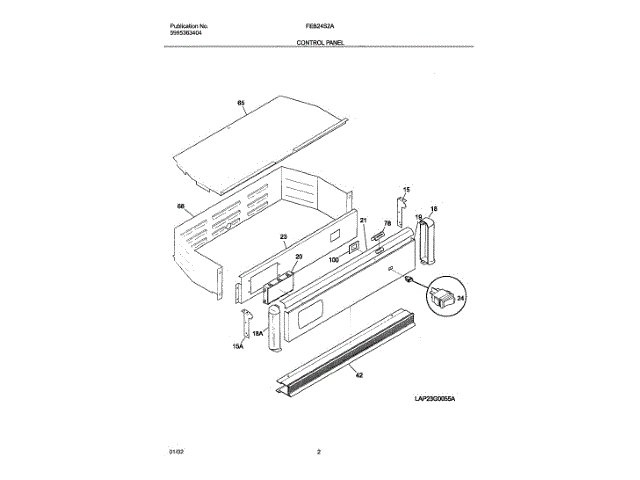

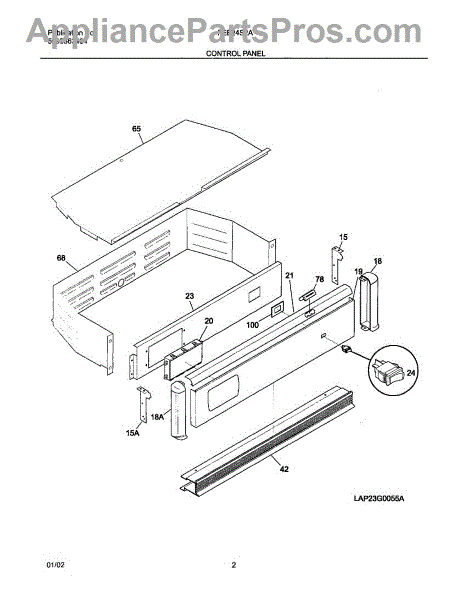

On part #903091-9051 what do you do with the wire lead that comes with this kit?
Unfortunately we do not have information on the part or wire lead that comes with the kit. If they add a jumper wire then they most likely would add a instruction sheet that would tell were the wire goes but we do not have information on it.
just received new timer. old timer has 3 spade plugs new timer replacement has 5 spade plugs. both timers have bake and broil. both have a j1 plug for thermostat. old timer has 1 plug marked line. new timer has L1 plug L2 in plug and L2 out plug. which plugs do i not use? old part number ap3970113 new part number 903091-9051. replacement. thanks buddy
Answer Buddy, You would not use the L2 IN (P5) or the L2 OUT (P6) terminals on the replacement clock. The Black (L1) wire will attach to the L1(P4) terminal, the Blue wire from the broil element will attach to the Broil(P1) terminal, and the Yellow wire from the bake element will attach to the Bake(P2) terminals, and the J1 harness connector will attach to the J1 pins on the new control.
