How to replace element oem
Answer Ray, You will need to remove power to the range, and slide it out of the cabinet. How to access the control panel • Remove the screw on each side. Open the oven door, • Remove the two screws under the console. • Pull down the console.• Remove the screw on both side
of the console. • To be able to flip over the control panel, remove the screws on both brackets located under the control panel, at the front.

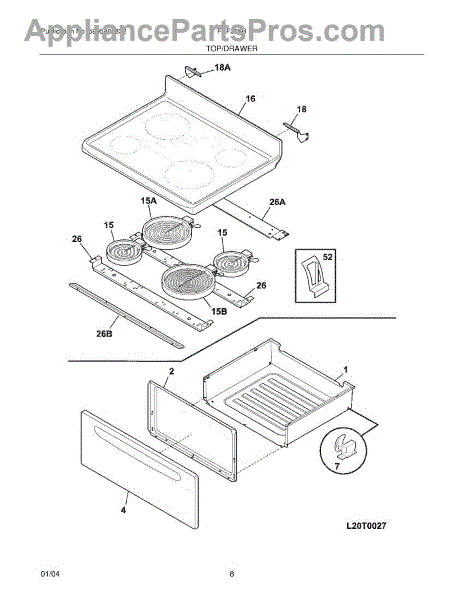

How to reach the cooktop Surface Elements • Remove the control panel. • Remove the four screws on the front on the burner box (two on
both side). • Pull up on the entire burner box and in order reach the surface elements, just flip over the burner box. Surface Elements
• Unscrew the burner box from all sides. • Remove the burner box from the glass top. Remove • the retainer bar by applying pressure to the extremity and pulling the anchorage away from the retainer bar in order to free the surface element. • Follow these steps backward in order to re-assemble the cooktop and the control panel.
