Part Number:	AP5630356
MFG Part Number:	137518800
Made by:	Frigidaire

Our Price
$4.35
Regularly	You Save
~~$5.18~~	$0.83

In Stock — Ships Tuesday Guaranteed

Quantity

Questions & Answers

5 Questions & Answers

Made by Frigidaire. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and others.
Electrolux also makes various appliance models for Sears / Kenmore

Appliance Compatibility Tool

Check your model number or use our Cross Reference Tool to find out if this part will work with your appliance.

Where can I find my model number?

Zoom

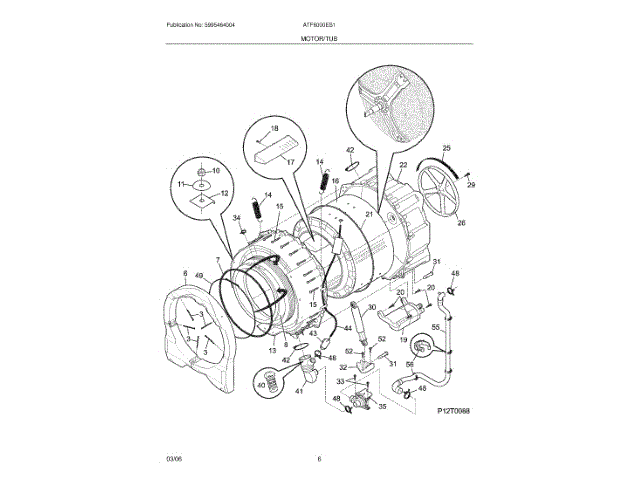

Part Diagram

More Product Images

Repair Q&A

Cross Reference Information

Part Number 137518800 (AP5630356) replaces 134885800, 134565200.

Have a Repair Question?
AppliancePartsPros has your Answer!

Most Interesting

Note: This question is for the older version of this part, but we thought you might still find it helpful

My door on my Asco 11505 front load washer will not unlock (wet clothes inside). I removed the front, drained it and looked for a manual pull ring but could not find one. I tried to turn it on but now it will not turn on at all. Does anyone know how to get the door to unlock? Thank you

Waveydavey for Model Number Asco 11505 front load washer

Answer Hi. If you can pop off the door latch solenoid cover, you can physically cycle the solenoid plunger and release the door striker/Handle so it will unlock the door. Unfortunately at this time we do not offer ASKO parts. Thank You.

Was this helpful?

Yes

Note: This question is for the older version of this part, but we thought you might still find it helpful

I removed a clog from the 3 opening. Black rubber drain gasket attached with a green metal circle clamp to the Askoll pump Mod.M2222-5. The clog(coins, paper clips, and a sock) was actually inside the loose hard plastic filter cup with drain holes (part # 134565200 replaced by AP 4298707.)It was filled with the aforementioned items. I pulled out this plastic filter to empty it and cannot figure out how to get it back to its proper place? Thanks for any advice

Wavey D. for Model Number Frigidaire front load I believe GLTF2940FS2

Answer Hi Wavey. The sump filter part # 137518800 installs in the top of the pump intake/ sump hose. It is carefully installed in the 3-rd ring area from the top. Thank You.

Was this helpful?

Yes

Note: This question is for the older version of this part, but we thought you might still find it helpful

I have had problems with my machine (Frigidaire GLTF2940FS2) not draining, stopping mid cycle. I checked the rubber boot going to the pump that drains the water - cleaned it all out. My guess is my problem might be the door lock assembly - does this sound logical? Also, the filter shown (AP4298707) is in no way the same as the one I found - mine appears to be solid -

Joe for Model Number GLTF2940FS2

Answer Hello Joe. Test for power coming to the drain pump assembly 137221600. If there is power there, and the hoses are clear, and the water does not pump out, you will need to replace the drain pump assembly in the unit. Make sure the filter cup and the hose going to the stand pipe are clear and not clogged. You can test this with a multi-meter TJMA-DMT3. Here is a link on how to use a multi-meter. Hope this helps. http://forum.appliancepartspros.com/oven-repair-including-ranges-cooktops/4810-how-check-continuity-ohmmeter.html

Was this helpful?

Yes

Latest Questions

Note: This question is for the older version of this part, but we thought you might still find it helpful

My washer is used in an environment that the filter gets plugged and a service call to clean out is needed again. Is there a sort of simple way to get the back off and remove filter and pull out the clog of dog hair? Or a engineering change so customer can change it periodically. thanks in advance glenn

Glenn S. for Model Number ltf7000eso

Answer Hello Glenn. We have no way to provide you with any type of modification for the filter. You can use this answer was located on our Repair Forum, this is a free service in which technicians will assist with answering repair questions for our customers. Please use this link to assist in your repair: http://forum.appliancepartspros.com/washer-repair/209967-washer-doesnt-drain.html . Thanks!

Was this helpful?

Yes

Note: This question is for the older version of this part, but we thought you might still find it helpful

Will the filter cause the pump from working or draing properly?

Joseph

Answer Hello Joseph. Yes, if the filter is clogged, the pump will not drain properly. Hope this helps.

Was this helpful?

Yes

Part Number: AP5630356
Manufacturer's Part Number: 137518800
